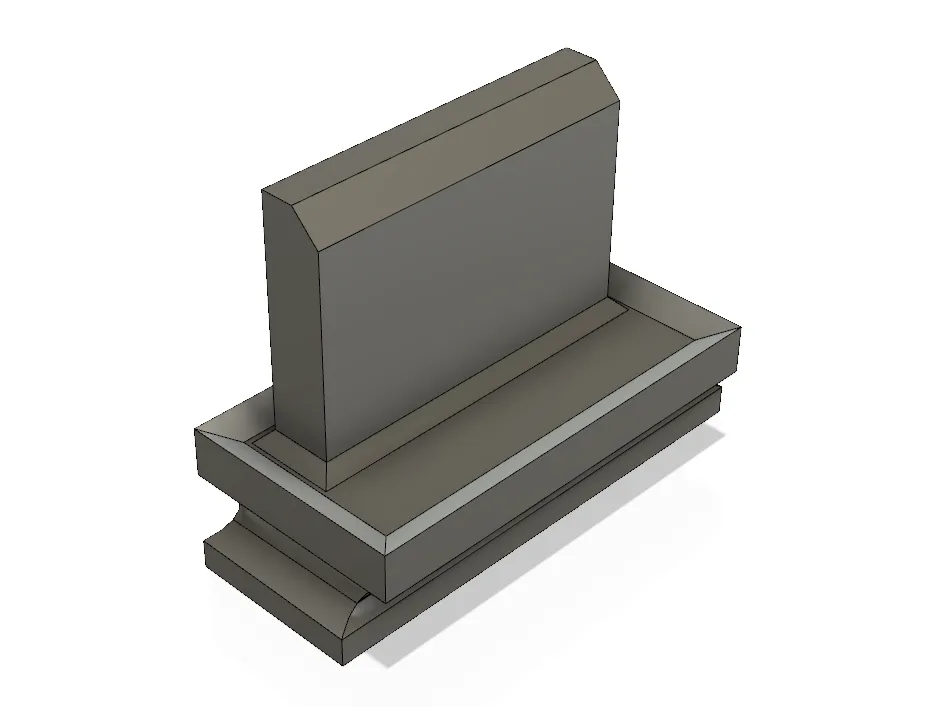

USB plug v2
Đã thêm váy cạnh để giảm thiểu khoảng cách quang học giữa phích cắm và thiết bị. Cải thiện điện trở vết nứt khi phích cắm bên trong USB-A.
859
Lượt Xem
27
Lượt Thích
292
Lượt Tải
Cập Nhật Nov 22, 2025
Mô tả
Physical size
18 x 12 x 8 mm
Compatibility
USB-A female connectors

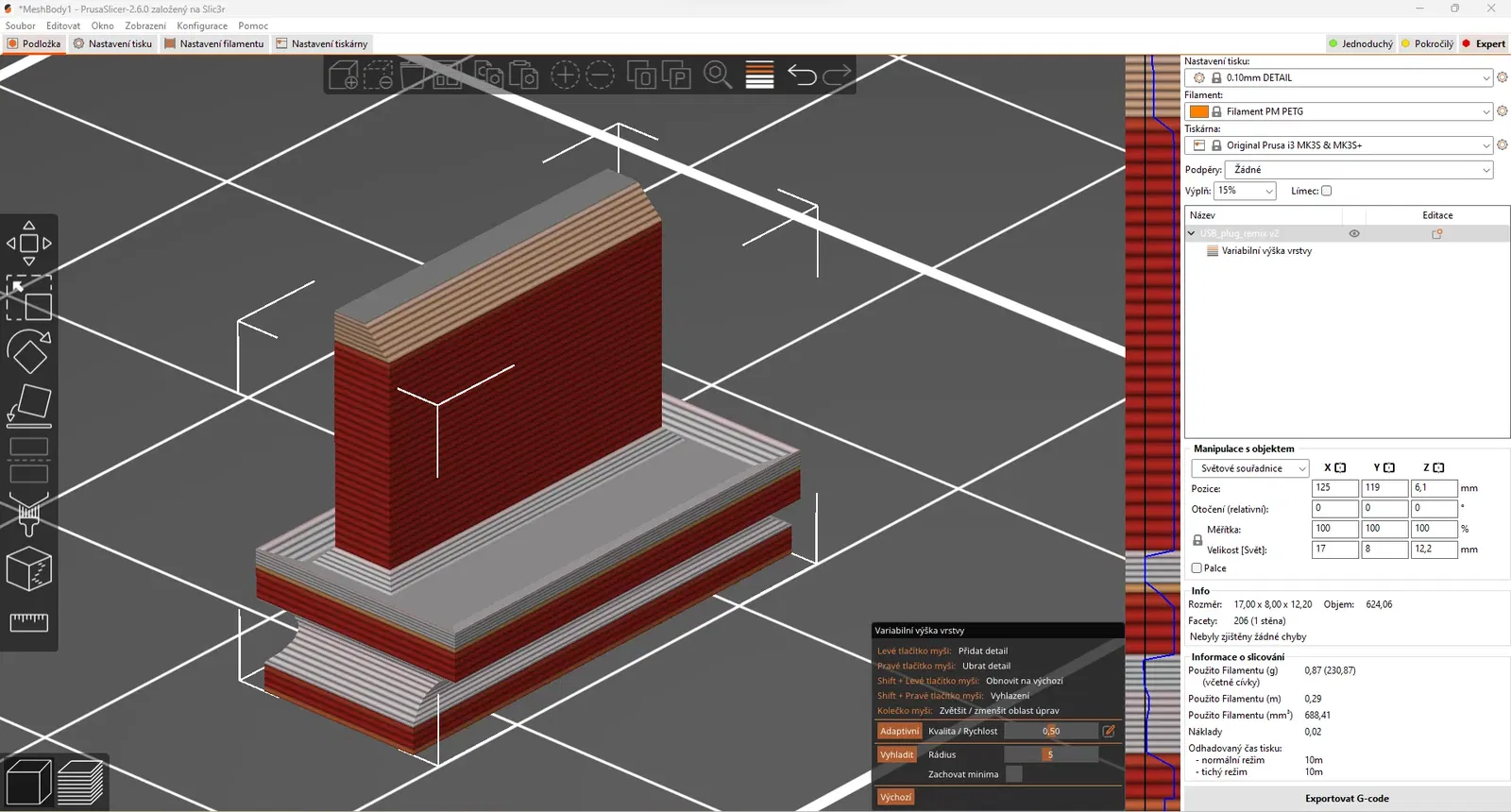

Print info
Should be a semi-easy print overall. Most hardest part of a print for printer is the overhang but due to its minimal size, modern printers should not have a problem.
| Material * | PETG; FLEX could be interesting |
|---|---|
| Layer height | 0,1 mm + default variable |
| Infill | 30 - 100% |
| Supports | default (not needed) |
| Nozzle | default (0,4 mm) |
| Duration | ± 10 mins (Prusa MK3S - 100% speed) |
- PLA only with brim. If you plan to print more pieces, then test the brim offset setting first (0,6 mm could be fine) for easy peel-off from a plug after print. Otherwise you'll need to use knife and thats annoying.
If you like my remix…
…please click "like", and post a make. This will help me to win some prusameters, and help other makers decide if this is a useful model. Thanks.
