Sovol SV06 5015 cooling bracket

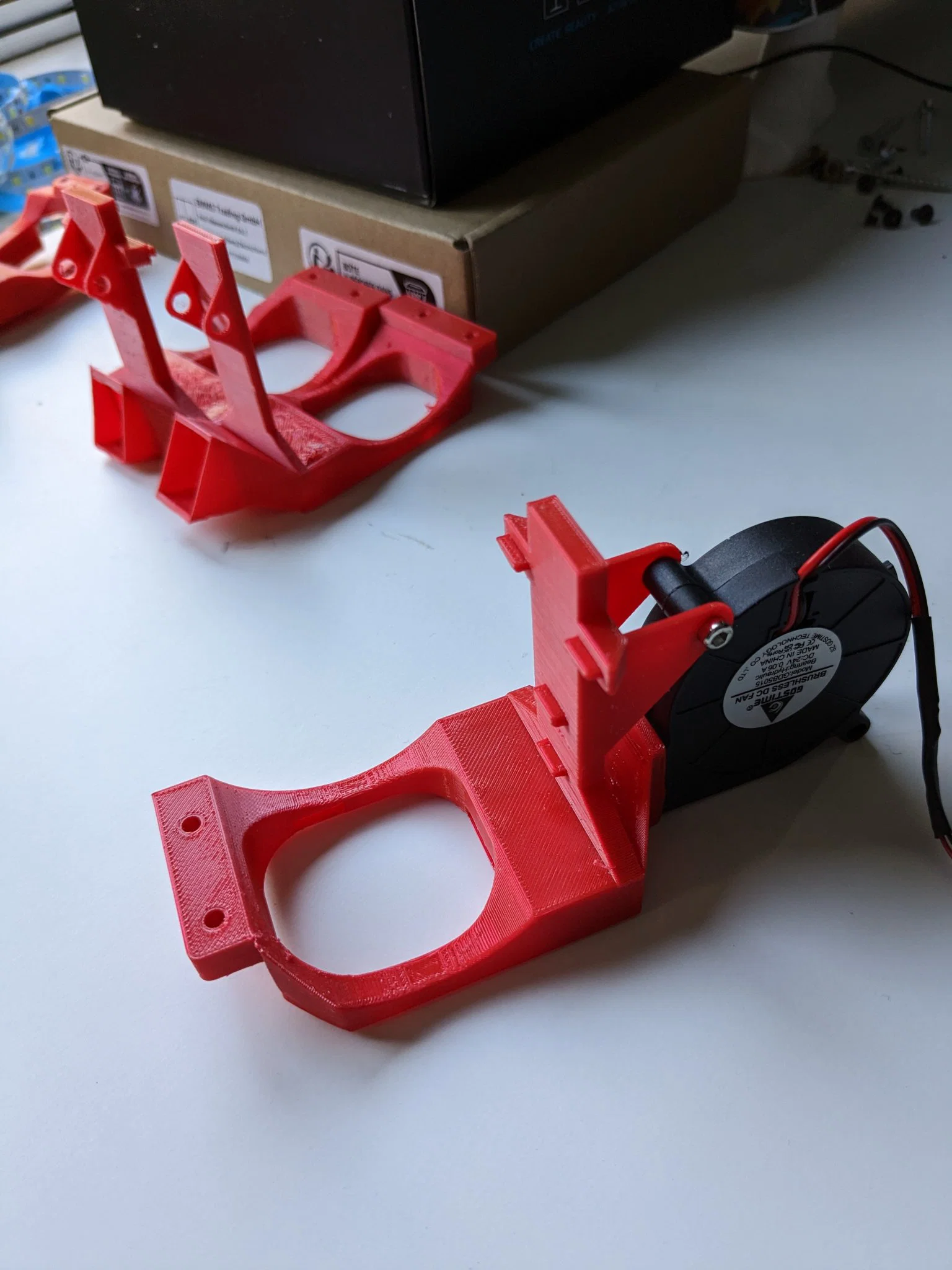

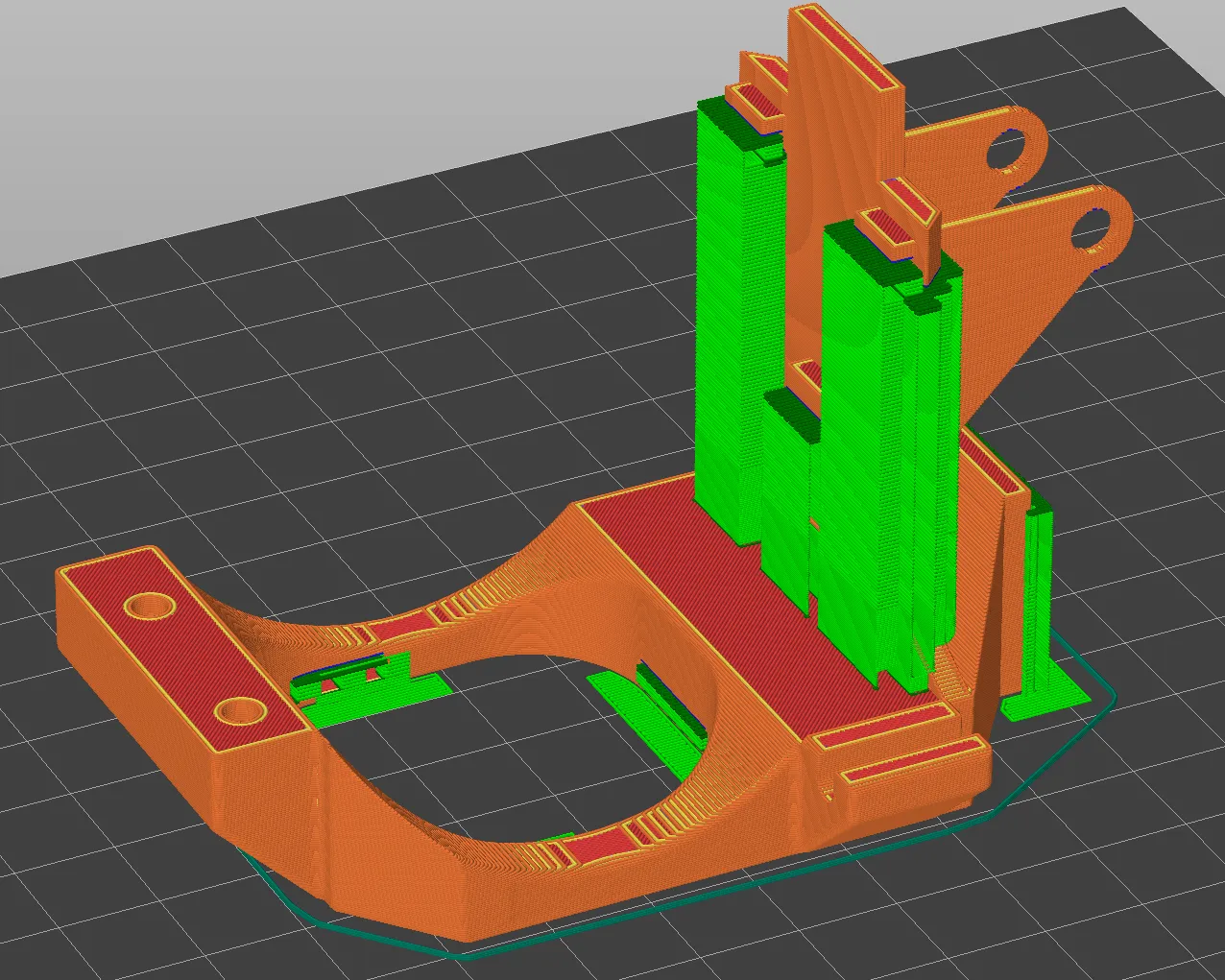

After having a bit of clearance issues with other cooling brackets, i designed my own. This bracket sits a few mm's higher so there's no interference with the print. On the bottom it is complete flat, so there's not too many weird supports needed. The internal volume is also structured so no need for internal supports to be printed. The only supports required are for the tiny air holes and the 4 plugs on the backside.

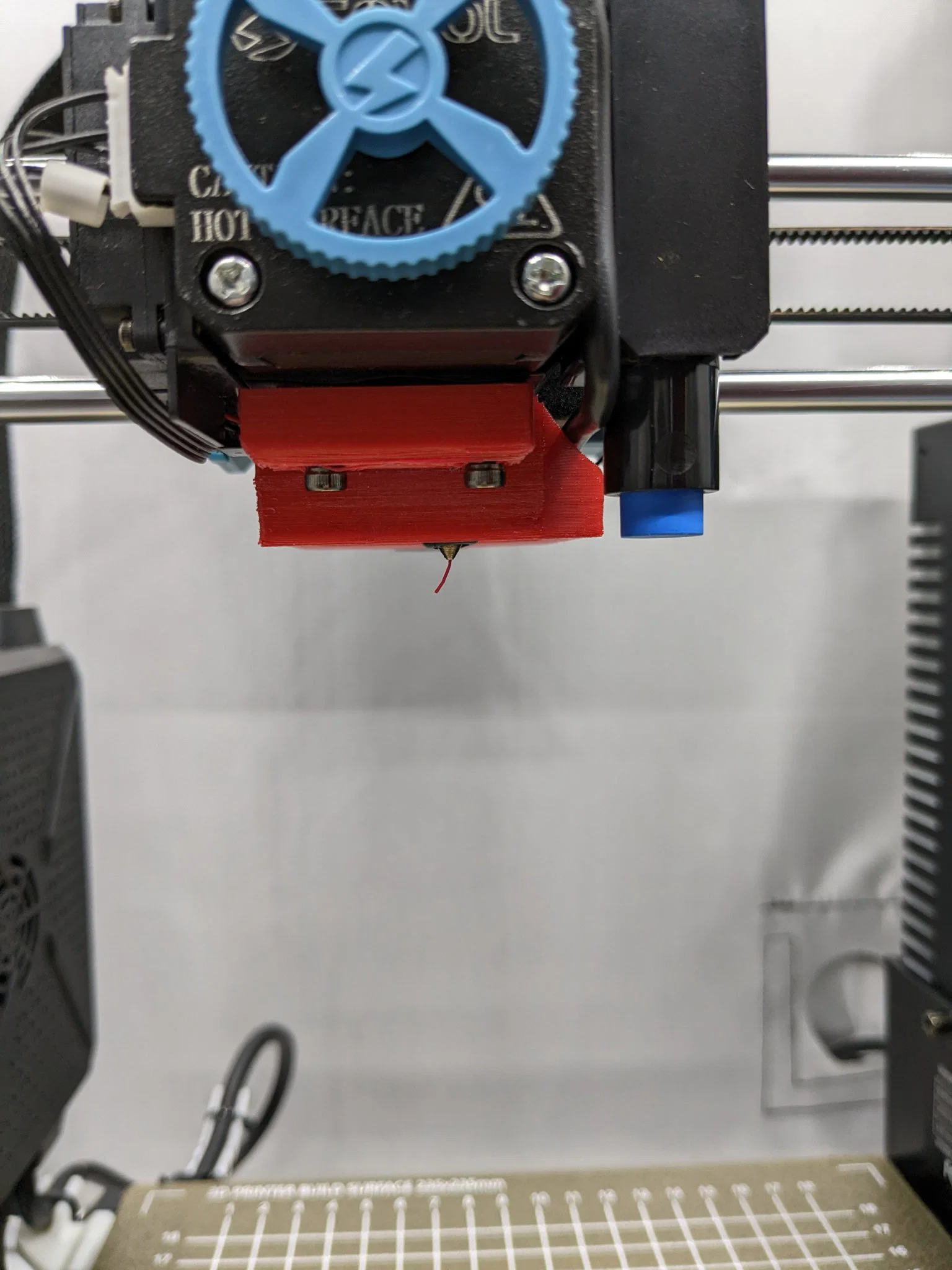

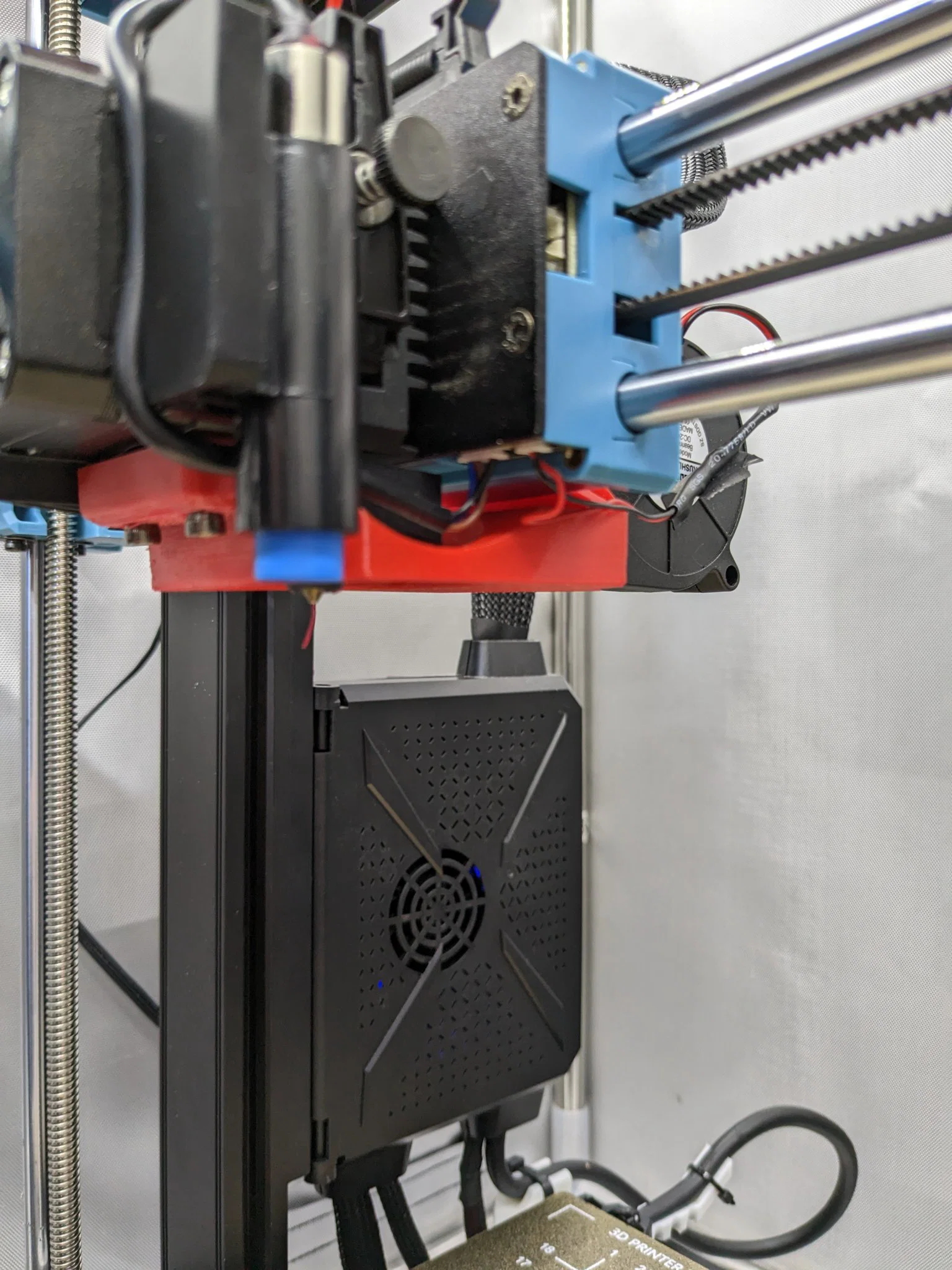

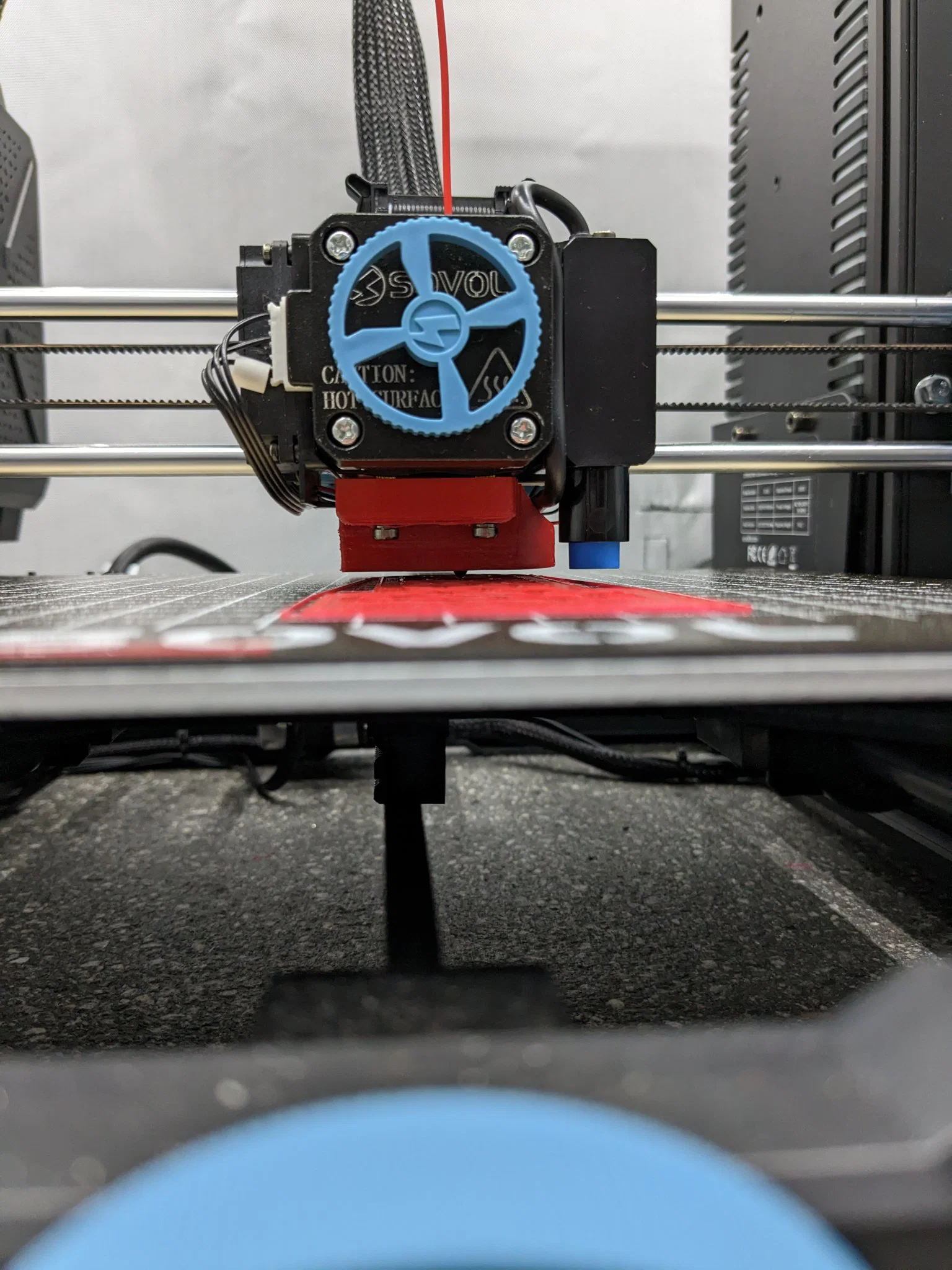

The model fits in place by hooking it to the backside of the hot end rig and then bolting it into place with 2 bots, in threads used by the original cooling fan. So, a very easy installation!
