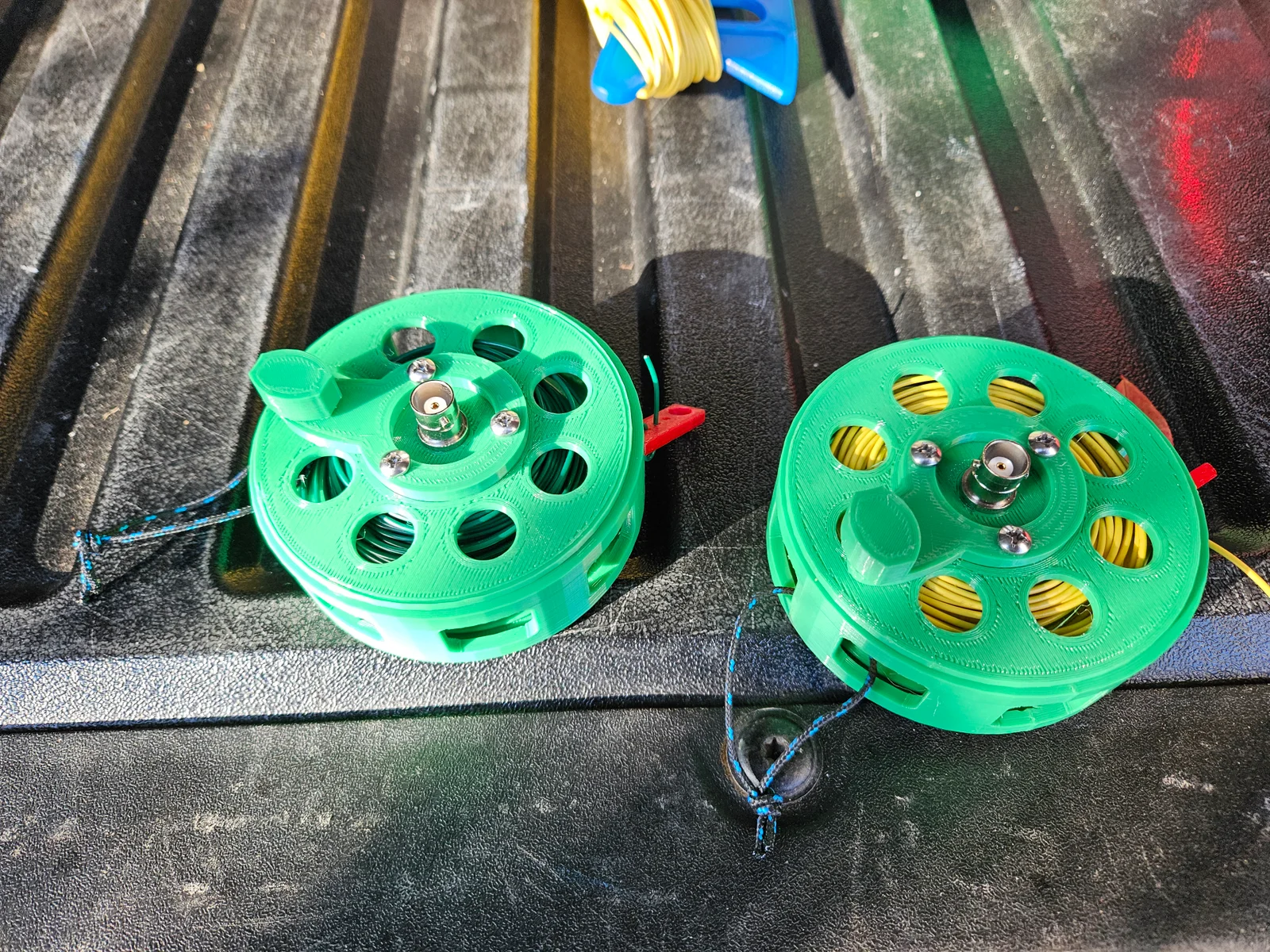

Ăng-ten Digitenna đã được cải tiến

This is designed for the FT-82-43 torroid, which I got from Amazon - https://amzn.to/3KDiDdo
A 150pf Capacitor.  I got this kit - https://amzn.to/4orASAj
22 AWG magnet wire - https://amzn.to/4iwDZ8N
BNC female connector chassis - https://amzn.to/4iCZfdc
#6-5/8  stainless screws.

I like the antenna 24 gauge wire from DX engineering and the 26 gauge sotabeams wire.

3 primary turns and another 21 secondary for a total of 24.  You do not need to do the typical crossover wind.

80 meter version for an FT-140-43 coming.

*N3DLU designed a new handle in two parts, as mine was hard to print and free up.  New file in list.
