Wyze Cam OG downward bracket with GoPro mount

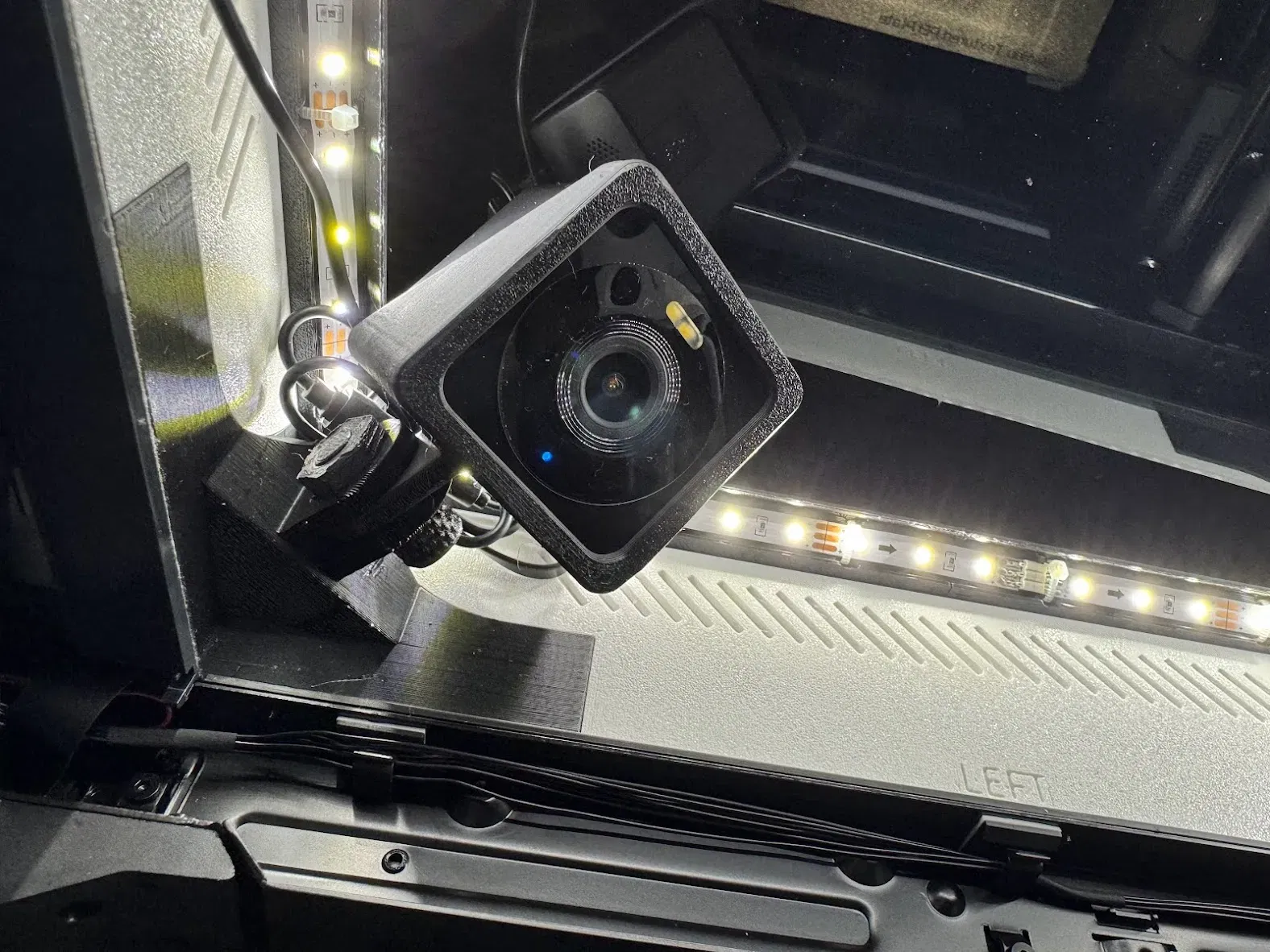

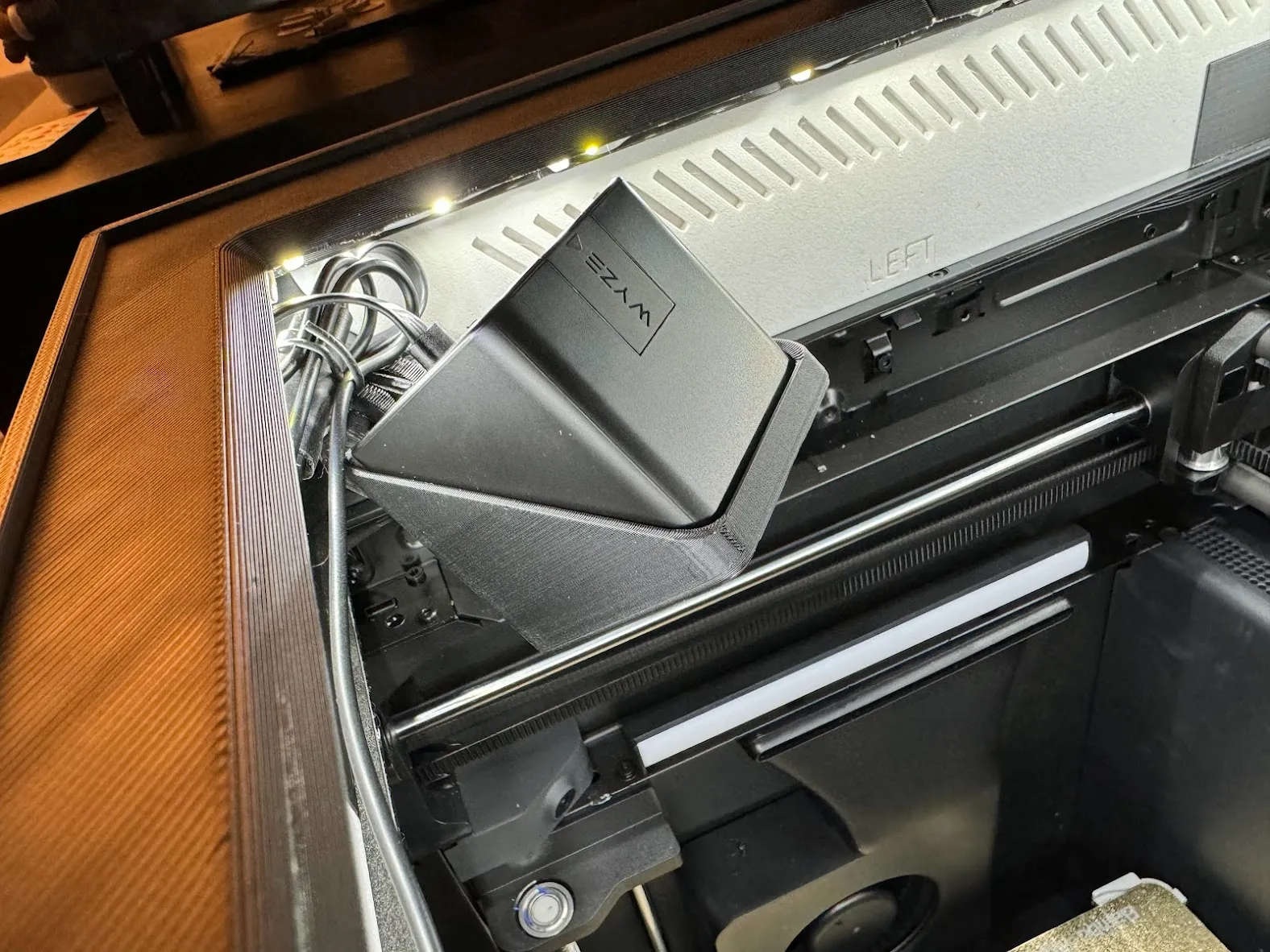

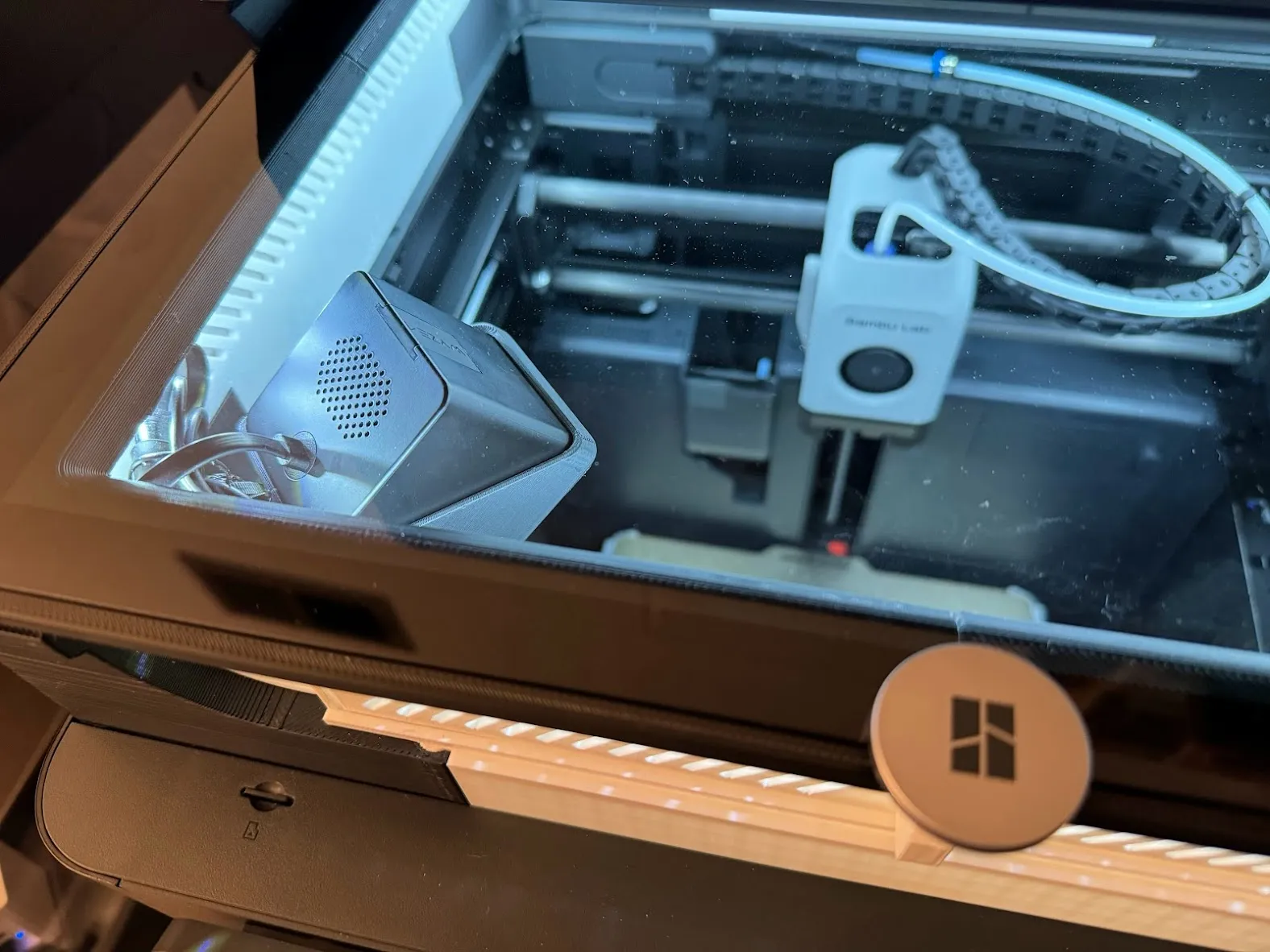

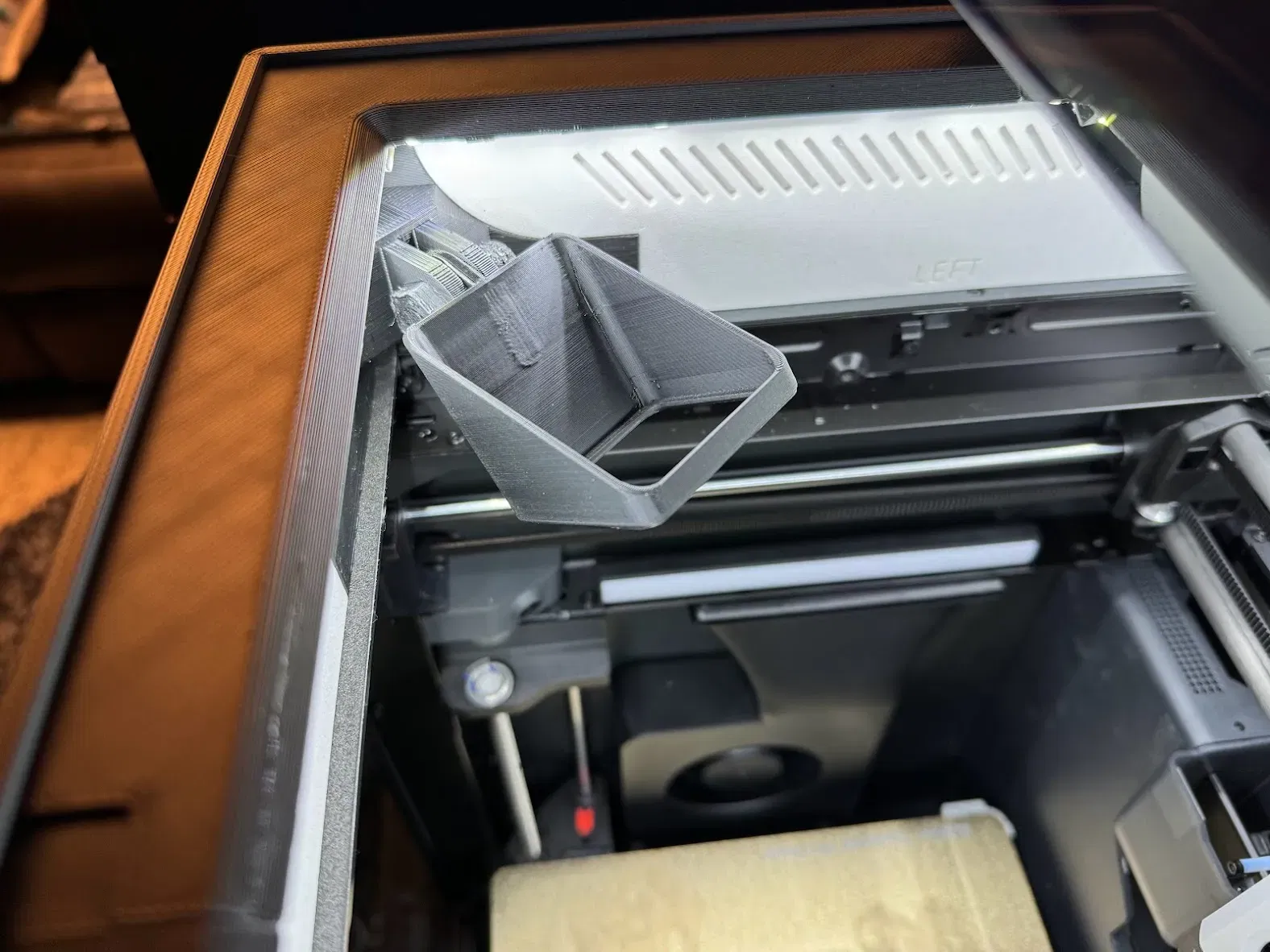

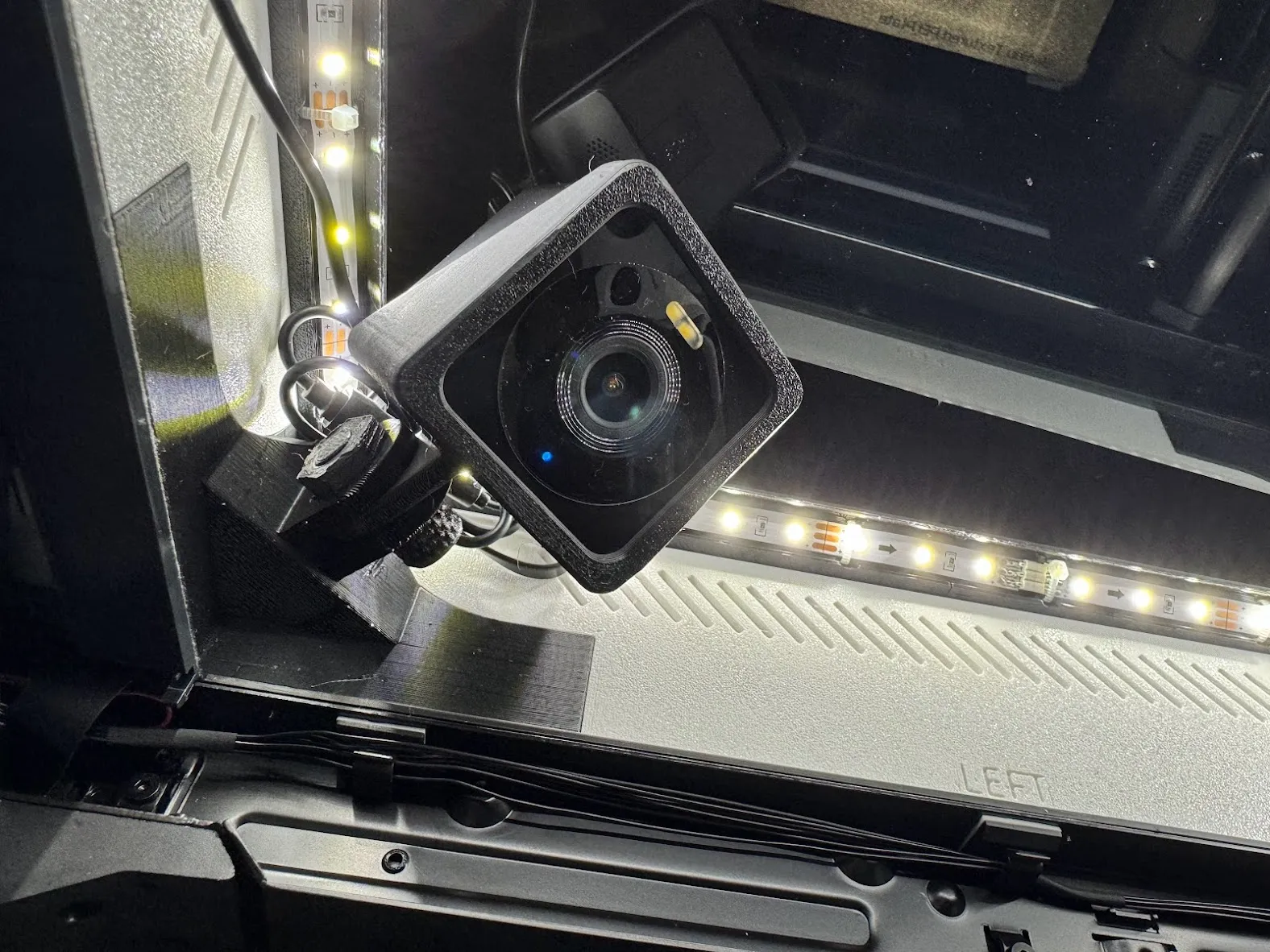

This is a simple mounting bracket to hold a Wyze Cam OG in a downward facing orientation. The bracket is attached by a GoPro style mounting ring system.

The bracket is sized for a Wyze Cam OG:

• 49x49x49mm
• 5mm corner radius

I've included 2 versions. Each with 2 variations for with clip or no clip.

• GoPro standard mounting ring
  • 5.5mm hole
  • 15mm ring width
• 10mm hole mounting ring
  • 10mm hole
  • 25mm ring width

Version 1's dimension is intended to fit with any standard GoPro mounting rings. Version 2's dimension is intended to fit into the mounting rings found in Jeffrey Smith's Bambu AMS riser.

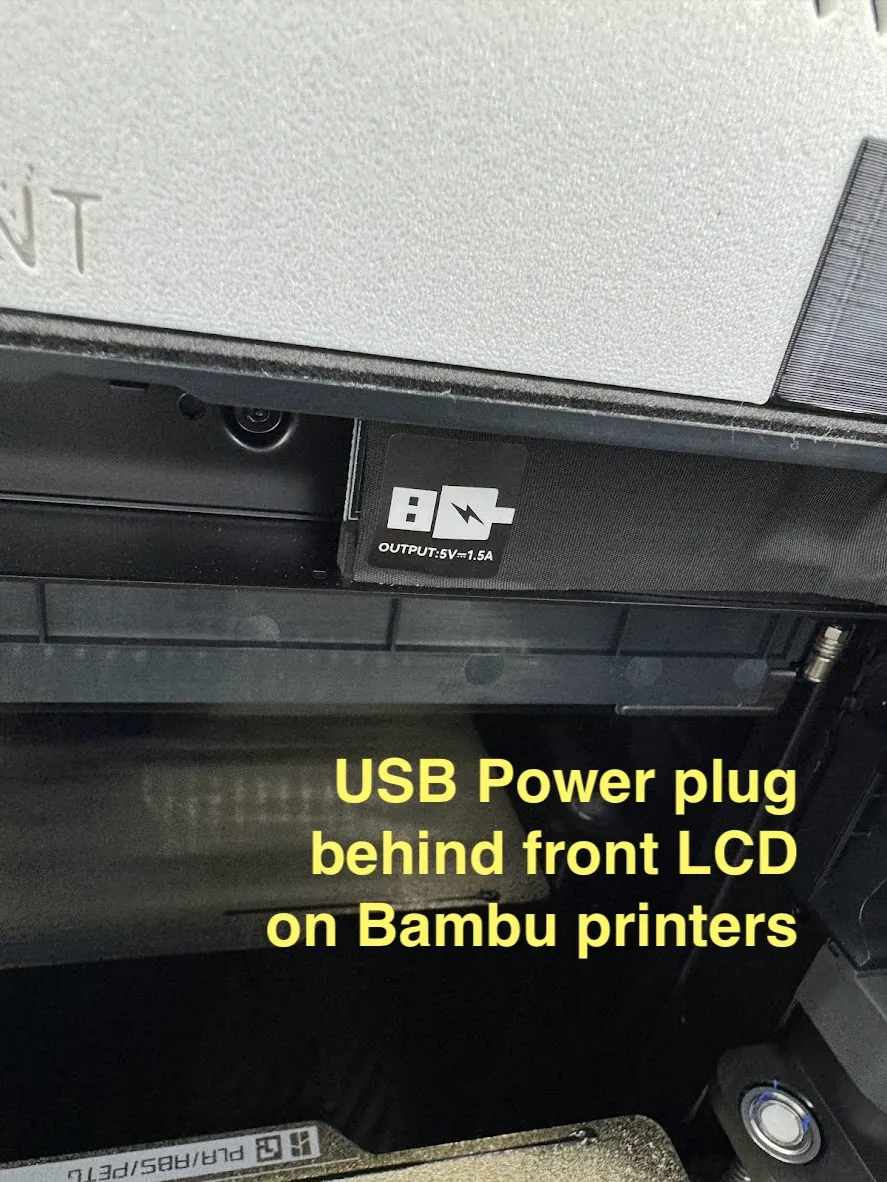

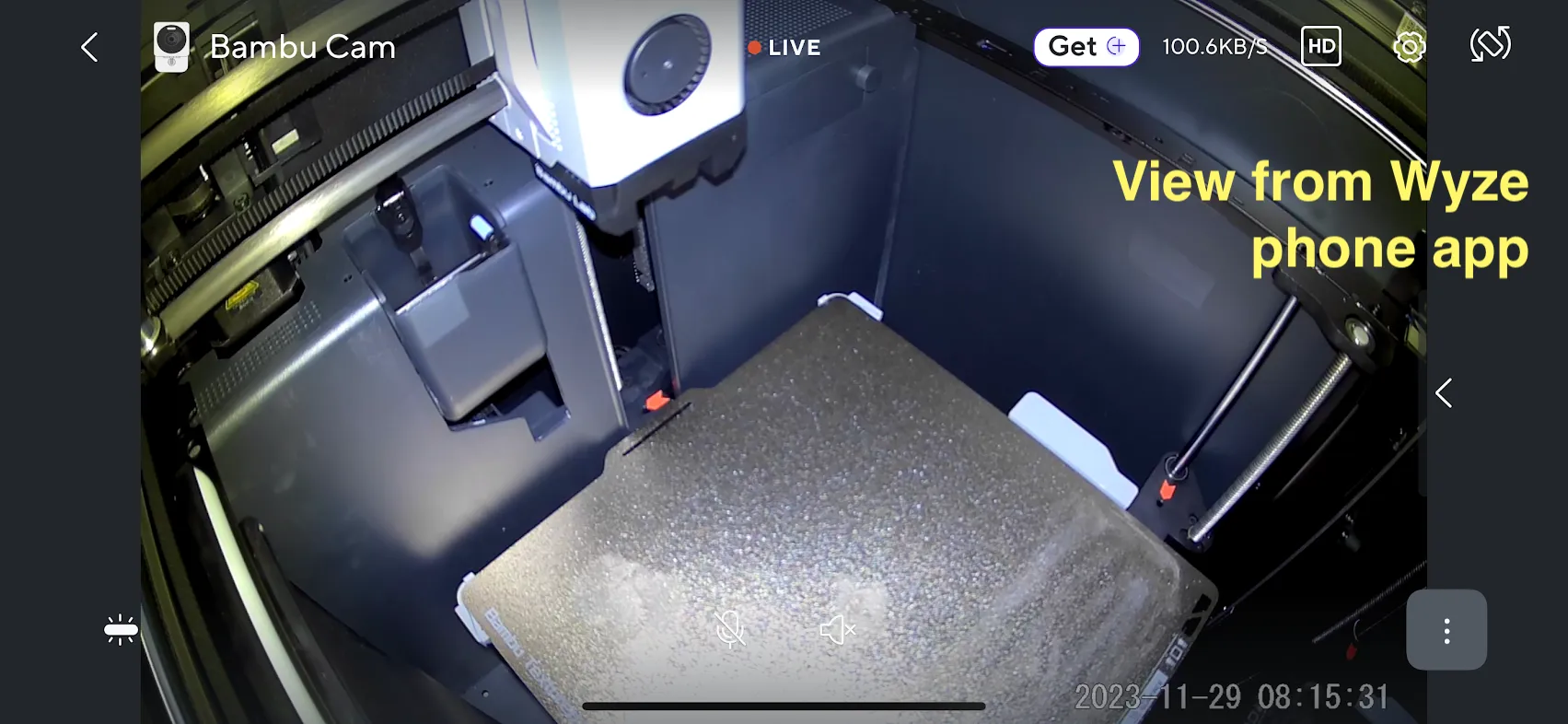

I've included a sample photo of how the view from the camera's mounting look like from within my Bambu P1S. I was also pleasantly surprised to find that the Bambu P1S/P1P has a USB power port right behind the LCD screen. Rated for 5V 1.5A, it can comfortably power the Wyze Cam OG without requiring external cable running into the printer.
