Magnetic front bin for Prusa i3

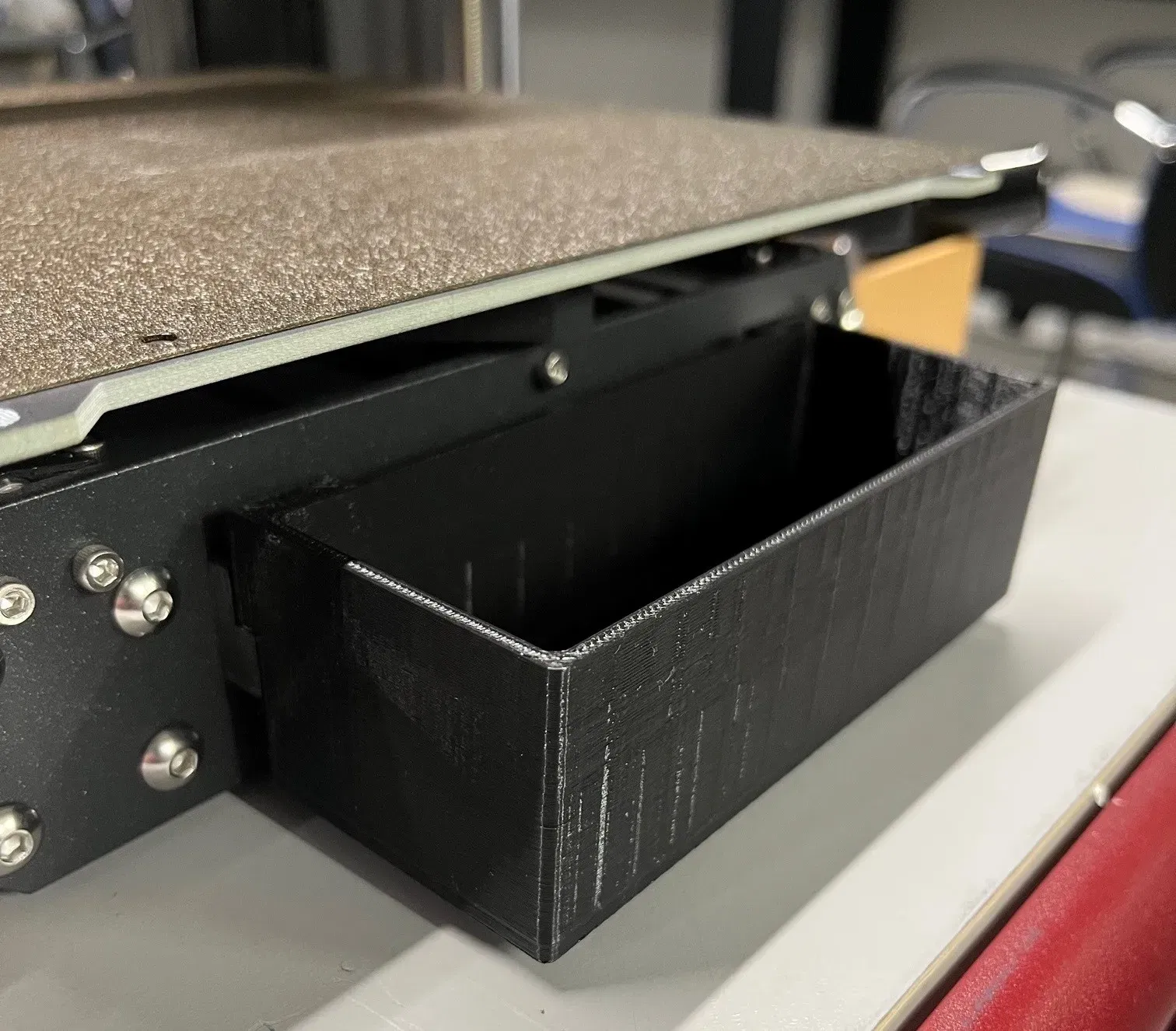

This magnetic little bin will fit in front of your Prusa i3 without LCD. I use a Duet2 Wifi on my machine and therefor don't have a front LCD like classic Prusa. I wanted to make use of that space and designed a small bin for leftover trash, support etc from print.

Parts needed

• 2* M3x12 countersunk screws
• 2* M3x16 countersunk screws
• 4* M3 nuts
• 4* 6x1mm neodyme magnets

Assembly

Glue the 4 magnets to the dedicated holes on the holders and the bin.

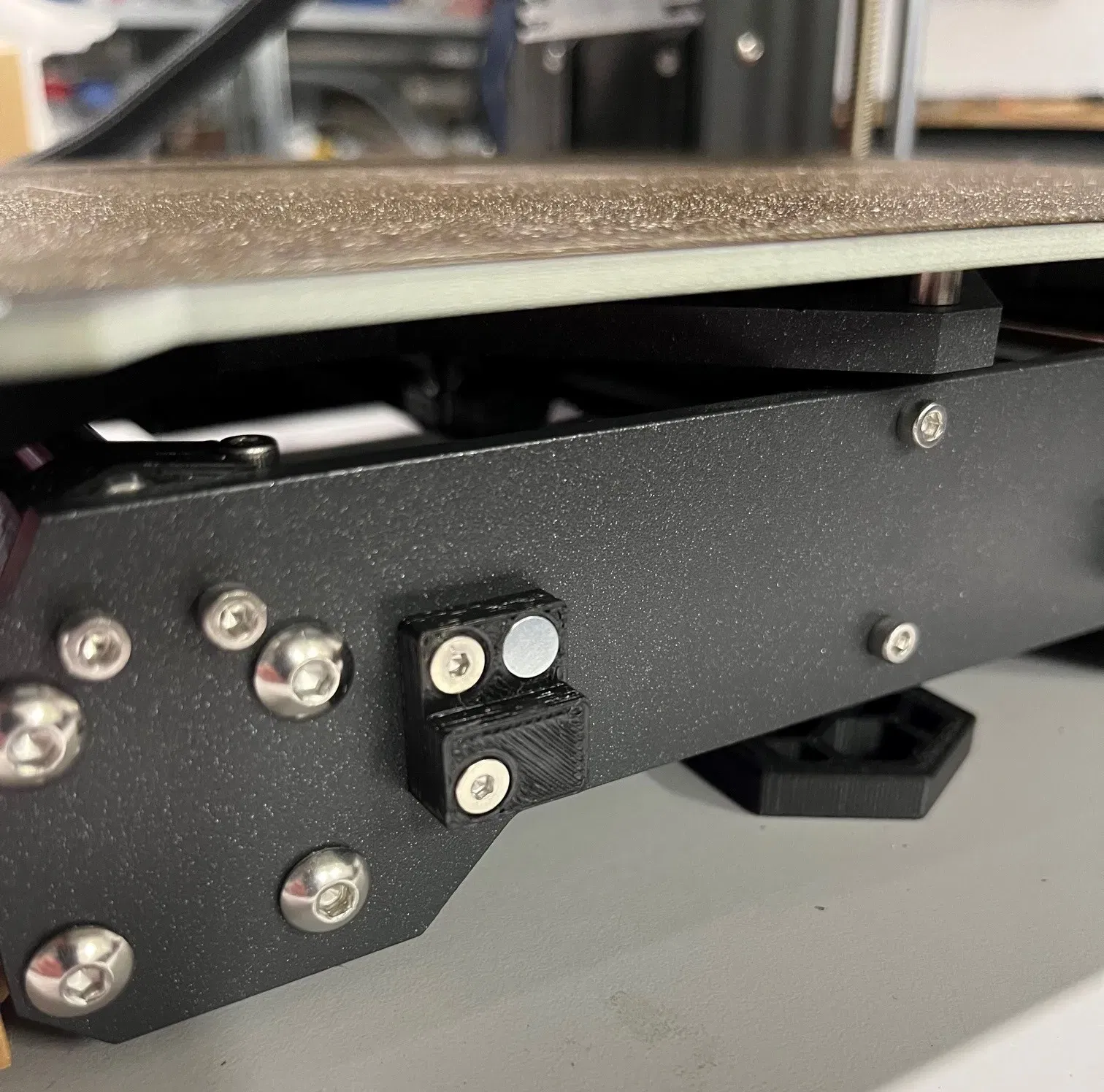

Screw the two holder to the front holes using M3 countersunk screws and nuts.

Place the bin on the holders, it should fit in place correctly.
