Gravity Broom Holder - Fully Captive Gear, Extended Range

Tác giả JoeMalovich

Lượt tải
1.104
Lượt thích
206
Lượt coi
3.501
Bản remix
1
Bình luận
39

File 3 1,4 MB

  • BroomHolder_Extended_Captive_1765620979.stlSTL · 461,5 KB
  • BroomHolder_Extended_Captive_1765620980.stepSTEP · 658,6 KB
  • BroomHolder_Solid_Gear_1765620981.stlSTL · 265 KB

Tạo biến thể bằng AI

Dựng một phiên bản khác của mẫu này.

Mở Studio

Các phiên bản remix 1

Coi hết 1 bản remix

Thông tin

Mã mẫu
#71263
Danh mục
Đồ Gia Dụng
Ngày đăng

Mô tả

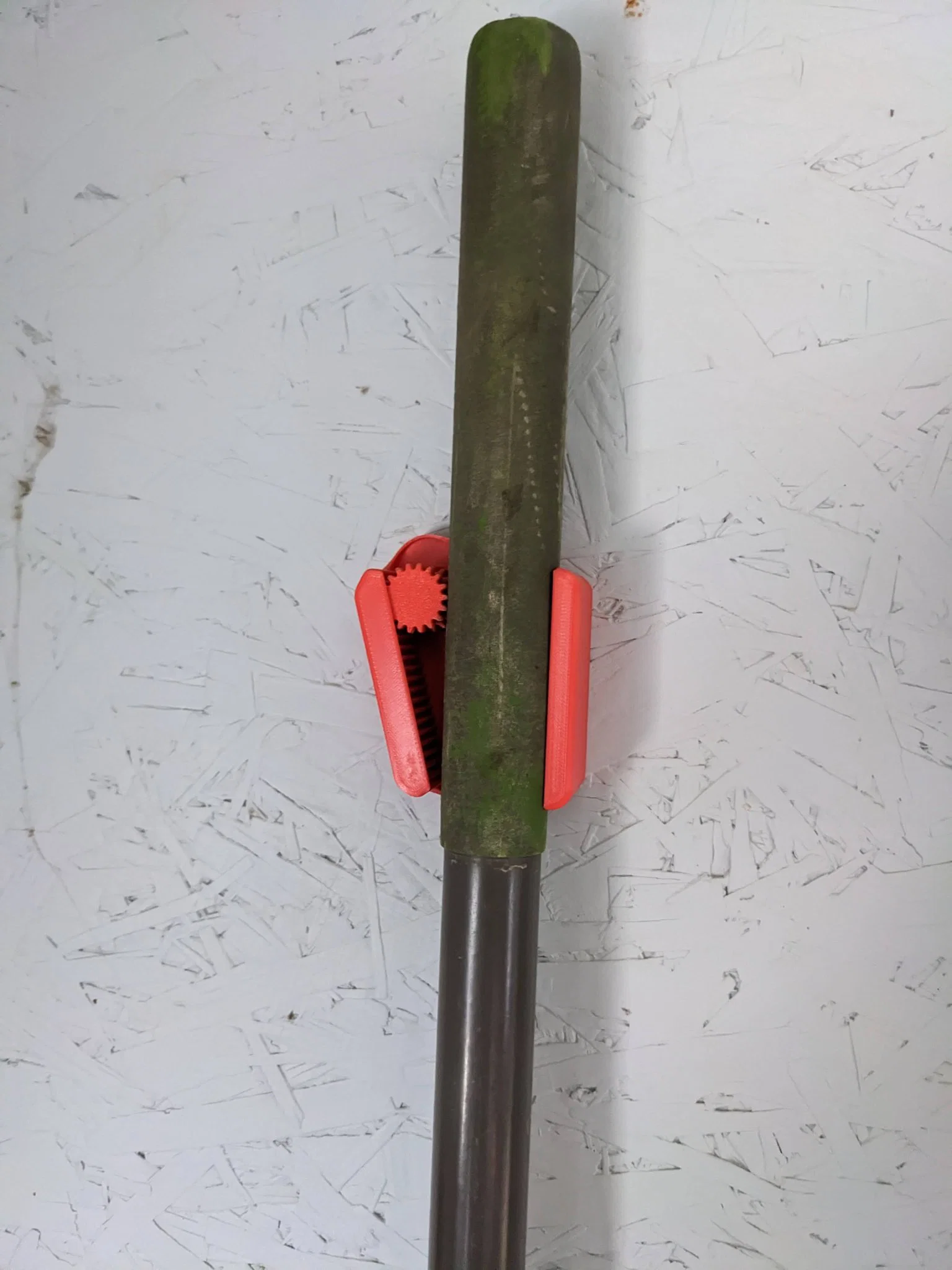

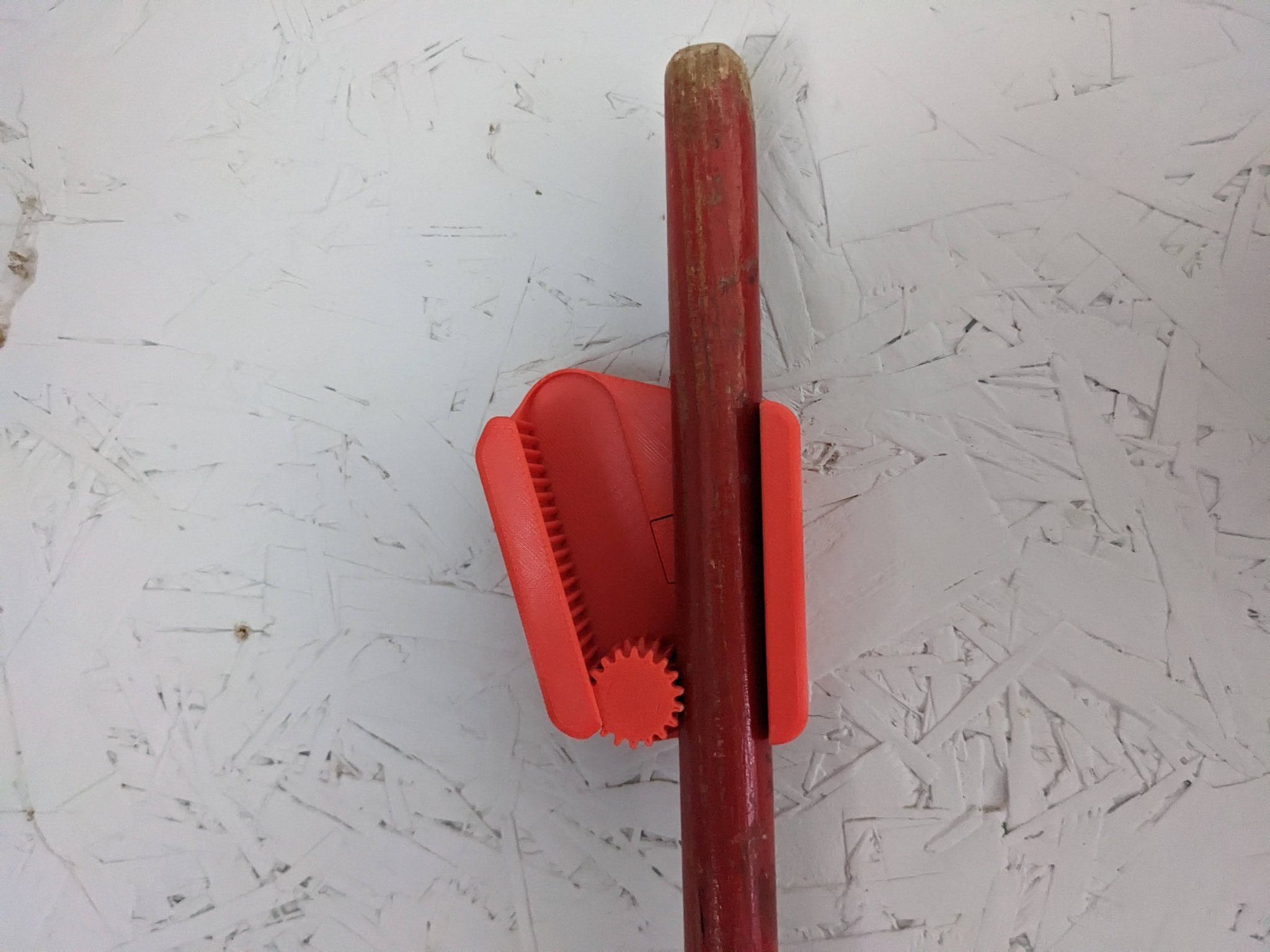

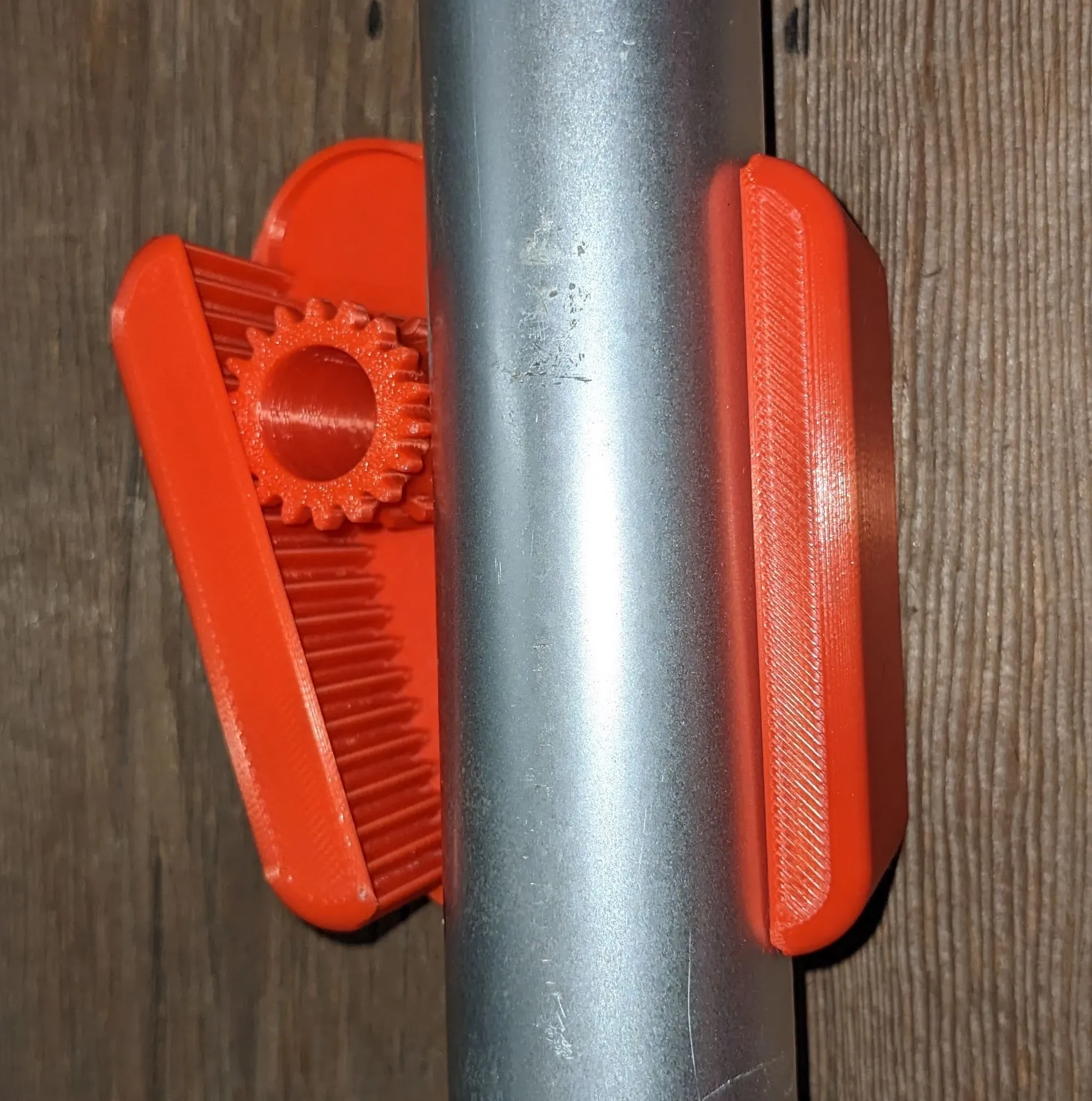

Can grab from about 20mm to 37mm diameter, 10mm more range than the original model.

Uses the same stock gear.

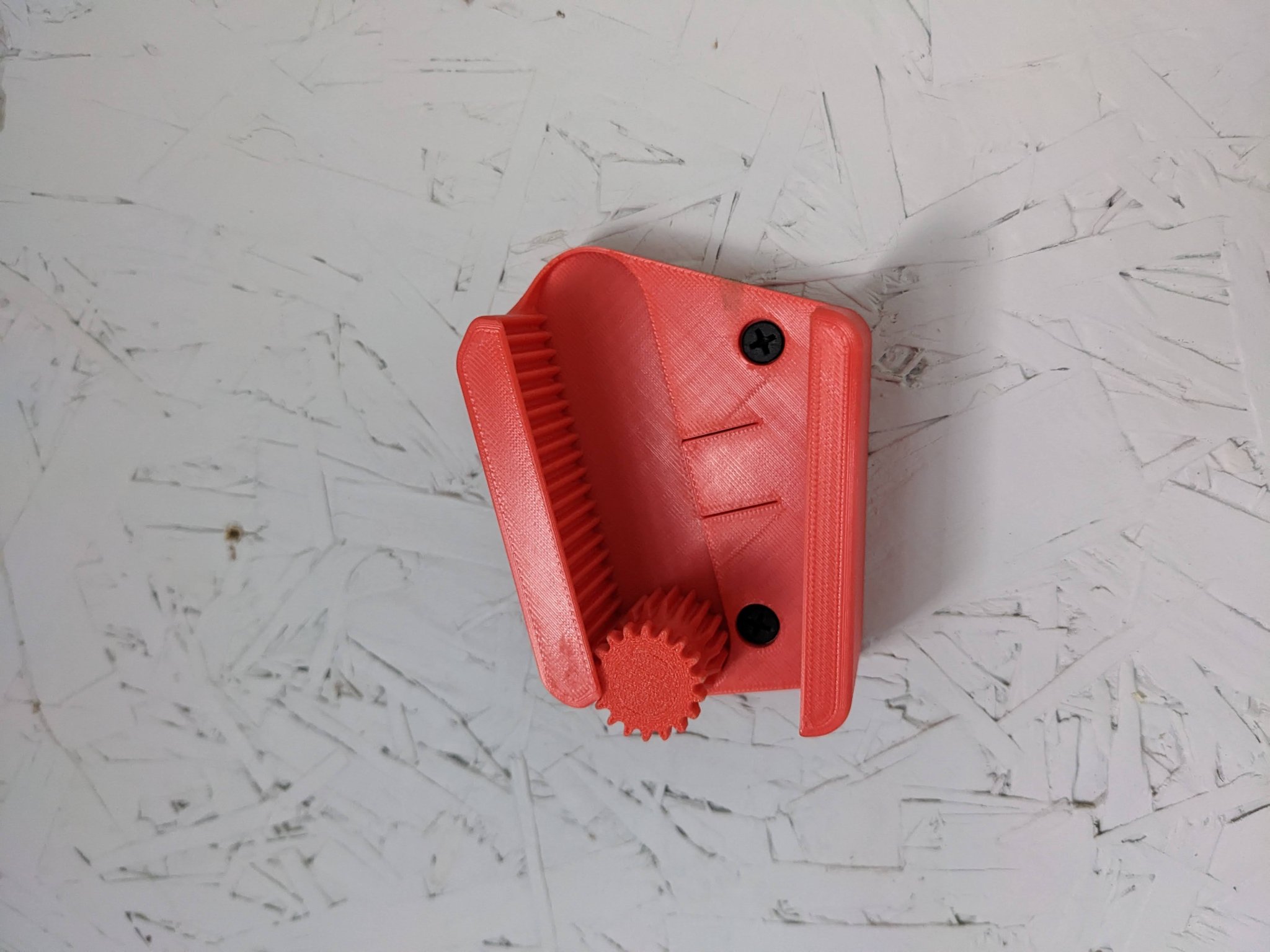

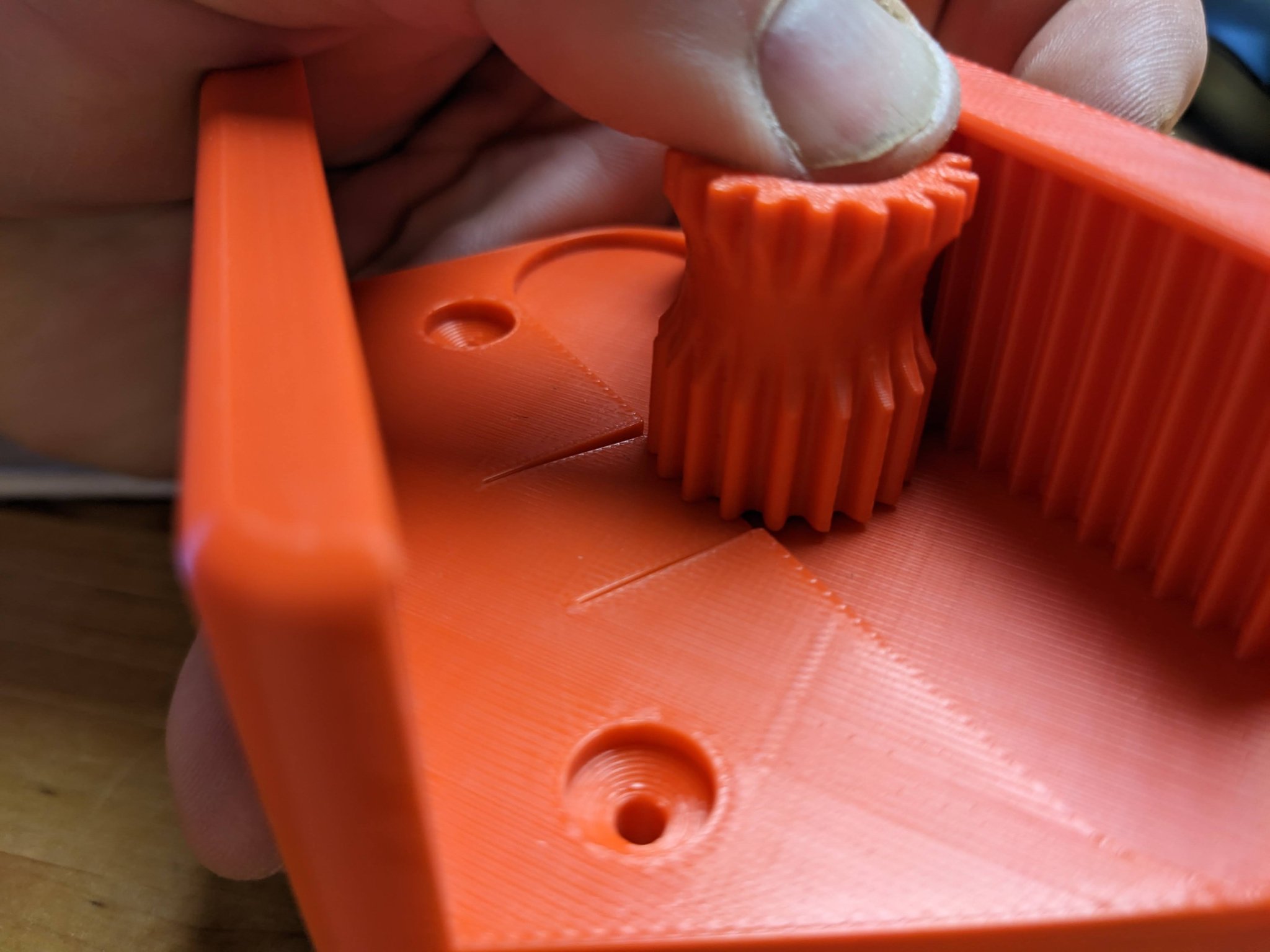

The gear gets clipped in place before the Broom Holder is mounted on a wall. Once mounted the gear is completely captive.

No supports required, 0.6mm outer line width and 0.2mm layer height recommended for the overhang to come out nice.

Use thicker extrusion settings for a sufficiently strong model, I caution against using PLA due to creep.

Reference the original model page for more information.

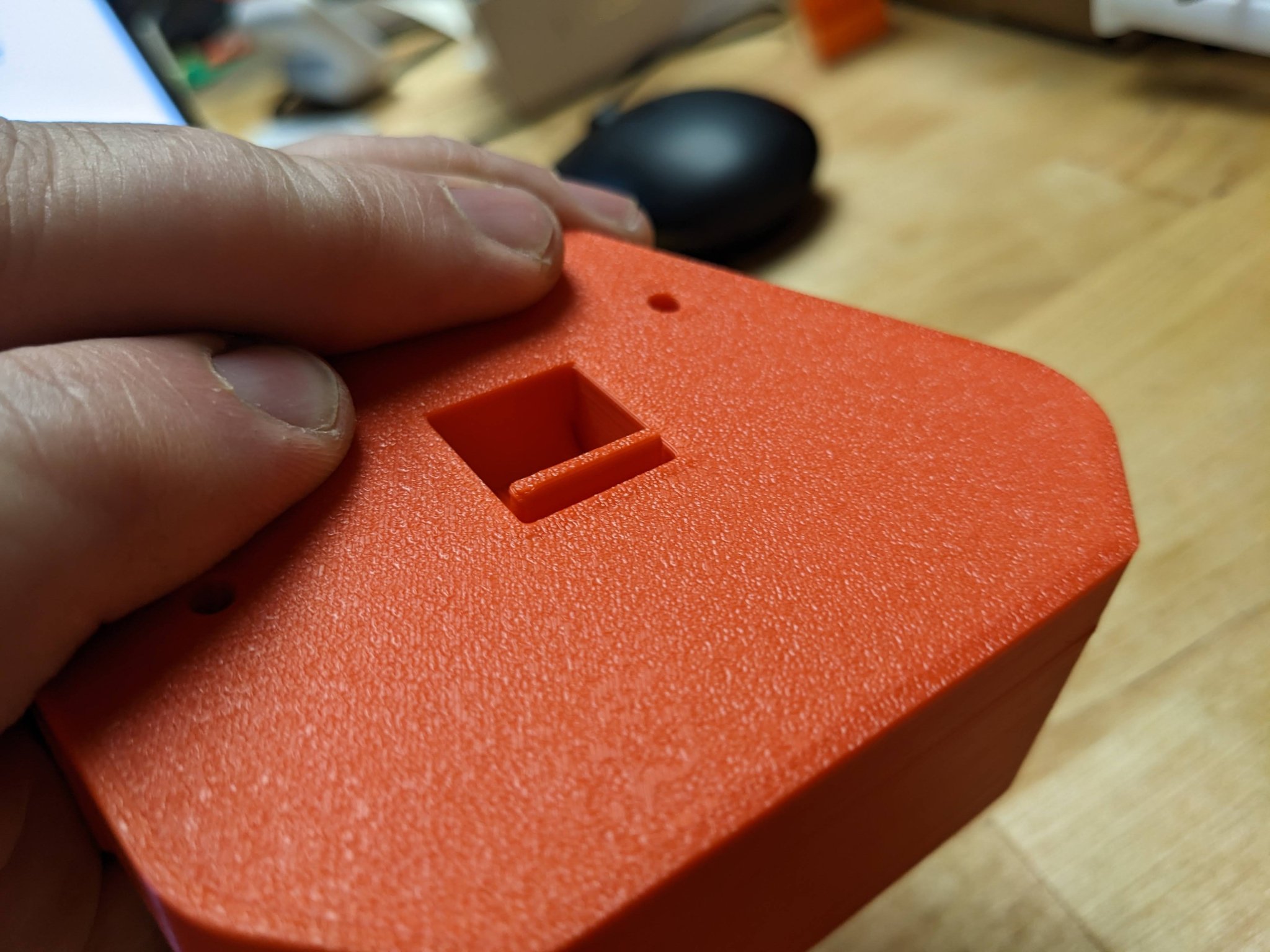

May/7/23 Rev Notes: Tightened up gear captive features, made screw holes slightly larger.

June/25/23 Rev Notes: Added clearance for rubber band on the gear and correct model orientation.

Nov/23/23 Rev Notes: Added some missing chamfers.
