Voron 0.2 tophat corner camera mount

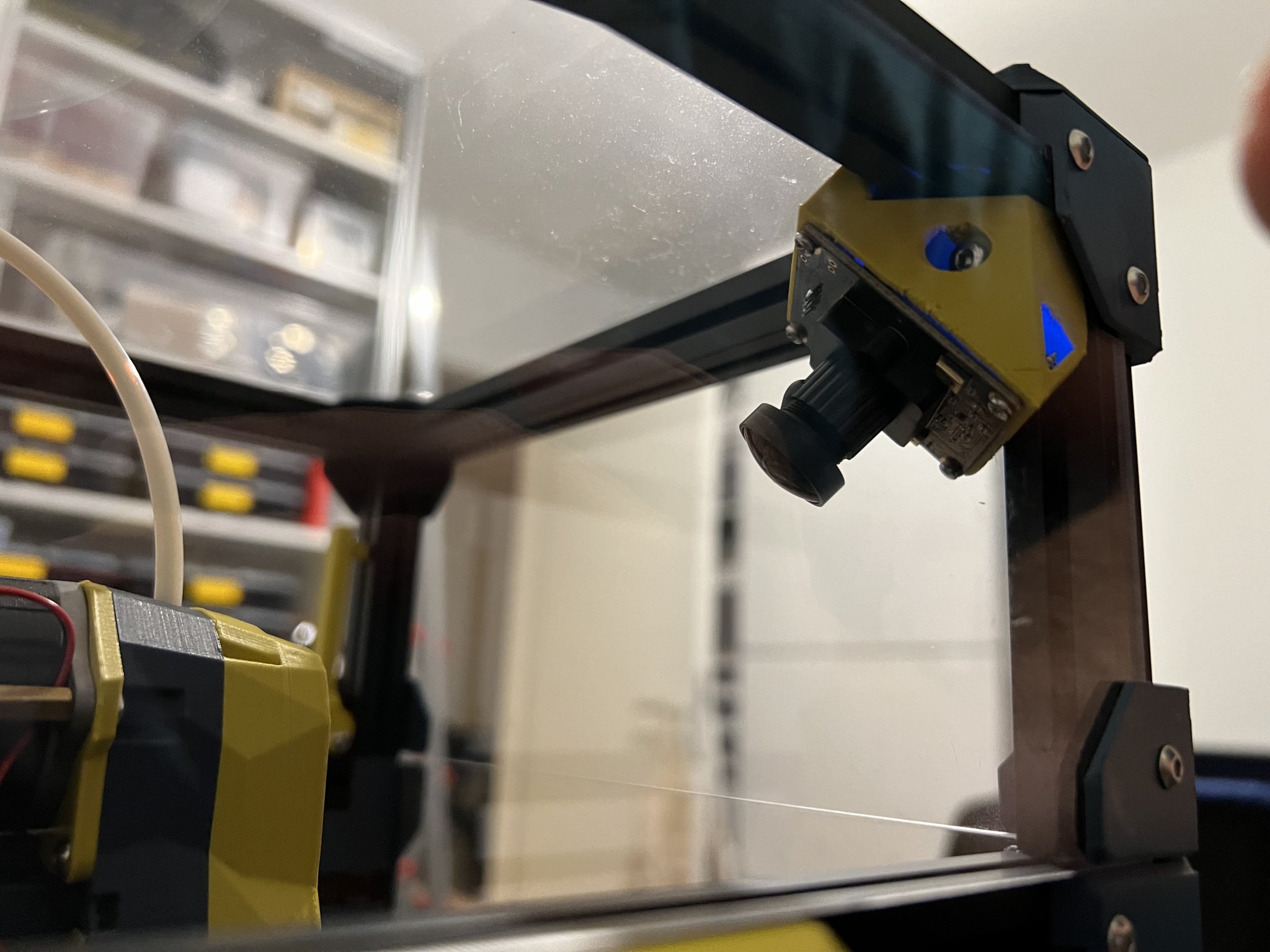

A mount to fix a 38x38 mm PCB camera into one of the corners of a Voron 0.2 tophat.

The camera I used is an ELP 4K IMX317 170°

Assembly

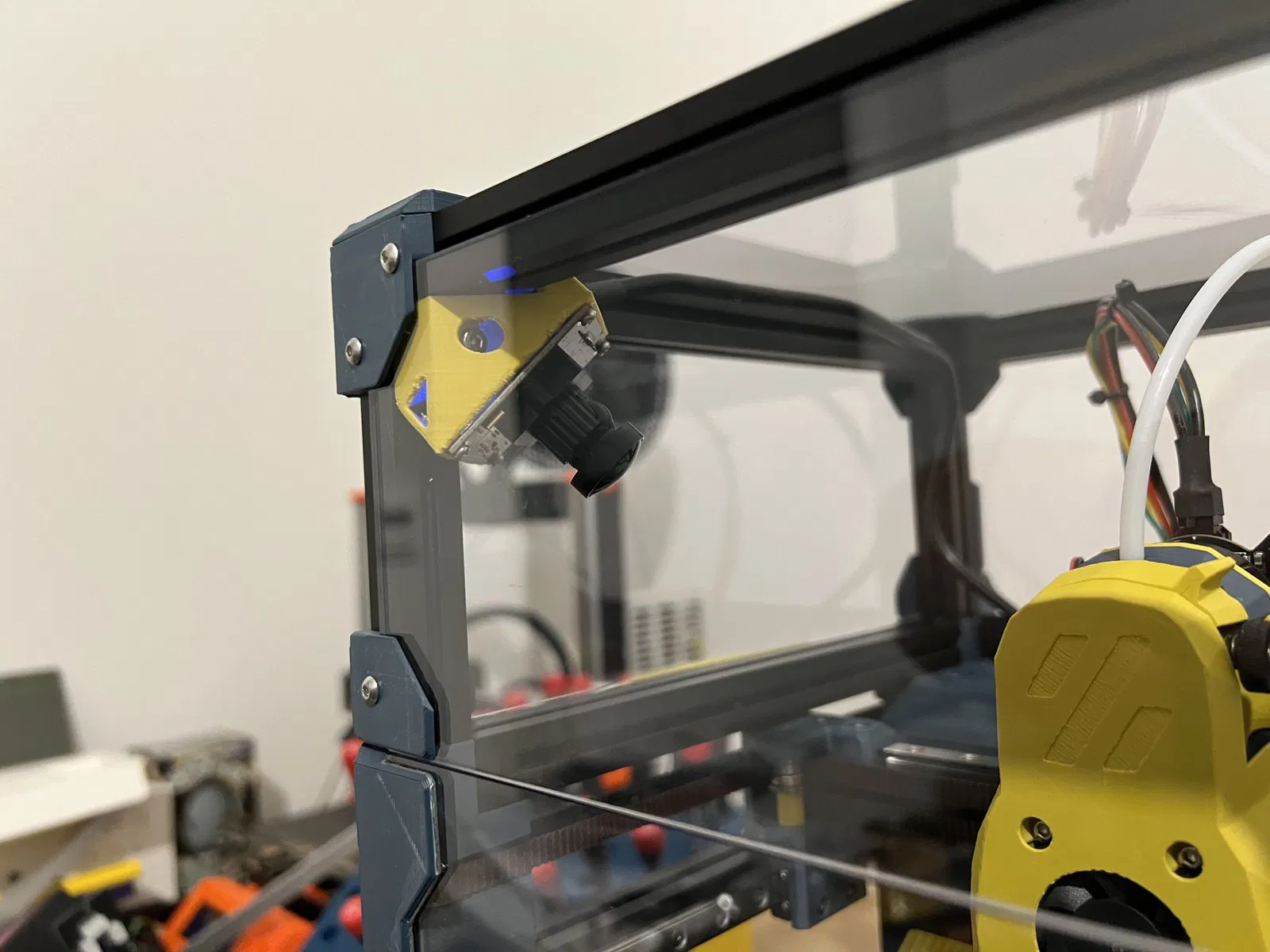

I used 4 M2 self tapping screws to fix the camera to the mount and 2 M3x20 SHCS to attach the mount to the extrusions. Since the bottom of the tophat extrusions are open you can just insert two M3 hex nuts without any disassembly.

Printing

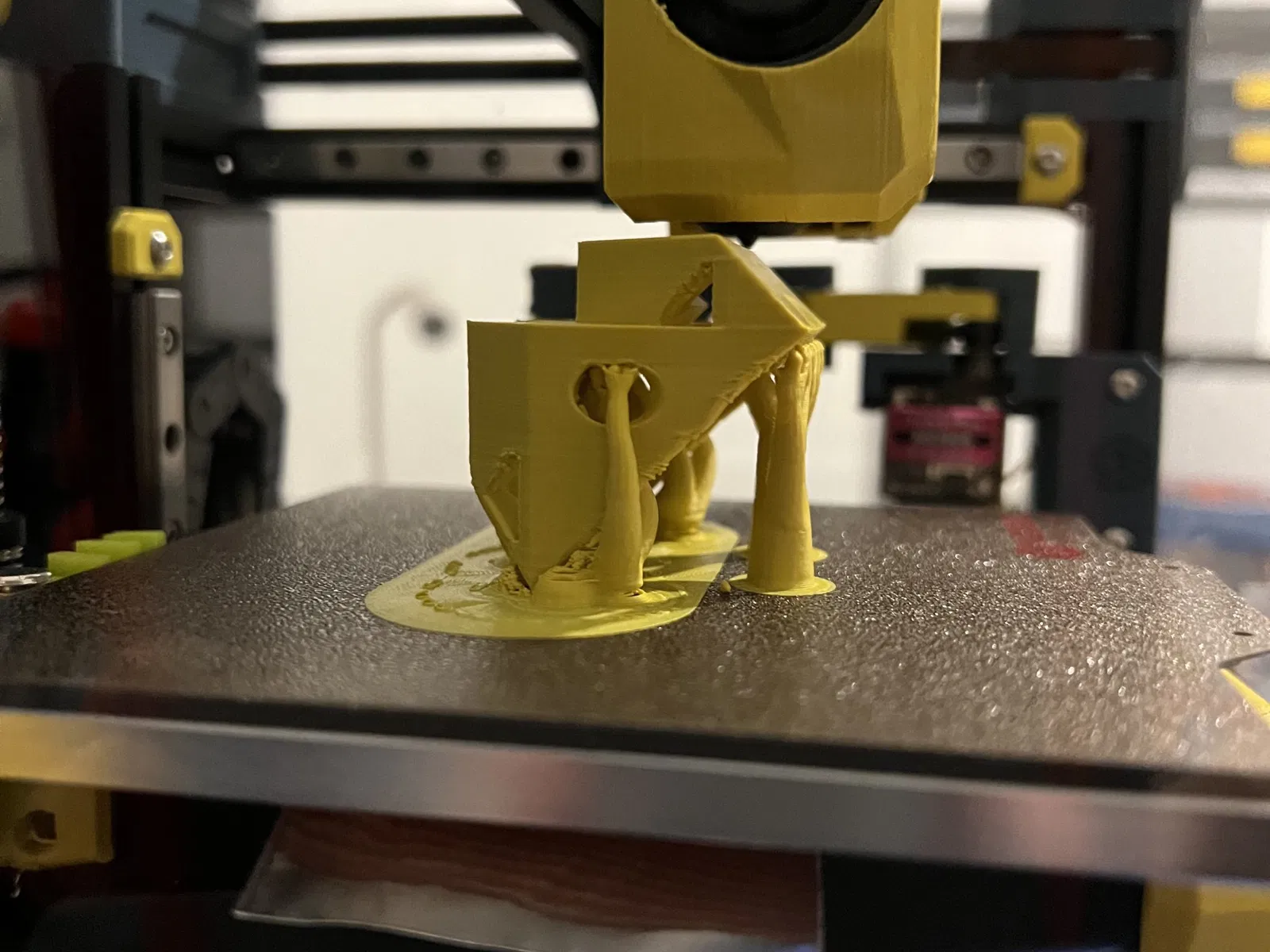

I recommend to print it at 45° with tree supports. This minimizes the need for supports and makes the faces that align with the extrusions horizontal and vertical respectively.

CAD Model

I designed this on OnShape, the model is public.
