Photogrammetry Turntable

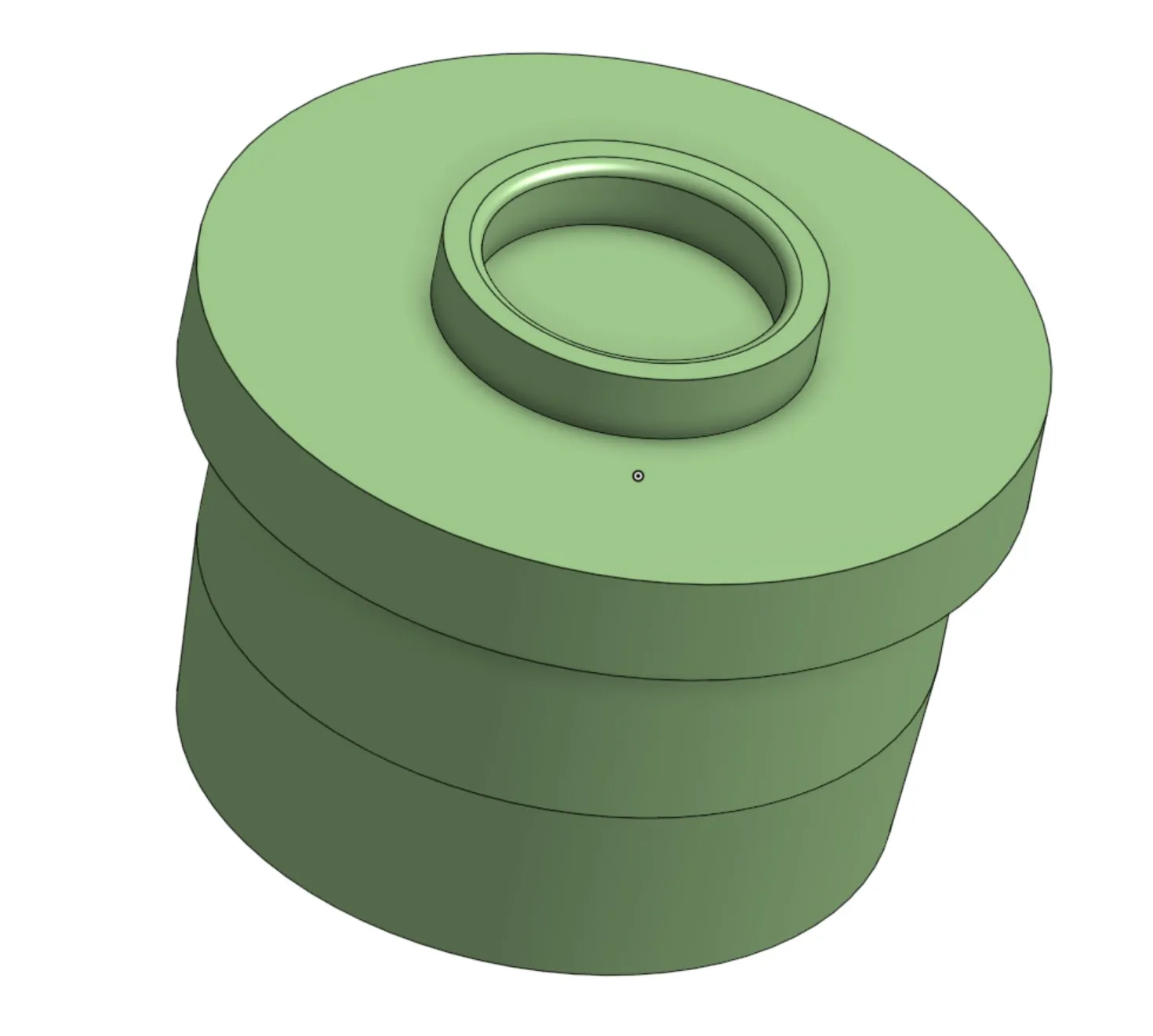

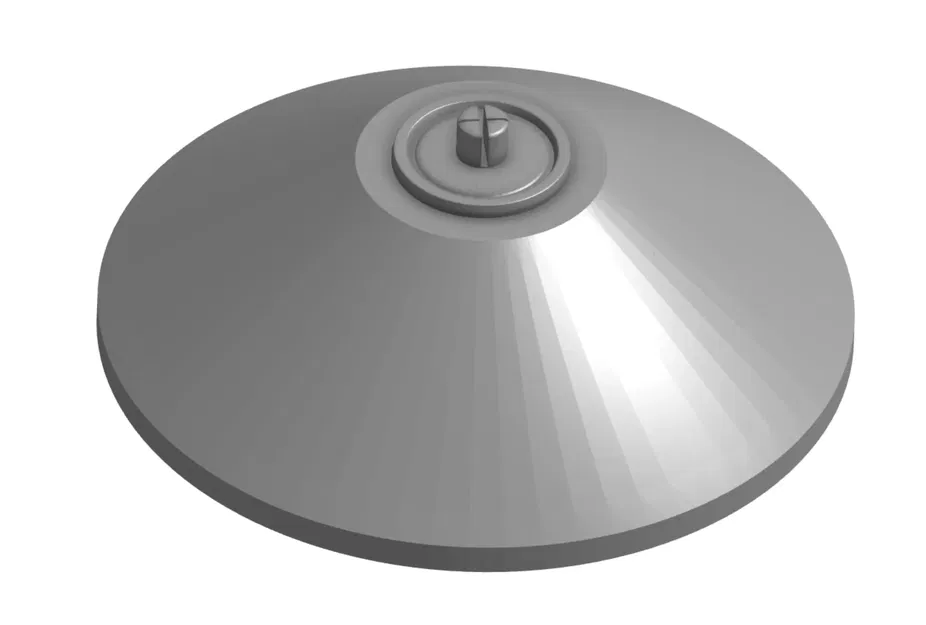

I needed something quick and easy to create. There were numerous 608 Bearing turntables out there but none that fit my spool, most were too wobbly. I included Step files and a Link to ONSHAPE with parametric variables to drive dimensions for your own spool.

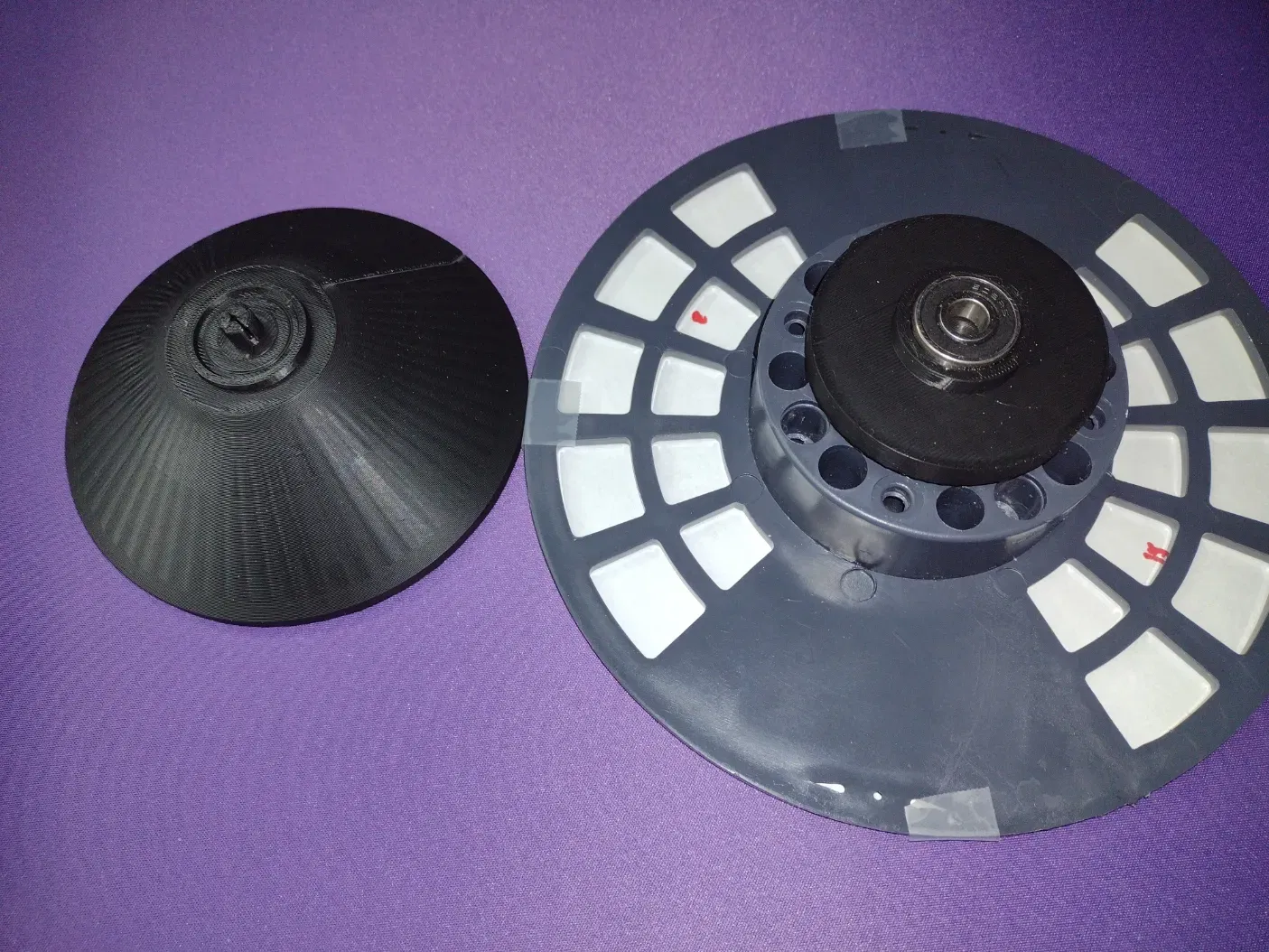

608 Skateboard bearings can readily be found anywhere online.

https://www.amazon.com/s?k=608+bearings

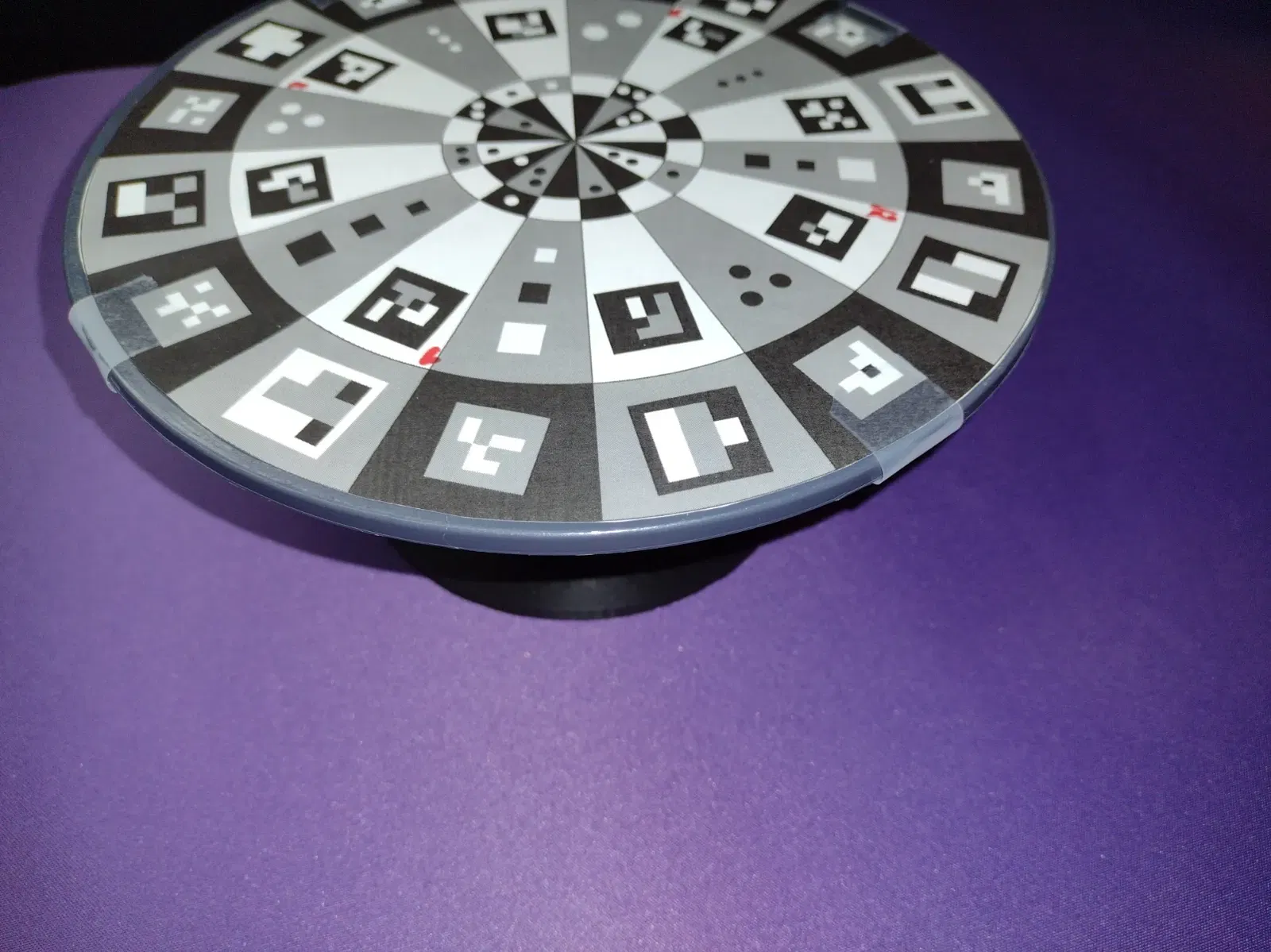

I added a two printable templates which can be cutout and taped to the top of the spool for the Photogrammetry software to key off of.

ONSHAPE files can be found here:

https://cad.onshape.com/documents/ee07764413d576ec9f8bb7fa/w/e8db8675751c5cbee83b8464/e/6708f4fc39d80d7129b9b70f?renderMode=1&uiState=655114d8434de077d290daac
