Parametric DIN rail

DIN rail in different sizes and with original parametric design files to customize.

Every rail has two mounting holes with a 3mm diameter spaced 10mm from each side (can be adjusted in the parameters).

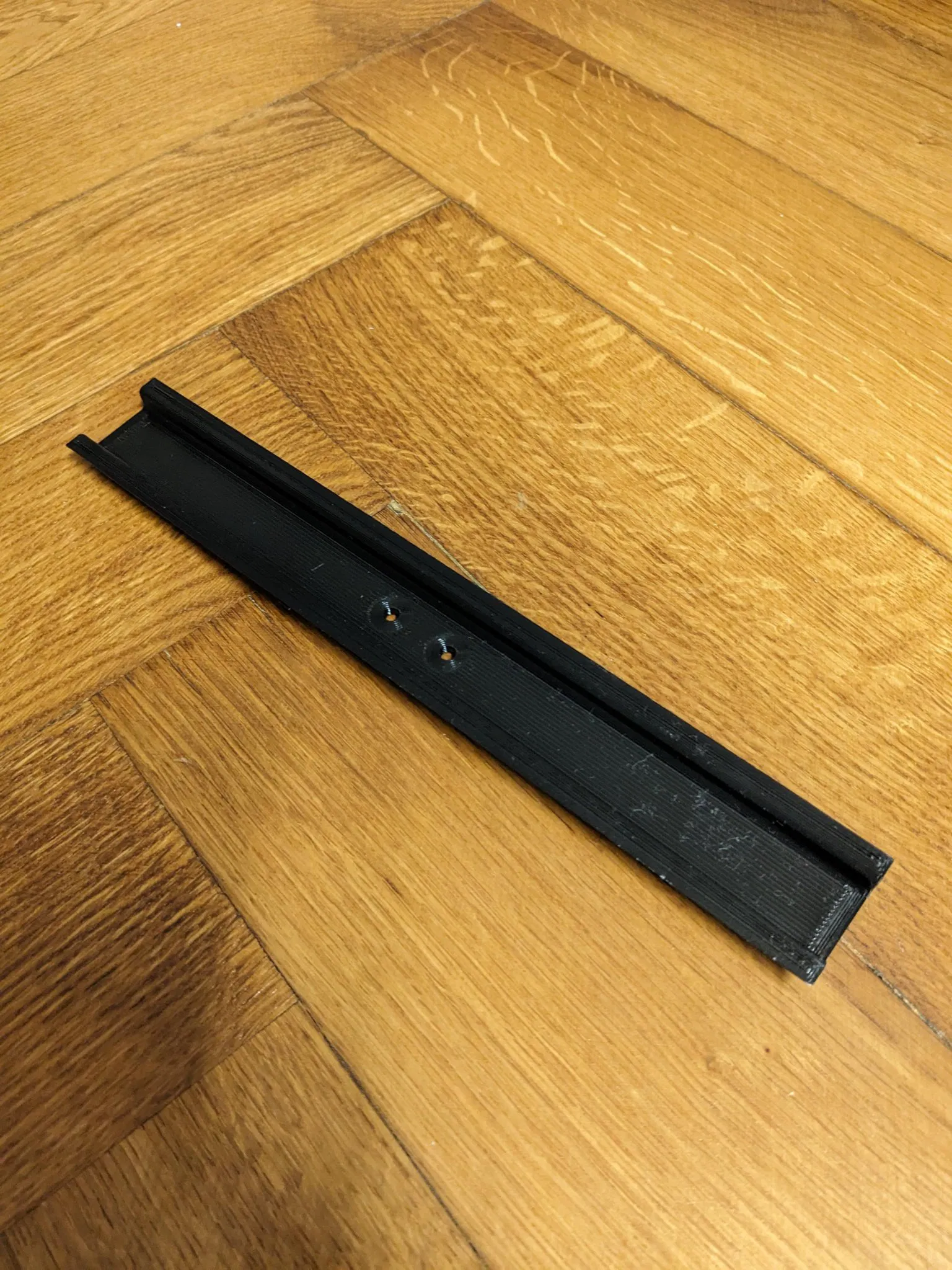

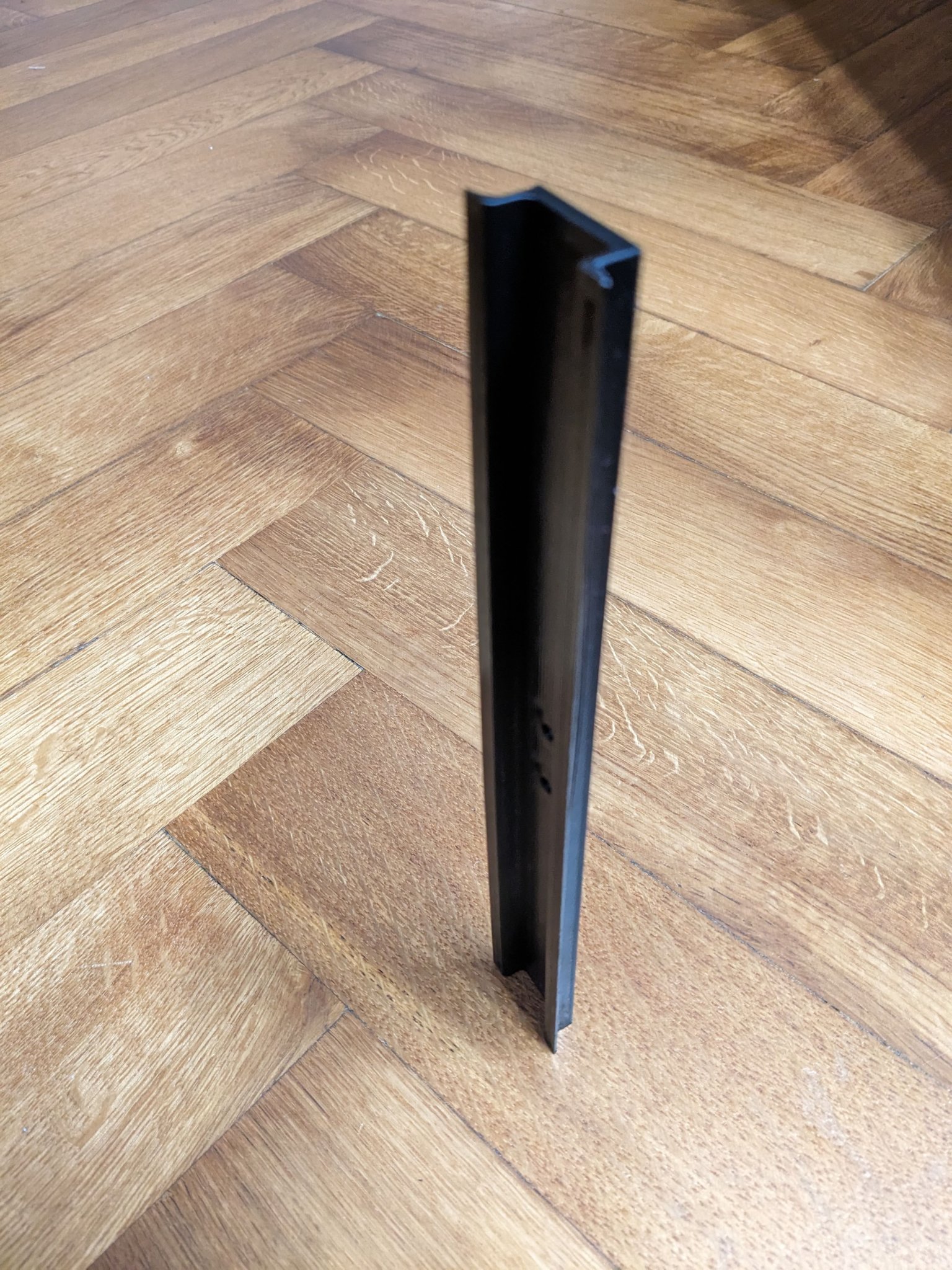

The rail can be printed upright or even flat. The flat orientation is gonna be much stronger and the overhangs are no problem except for a few lose strings on the bottom.

If you need a specific size or hole pattern but don't have access to a proper 3D moddeling software just write me a message and I will add it to this page.
