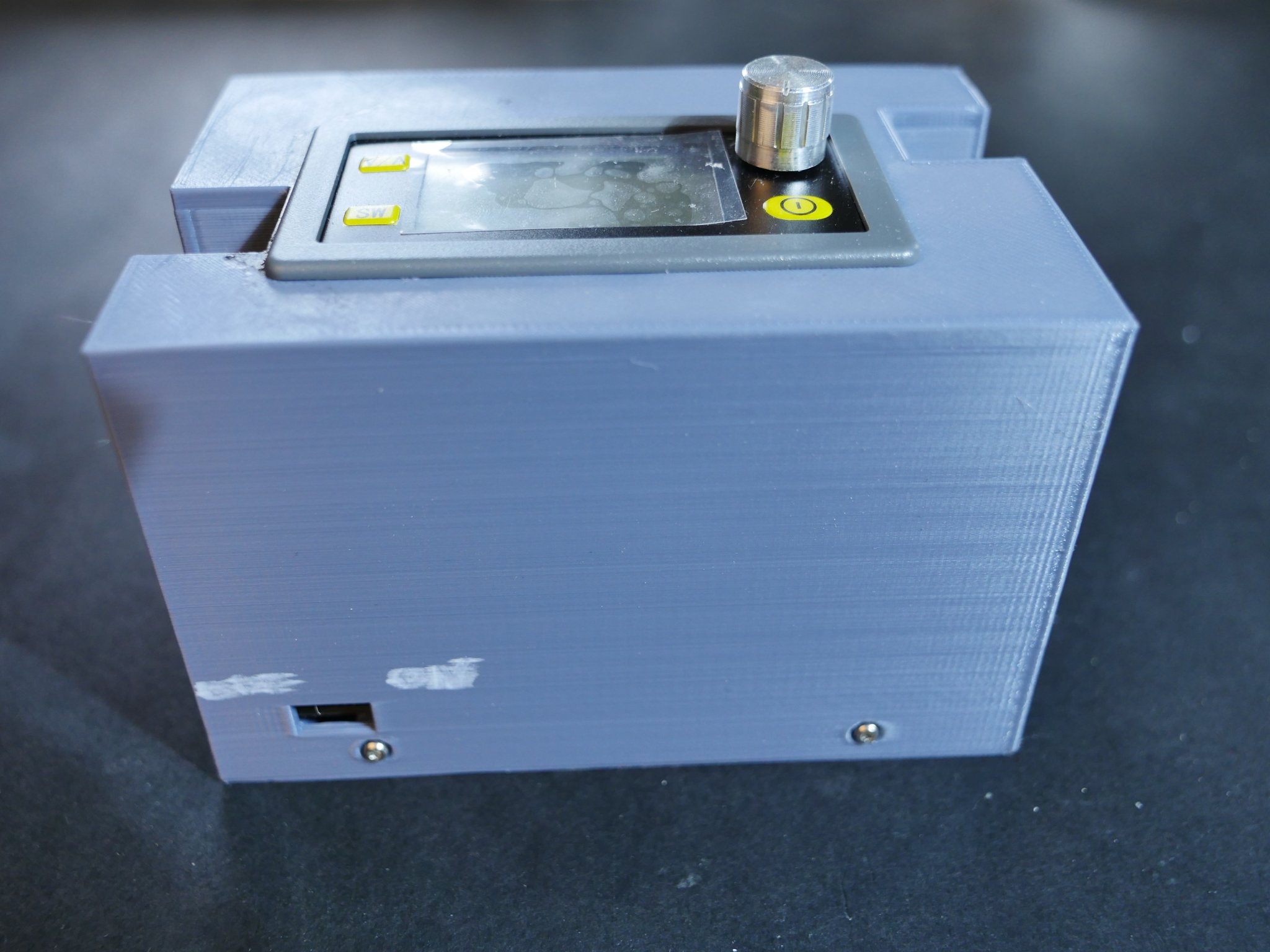

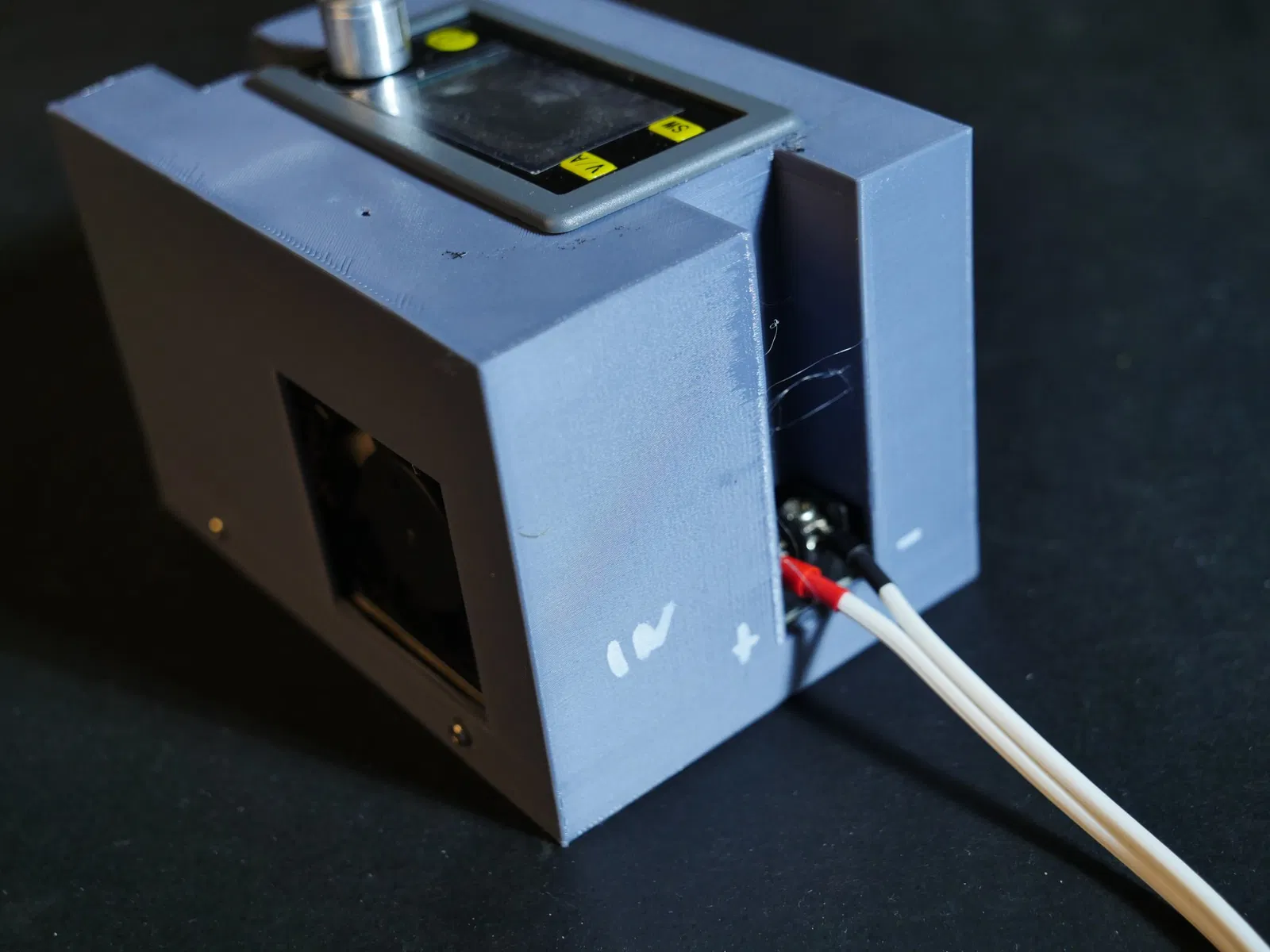

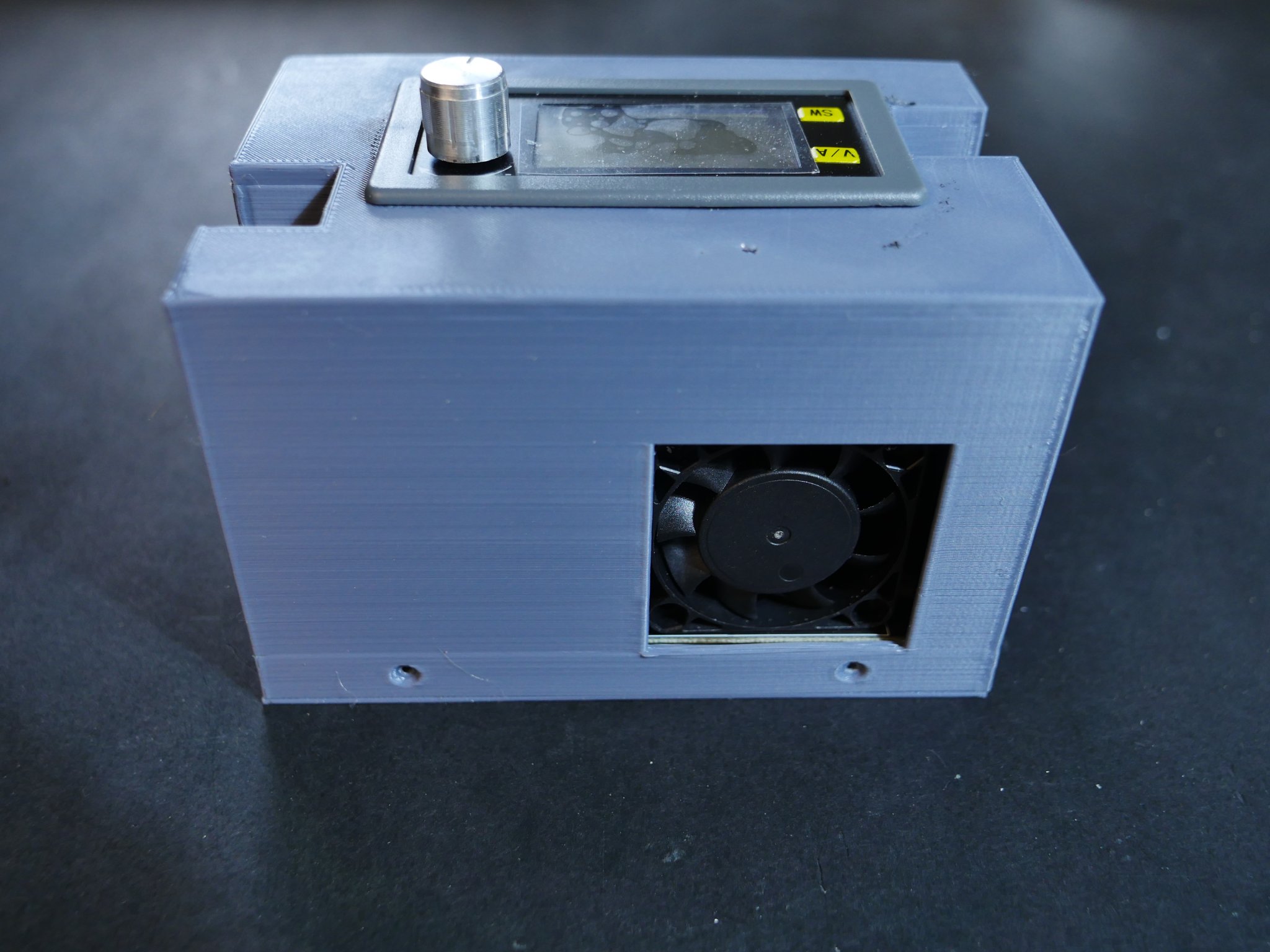

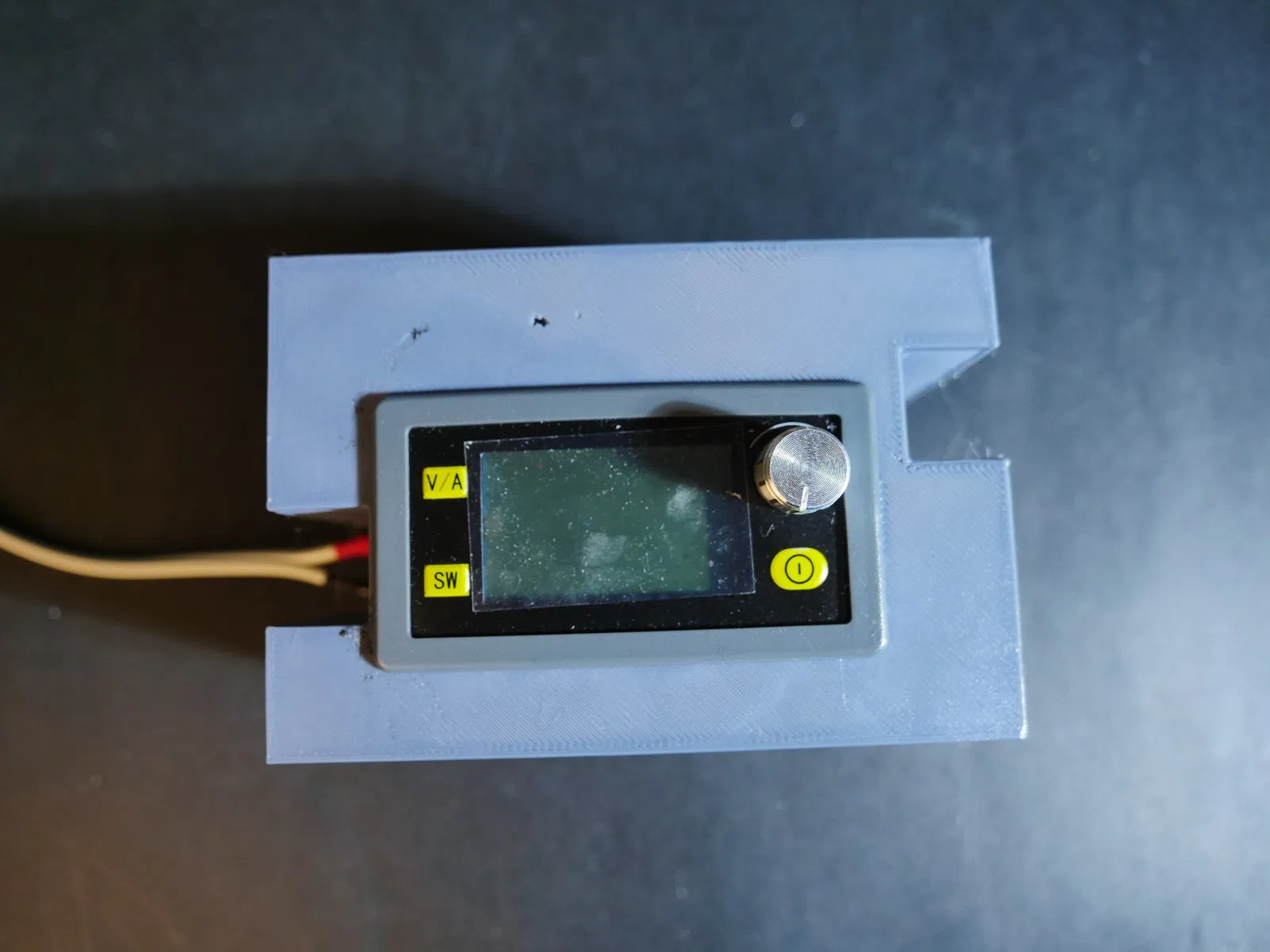

I created a basic housing model for the XY6020L DC-DC converter. I came across the XY6020L adapter on the GreatScott! YouTube channel and decided to get one.

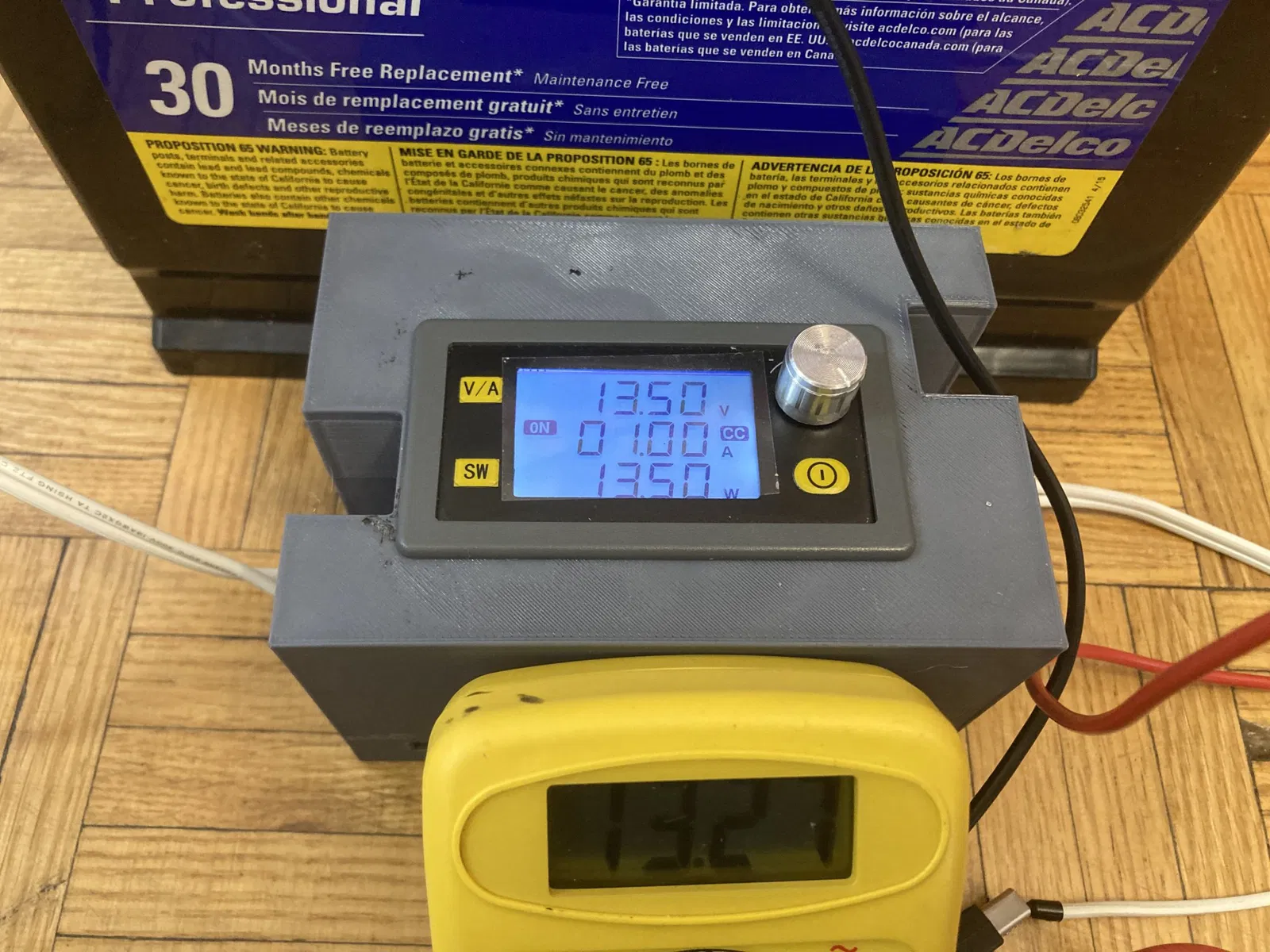

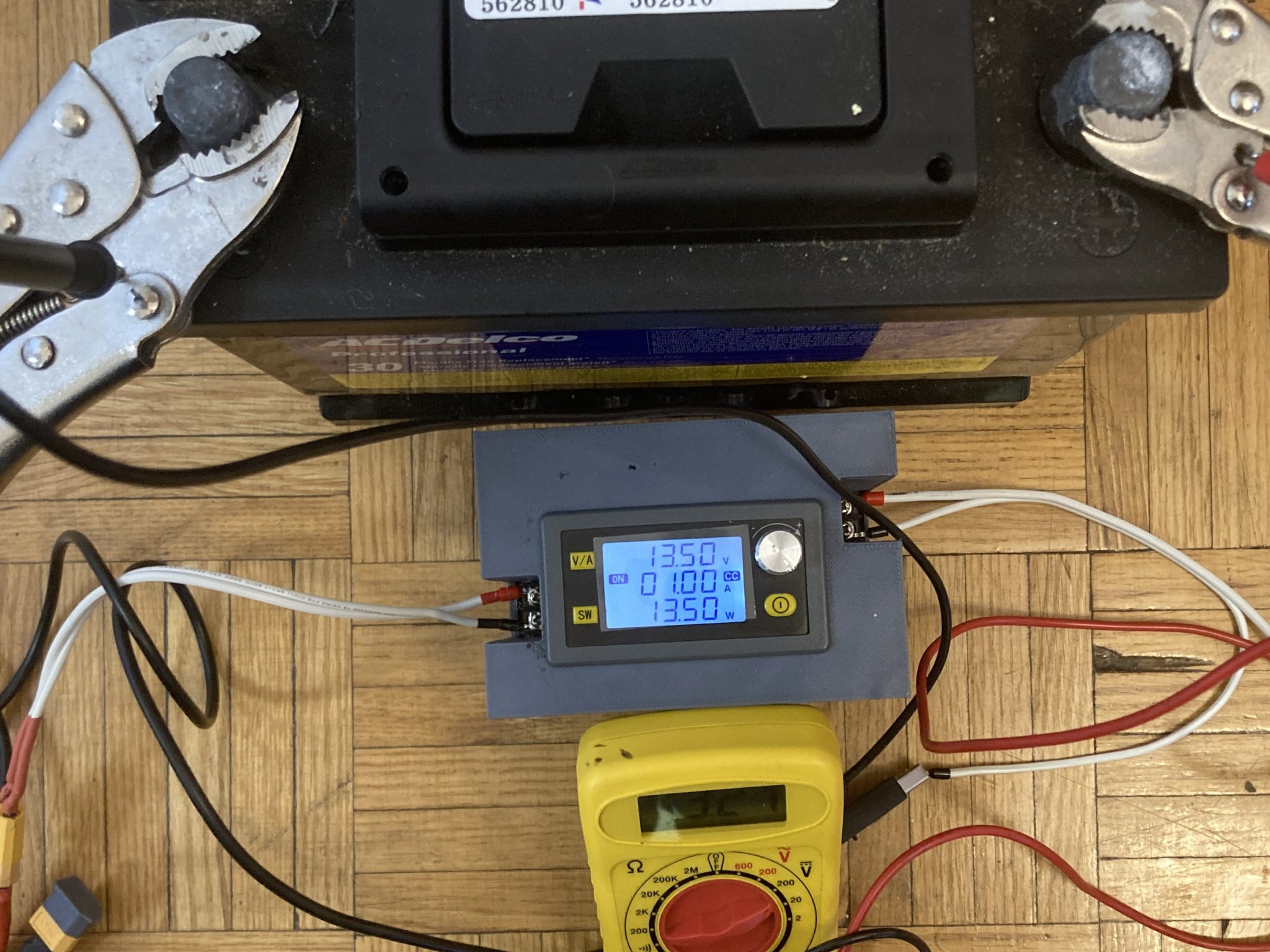

don't have a home lab, so having a portable housing for the device is incredibly useful for me, especially when I need the converter to trickle charge a car battery for a couple of days

BOM

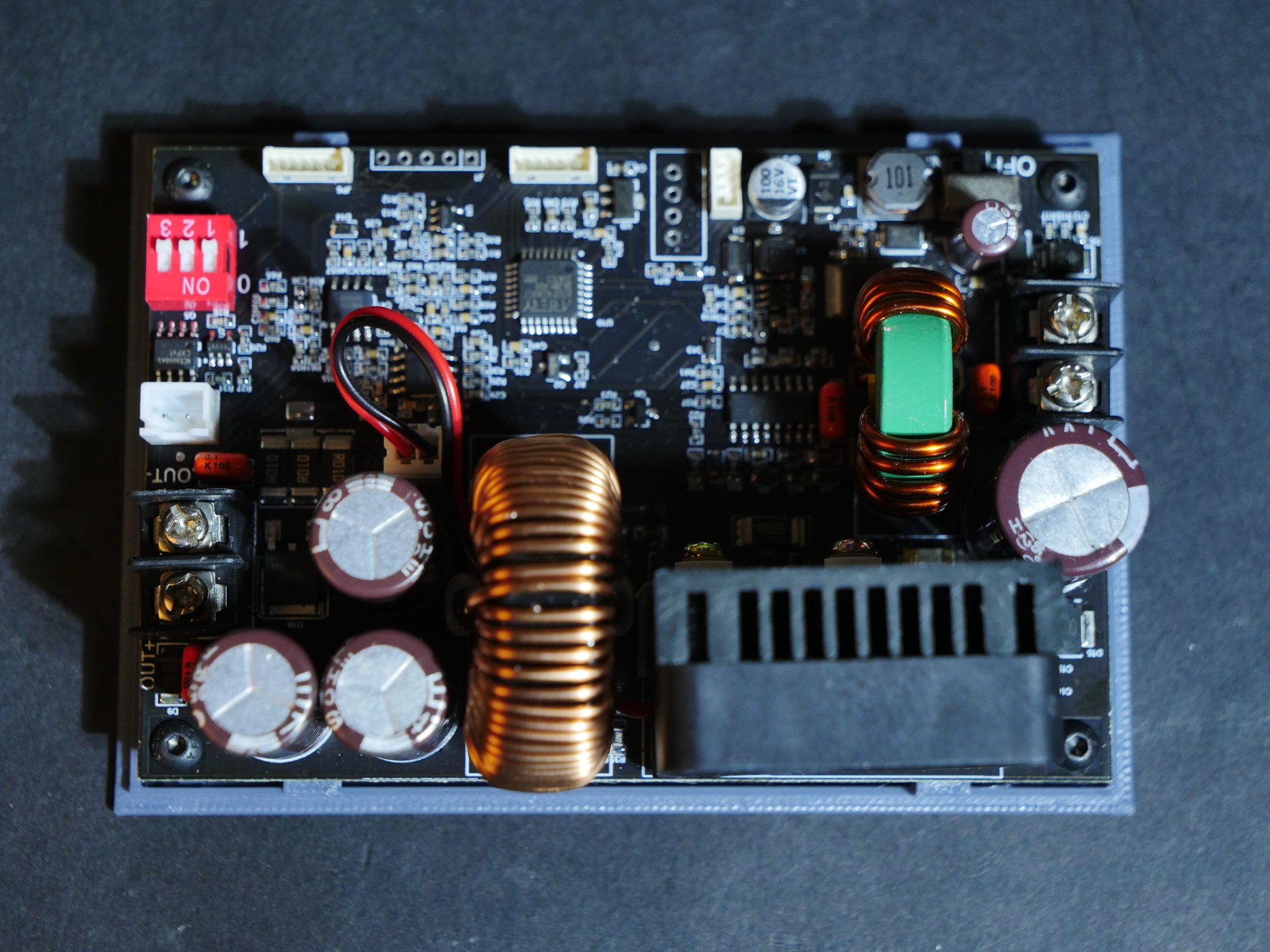

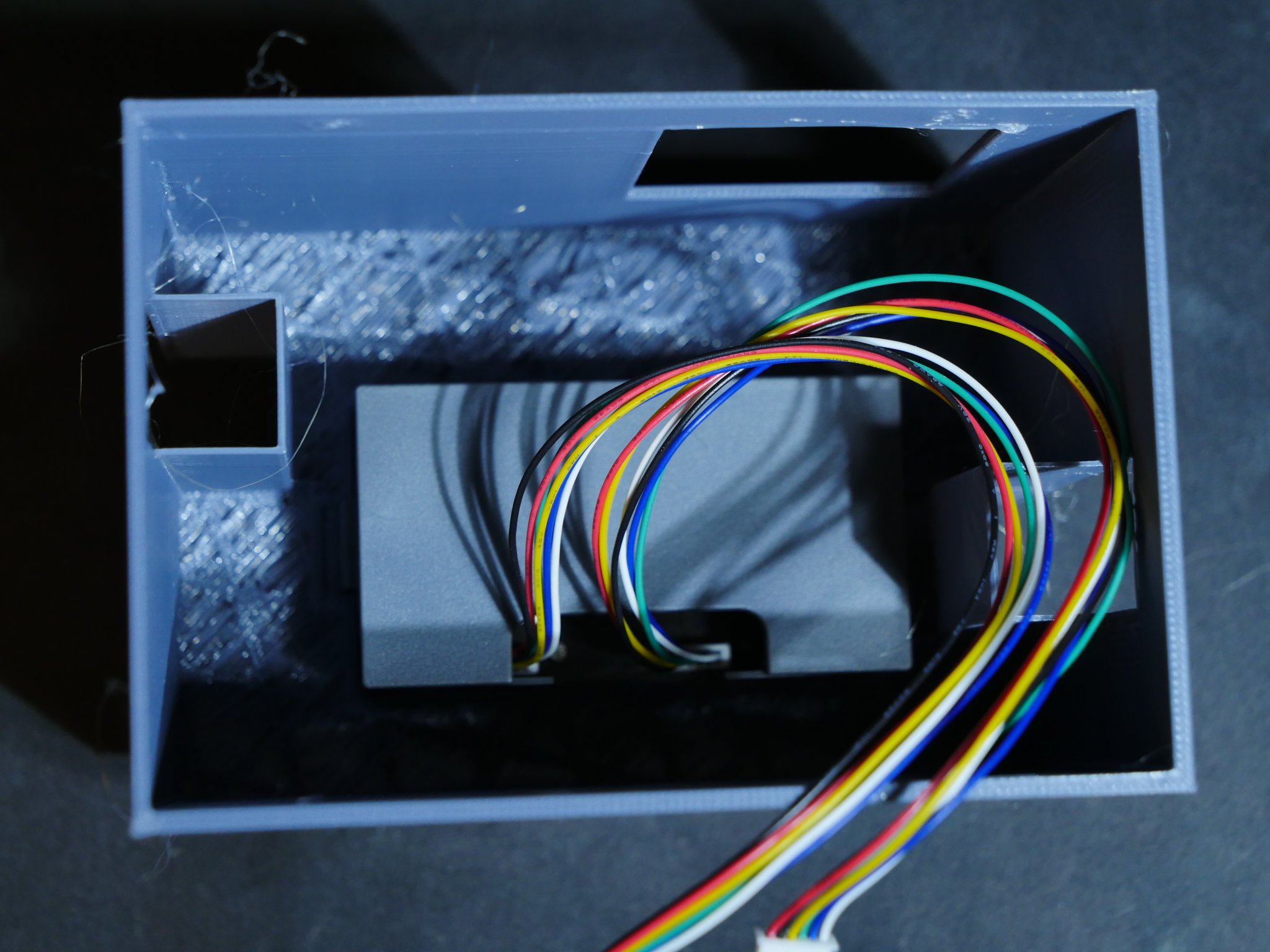

Attaching the board to the tray:

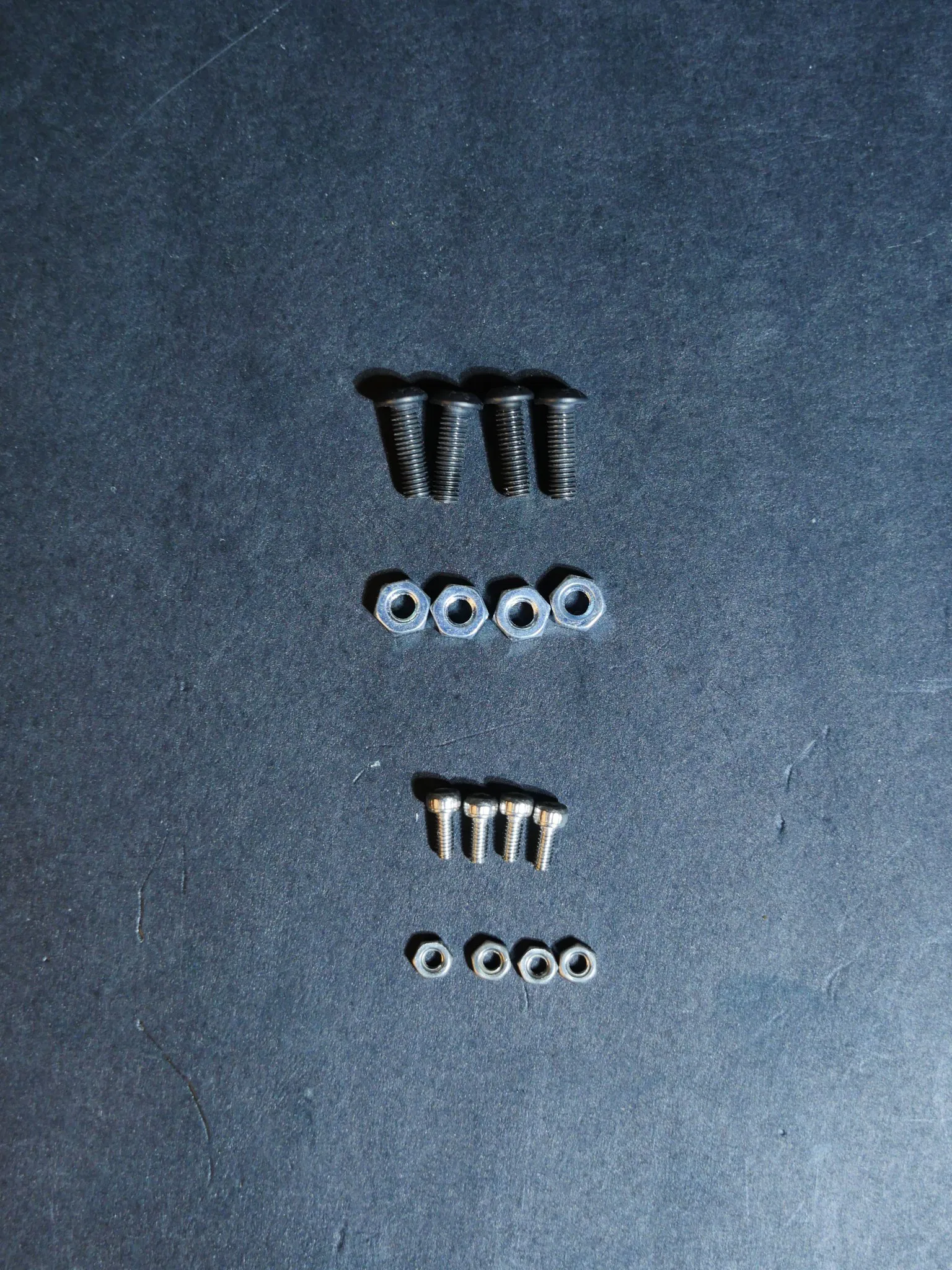

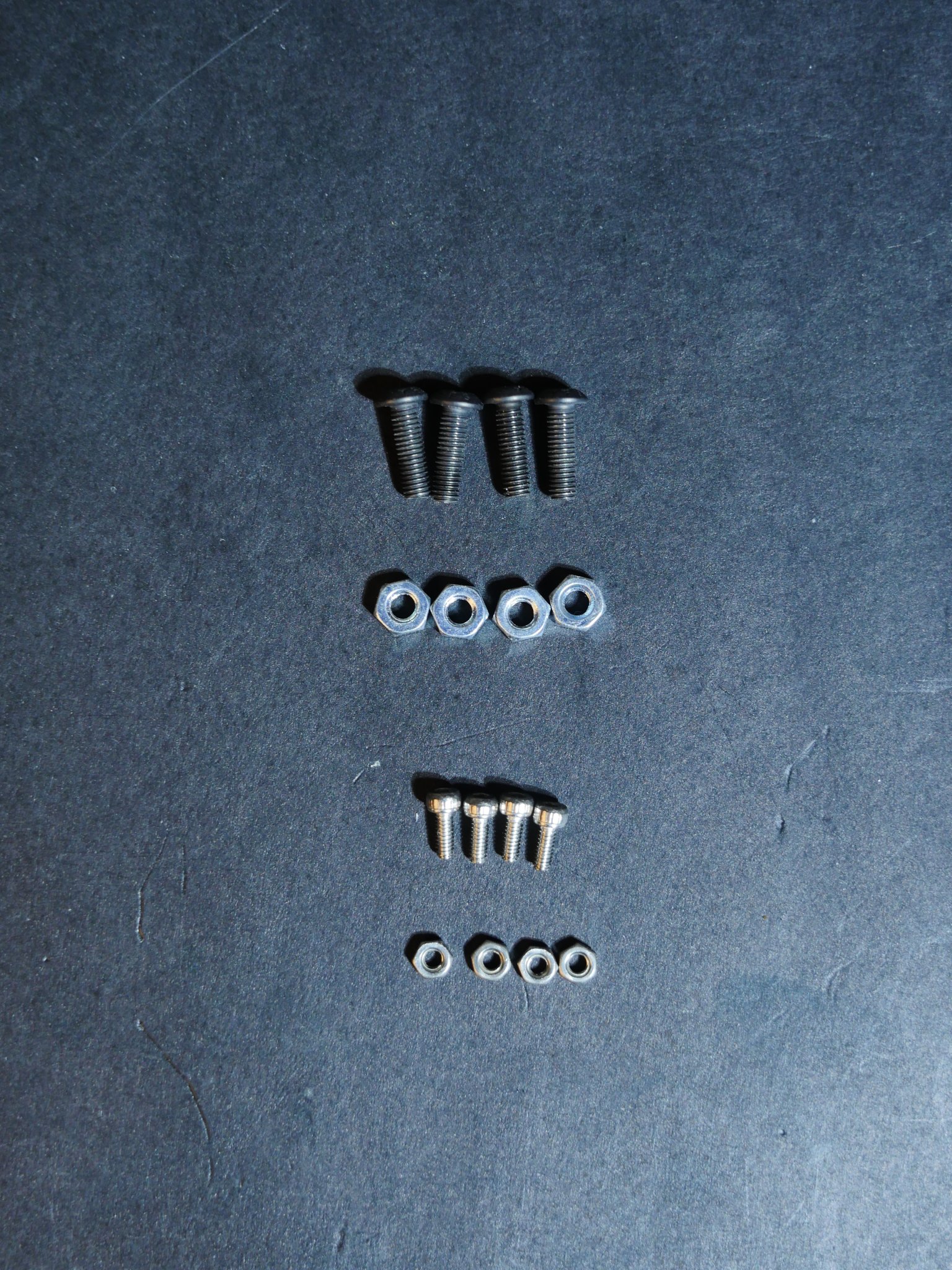

4x M3x10mm bolts

4x M3 Nuts

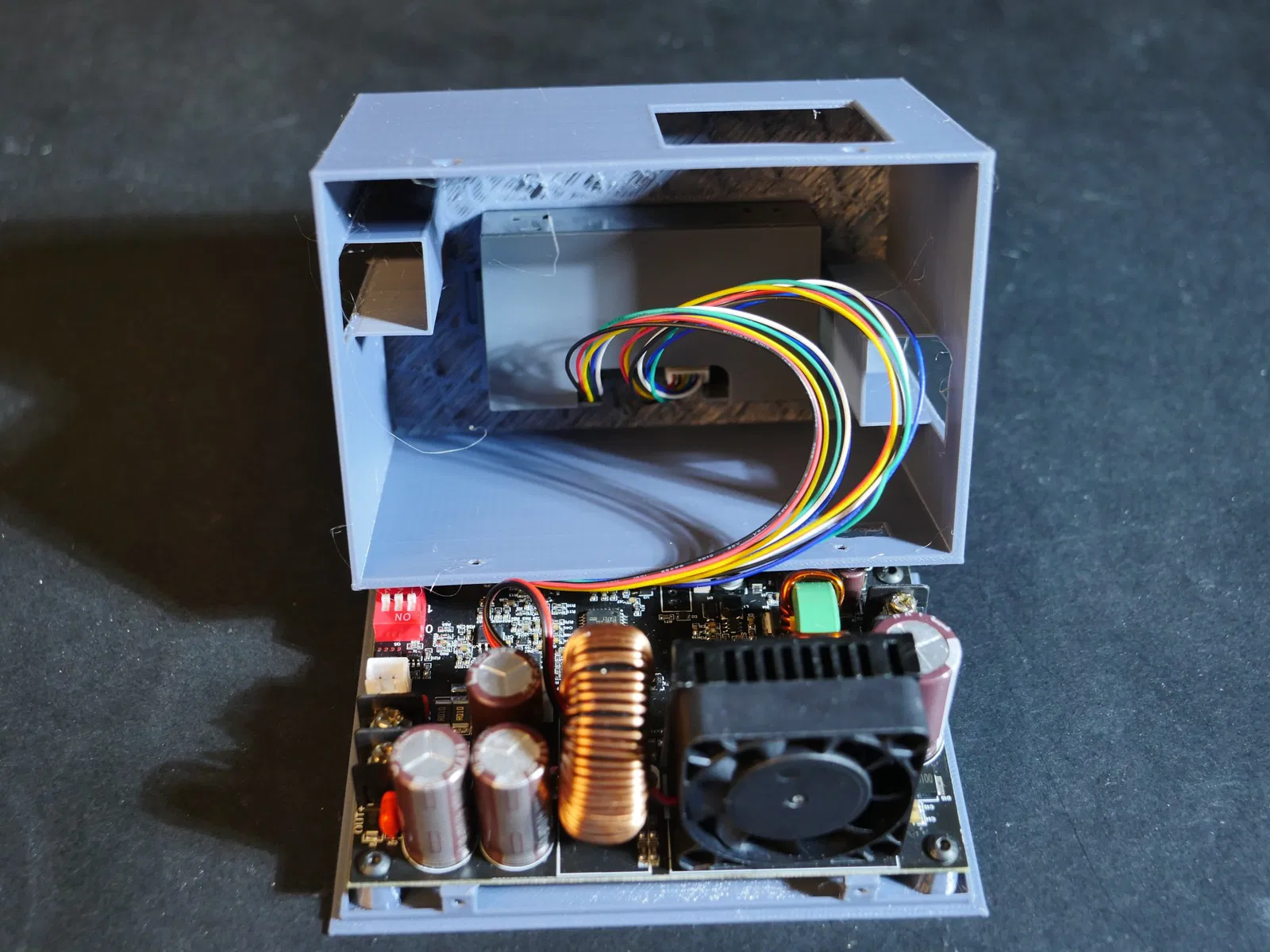

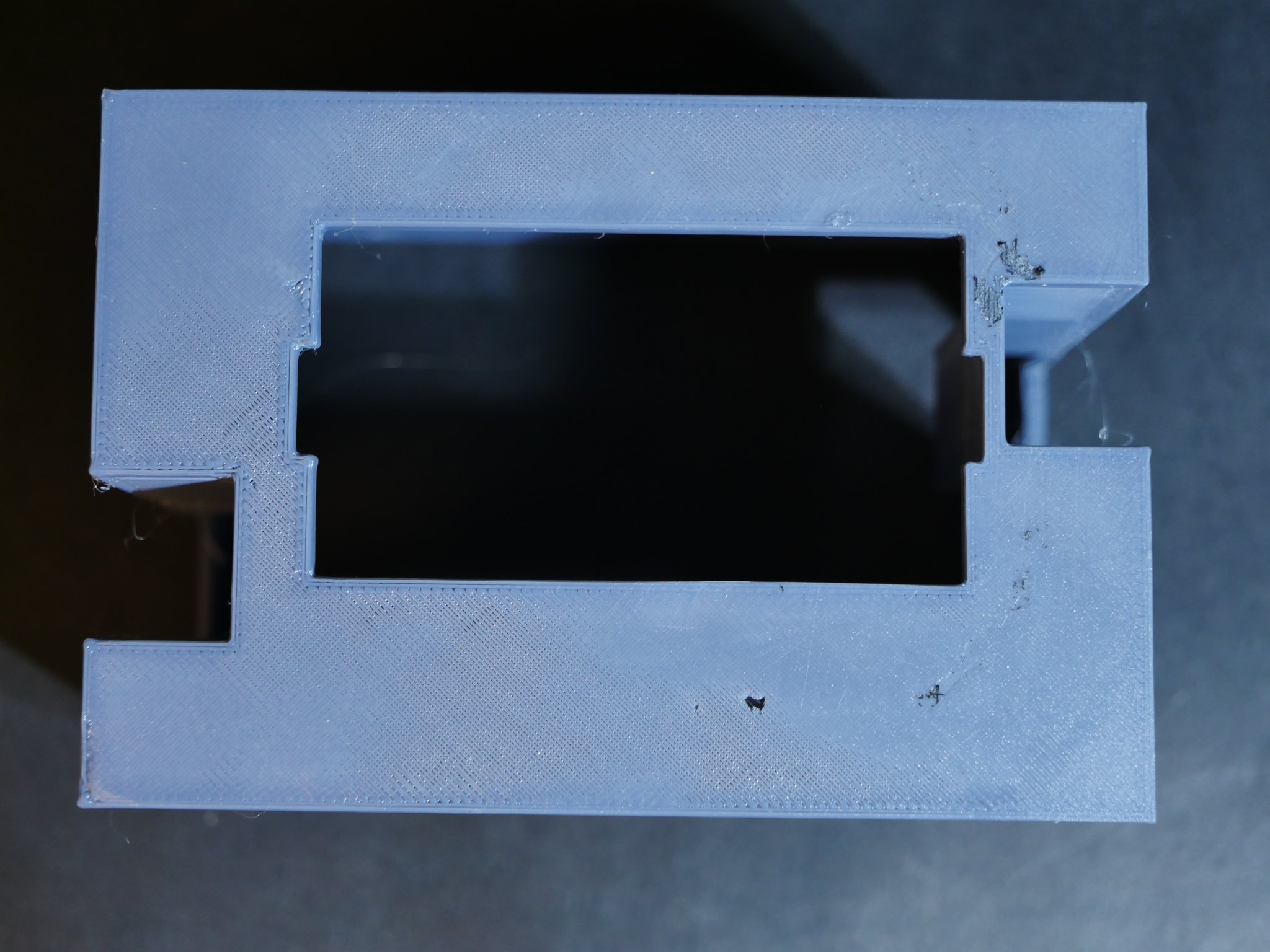

Attaching the tray to the housing

4x M2x6mm bolts

4x M2 nuts

Print Settings

Minimum print settings: 15% infill and 2 layers everywhere. This will result in something workable.

Use more top and bottom layers to improve part quality.

Revision 1

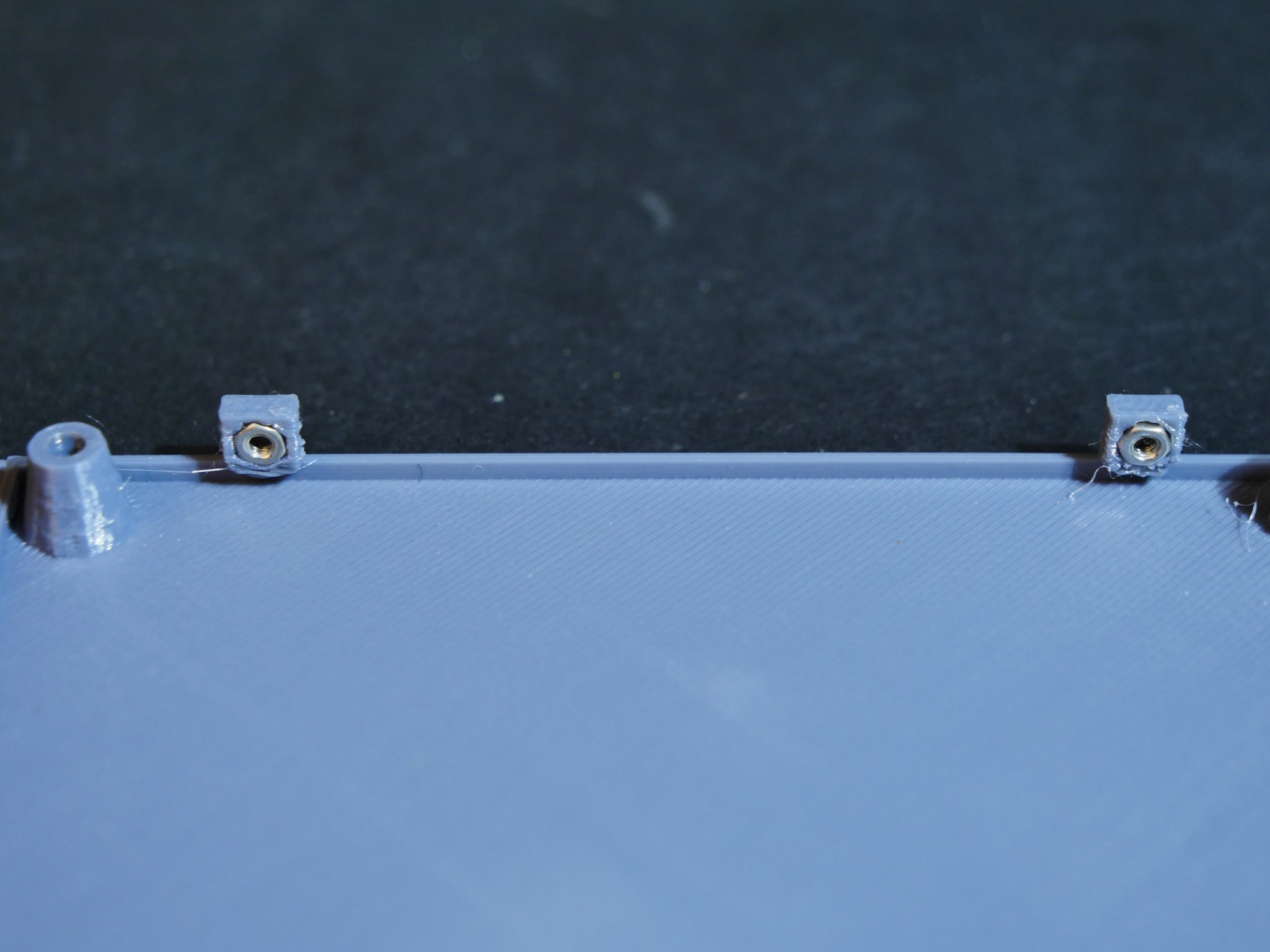

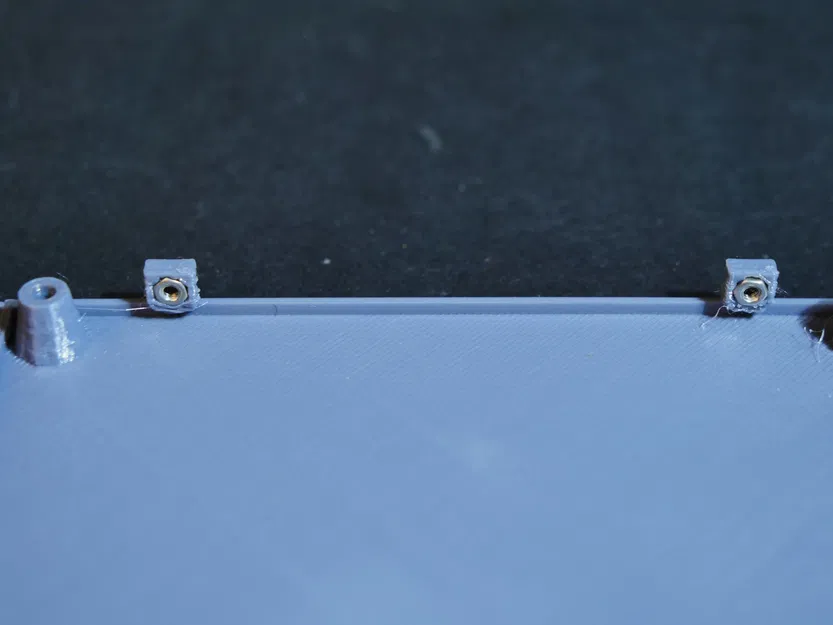

Clips holding M2 nuts are now connected to the bottom of the tray, and not hanging off the alignment lip. Thank you @[email protected]
