ZJ4113 DRILL PRESS DEPTH STOP & GAUGE

This is a replacement for the original depth stop support of the cheap Chinese Drill Press ZJ4113 I found at local store.

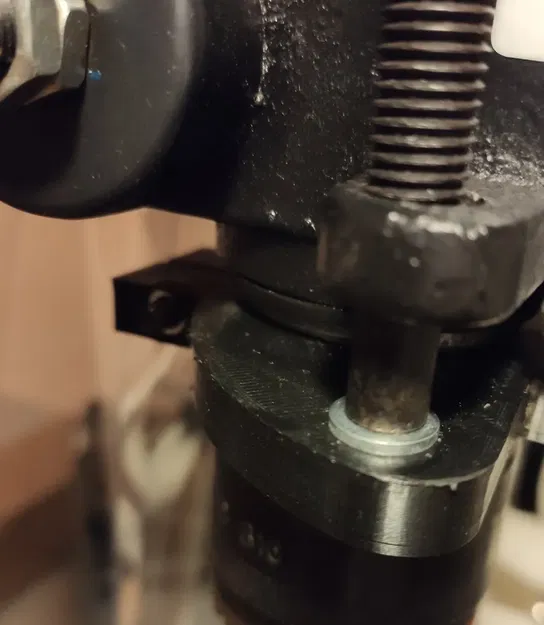

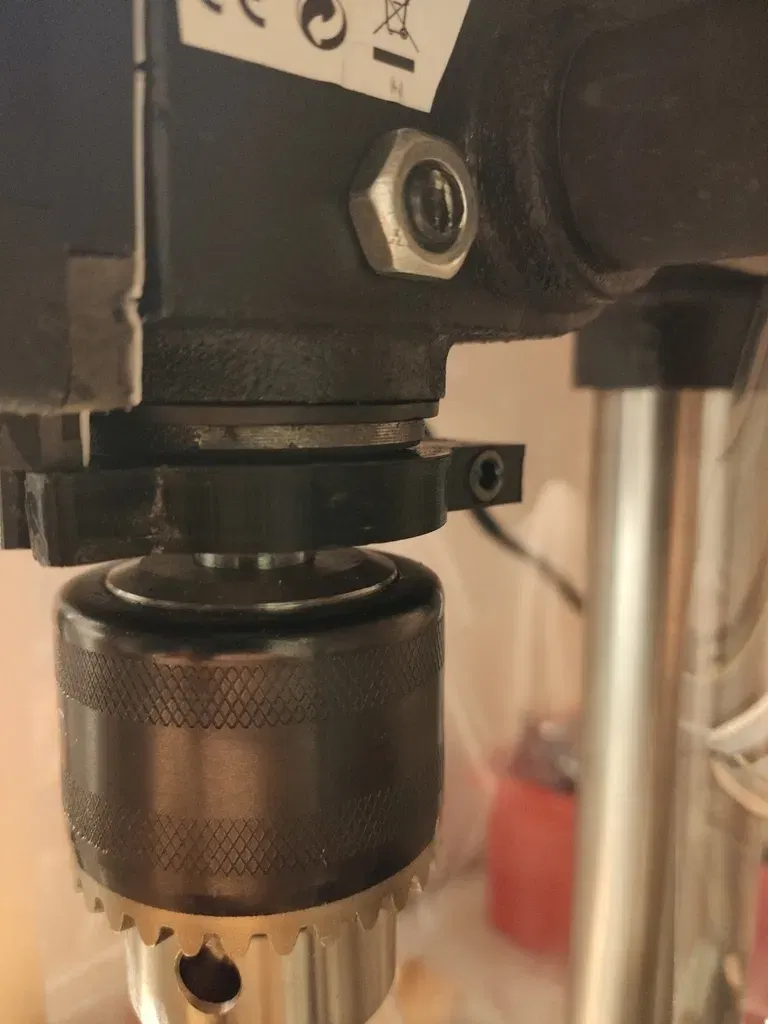

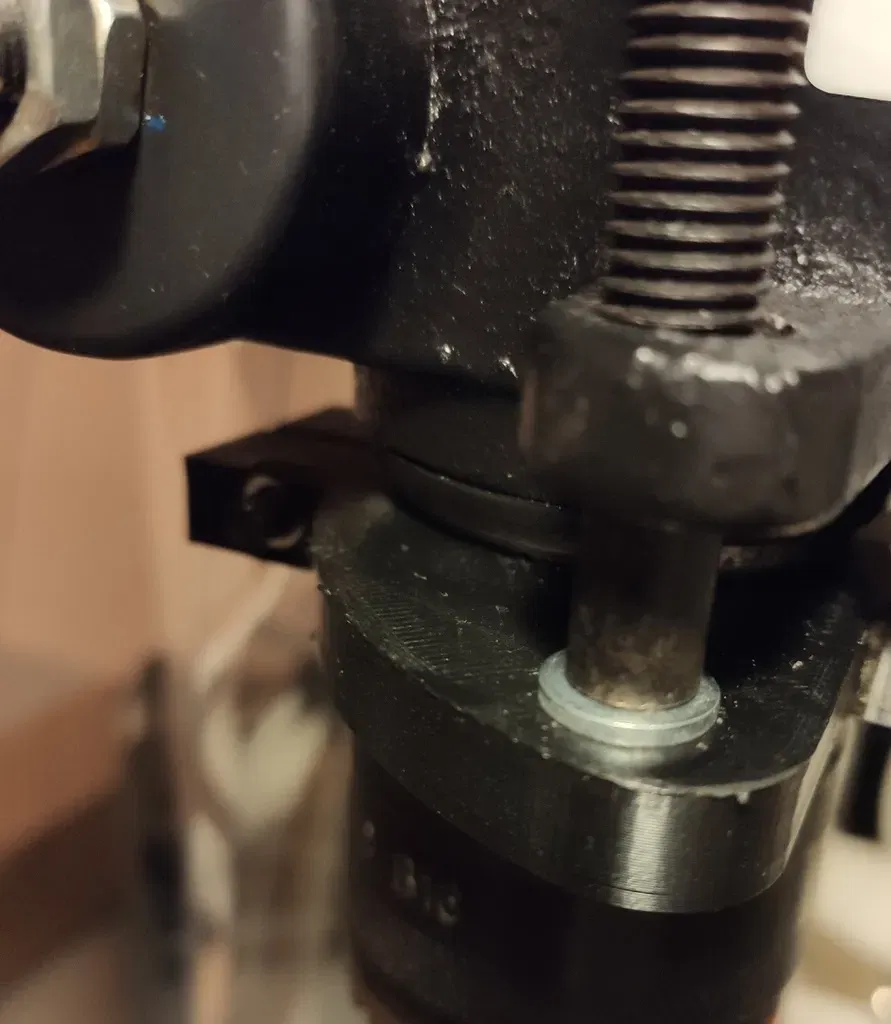

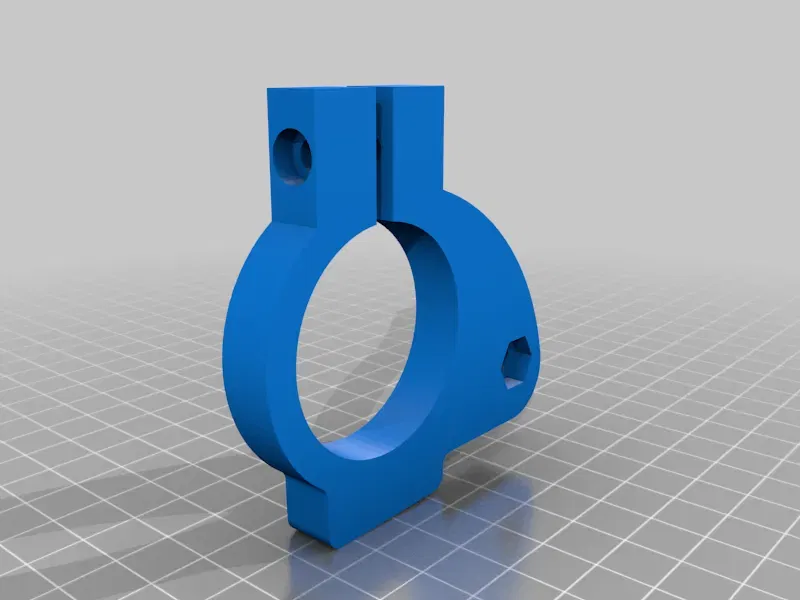

The part was redesigned to securely host the depth stop bar and at the same time keep the digital depth gauge slider fixed to the chunk.

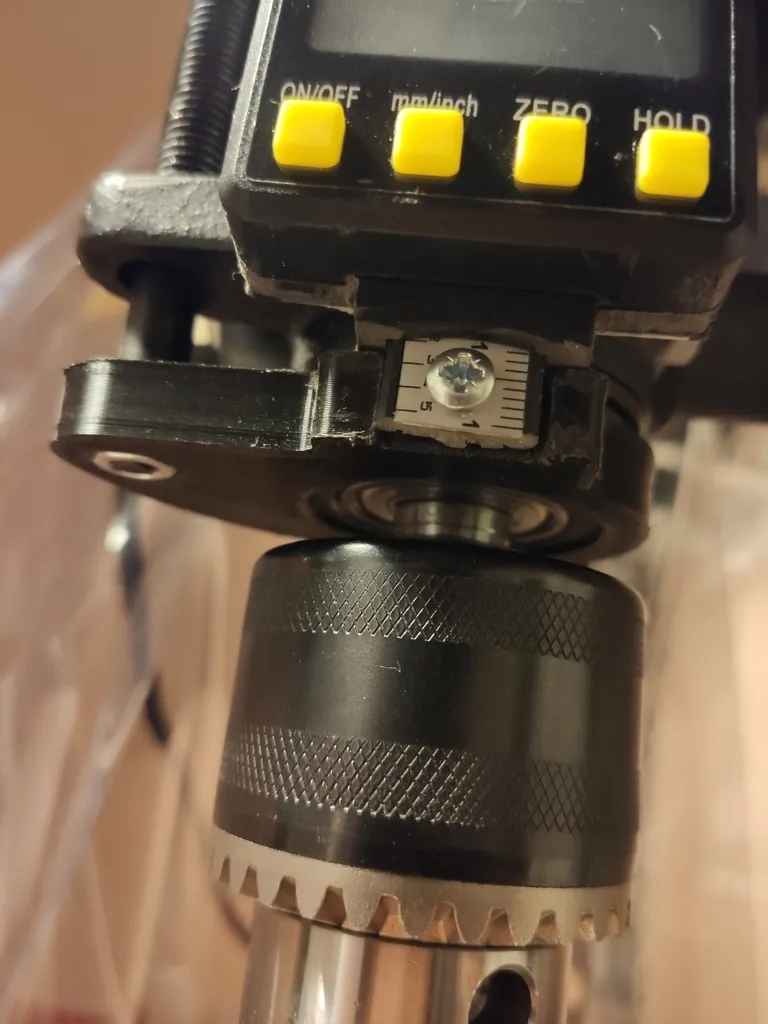

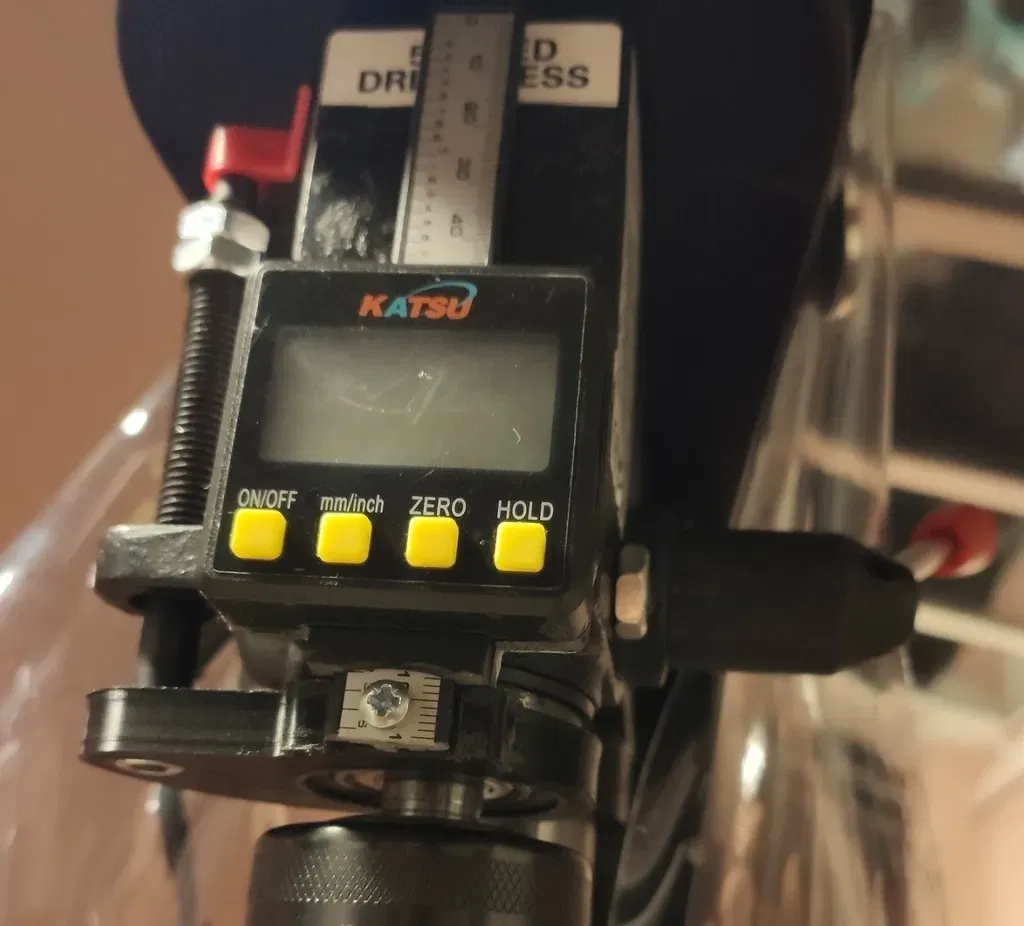

I modified the cheap Katsu digital depth gauge , removing lateral supports, so that was possible to glue on the drill press, having slider vincolated to the 3D printed part. (Distance have to be modified, depending on how gauge will be fixed to the drill press)

also used:

1x M5x30 screw and nut 1x Washer to improve depth bar fixing.

Enjoy!
