CanaKit Noctua Fan Replacement Lid

Description:

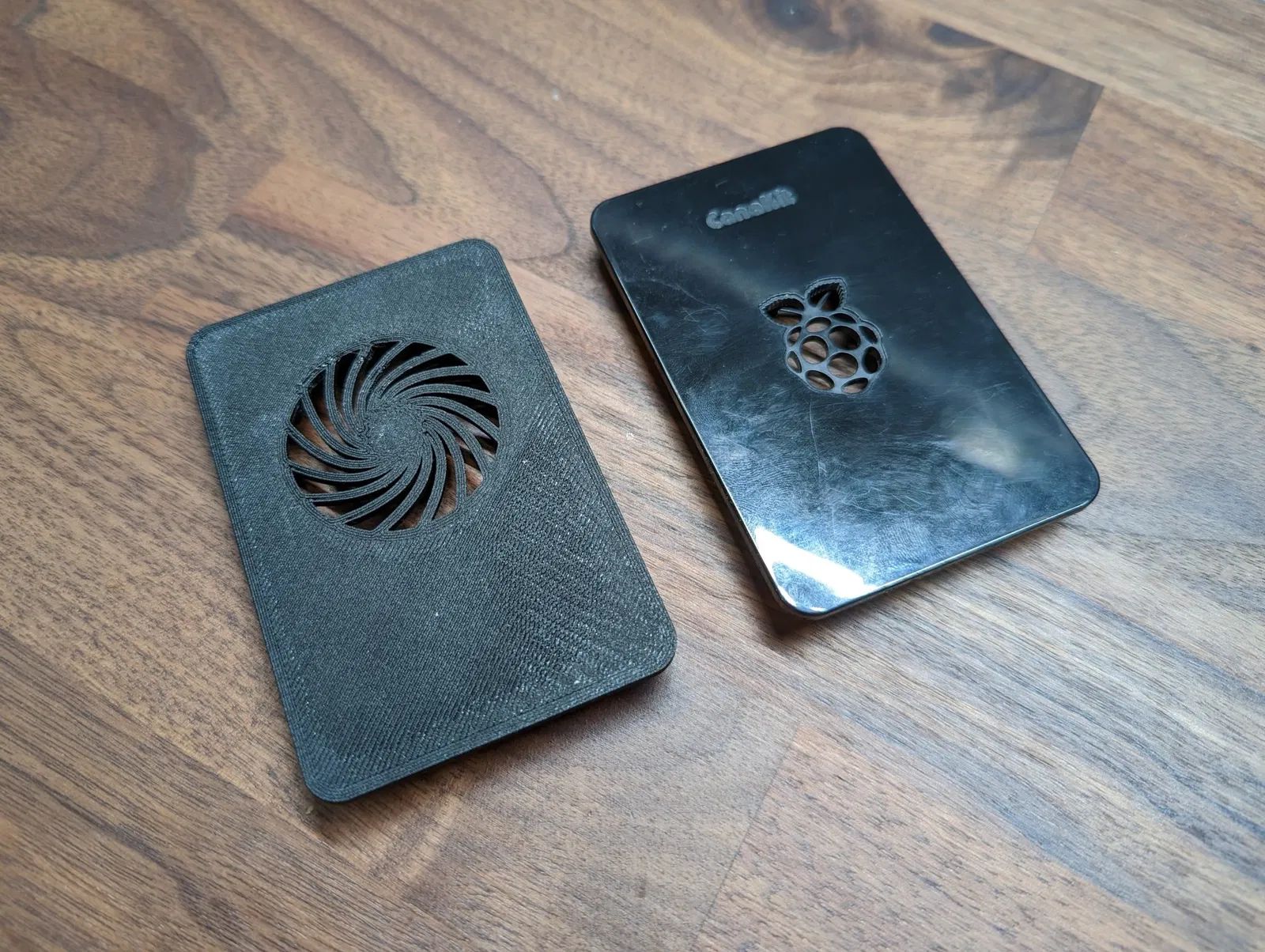

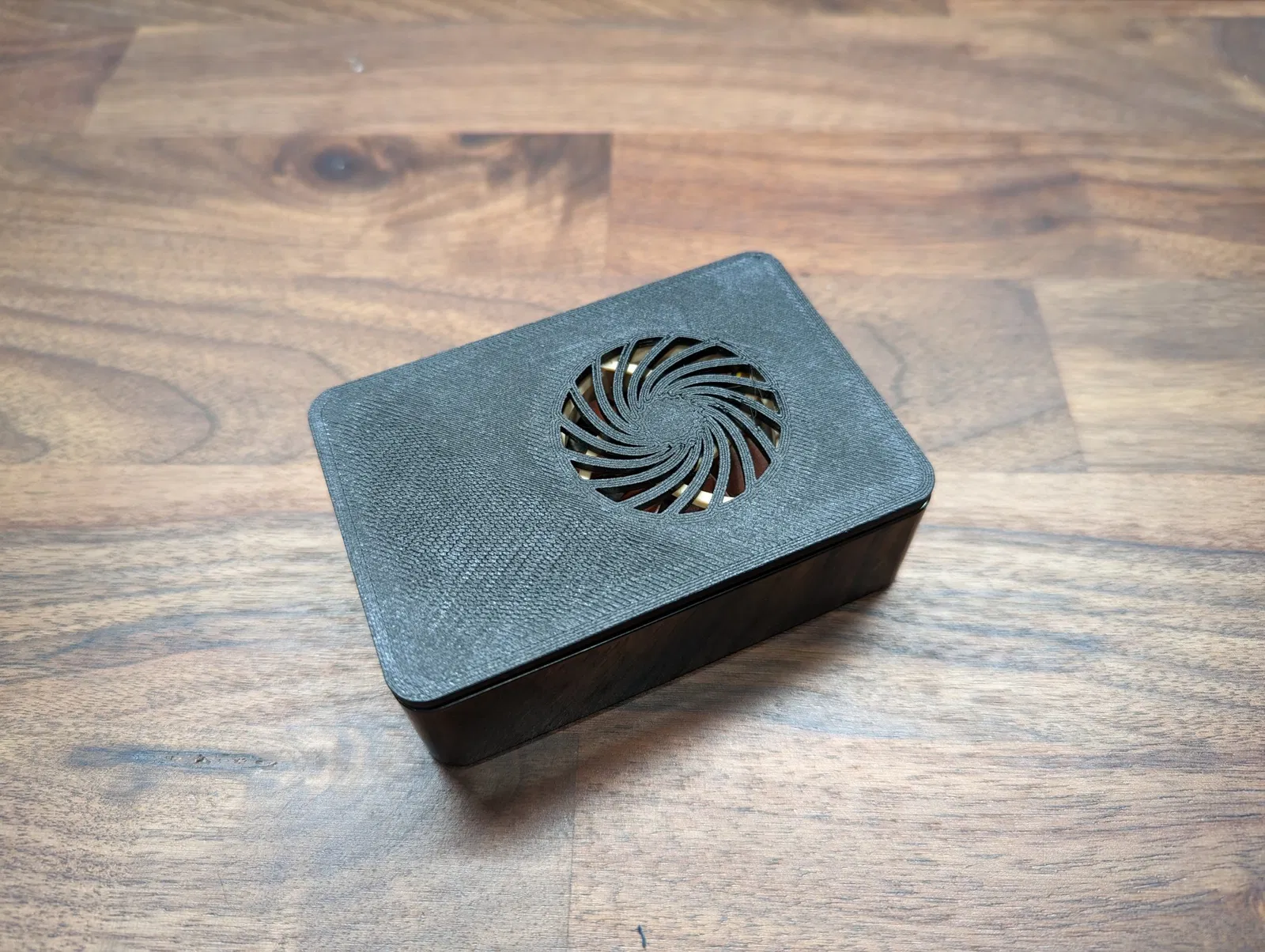

Replacement lid for the CanaKit Raspberry Pi 4 Starter Kit to fit a Noctua NF-A8 5V fan. The original fan failed and was always a little noisy. The Noctua is a great replacement but wouldn't fit the original CanaKit case lid.

Notes:

CanaKit Raspberry Pi 4 Starter Kit

• Purchased on December 20, 2020.
• Part Number: 99467

Noctua 40x10mm Fan

• Purchased on November 29, 2022
• Part Number: NF-A4x10 5V

Assembly:

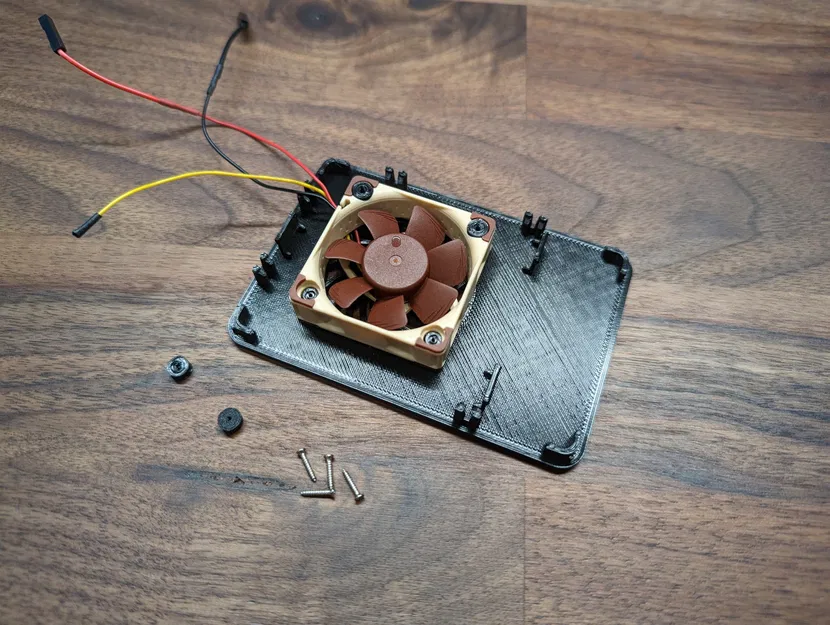

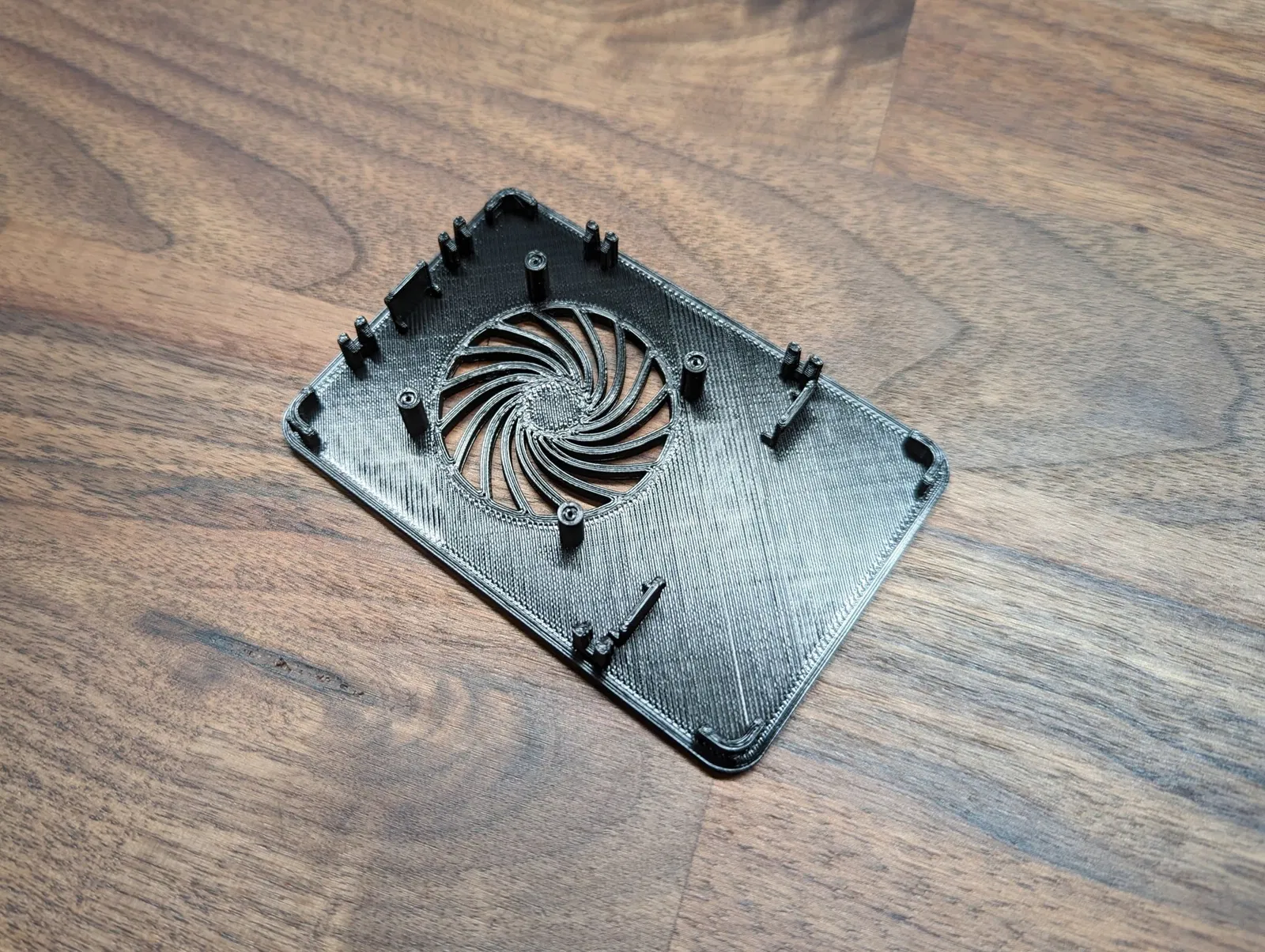

In order to attached the fan and maintain a low profile four insert washers were used that flush fit into the fan mounting holes. Four M1.4 8mm countersunk screws were used to hold the washers and fan in place. See pictures for reference.

Print Instructions:

Both the lid and washers can be printed with no supports. Below are the settings I used with my prints.

| Material | PLA |
|---|---|
| Nozzle | 0.4mm |
| Layer Height | 0.2mm |
| Infill | 50% |
| Supports | None |
| Brim | None |
