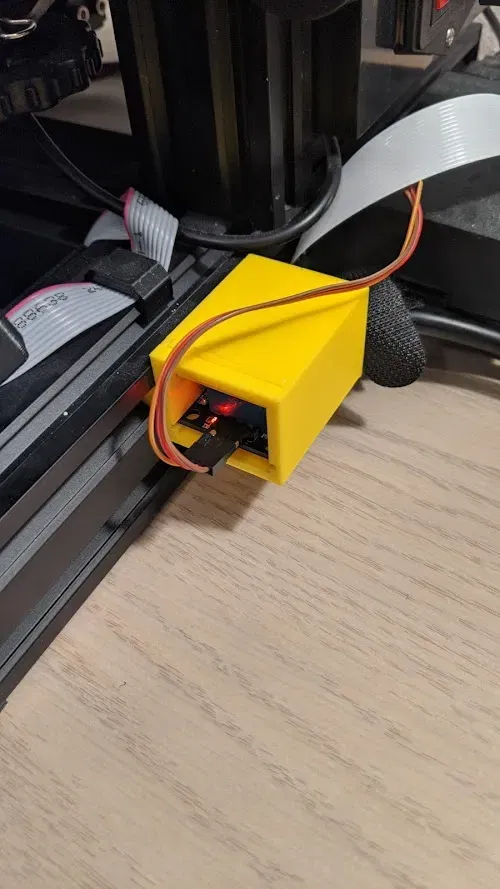

Ender 3/4040 Extrusion - Relay Case 1

2 hình

Máy In 3D

Ender 3/4040 Extrusion - Relay Case

Tác giả Sodium_Hydrogen

Lượt tải
22
Lượt thích
5
Lượt coi
285

File 4 252,8 KB

  • relay_case_1765558042.stlSTL · 50,3 KB
  • relay_case_lid_1765558042.stlSTL · 684 B
  • relay_case_1765558043.amfAMF · 66,5 KB
  • relay_case_1765558044.FCStdFCSTD · 135,4 KB

Tạo biến thể bằng AI

Dựng một phiên bản khác của mẫu này.

Mở Studio

Thông tin

Mã mẫu
#59602
Danh mục
Máy In 3D
Ngày đăng
Giấy phép
CC BY — Ghi công

Mô tả

Printing

Supports will likely be needed for the lid insert cutout

Assembly

  1. Strip the LIVE wire (USA is usually black)
  2. Feed the power wire through the smaller of the two openings
  3. Connect the wall plug end of the live wire into common and the printer side to either NC or NO

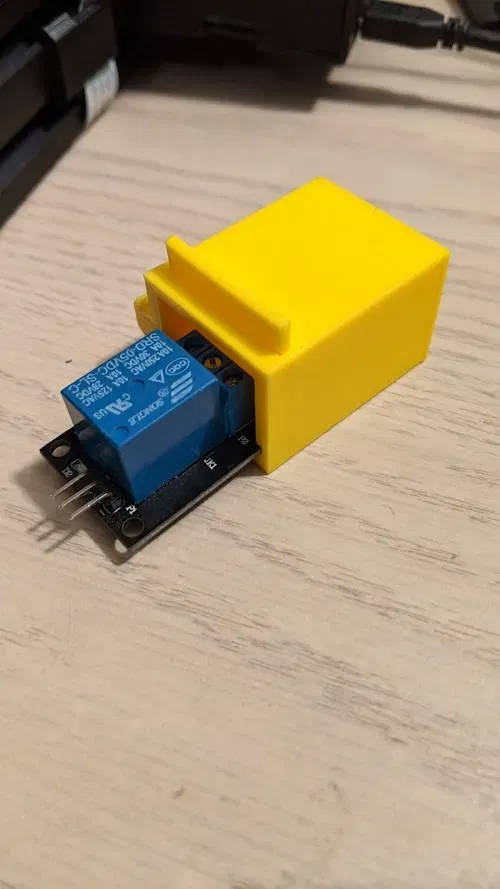

  4. Slide the relay board into the case
  5. Press the lid into the small slit for it
