Multi-Material kept simple remix cho mk3/s/+ (đa vật liệu, giữ đơn giản)

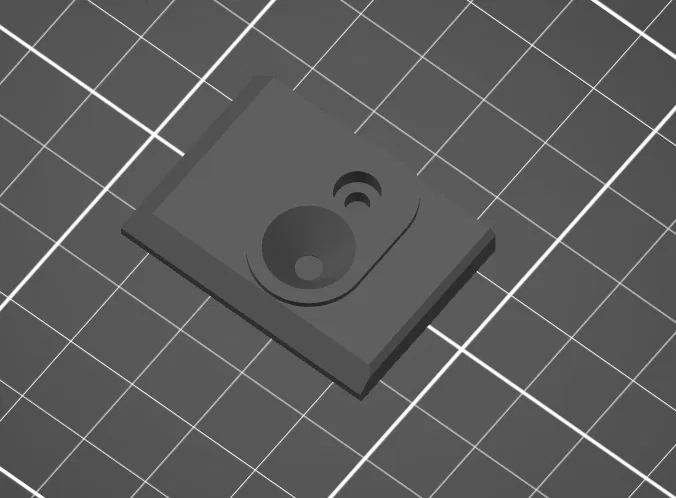

Nắp che sensor (cảm biến) được chỉnh sửa cho bộ Multi-Material kept simple (BMMU) để phù hợp với mk3/s/+.

Model gốc - Multi-Material kept simple được thiết kế bởi @3dbaptman

Đảm bảo Toolchange Gcode sẽ tắt filament sensor.
{if layer_num >= 0}
M406 ; Disable filament sensor
G0 E-35 F2400 ; Retraction
G0 {if current_extruder==0}X22{else}X230.5{endif} Y0 Z212 F10000 ; Approach filament rest position
M104 S{temperature[current_extruder]}; Set hotend temperature
M109 S{temperature[current_extruder]}; Wait for hotend temperature
G1 E-7 F3600; Retraction
G1 {if current_extruder==0}X4{else}X249.5{endif} E-3 F500 ; Retire filament
G1 {if current_extruder==0}X10{else}X244.5{endif} Z210 F600 ; redressing filament
G1 E-15 Z195 F600 ; Pull-out
G1 Z165 ; Free filament
M104 S{temperature[next_extruder]}; Set hotend temperature
M109 S{temperature[next_extruder]}; Wait for hotend temperature
;
G0 {if current_extruder==0}X244.5{else}X10{endif} Z165 F18000; Approach filament rest position
G1 Z195 F3600 ; capture filament
G1 E17 Z212 F600 ; Pull
G1 {if current_extruder==0}X230.5{else}X25{endif} E-3 F600 ; filament pick-up
G1 E59 F2400; Deretraction
G1 E5 F300 ; prime nozzle
G1 E-8 F2400 ; retract nozzle
G1 Z165 F10000 ; clear toolchange position
M104 S{temperature[next_extruder]}; Set hotend temperature
M109 S{temperature[next_extruder]}; Wait for hotend temperature
M405 ; Enable filament sensor
{endif}
