Bộ giảm thanh 40x100+
Bộ giảm thanh này được thiết kế để cắt luồng không khí và phân tán nó. Nó được lắp ráp dựa trên ống nhôm 40x1.5 mm, với các nắp và bánh răng được cố định bằng vít M3. Có ren M12 ở nắp sau, phù hợp cho súng lục có ren trong.
Mô tả
Cảnh báo: Không dùng ống in để làm bộ giảm thanh.

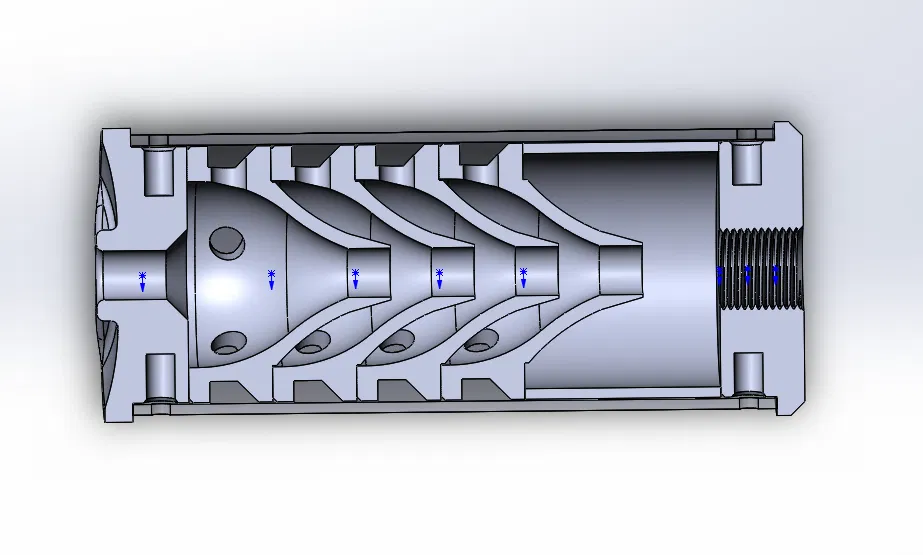

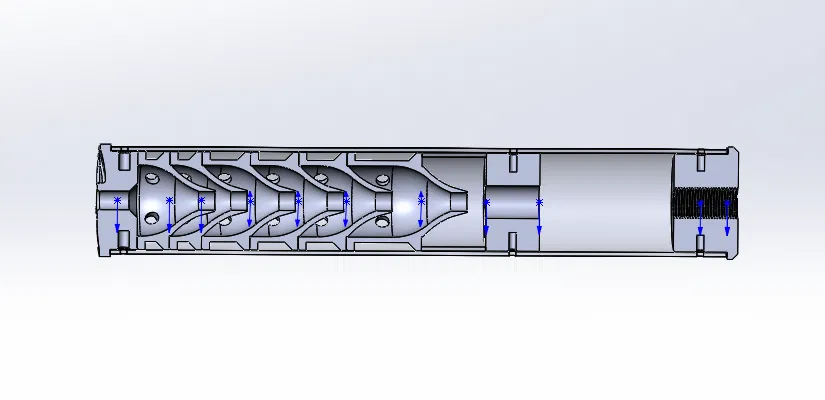

A moderator of any length, including an integrated one, can be assembled from a set of cones. The moderator is assembled on the basis of a 40x1.5 mm aluminum tube. Secure the covers and the sprocket with the m3 mounting screws. There is an m12 thread in the back cover. For installation on pistols with internal thread, I recommend using an m12 threaded tube.
The sides of the caps are 1 mm larger than the pipe diameter for mounting the heat shrink tube.
Added step files for adjusting the landing dimensions for different trunk diameters of the integrated moderator.
