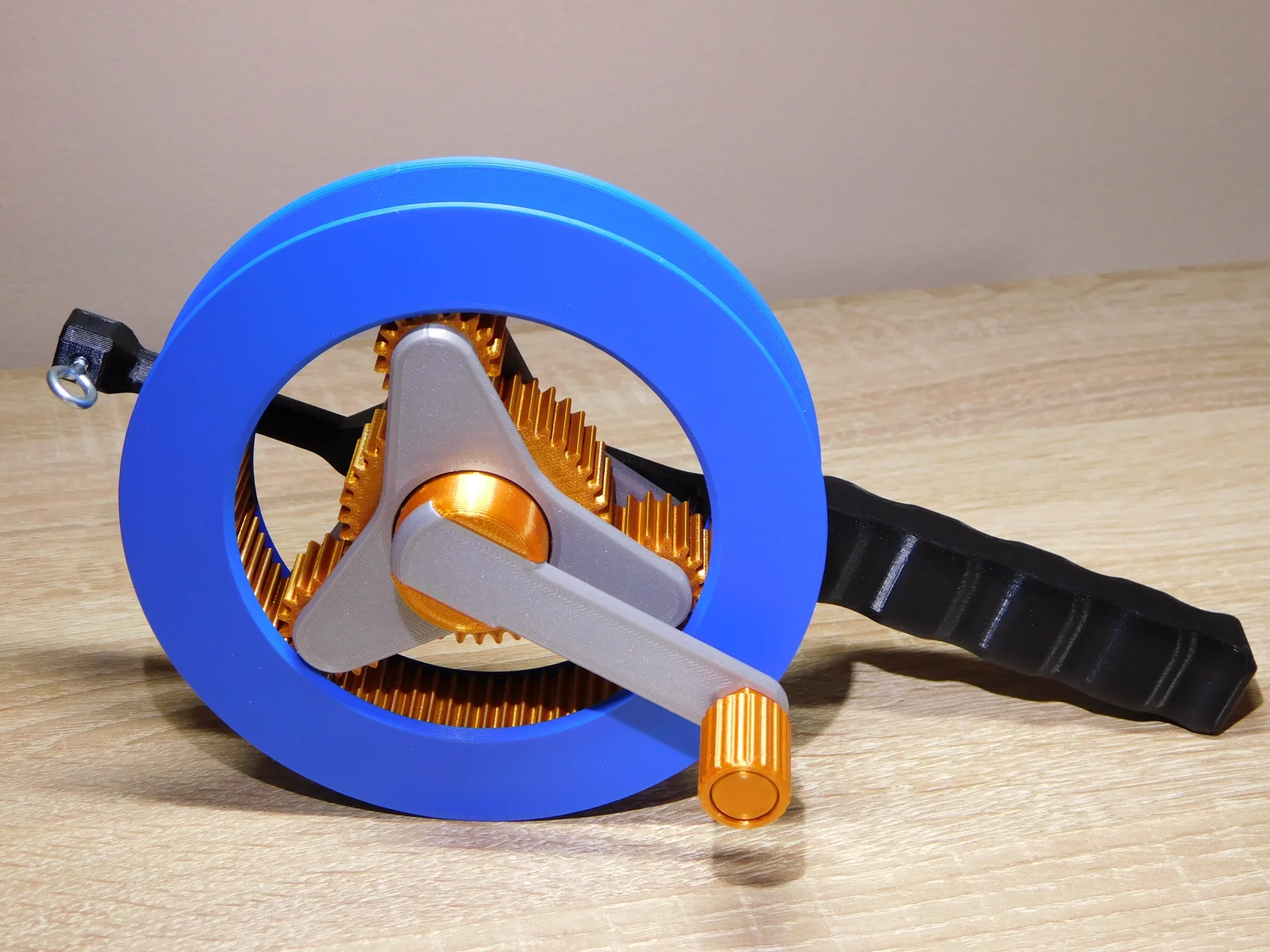

Cuộn dây thả diều có bánh răng (Geared kite reel)

Autumn is coming, and that's when both children and adults like to fly kites, so I prepared a small improvement to the theme of the competition!

Brief assembly instructions:

You need 2x bearing 608 ZZ-common in a sports shop as an accessory for skates

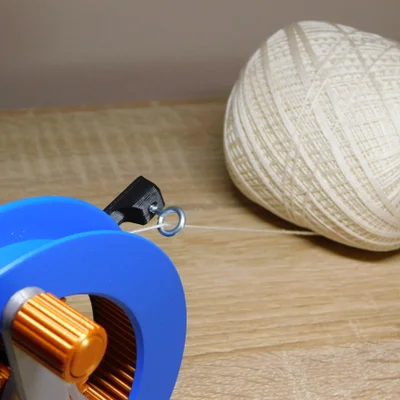

1 hook 16x30mm for guiding the cable during winding.
Some parts need to be glued

I recommend printing from durable PLA or PETG

Parts

Insert 2x bearing with a demarcation ring in the middle

Fold half the Cage B

Insert in half of the coil and glue with the coil

Finish the cage and glue the handle

Knob is made of two parts, but it is printed at the same time, then run it

Glue the other half of the coil

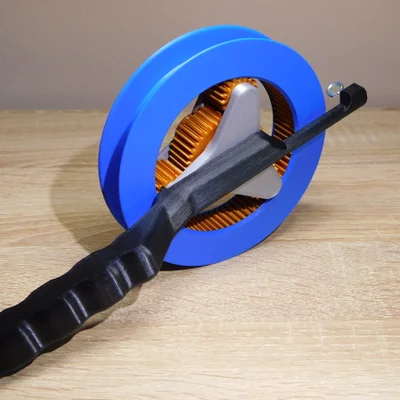

Finally, glue the handle with the attached hook

All done   !

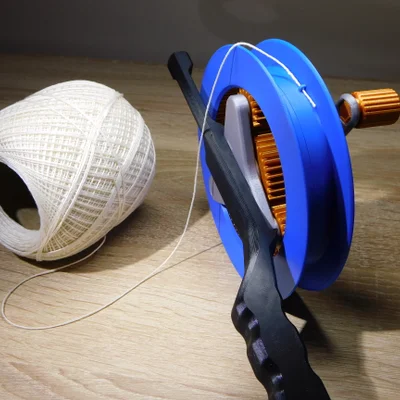

There is a small eye on the spool for attaching the cable

If you find something to improve, or want to modify something, write to me.

The winding direction is opposite to the hand turning direction!

To stop the line unwinding, put the finger of the hand holding the reel between the gears and the outer gear
