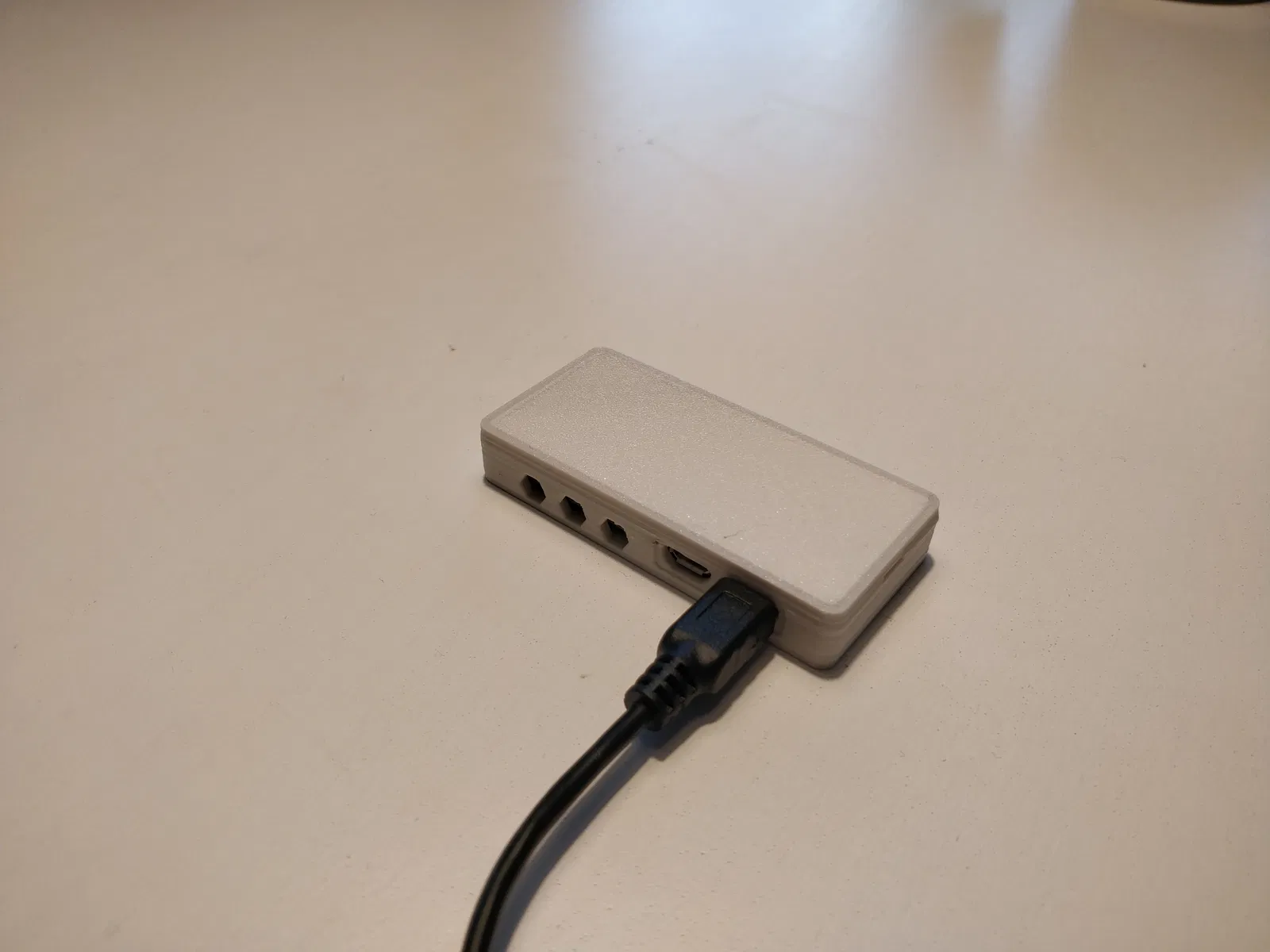

Vỏ Raspberry Pi Zero tối giản, phẳng

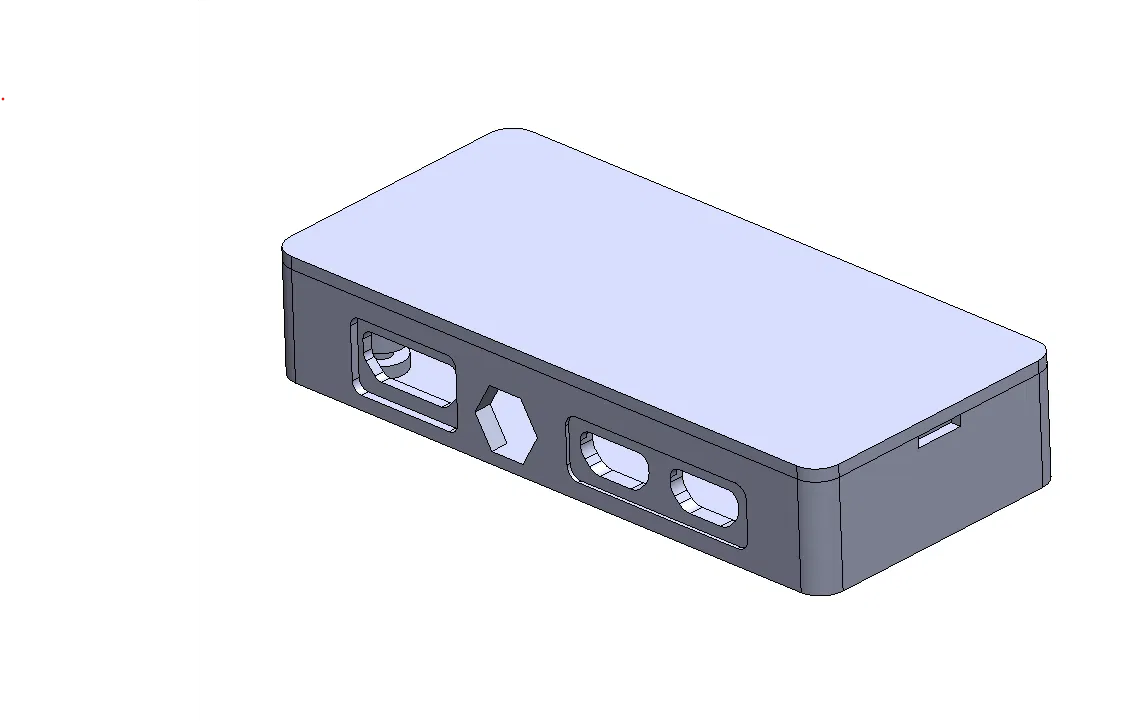

Phiên bản vỏ case Raspberry Pi Zero mới nhất với khả năng truy cập cổng HDMI mini và không gian cho tản nhiệt 7mm. Vỏ case tối giản, không cần ốc vít, lắp ráp dạng click-fit. Có lỗ thông gió hai bên, lý tưởng cho Pi-hole.
Mô tả
19/10/2020
Theo yêu cầu của người dùng, mình đã thêm phiên bản có:
-
Khả năng truy cập cổng HDMI mini
-
Khoảng trống bên trong case cho tản nhiệt có chiều cao tối đa 7mm trên bộ xử lý.
-
-
A minimalistic case for the Raspberry Pi Zero or Zero W without pin header.

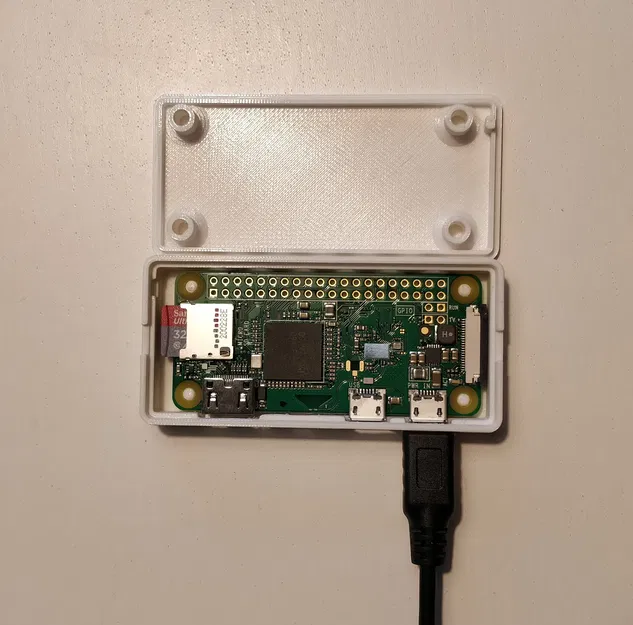

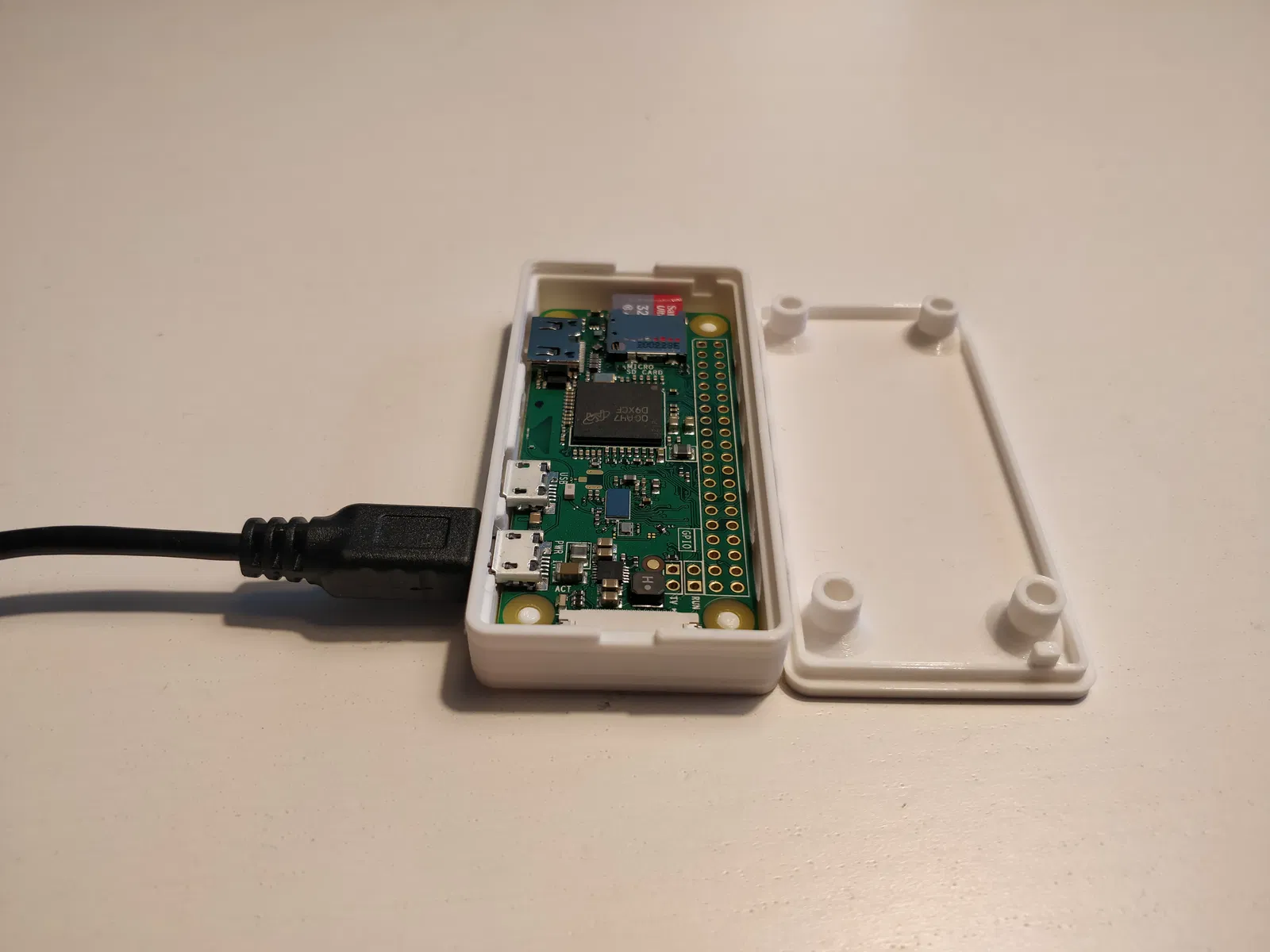

Requires no screws, glue or tools to assemble. The Raspberry Pi clicks onto the bottom part via the 4 screw holes and the lid snapfits onto the bottom case.
The case got vents on both sides, this should keep it cool.
Perfect case for Pi-hole.
Hướng dẫn in ấn
Designed for 0,15mm layer height with 0,45mm extrusion width.
4 Perimeters for strength.
Prints without supports.
I printed it with Prusament signal white PETG, it should work with PLA but the snap fit feature might not work as well.
