Happy New Years 2024 Bobble Stars Hairband

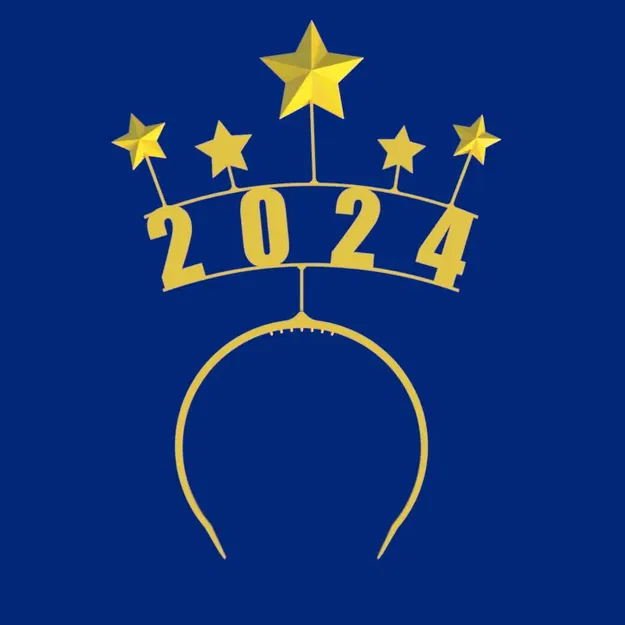

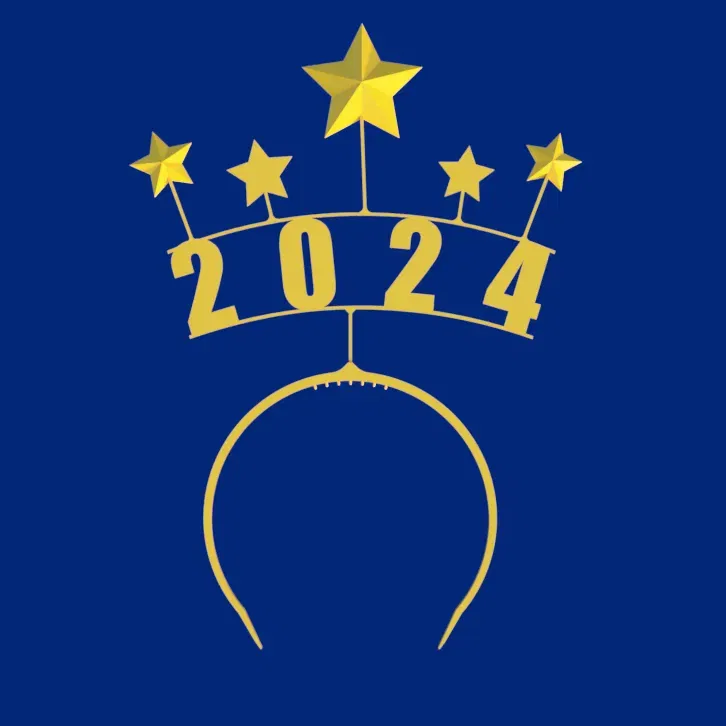

Happy New Years 2024 with this bobble year and stars hairband!

Recommendations

Filament

PETG filament is flexible enough for the bobble section to bend almost 90 degrees without snapping. PLA+ has a bit more flexibility than PLA but not as must as PETG and is a good alternative material for this print. PLA is not as flexible; however, it is strong enough to avoid snapping except under vigorous movement - it just won't bobble as much.

Slicer Settings

Bobble Top:

• Print orientation - must be flat and rotated to 45 degrees to fit on a 220mm print bed.
• Layer height - 0.2
• Wall line count - 2
• Top layers - 3
• Bottom layers - 3
• Infill density - 5%
• Infill pattern - lightning
• Support - None
• Build plate adhesion - None

Hair band:

• Print orientation - flat with opening for bobble insert facing up
• Layer height - 0.2
• Wall line count - 4
• Top layers - 3
• Bottom layers - 3
• Infill density - 5%
• Infill pattern - lines
• Support - None
• Build plate adhesion - None

Assembly tips:

• The bobble section needs to be inserted into the hairband opening at the top of the hair band. This is a snug, snap fit. Sand the ball of the bobble section slightly if needed until it slides in with just a little force required. The interface fit will depend on your 3d printer accuracy. Tolerance used was 0.3mm.
• Add a dab of super-glue to the hairband/bobble section joint to secure it. Hot glue may also work.
