Let this gnome hide away your Christmas candy and nuts; he keeps them under his hat.

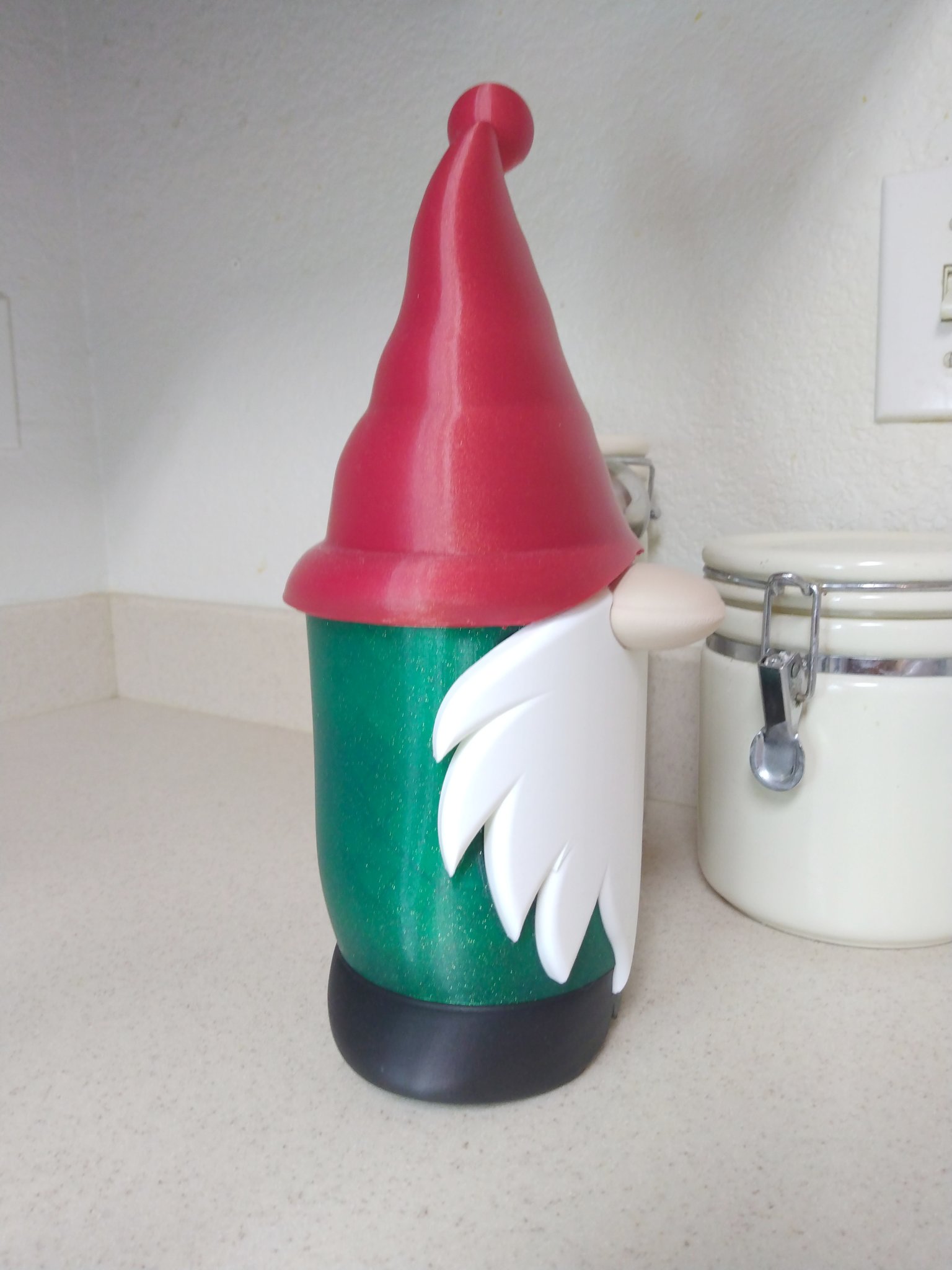

Made using a single color printing Ender 3 Pro, this candy holder is created from 5 different colored pieces that are hot glued together to form a cute gnome to keep holiday snacks safe.

Materials Used

• Protopasta Fleck 'n Forest Green for the torso
• Protopasta Candy Apple Red for the hat
• Polymaker PolyLite White for the beard (not matte like PolyTerra)
• Polymaker PolyTerra Charcoal Black for the shoes
• Polymaker PolyTerra Army Beige for the nose
• hot glue to glue pieces together

Slicer Settings (eSlicer)

Hat:

• Orientation - Sitting on flat base
• Layer height - 0.2
• Wall line count - 4
• Top layers - 3
• Bottom layers - 4
• Infill density - 20%
• Infill pattern - lightning
• Support - Yes
• Support placement - Everywhere
• Build plate adhesion - None

Torso:

• Orientation - Opening at the top
• Layer height - 0.2
• Wall line count - 2
• Top layers - 3
• Bottom layers - 4
• Infill density - 10%
• Infill pattern - Cubic subdivision
• Support - Yes
• Support placement - Touching build plate
• Build plate adhesion - None

Shoes:

• Orientation - peg at the top
• Layer height - 0.2
• Wall line count - 2
• Top layers - 3
• Bottom layers - 4
• Infill density - 10%
• Infill pattern - lines
• Support - No
• Build plate adhesion - None

Beard:

• Orientation - Standing vertical upside down (looks like flames)
• Layer height - 0.2
• Wall line count - 2
• Top layers - 3
• Bottom layers - 4
• Infill density - 10%
• Infill pattern - lines
• Support - Yes
• Support placement - Everywhere
• Build plate adhesion - Brim

Nose:

• Orientation - vertical
• Layer height - 0.2
• Wall line count - 2
• Top layers - 3
• Bottom layers - 4
• Infill density - 5%
• Infill pattern - lines
• Support - Yes
• Support placement - Touching build plate
• Build plate adhesion - None

Assembly Tips:

• Hot glue beard to torso first.
• Align shoes to beard and hot glue to torso
• The nose may need a little sanding for best fit depending on your 3d printer accuracy.
• Hot glue nose in place BEFORE putting the hat on but test fit hat before gluing nose.
• When gluing nose, use glue only on torso/nose contact point to avoid creating a line of glue that can interfere with hat position
• After glue is set, fill with candy or nuts and put the hat on your Christmas gnome.
