joints for fnaf figures

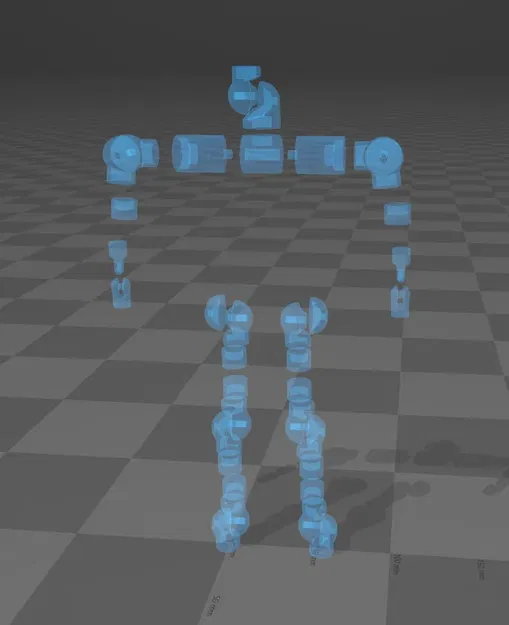

These elements are used to mount in the animatronic interface that you will find on my profile.

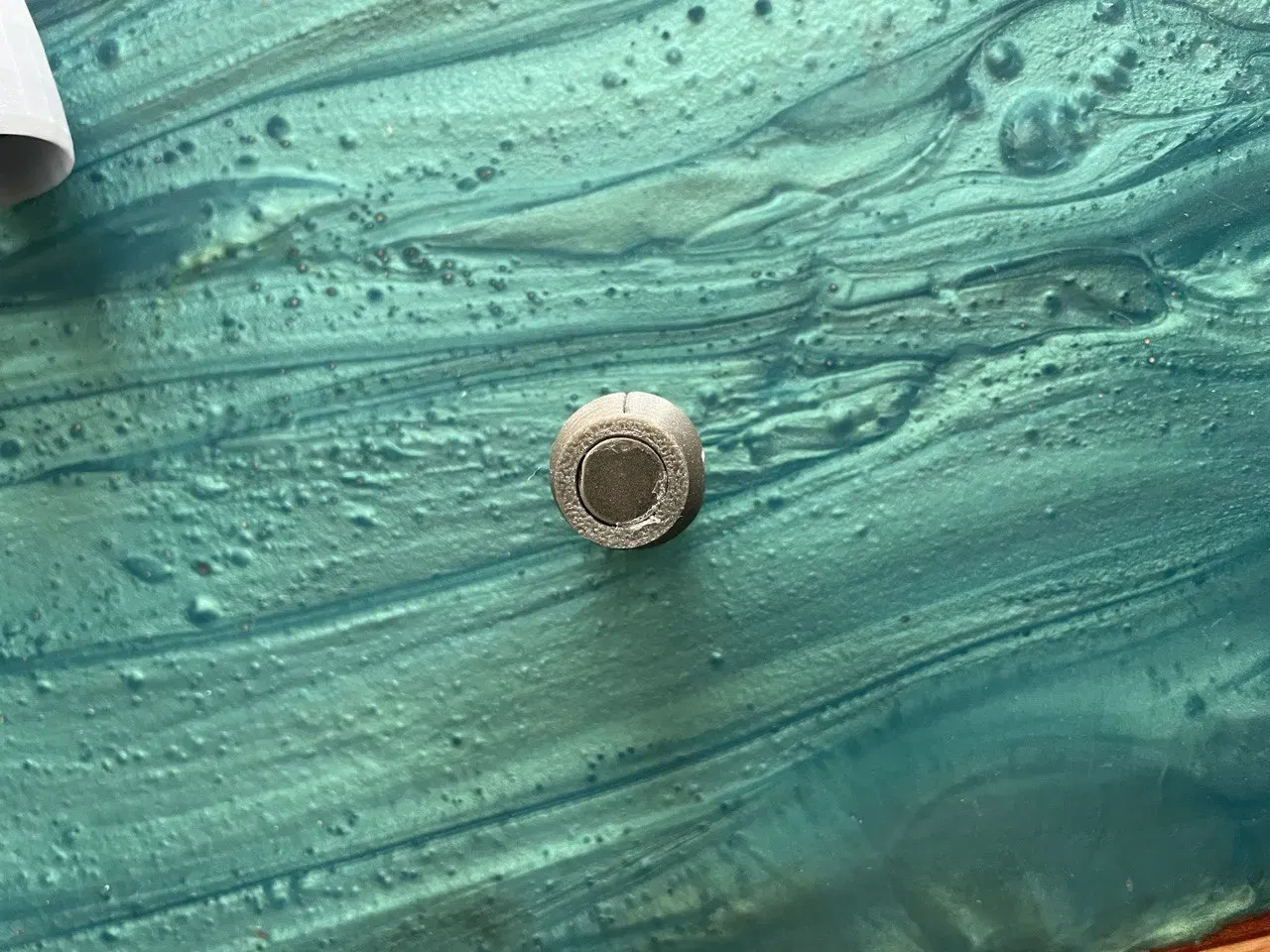

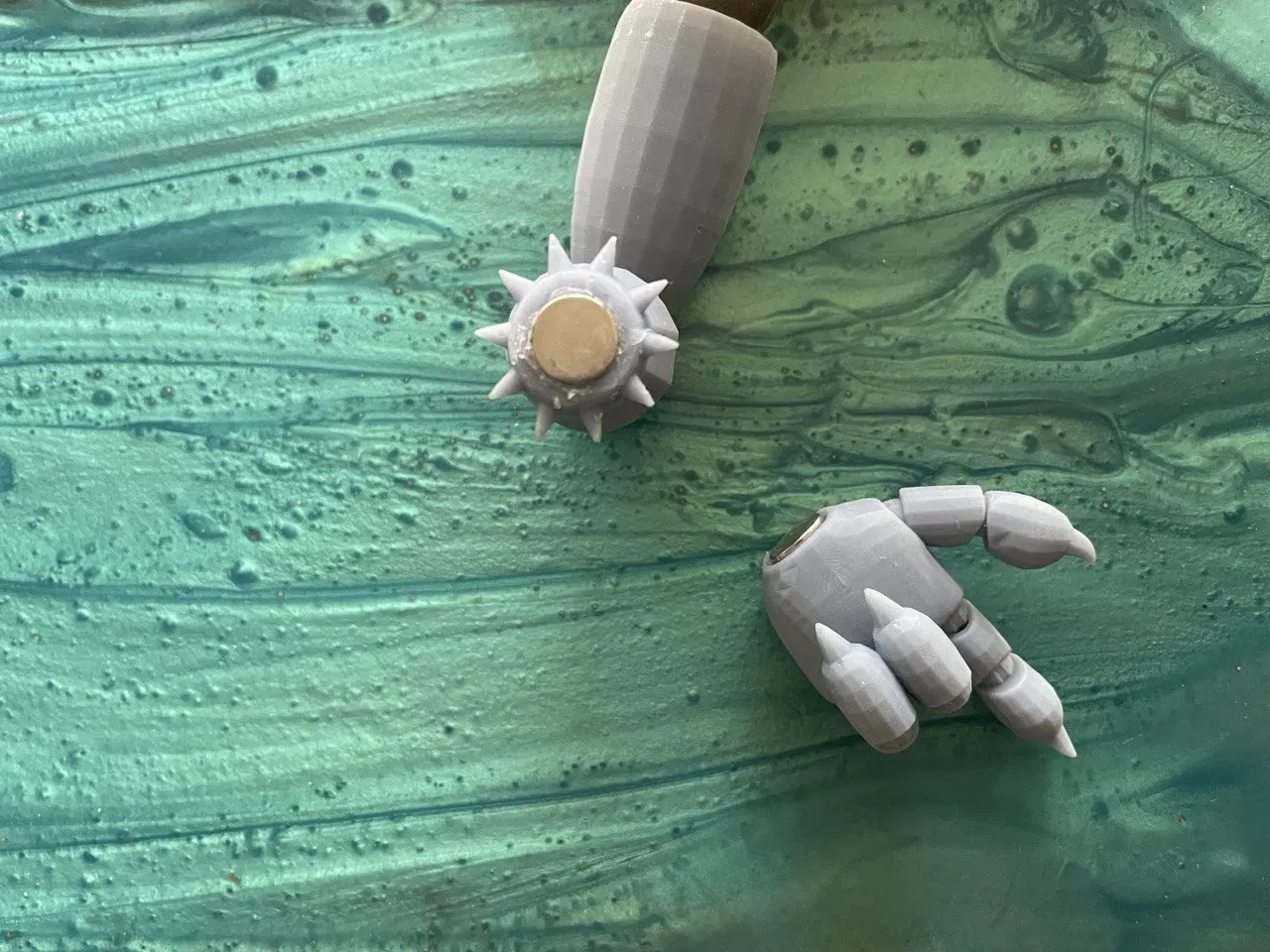

In magnet mount v1.stl you paste the magnesium and you paste it into the given part in the animatronic.

body conector 1.stl and arm conector 2 x2.stl are glued together after they are recorded in the aniatronika body.

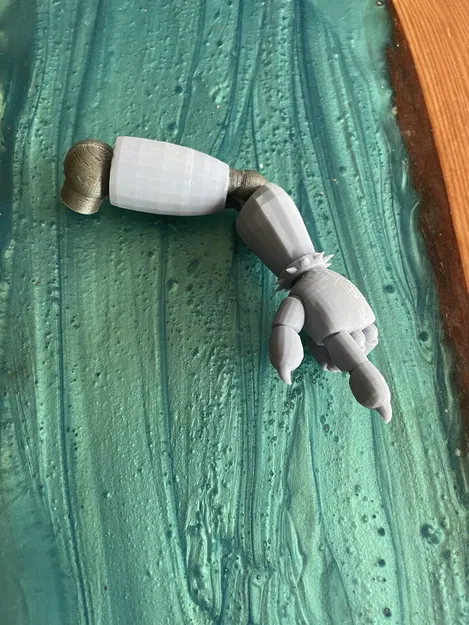

elbow part 1.stl and elbow part 2.stl should be glued in the animatronic's hands after assembling.

You paste hip.stl directly into the animatronic body

All magnets need to be pasted

Don't be afraid to use glue

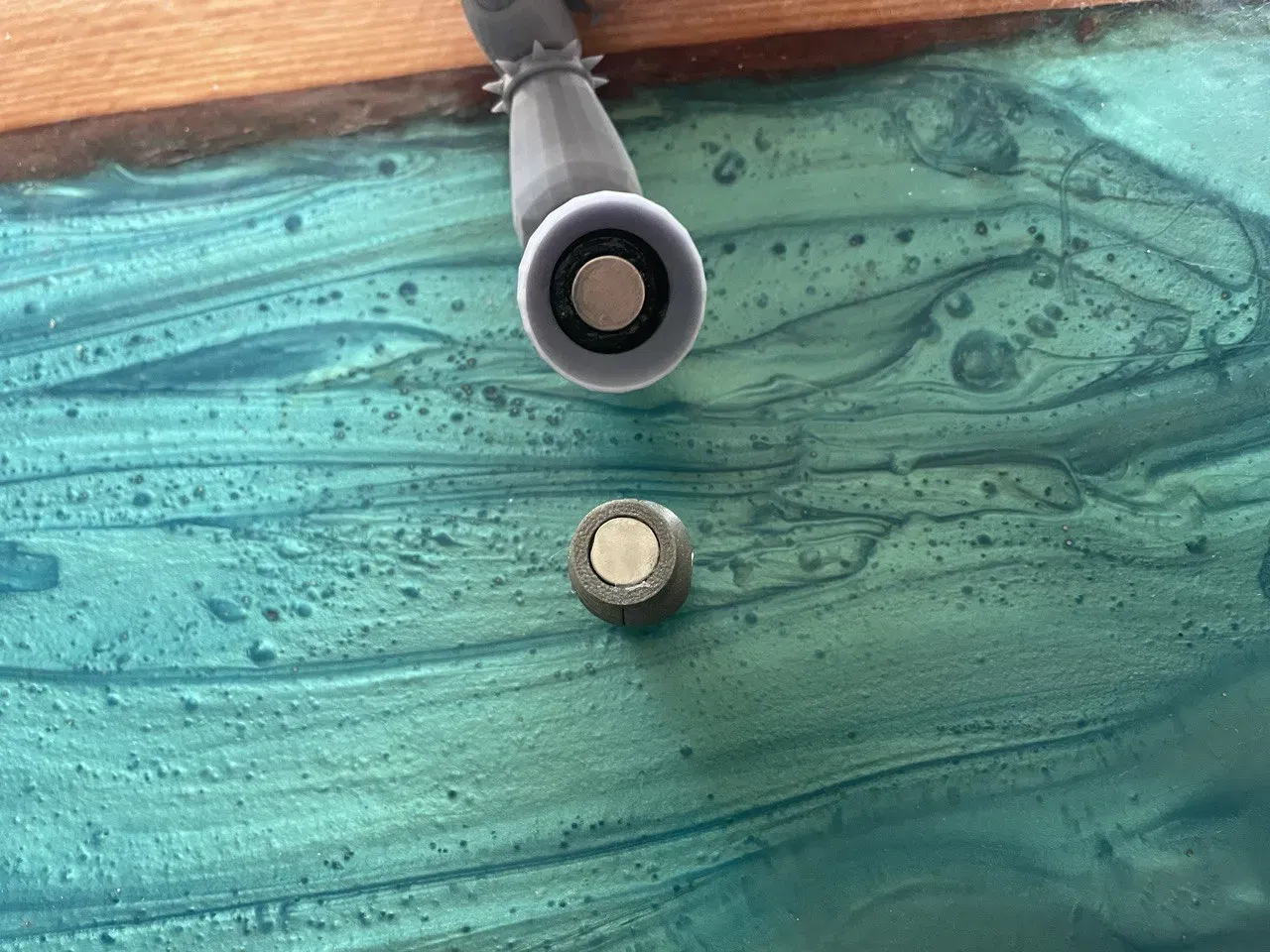

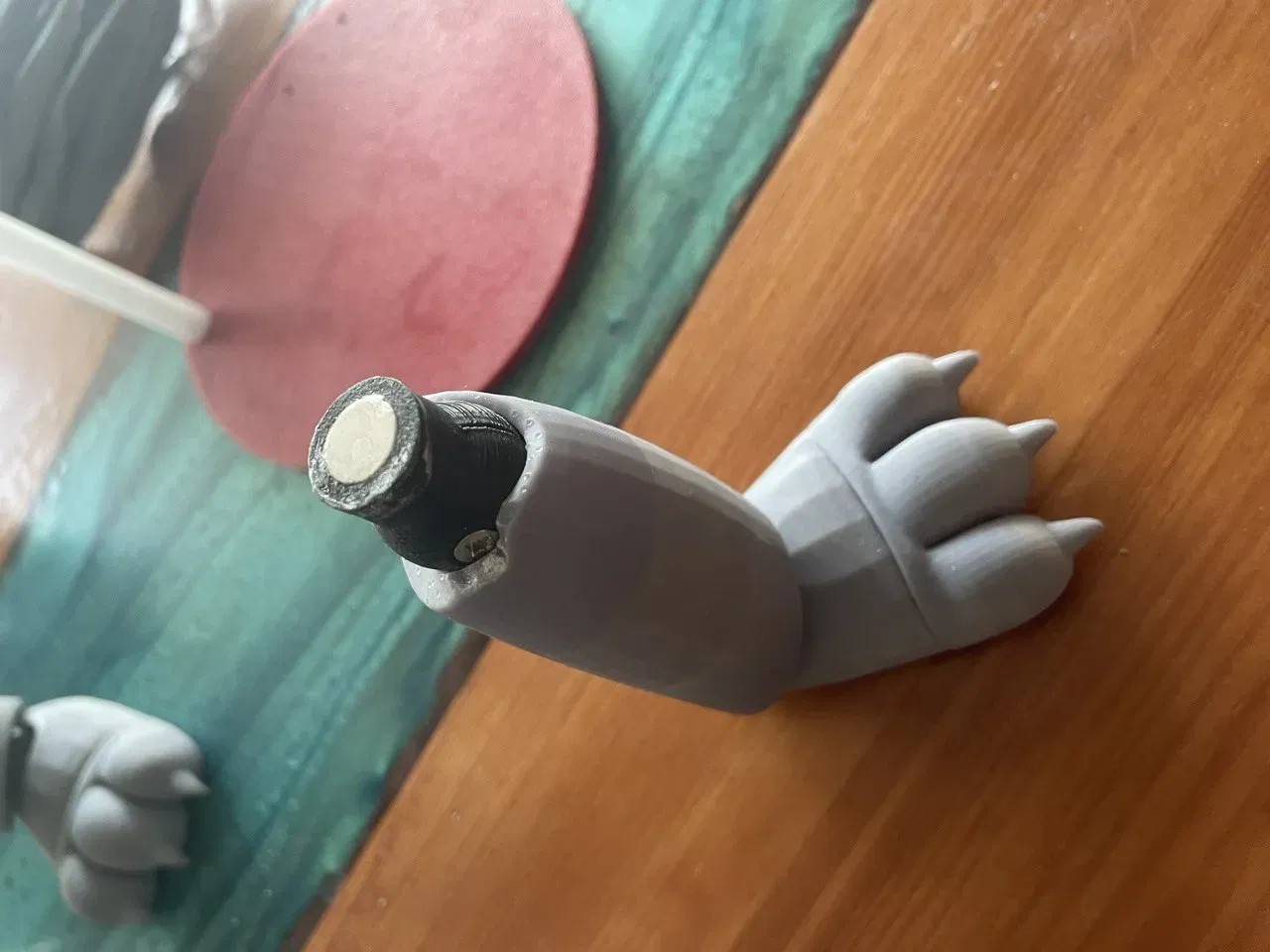

I used 10x5mm neodymium magnets to connect the joint base with the magnet mount

Each animatronic requires a different amount of magnets

Neodymium magnet 10x5 https://elektronika-sklep.pl/elementy-mechaniczne/magnesy/magnes-neodymowy-10x5mm

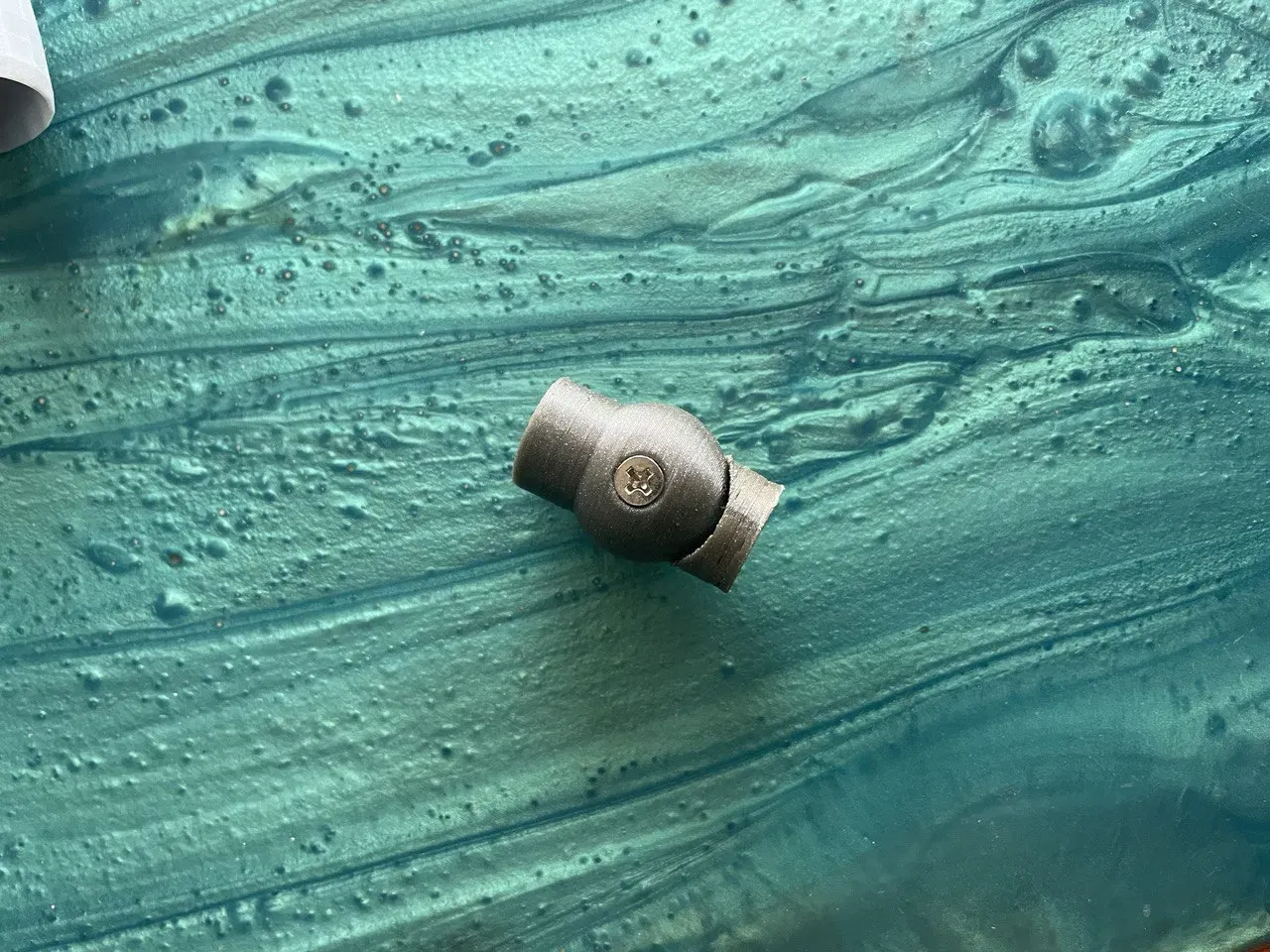

An insert must be pressed into each joint base

M3x8 countersunk head screws

Insert M3x4mm https://pl.aliexpress.com/item/1005004629314742.html?spm=a2g0o.productlist.main.7.2313XUUBXUUBKz&algo_pvid=bde759e1-795d-4f8c-bb9f-bb180f913178&aem_p4p_detail=202306220211496035469512709230005902811&algo_exp_id=bde759e1-795d-4f8c-bb9f-bb180f913178-3&pdp_npi=3%40dis%21PLN%2146.73%2117.09%21%21%21%21%21%402100b1a616874251093416894d0783%2112000029896431147%21sea%21PL%210&curPageLogUid=jsWZ4wZcP6ZH&search_p4p_id=202306220211496035469512709230005902811_4
