Tiêu đề Honor of Kings Logo Lightbox LED Lamp王者荣耀灯箱 Tóm tắt

This 3D model of the light box features the logo of Honor of Kings.

WARNING!

- Remove purge line at the beginning of the print!

Materials and tools: - aluminum tape - Led strip: simple 1m white led USB

- nano paste

RECOMMENDATIONS

- use a textured PEI sheet - use the printer profile, it has quite a few setting changes that help achieve the best results - already make a hole in the file

- use the aluminum tape on the inside of the backplate to help with light diffusion - glue the LED's the further away from the colored design possible; placing them too close ruins the diffusion and the individual LED's become visible

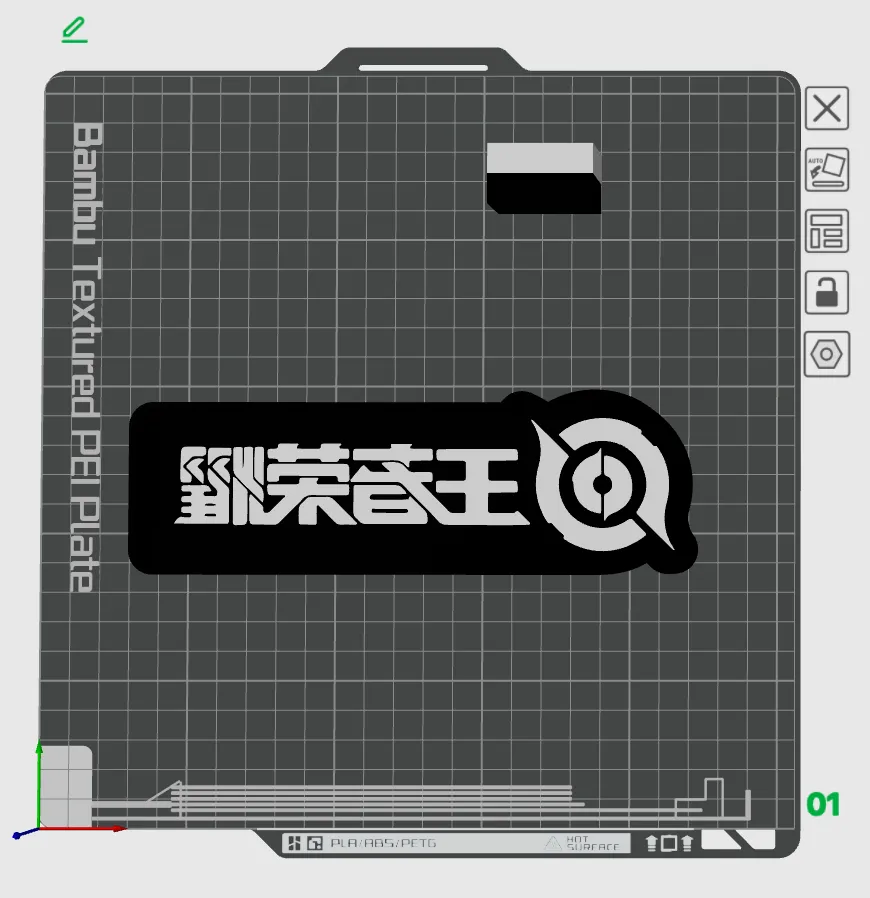

Bambu Studio Settings: I always recommend using the print profile I provided since it has settings with which I've been able to get the best results. If you choose not to here are the main slicer settings I recommend: - preferences (ctrl + P) → activate developer settings → Quality →Advanced → First Layer Flow Ratio: 1.04 - Quality → Wall generator → Arachne - Quality → Wall transitioning threshold angle → 50º - Strength → Advanced → Infill/wall overlap → 20%
