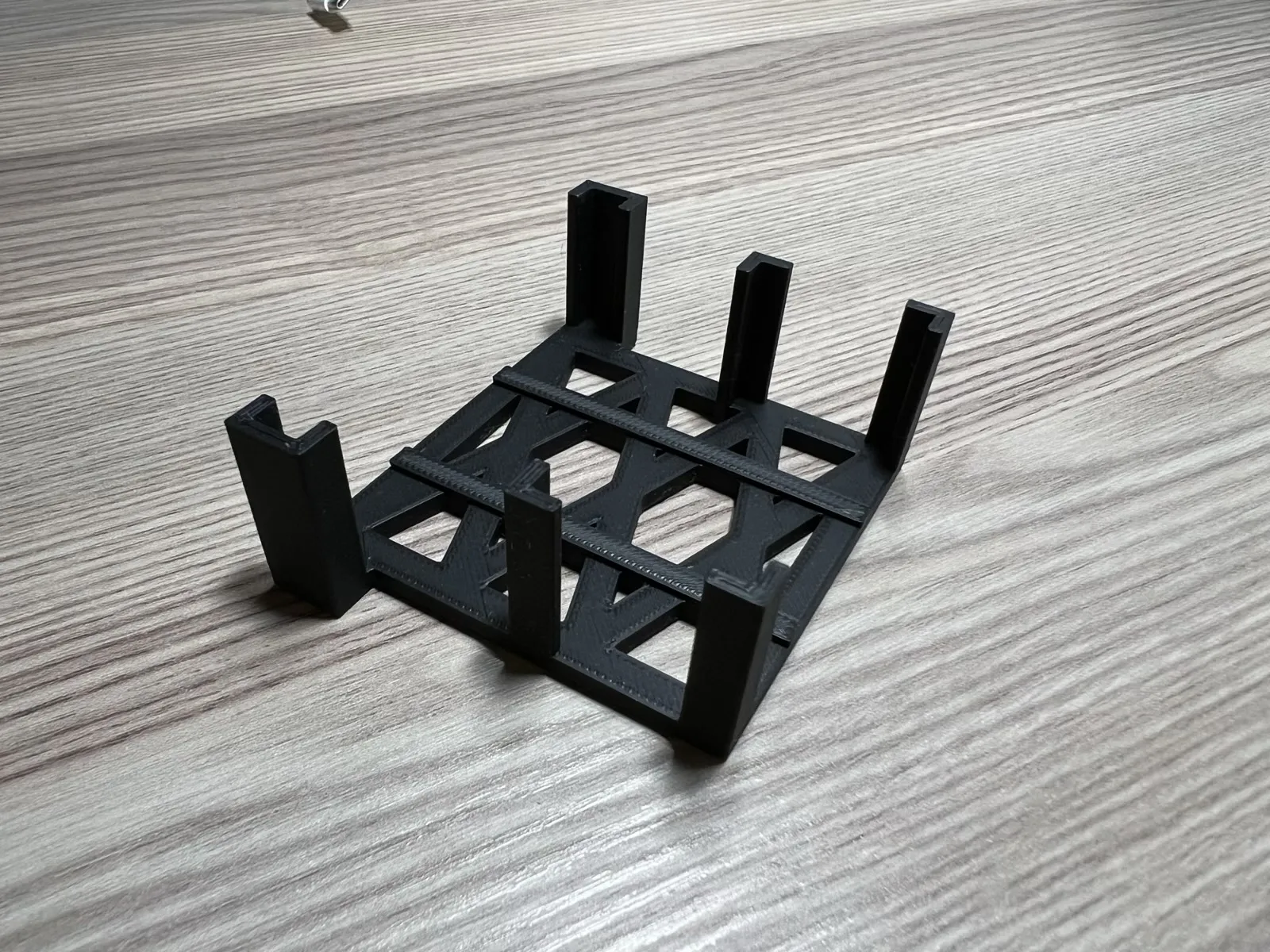

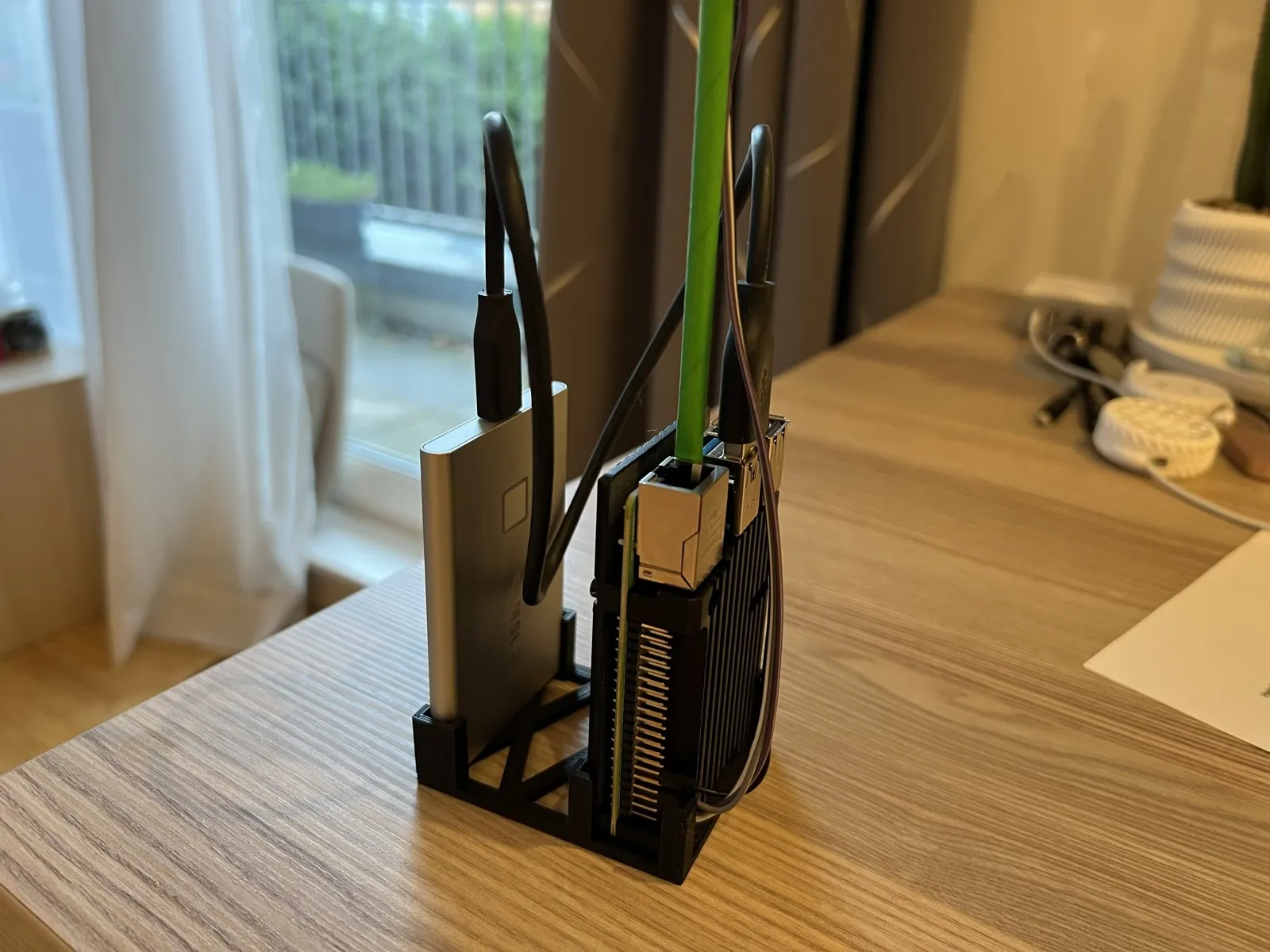

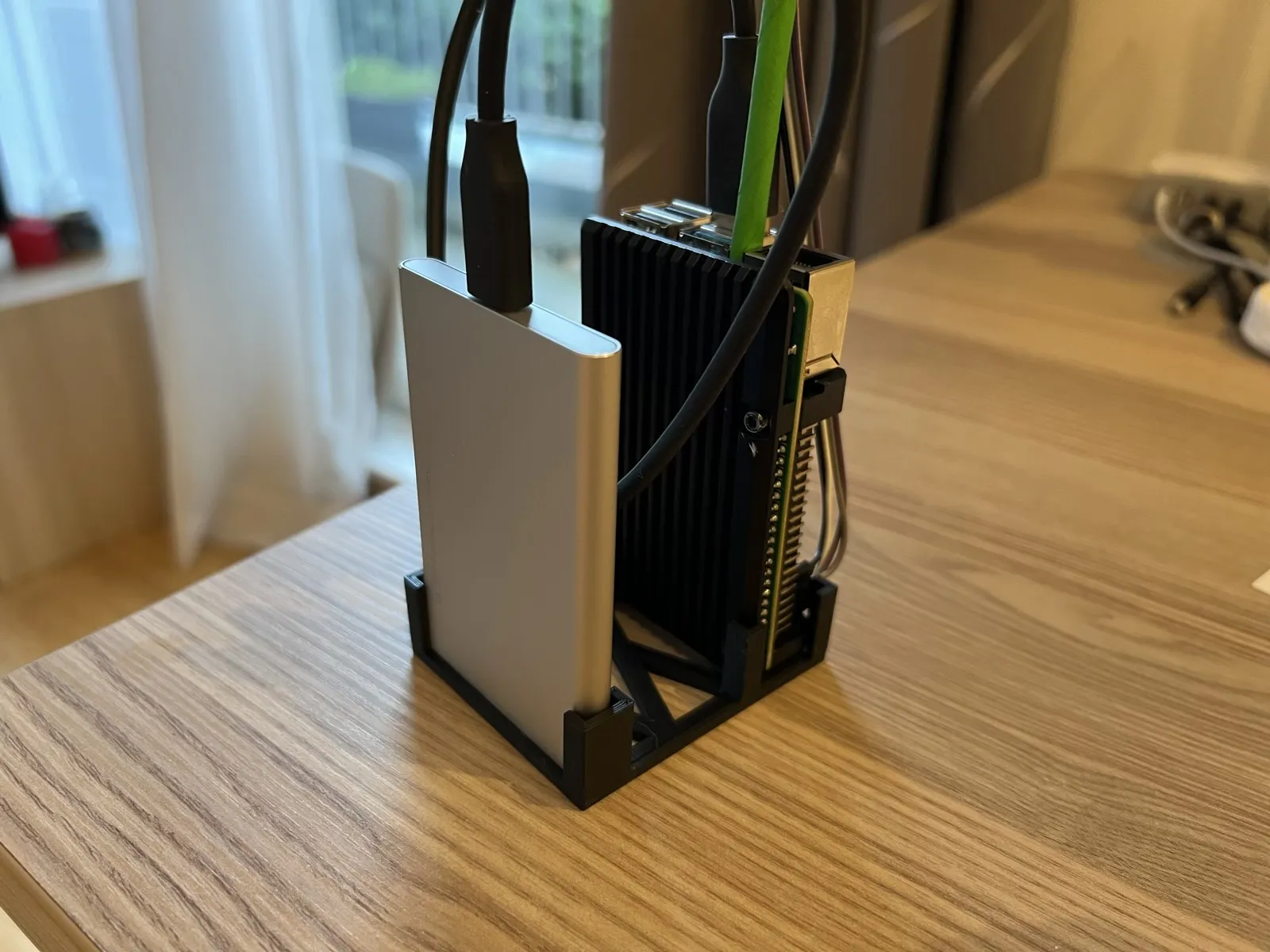

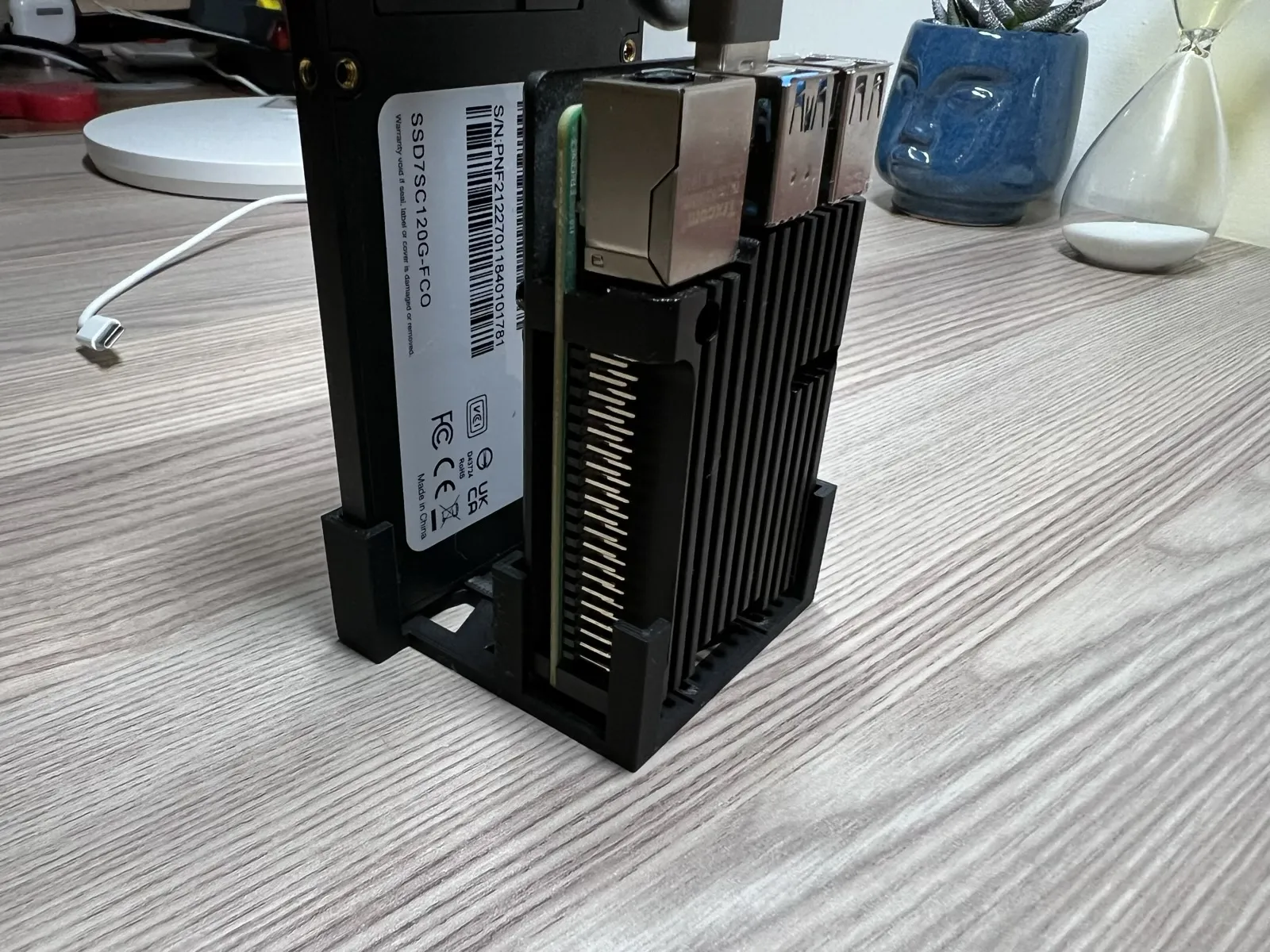

Parametric vertical stand for Raspberry Pi 4 sporting an armadillo case, and any SSD.

Includes models for:

• any standard 2.5" SSD (70x7mm)
• Samsung T7 Touch USB SSD

Adjustable parameters:

• distance between Pi and SSD
• height of supporting corners
• thickness of base, walls, corners
• dimensions of Pi and SSD

Made this one as in my previous setup my Pi and Samsung SSD were both overheating - now running at 46C pi and 30C ssd (25C ambient)!

Can be adjusted to fit any SBC in any case and any SSD - just adjust OpenSCAD values.

(Note: OpenSCAD model requires BOSL2 library - just drop it in the same directory)

Update 2023/12: now includes additional raiser bars for better ventilation from below, includes values and auto-centering for generic 2.5" SSDs.
