I use the heck out of the Fusion360 template made by @pogofcz, but I made a few tweaks:
- "Blocks_height" User Parameter is now in Gridfinity “U"s

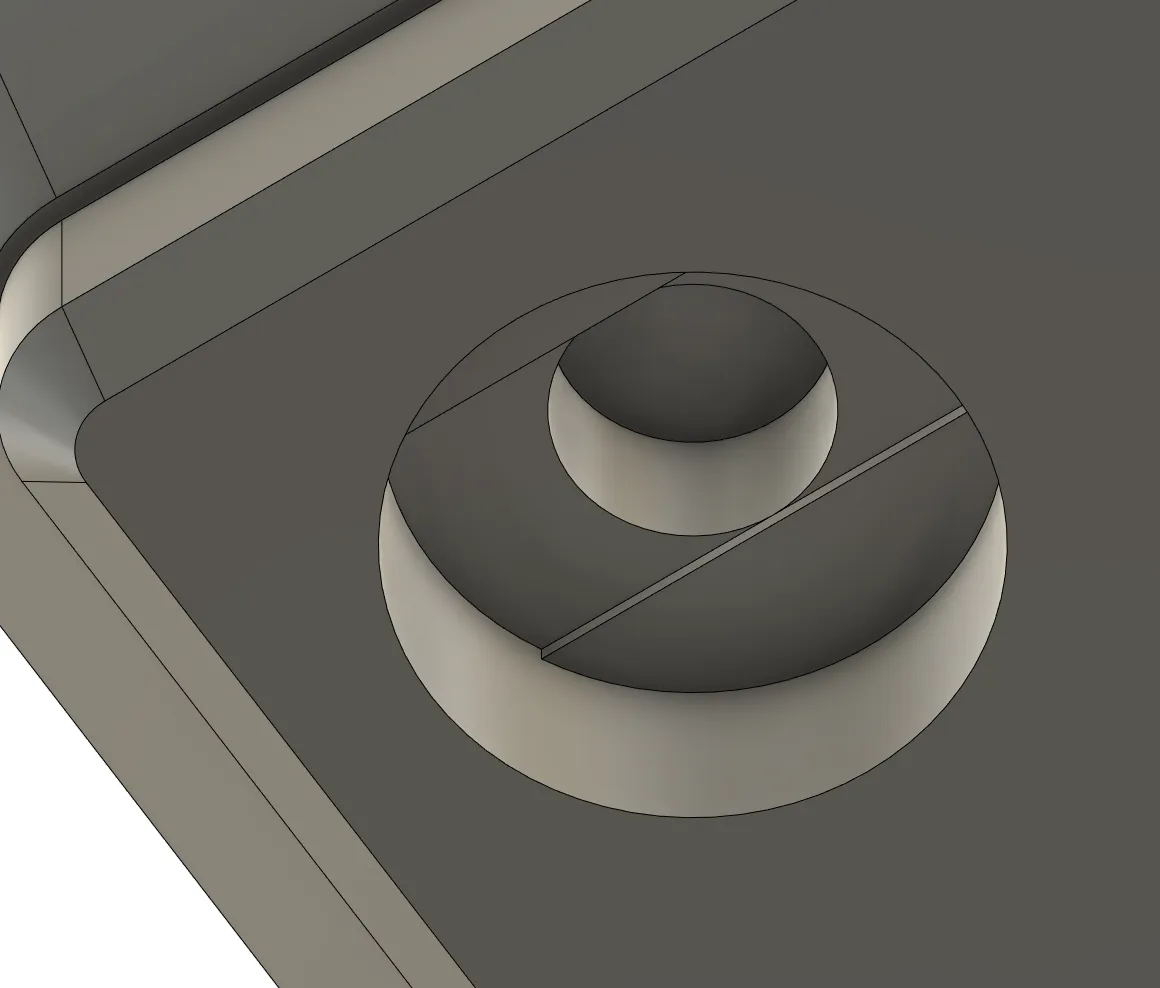

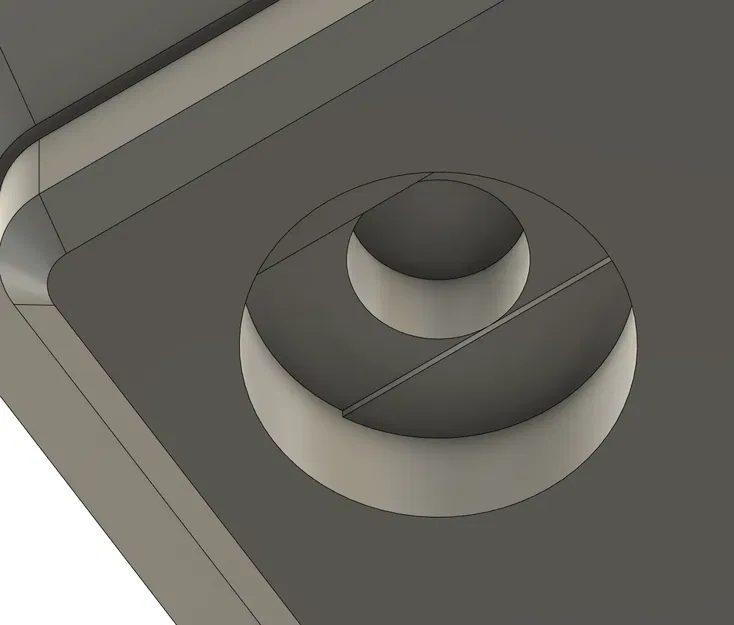

- Magnet holes use modified bore bridging to improve bridging performance
The template worked well for me before, but now it's even better!
Original Description:
Maybe Im dumbass and missed a official template somewhere so please let me know if I did :D

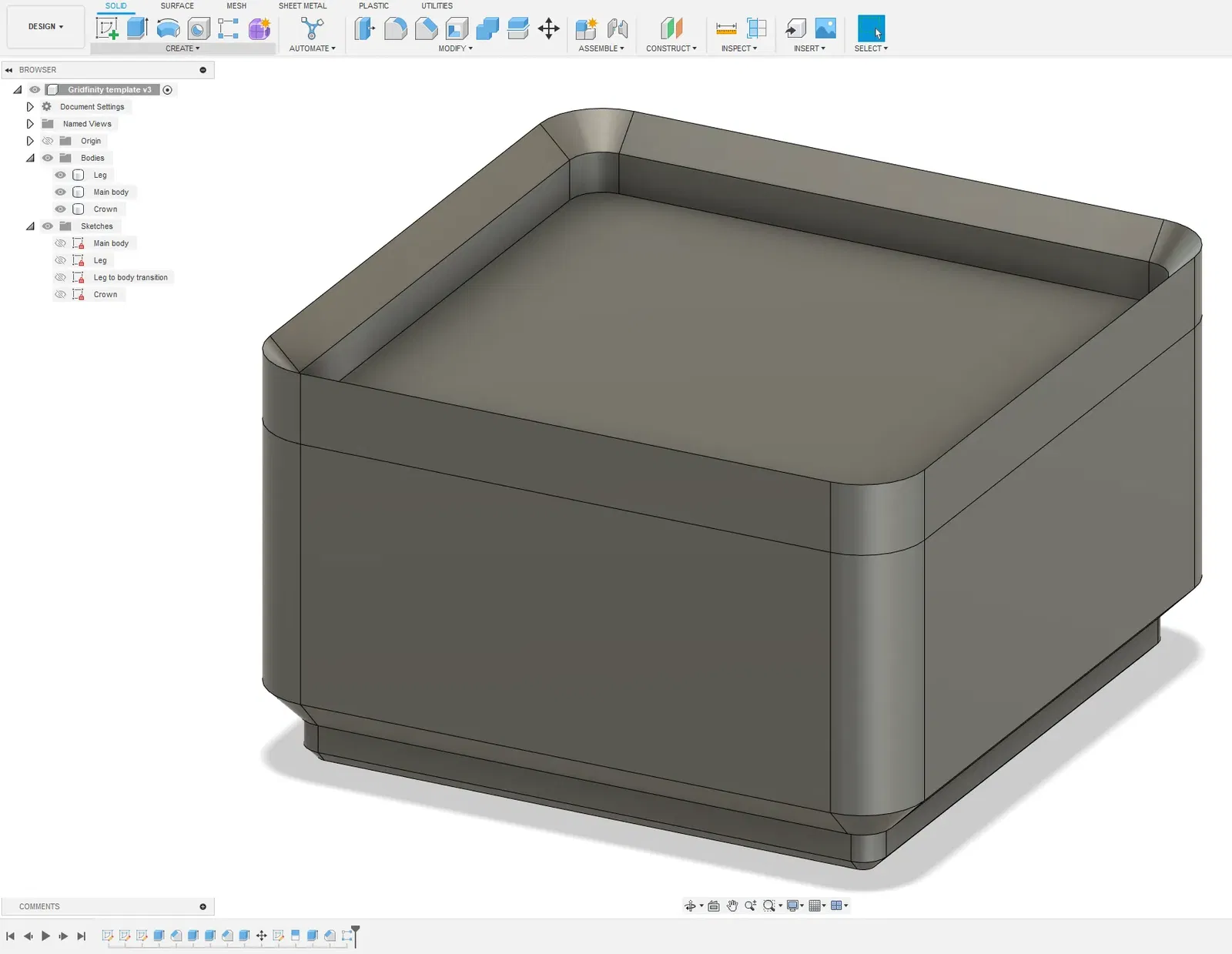

This easy to use template lets you make your own blank Gridfinity blocks.
Sugested workflow:

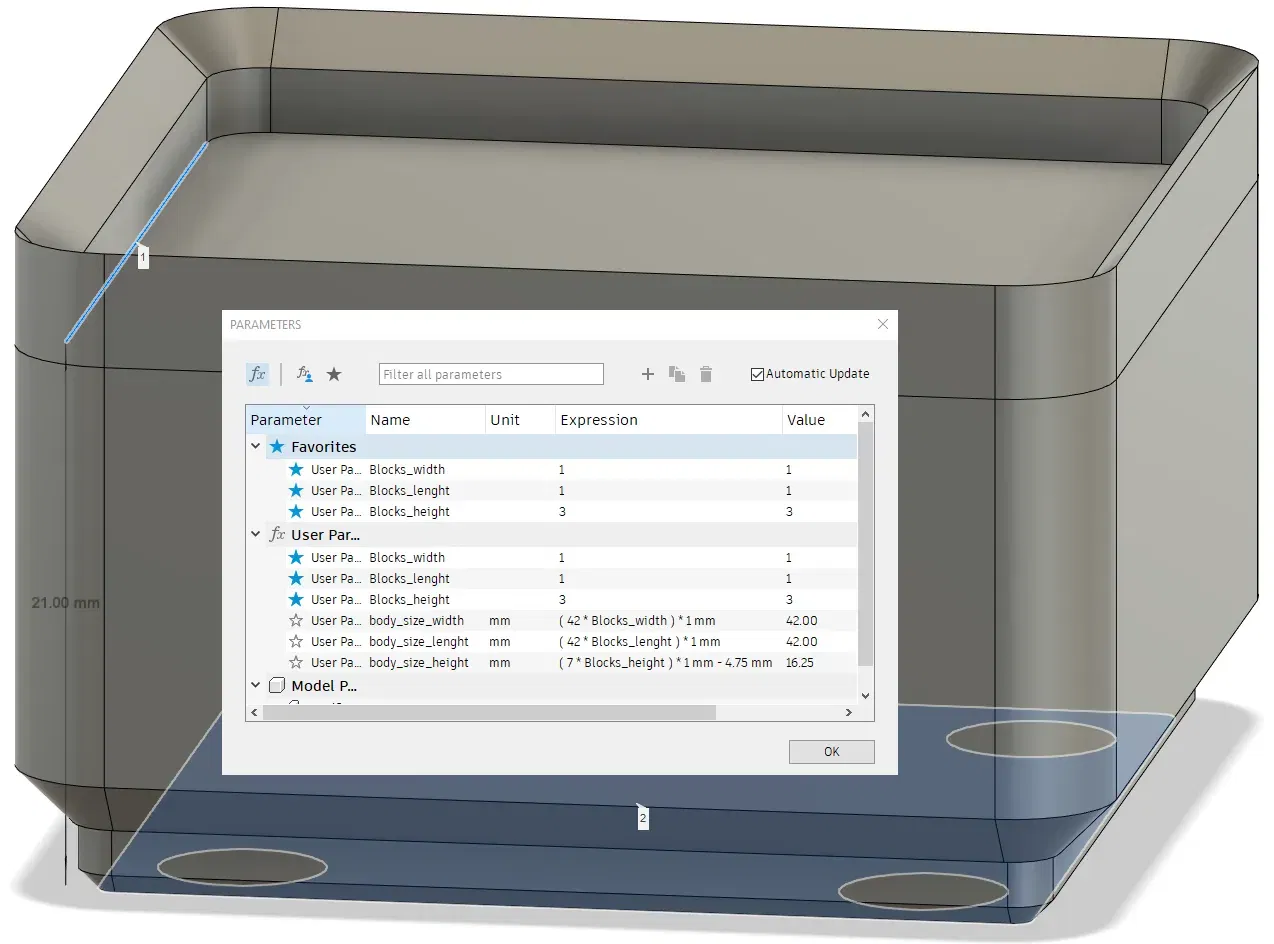

Open the template file. In the Modify section find “Change Parameters”, new window will open. In this window you will see 3 gold star parameters. Choose how many rows and columns your block will have with the “Blocks_length” and "Blocks_width" parameters and the starting height with the “Blocks_height”. --[snipped note about block height as not relevant with my modifications]--
Important: Combine ALL bodies there are into one. Otherwise it wont be one cohesive block!
If you don't want to stack them or you just don't care about the lip, don't merge the Crown.
Now add your custom features!
