Tiêu đề xẻng SNOmadic Tóm tắt xẻng cào ô tô giúp dọn tuyết

this is a snow shovel squeegee that is 11.5" long and can help people get snow off their cars or from around tires. i would be careful using this on paint to prevent any scratches from the plastic. if you know how to heat cure fdm printed parts this part could prob use that process to help last longer and be a lot stronger. the handle threads should fit the common broom handle or paint roller handles. if you over cure i would put a cut end of a broom into the threads first to help insure a tight secure threaded area.

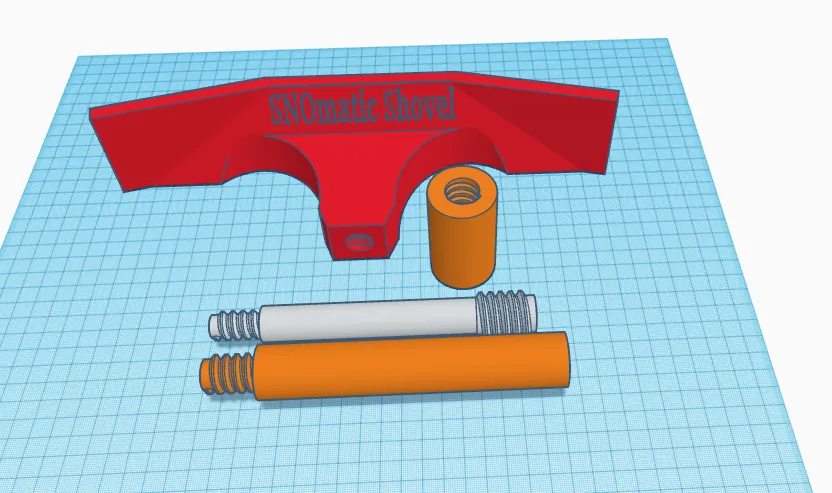

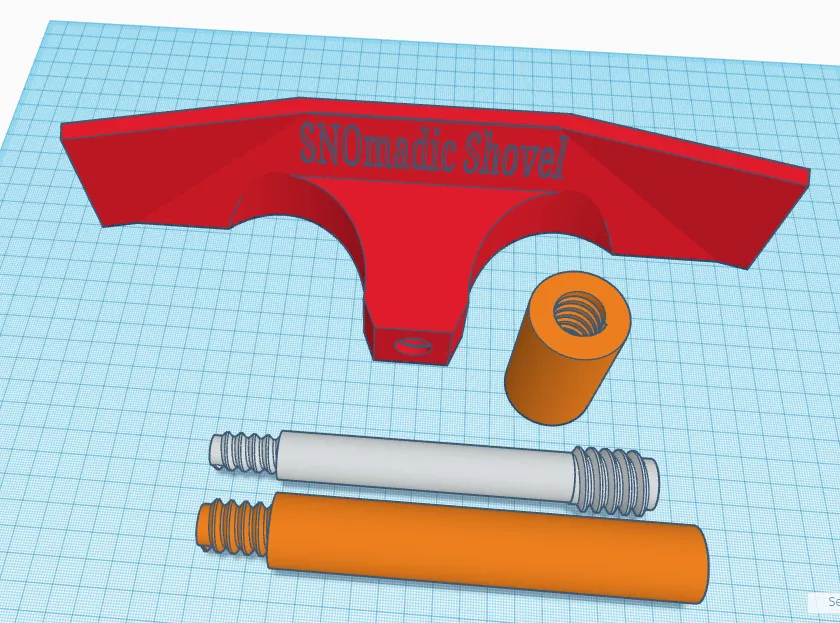

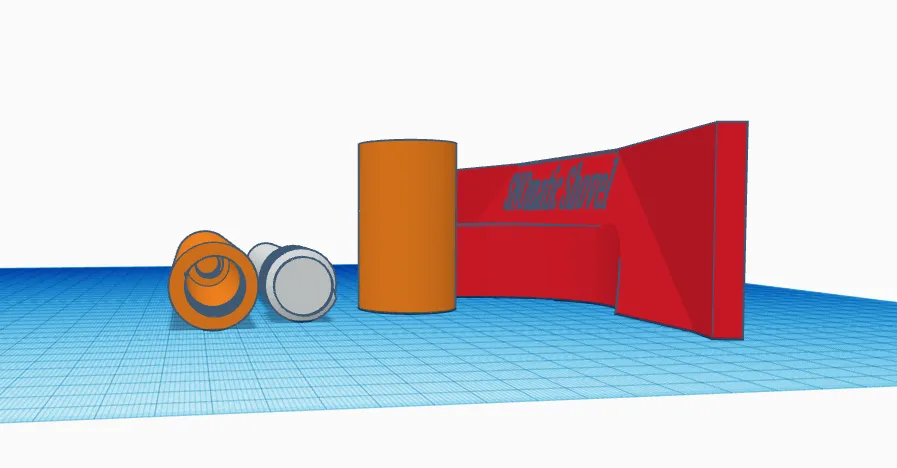

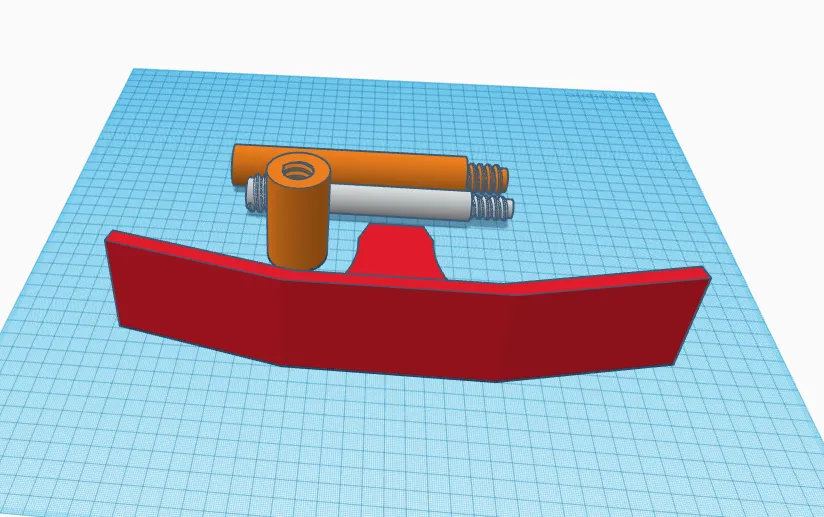

the handle can be extended to around 14" the handle end cap is just a end cap not a coupler. orange part in pics is tube 1. white is tube 2. tube 2 slides into and threads into tube 1 to be compact for storage. and then to extend un screw then flip #2 180 degrees and screw into #1 and then put end cap on with correct threaded end. i am working on some models for people with smaller printers i have the elegoo neptune 4 max. for time being someone could just crop the edges of the squeegee off to fit your build volume and not try to weld parts together as they would prob never hold up against the pressure of ice and snow while being cold. so a solid part is best.

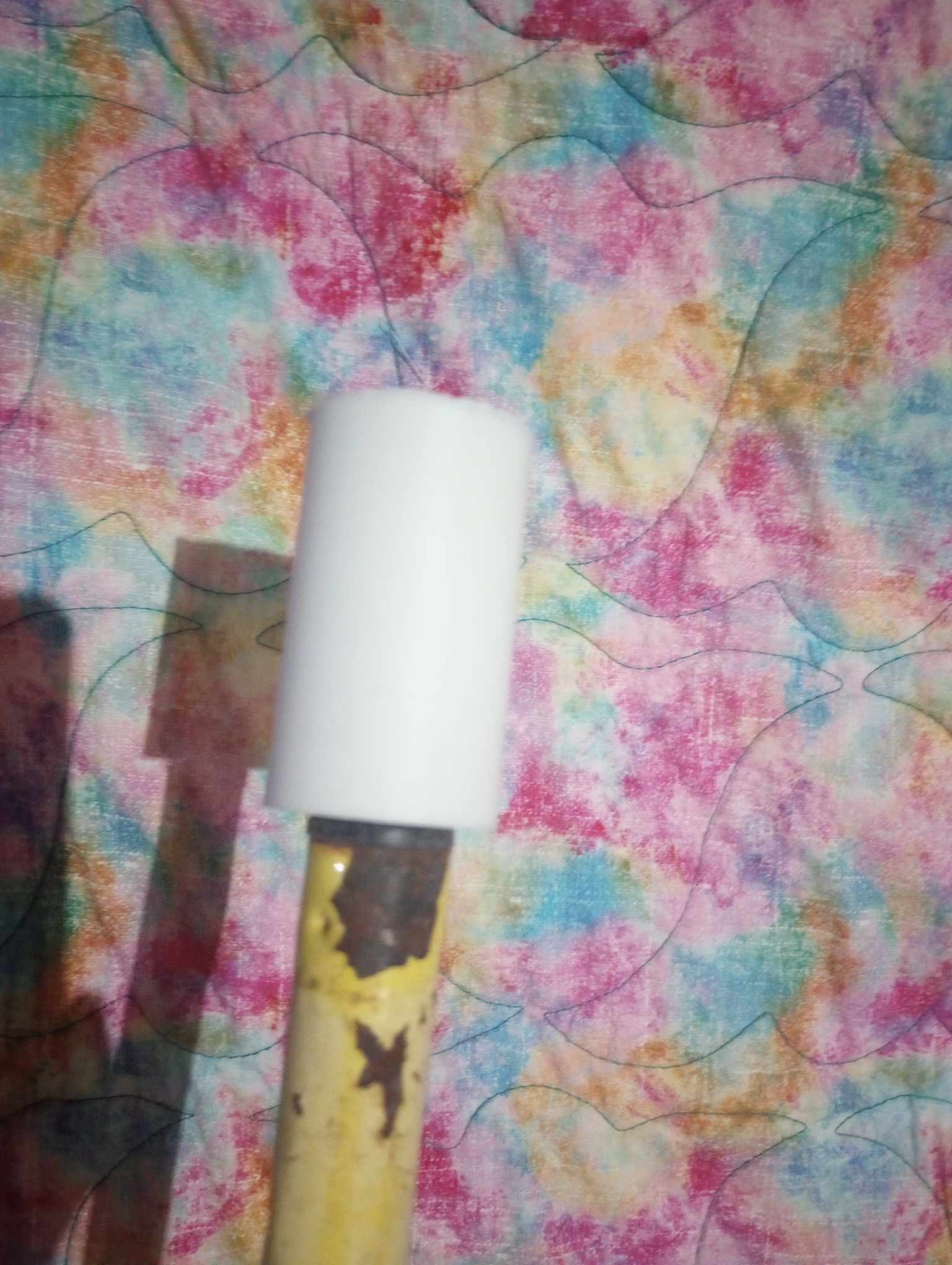

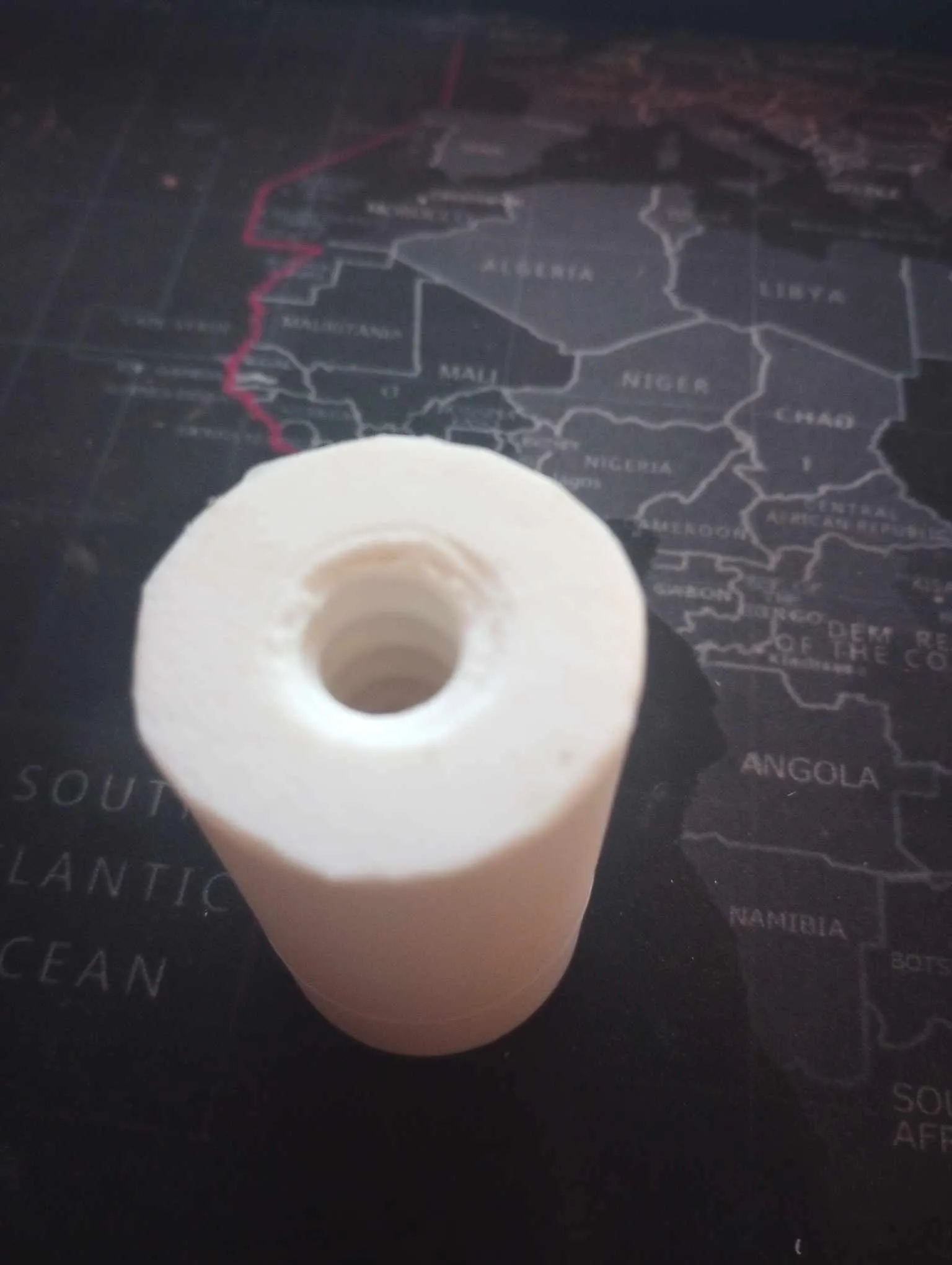

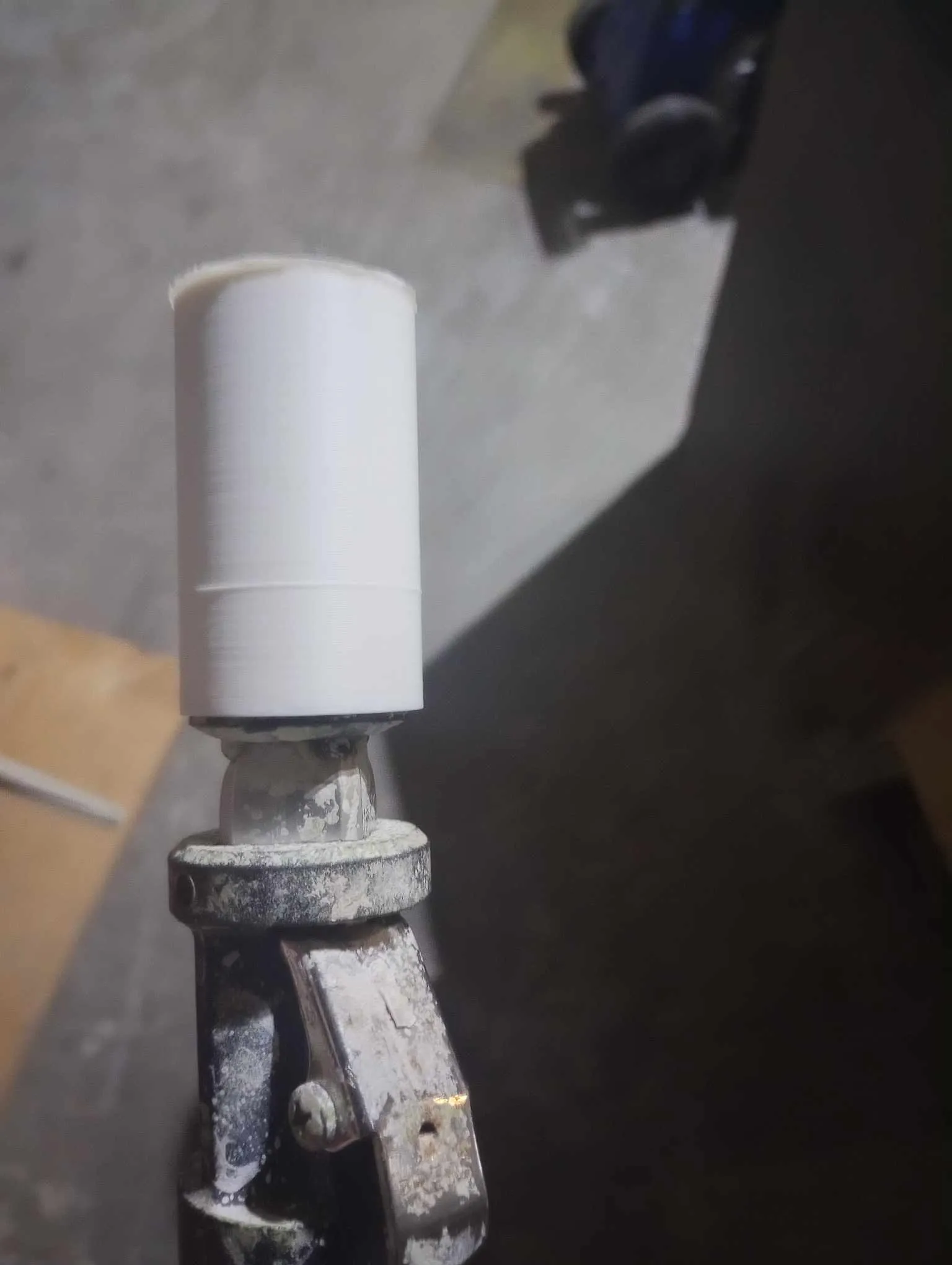

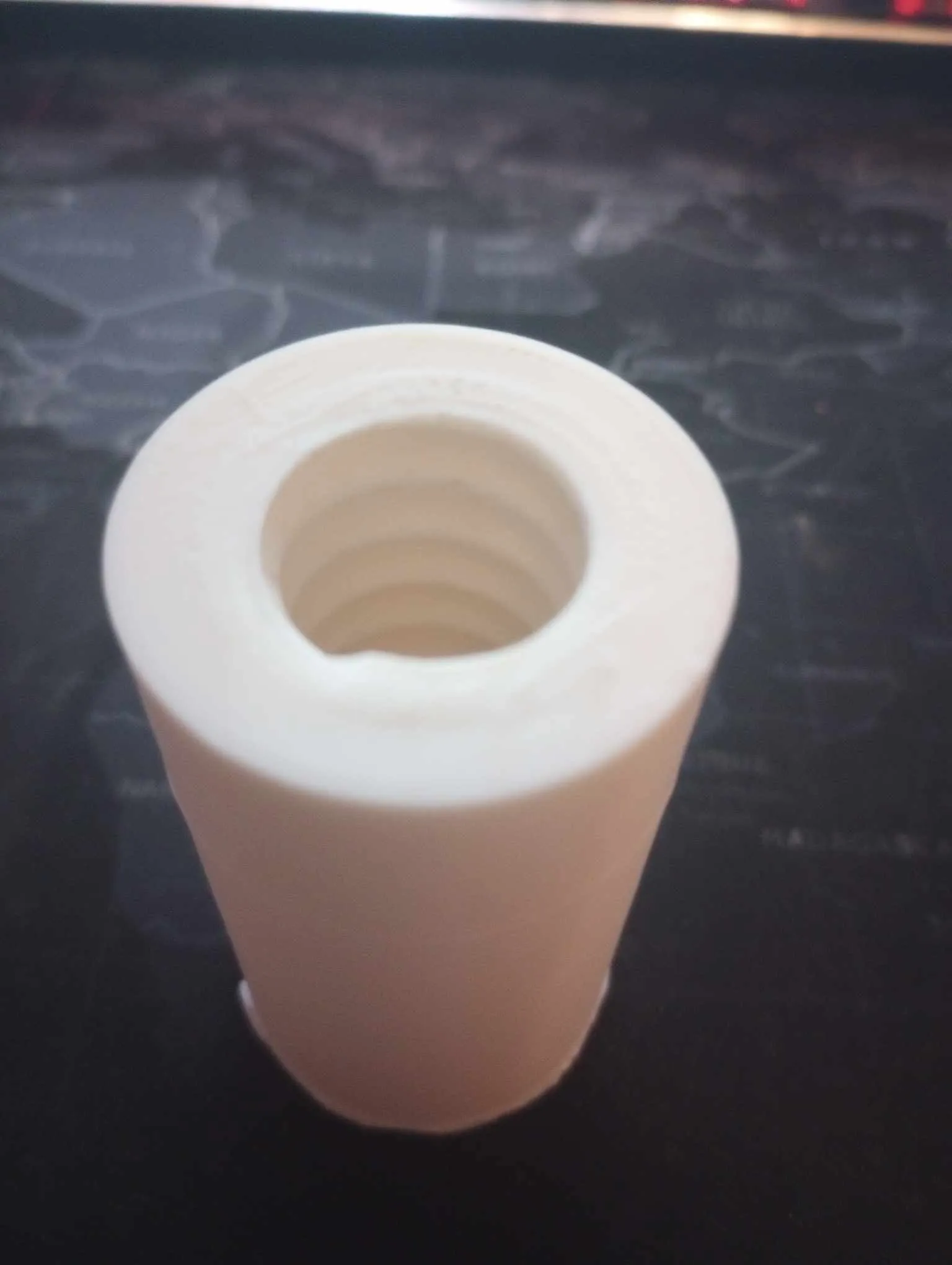

the printer settings would be up to you but i would print them as fine and tight as can with a .4 nozzle and only use a max of 10% support density. i would print these at 350mms but it would depend on your printer. 100% infill with a brim to help help and have a more successful print. i printed the end cap to test fitting the threads to a paint roller and a broom handle. fit perfect. reuploaded a fix in the name lettering. oops
