Tiêu đề VCore 3 Toolhead Euclid Tóm tắt Nâng cấp lên Euclid Probe

I made these parts to use a Euclid Probe on my VCore (500), because i found my Pinda too unreliable and since I'm also often using Print Surfaces which are not magnetic, i found the Euclid was my best choice.

The probe mount is quite close (1mm) to the print bed, so make sure the mount is printed of of something which can handle heat…

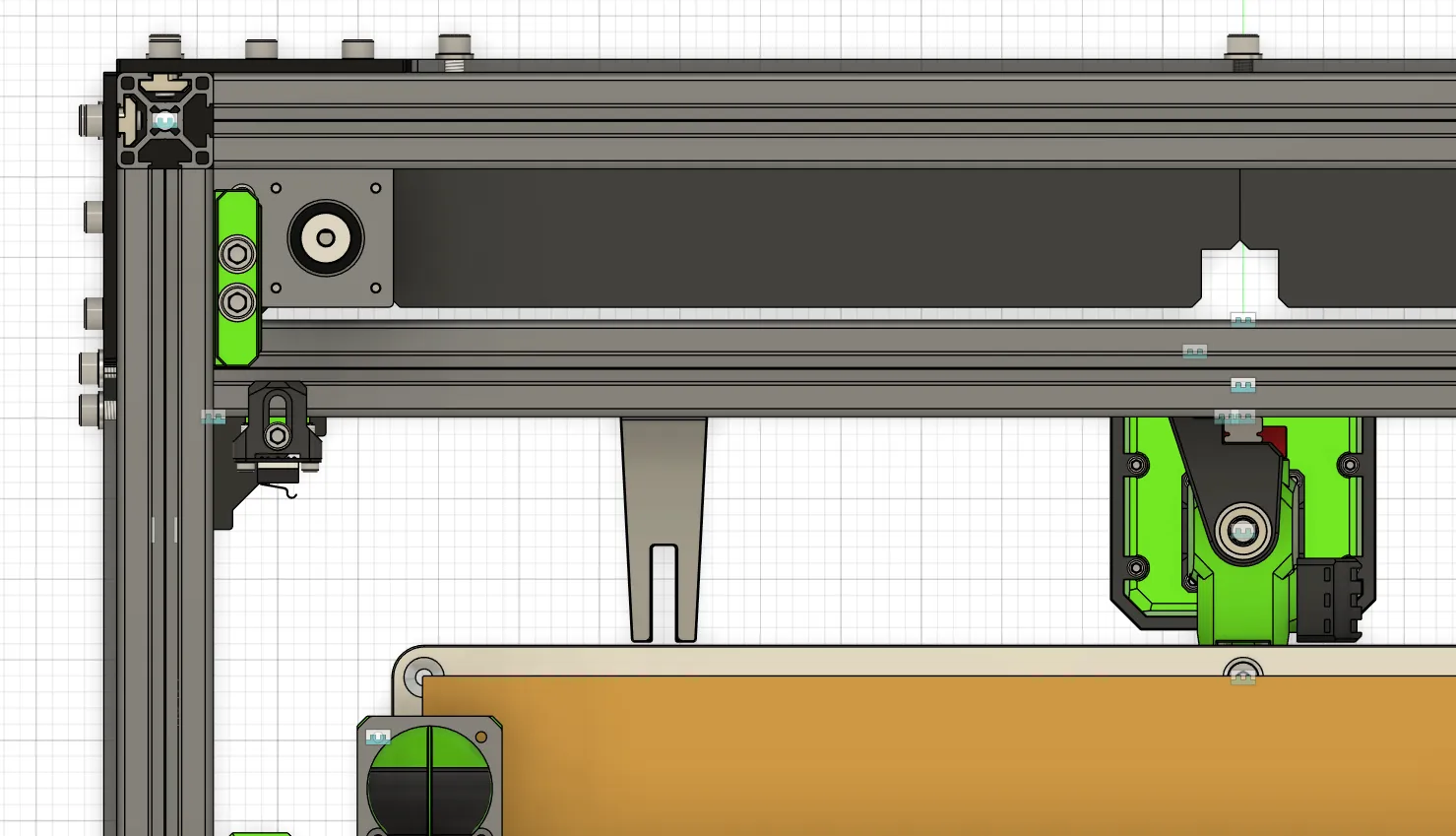

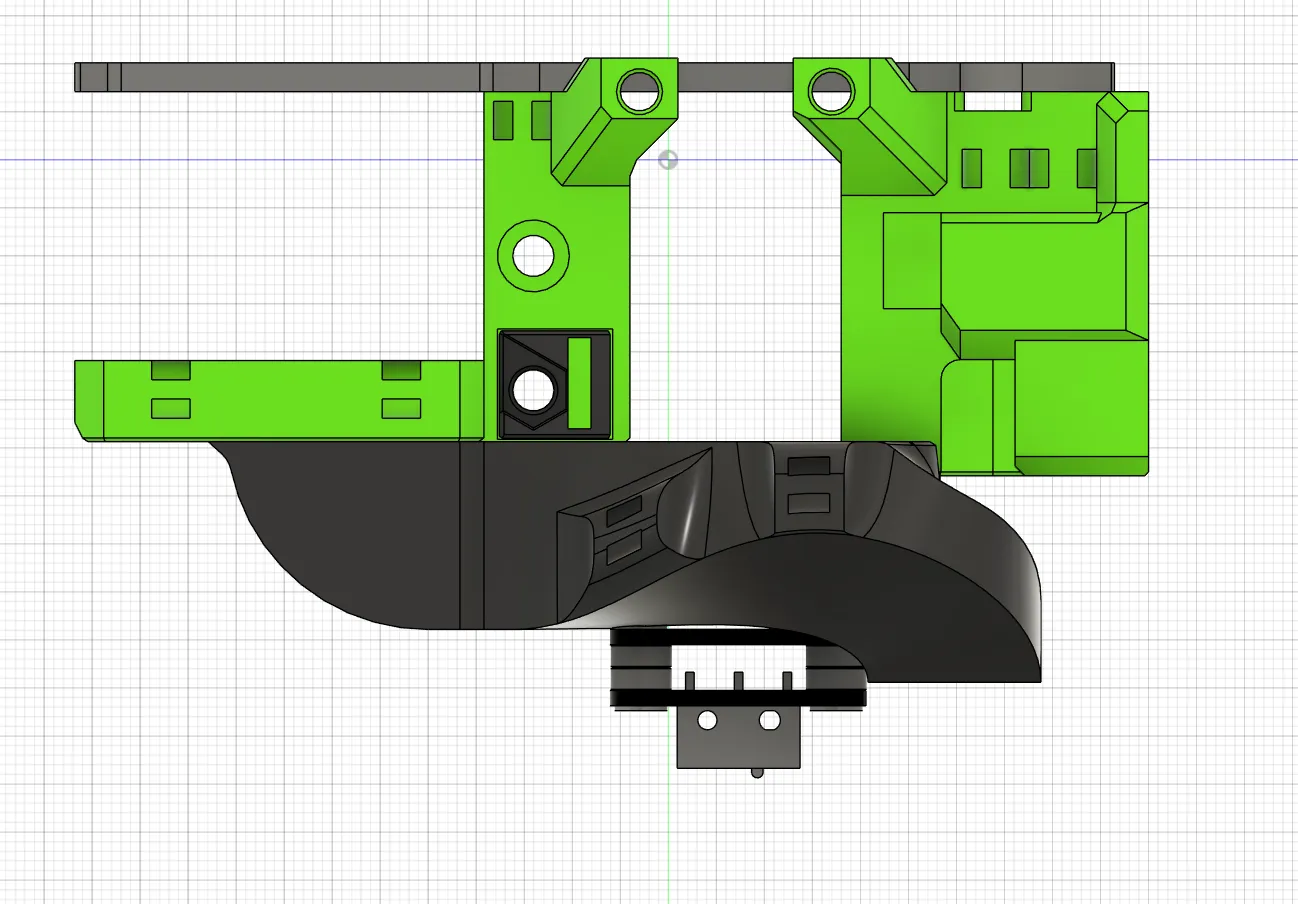

You HAVE to mount the probe mount under the extrusion like the last pictures show.

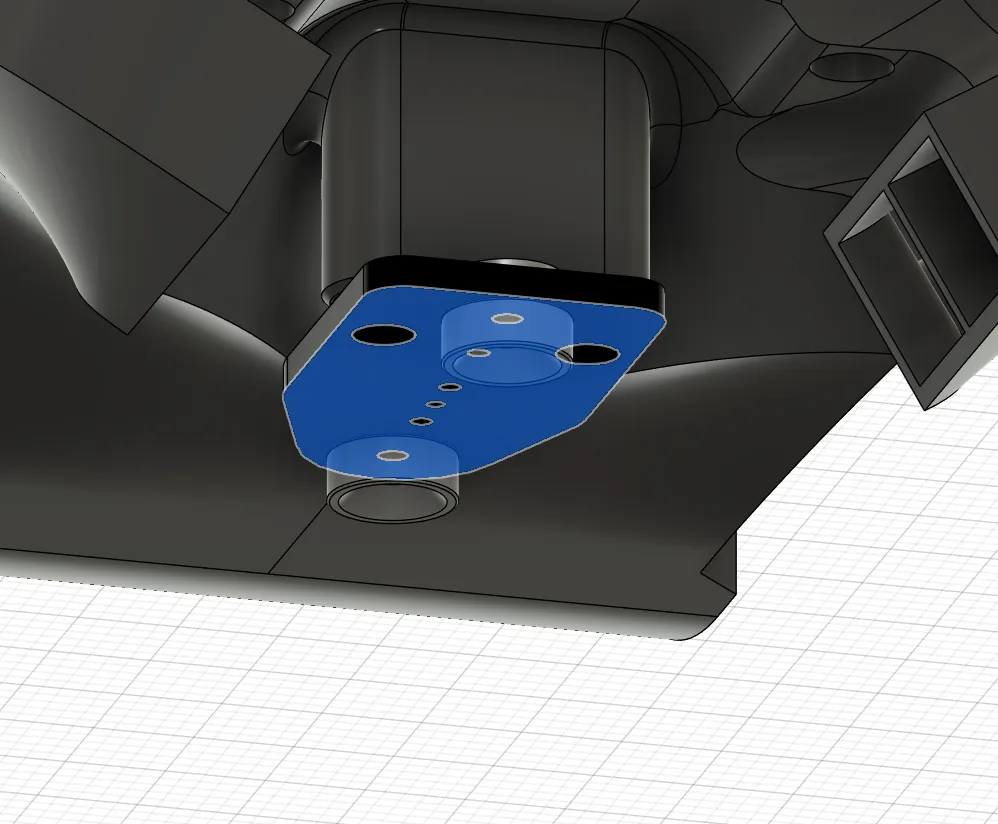

You also HAVE to solder the wires directly to the Euclid Probe because there is no space for the connector (the last pciture shows on which side to solder the wires; Marked Blue)

I used Heat Inserts with the following Size: M3x4.0x4

(You may need to change some holes diameters if you want to use different Inserts…)

The Offsets for Klipper:

x_offset: 0

y_offset: 33
