Tiêu đề Núm vặn cho lò nướng âm Indesit Tóm tắt Các nút cài

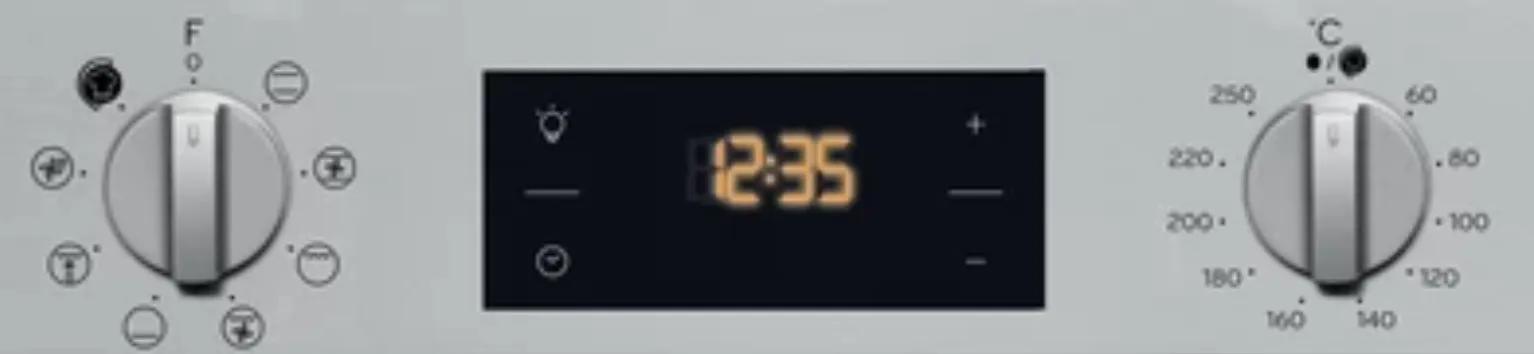

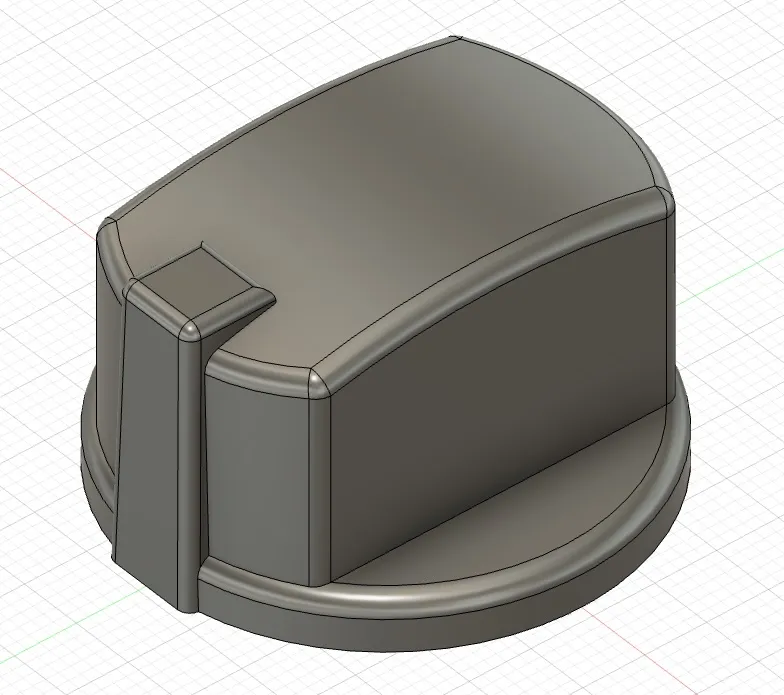

The knobs for setting the functions and temperature of the Indesit built-in oven are often broken. I designed a more robust design for easy printing without supports.

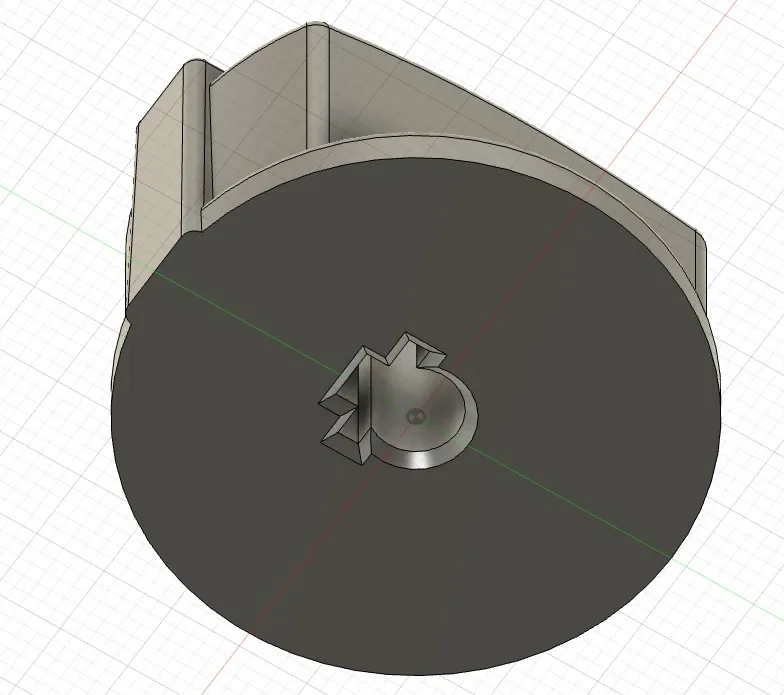

The spring from the original knob must be used in the new (3D printed)

Printing instructions You have three options:

1. use pre-sliced G-code and print it on MK4 with Input Shaper and FW 5.1.0
2. use the 3MF file for the latest eSlicer
3. download the latest eSlicer and use the STL files and the following settings:

• print settings: 0.15mm QUALITY

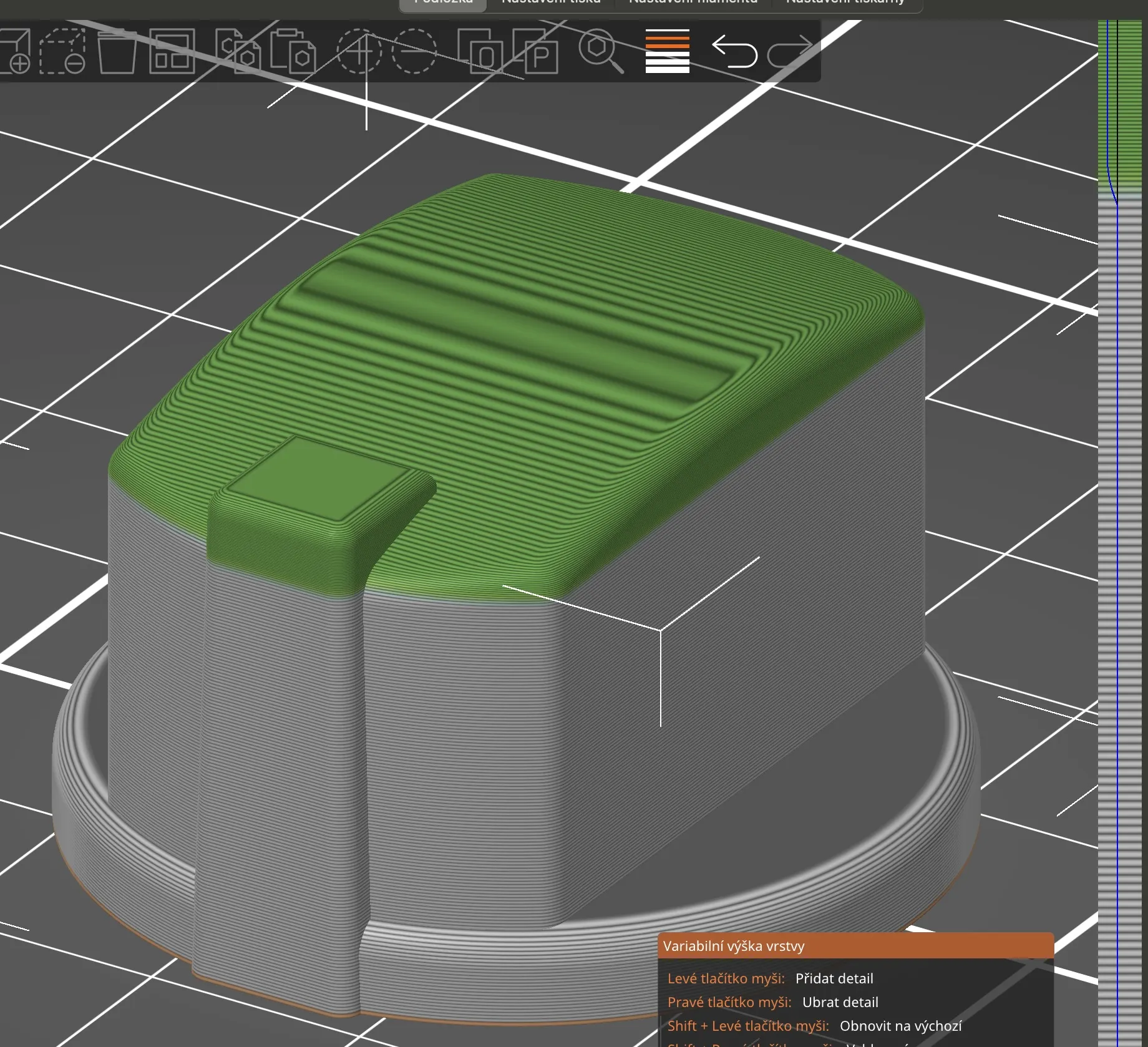

• variable layer height (0.07 mm for the last 3 mm layer)
• filament: PETG (tested by Prusament)
• 15% fill grid
• no support is needed
