Tiêu đề Bánh xe ô tô RC 110 Tóm tắt Được thiết kế bánh xe

Fits 12mm hex found on most 1/10 scale cars. Sized for 48mm inner diameter tires that are 26mm wide. Pictured tires outer diameter is ~65mm.

• I print these with the outside face down on the bed with support only on the flat in the center
• .3mm layer height works, but .15-.2 is stronger
• I set my walls to 50 to achieve 100% infill with concentric lines for balance
• PLA has been holding up great for pavement racing and small jumps

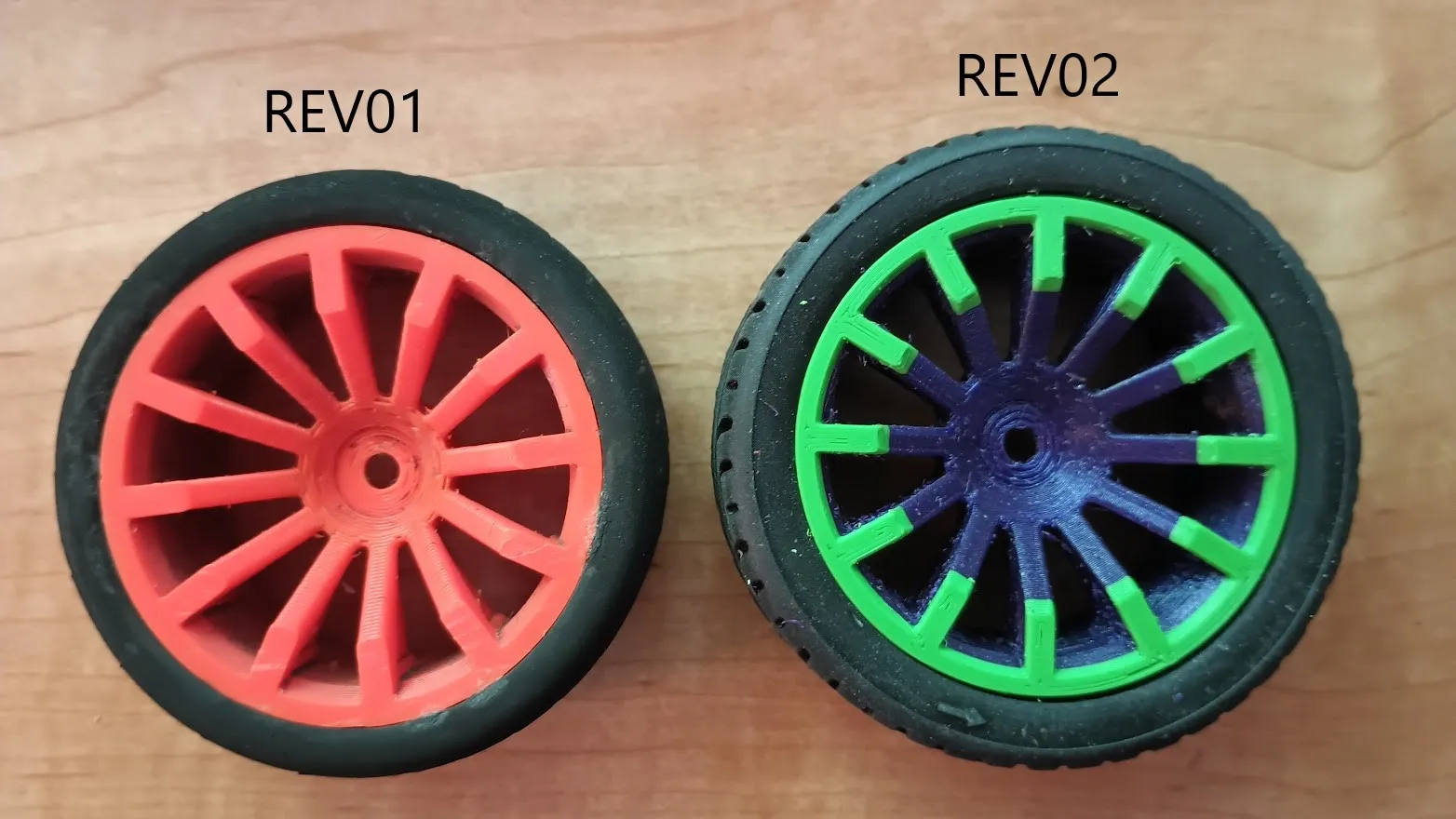

REV01: Light weight wheels that are good for top speed runs and pavement tracks with small jumps. Not the greatest impact resistance, do not recommend for big jumps and bashing around. I deprecated this design for race use after a collision with another car broke one of these wheels at the hub. This was the 3rd race on this wheel set though and they lasted through a few collisions and tumbles (.3mm layer height too).

REV02: Looks basically the same as REV01, but is beefier around the hub and the back side of the spokes. Better for racing with other cars, jumps and bashing.

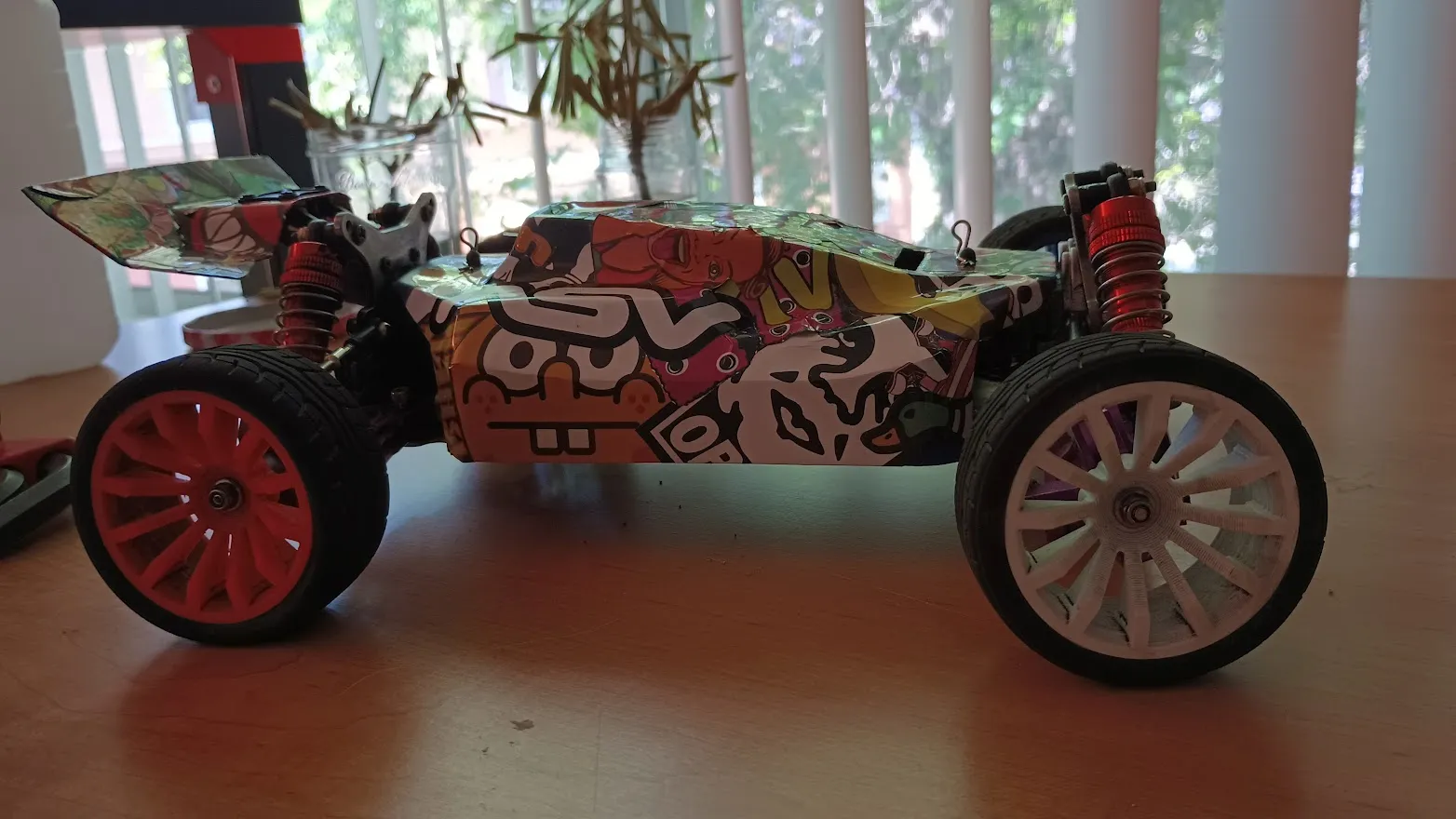

My coworkers and I have an RC car racing league running 144001 buggies. I'm reverse engineering things as they break and 3D printing parts so that the future of the league can be cheaper with the support of the small print farm at work. Started off with wheels!
