Tiêu đề Ròng rọc đôi giáo dục cho trẻ em Tóm tắt Mô tả

Description

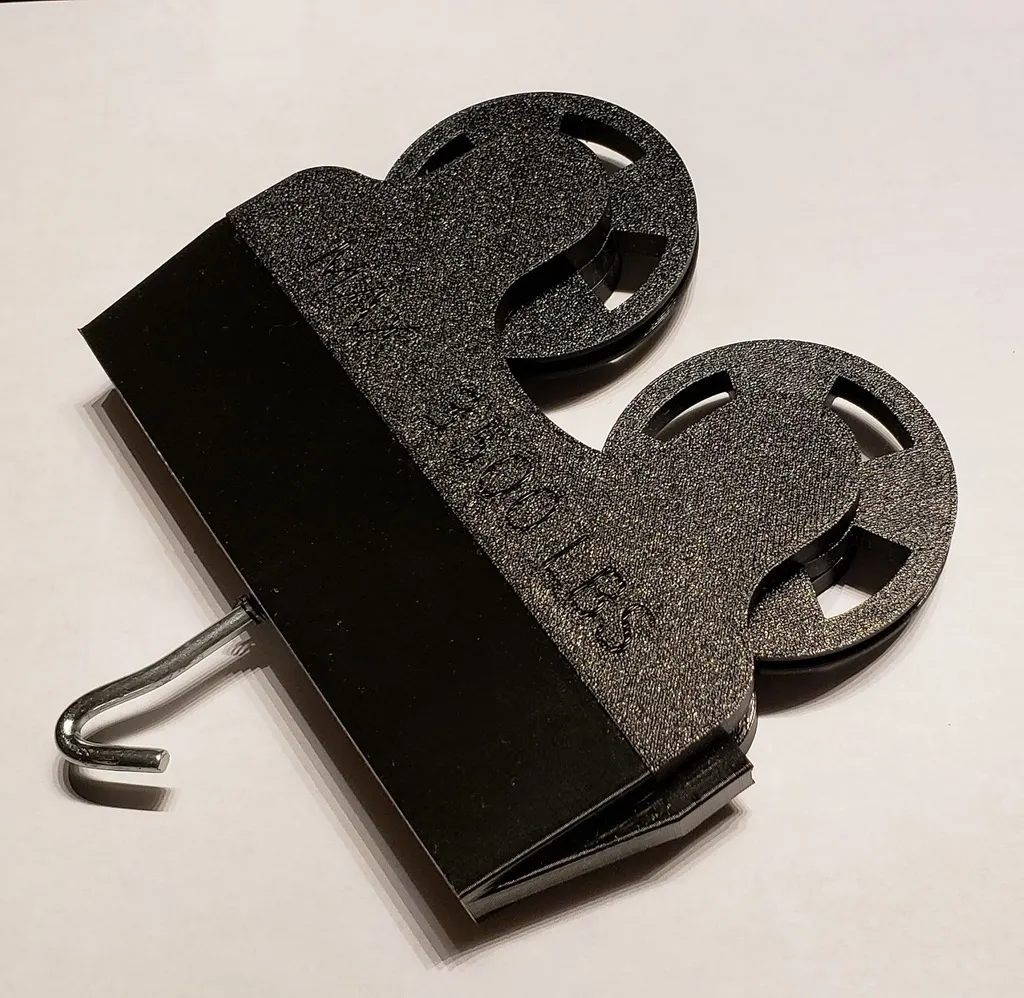

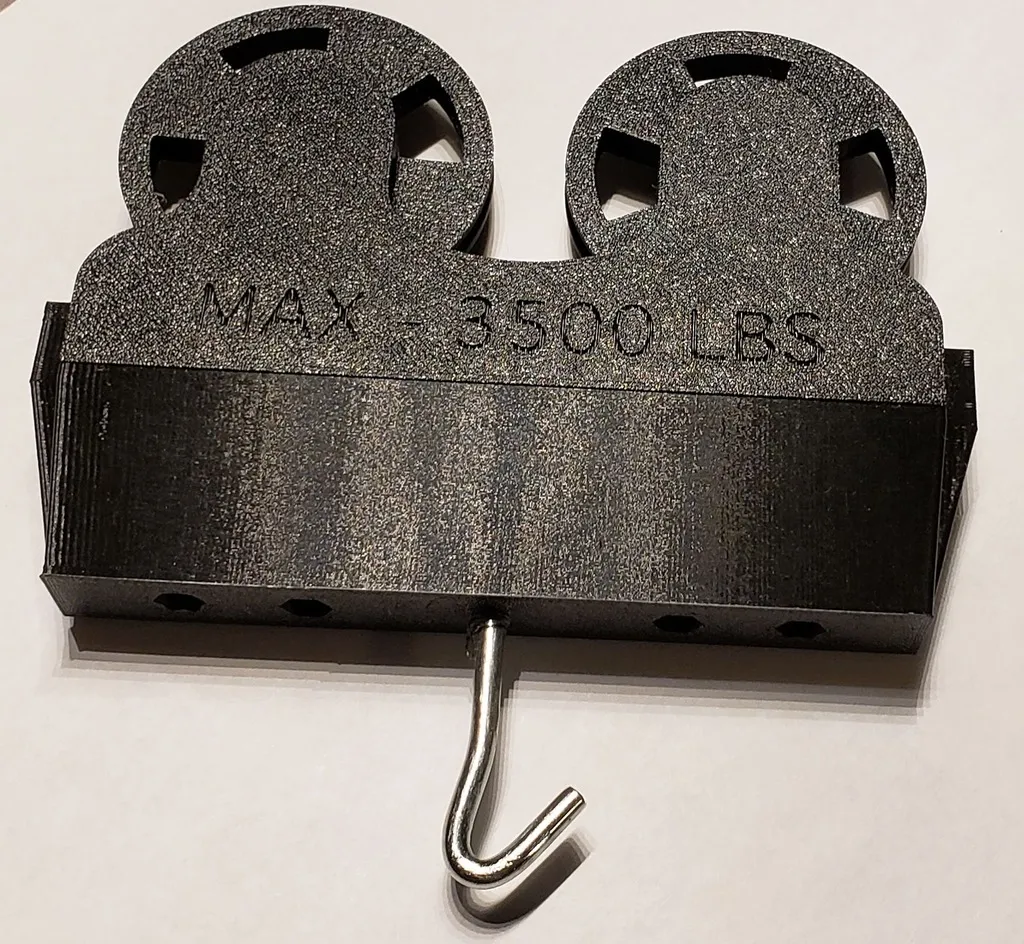

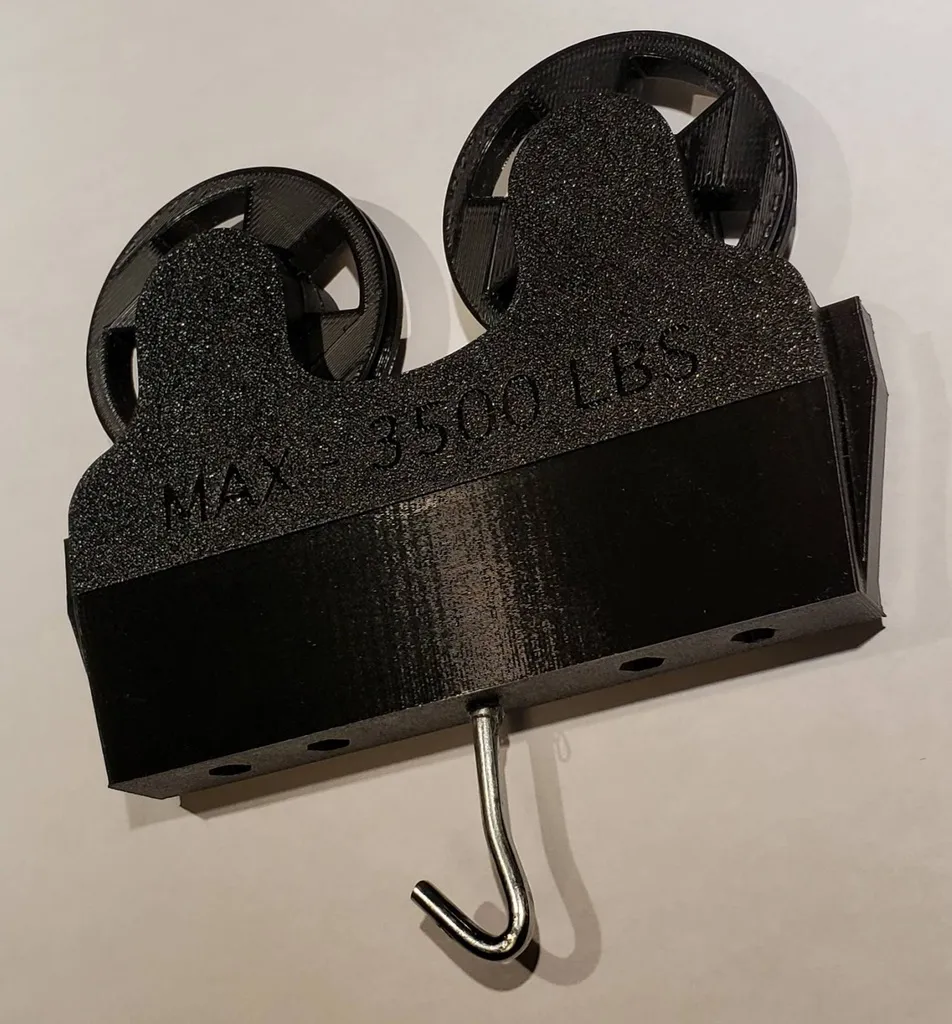

This is a two pulley cart used for educational purpose by explaining vectors and force division by using pulleys.

Extra parts needed

• 2x 625-Z bearing (outer diameter: 16mm, inner diameter: 5mm, width: 5mm)
• Metal hook (you will need to drill the hole as per your hook width)

Slicer info

The model has been created at 10x it's real size in order to get a better resolution. You will need to reduce object size to 10% when using the slicer.

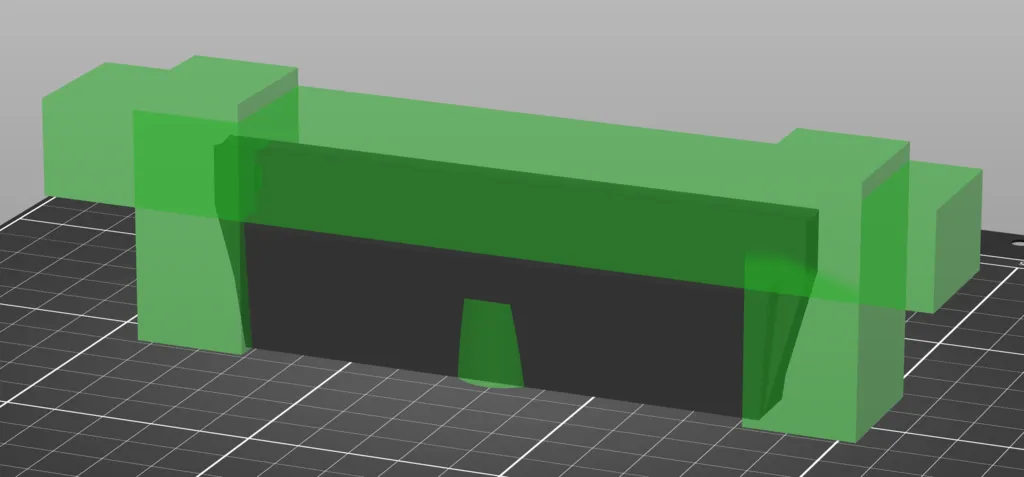

Some part have to be 100% infilled, use the 3mf file if needed. (See the slicer image)

• Middle bottom of the hook holder (where the metal hook will be screwed
• Side of the hook holder (where faces are attached to)
• Pulleys

Contribute

Feel free to contribute or fork your own model from my GitHub repo.

Print Settings

Printer Brand:

Prusa

Printer:
