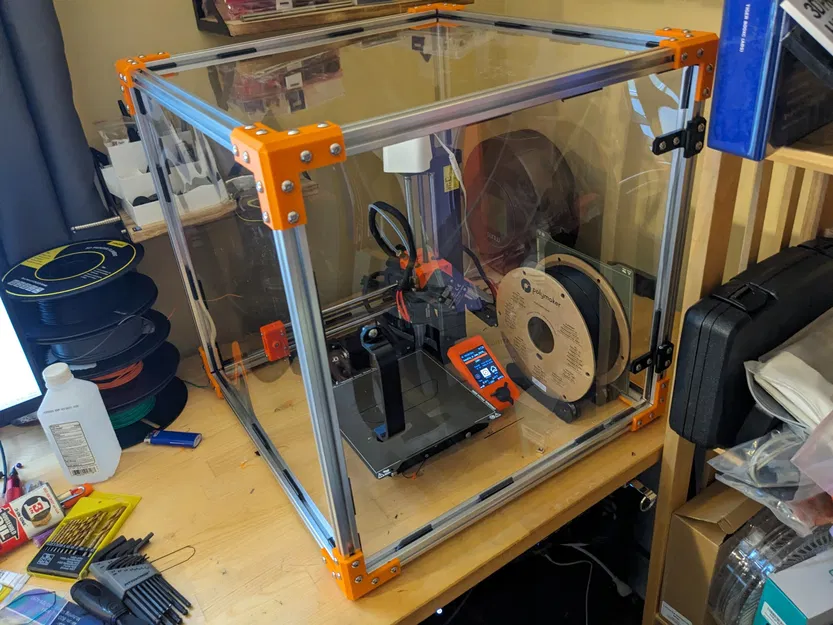

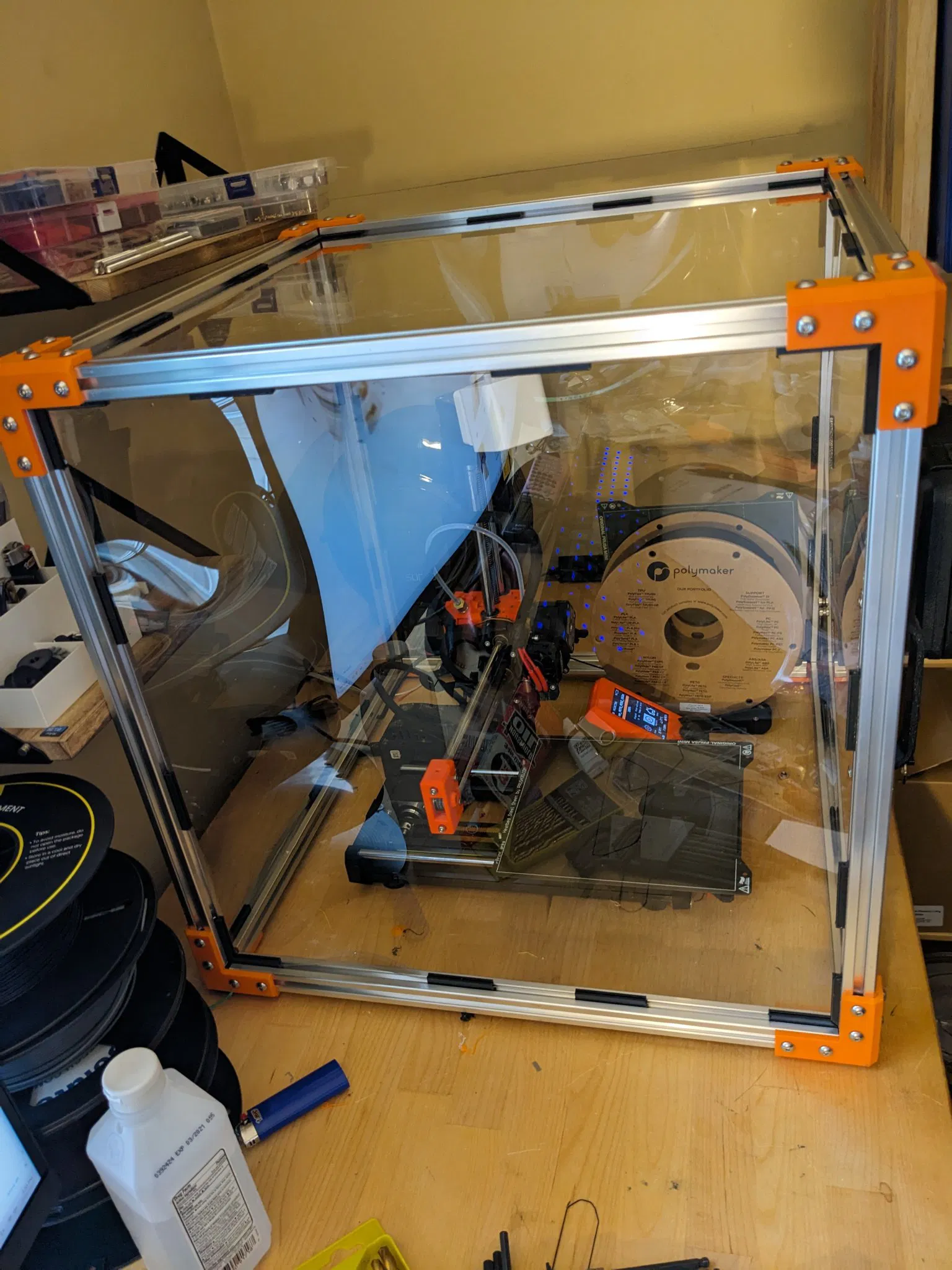

Modular Printer Enclosure

This is a modular enclosure based around 1mm thick acrylic sheets and 20mm aluminum extrusion.

I made mine to fit a Prusa Mini+ (50cm by 50cm by 50cm), but the dimensions can easily be scaled to fit any printer.

To build this enclosure you will need to print:

• Corner Brackets x8
• Panel Holders (side) 32x
• Panel Holders (corner) 32x
• Door Stop (side) 8x
• Door Stop (corner) 8x
• Hinge (part A) x2
• Hinge (part B) x2
• Handle x1

Additionally You will need the following non-printed parts

• 10mm M5 bolts 106x
• M5 t-nuts 102x
• M5 washer x6
• M5 nut x6
• Wall panels (450mm x450mm) x5
• 2020 Aluminum extrusion (450mm) x12
