Tiêu đề Bộ chuyển đổi hệ thống cánh tay siêu kẹp sang cánh

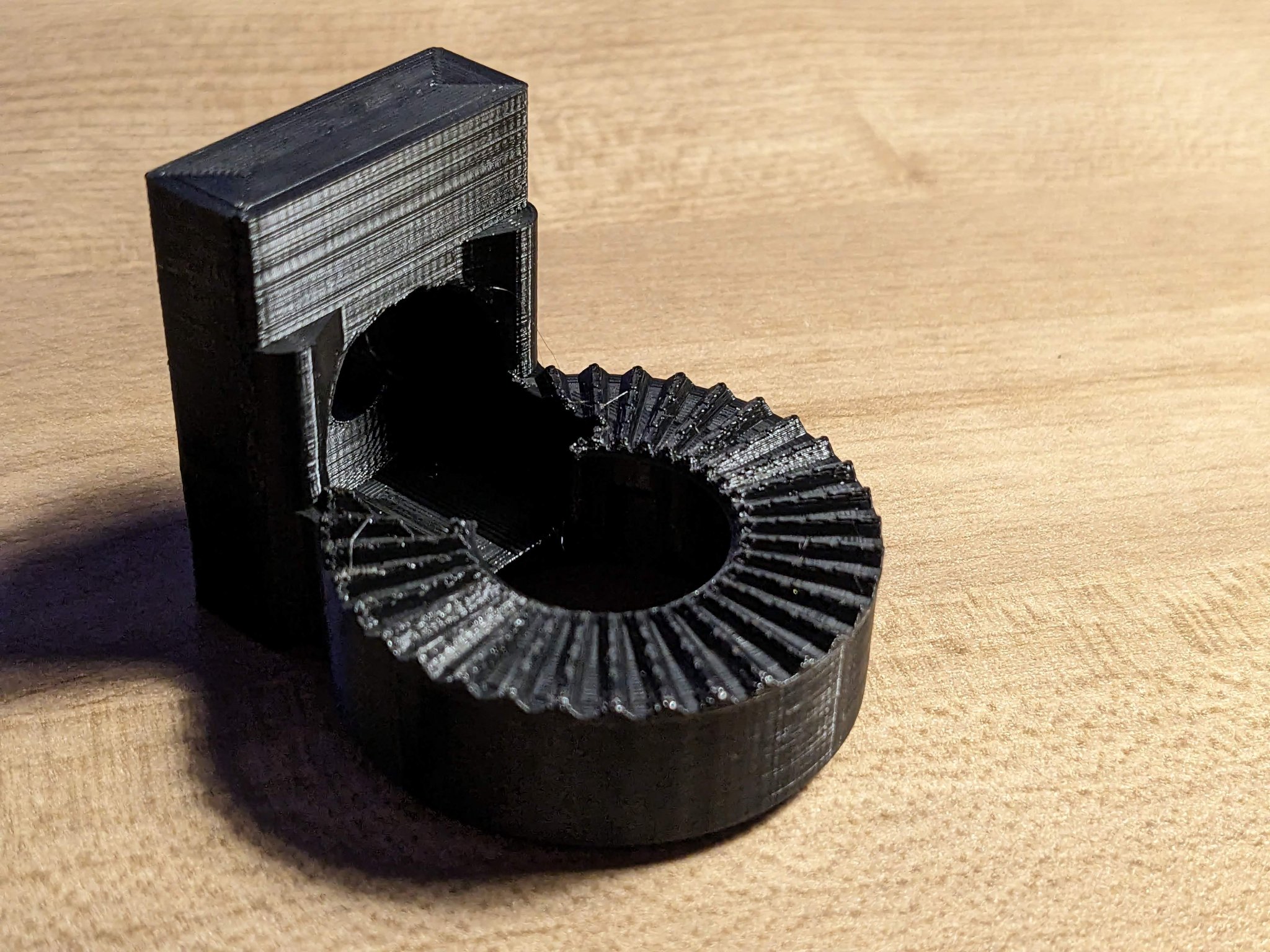

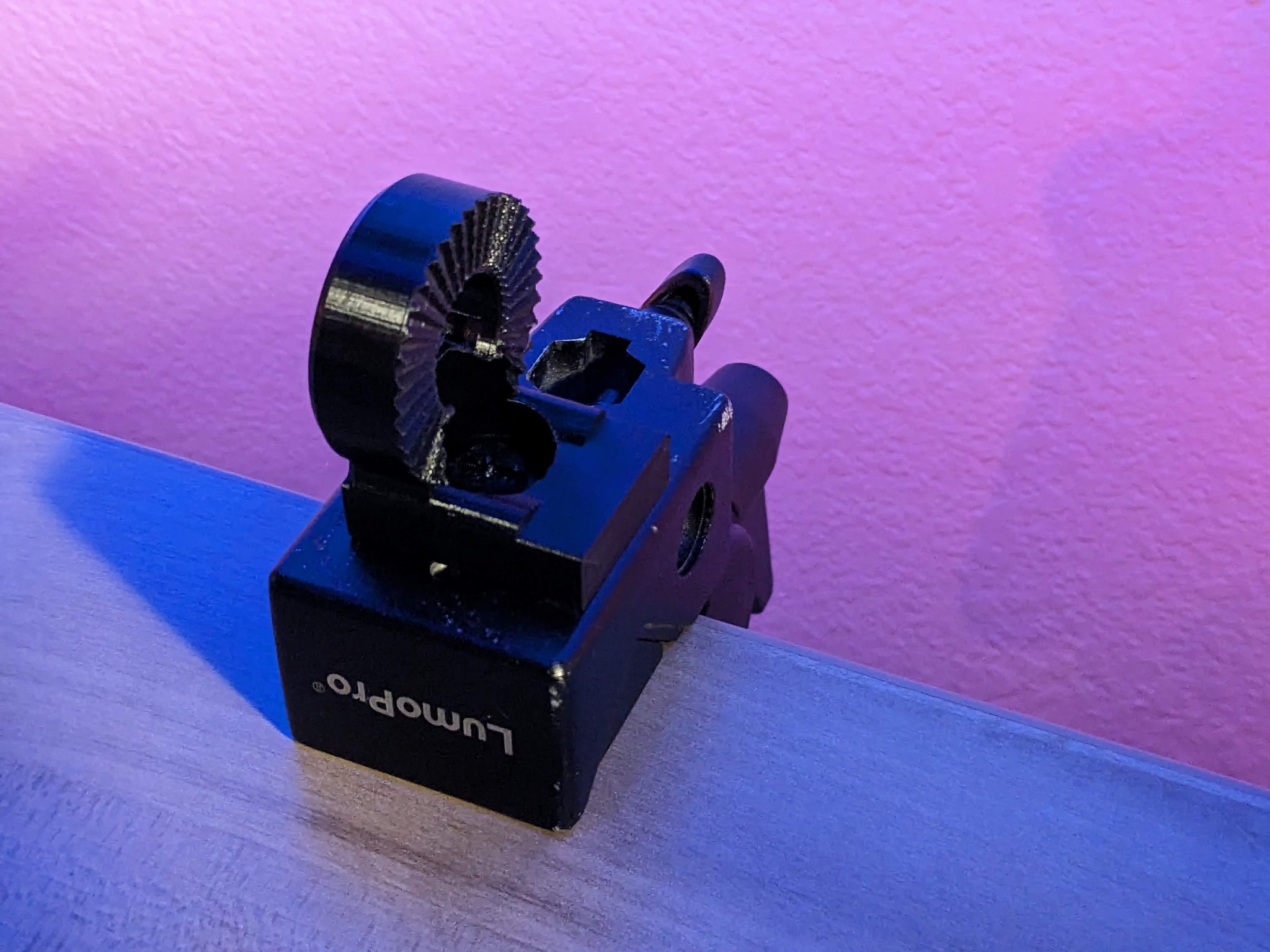

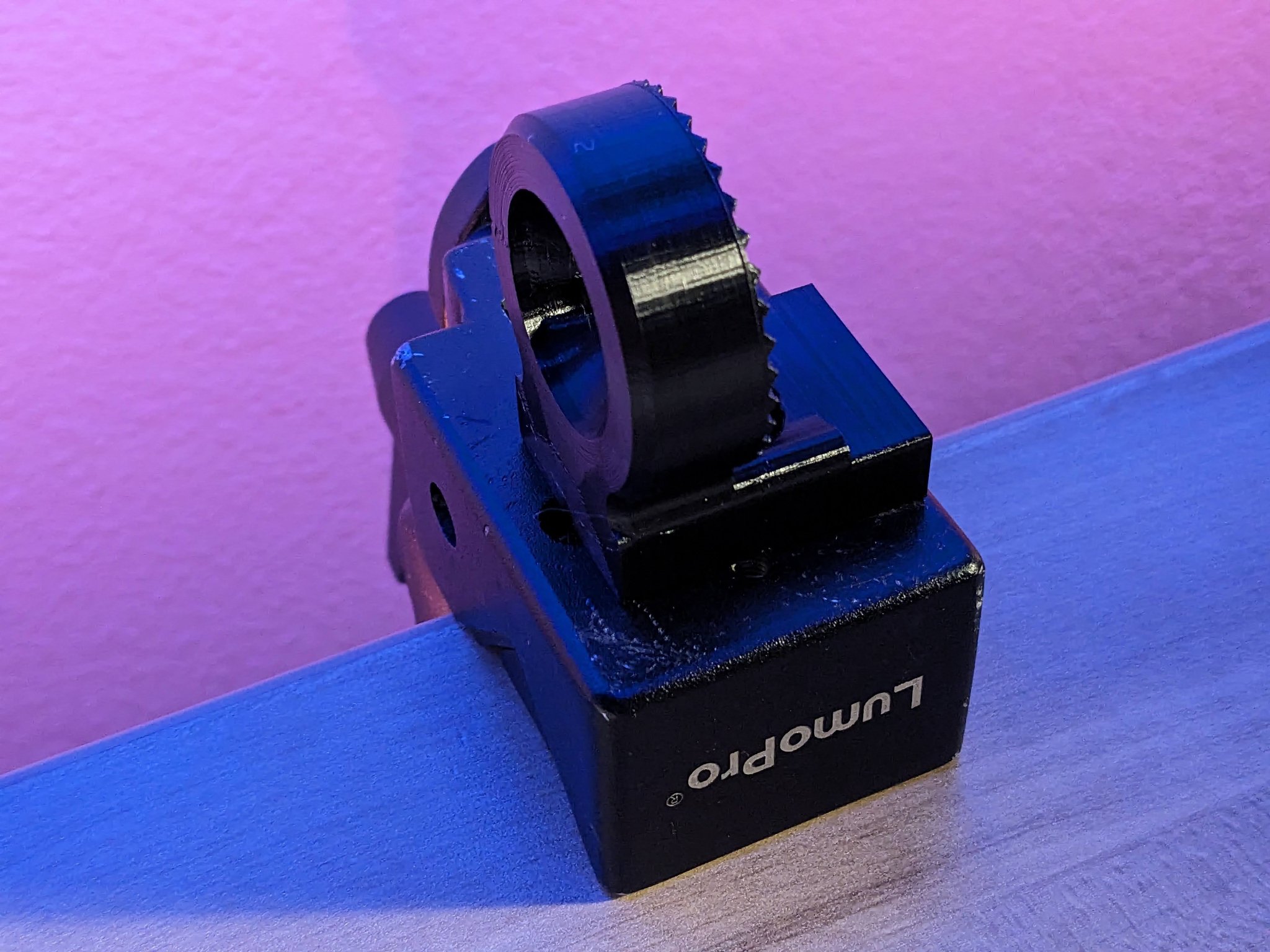

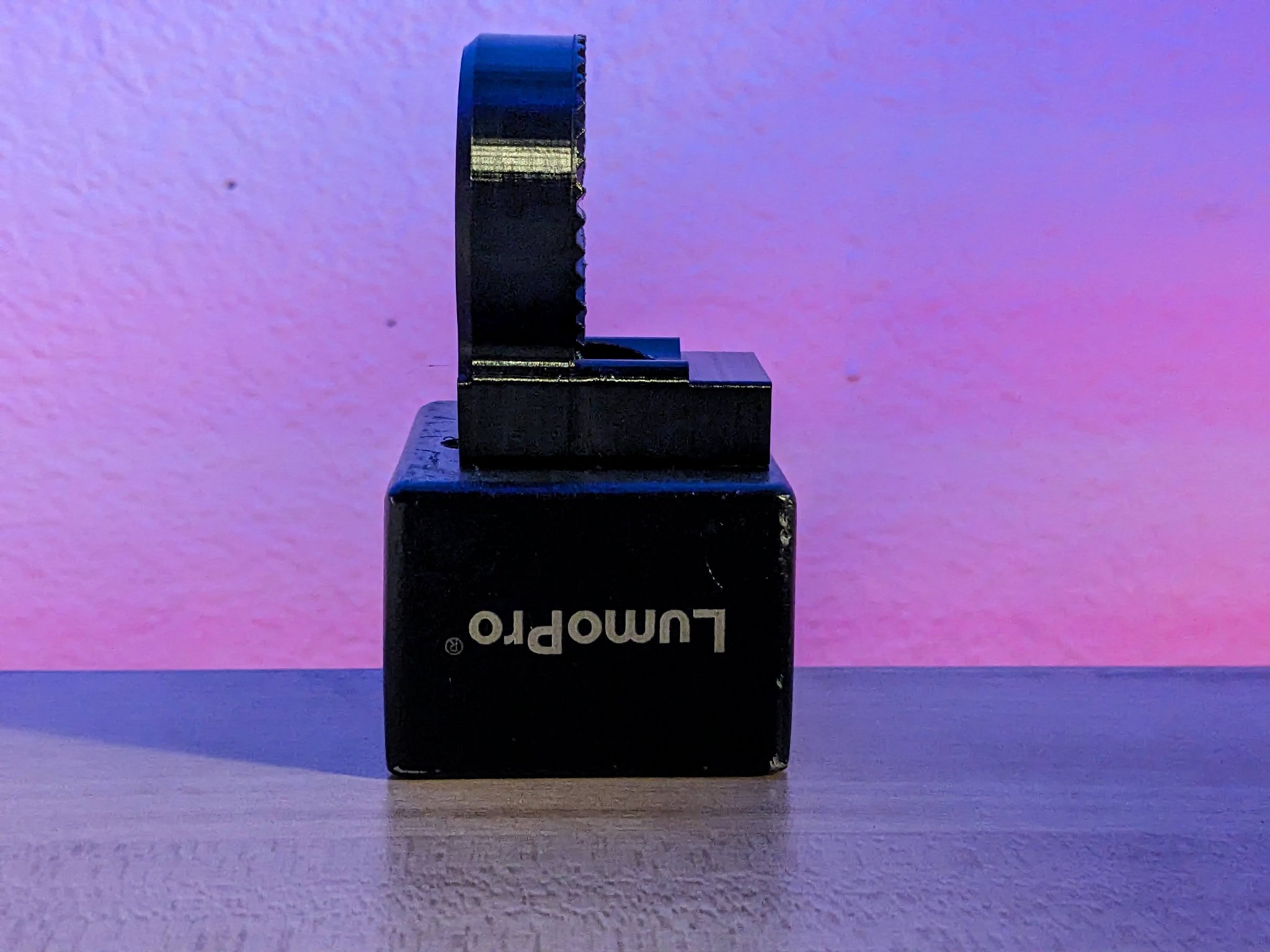

A quick melding of two models to create an adapter for Manfrotto/LumoPro Super Clamp's to RostaP's excellent Multifunctional Small Arm System.

Differences

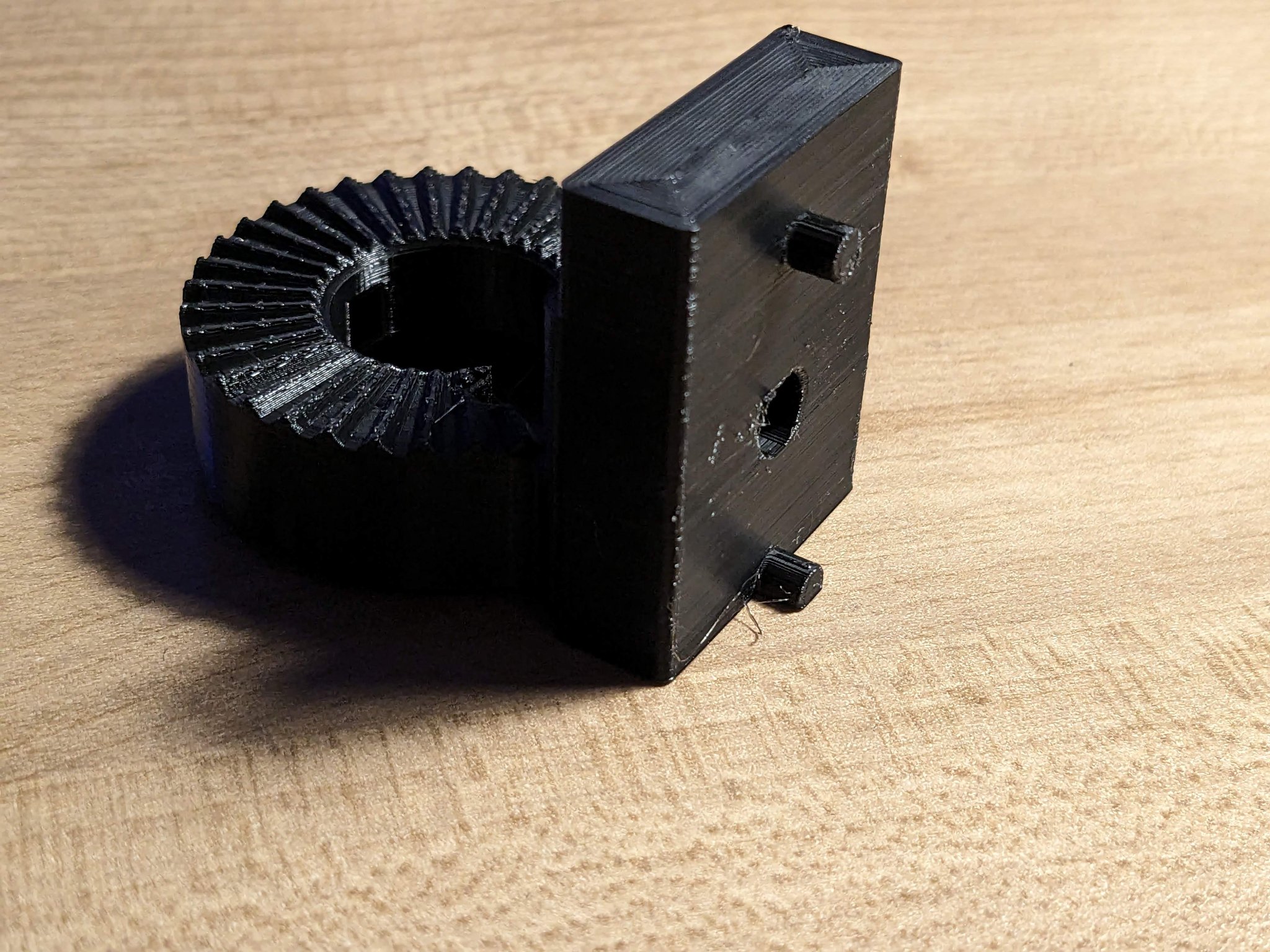

Either version can be rotated to match the smaller or bigger wholes of the clamp. Either version should work, however the pegs match up to the smaller wholes and fit more snug that way.

• Version A
  • Properly oriented for the clamp wholes.
• Version B
  • The version I created when I freaked out and thought I mis-oriented the pegs and the desired arm system orientation, and I was was wrong about the freak out. Still uploading as it is the one I actually printed and it may provide the orientation someone else wants.

Printing

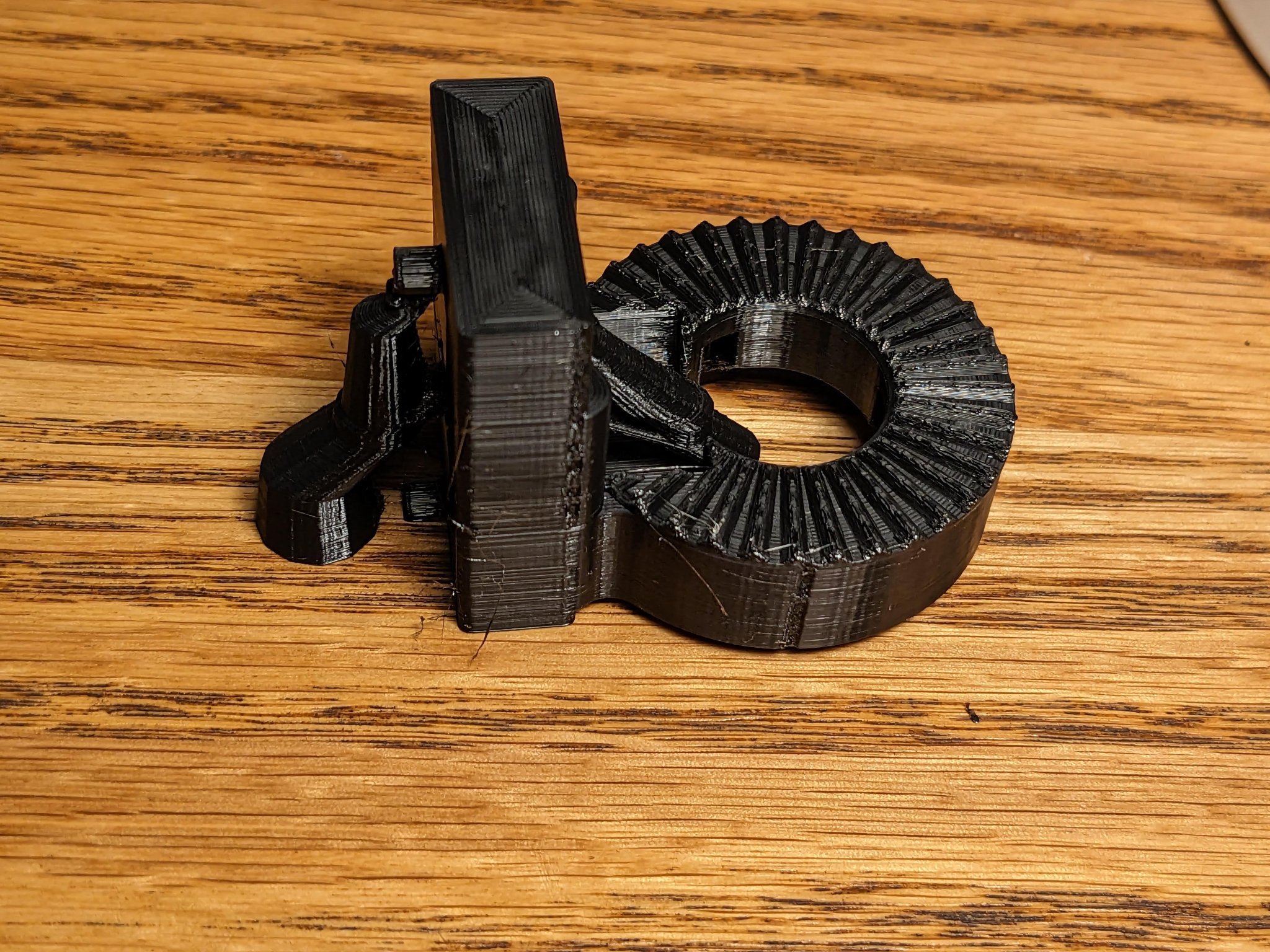

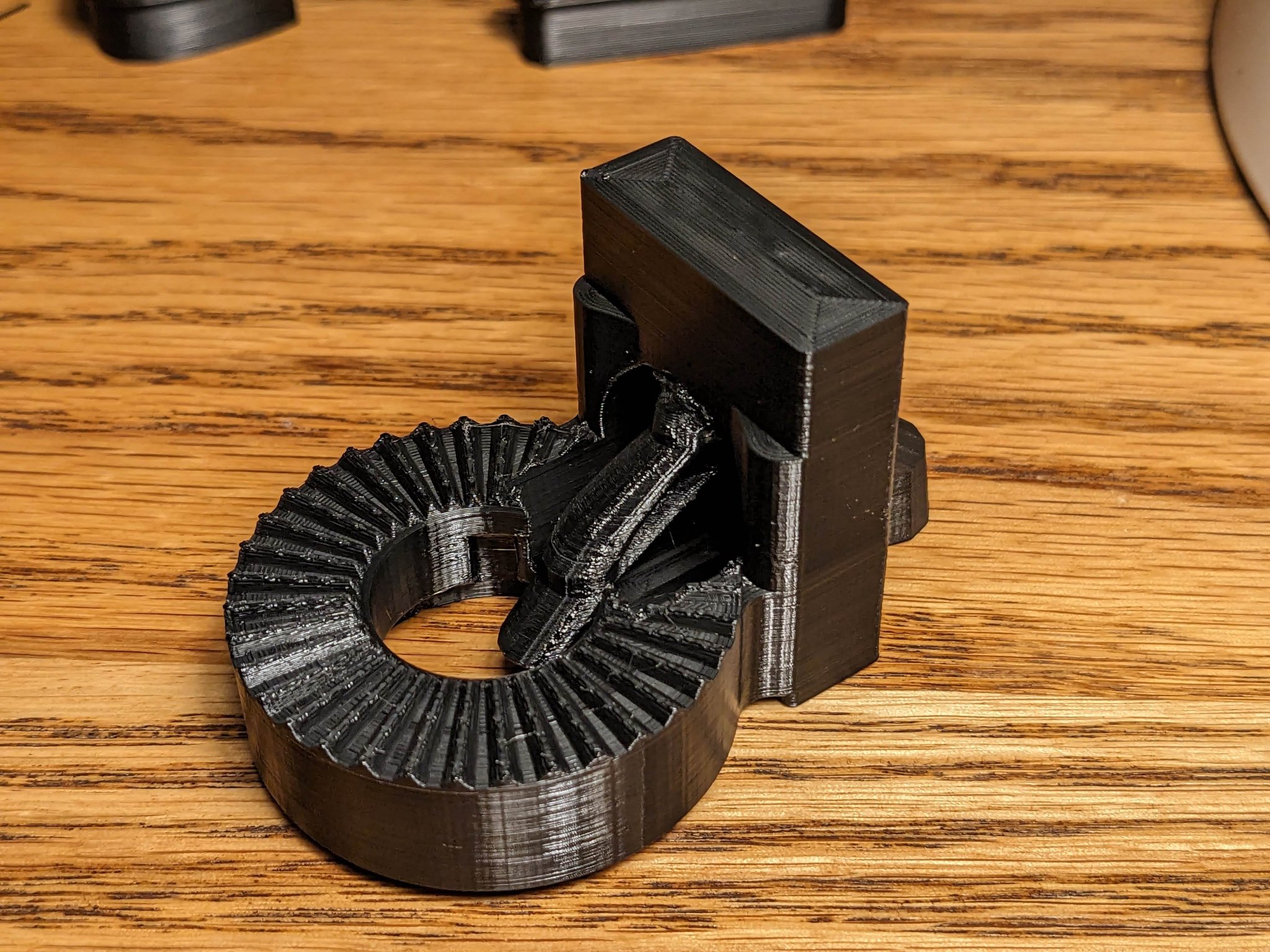

I printed at 0.1mm to reduce the amount of support material needed for the overhangs of the tripod mount screw and the pegs. Small design tweaks would make this unnecessary, but I didn't have the time to do those.

Attachment

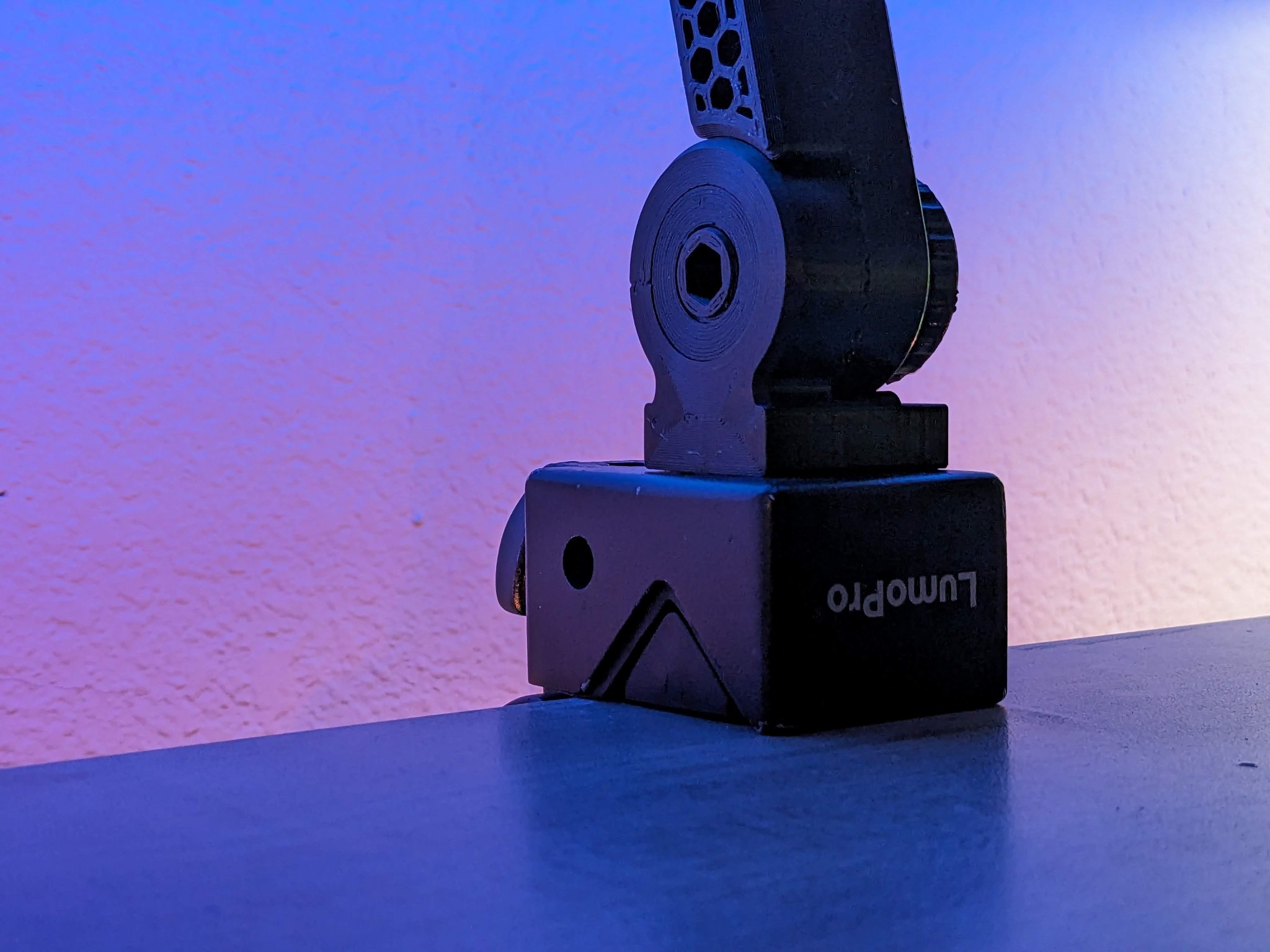

This 3D printed tripod screw worked great for attaching this adapter to the clamp itself.

Remix/mashup of

• holder-small-nuts-18-18-M4.stl
• 75mm Vesa to Manfrotto Clamp.3mf
