Tiêu đề Giá đỡ Ender 3 V3 SE Z-Probe Tóm tắt Tôi vừa đo khung

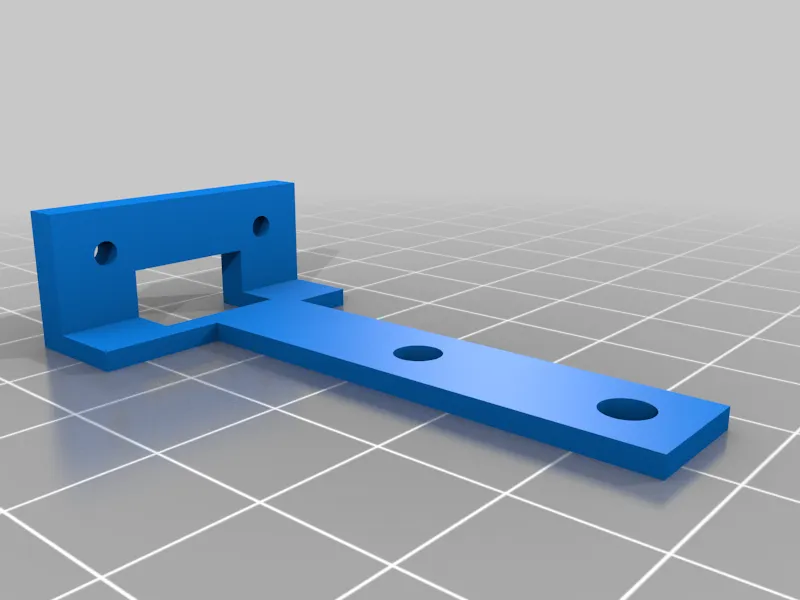

I just measured the original bracket. "Zprobe Ender3V3SE.stl" should be a perfect fit replacement.

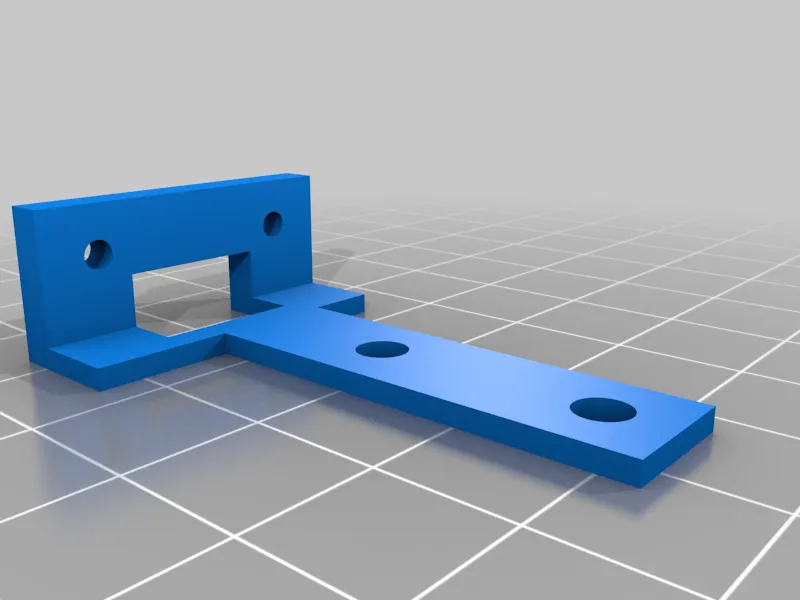

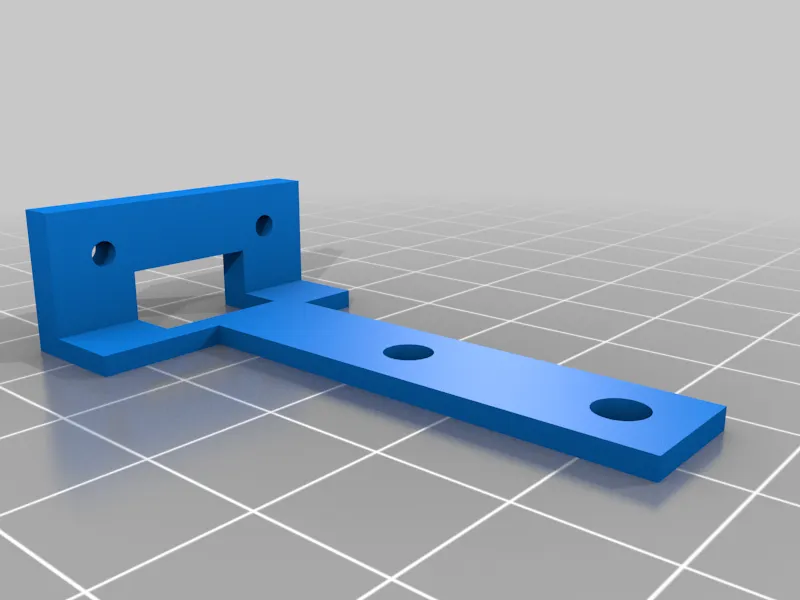

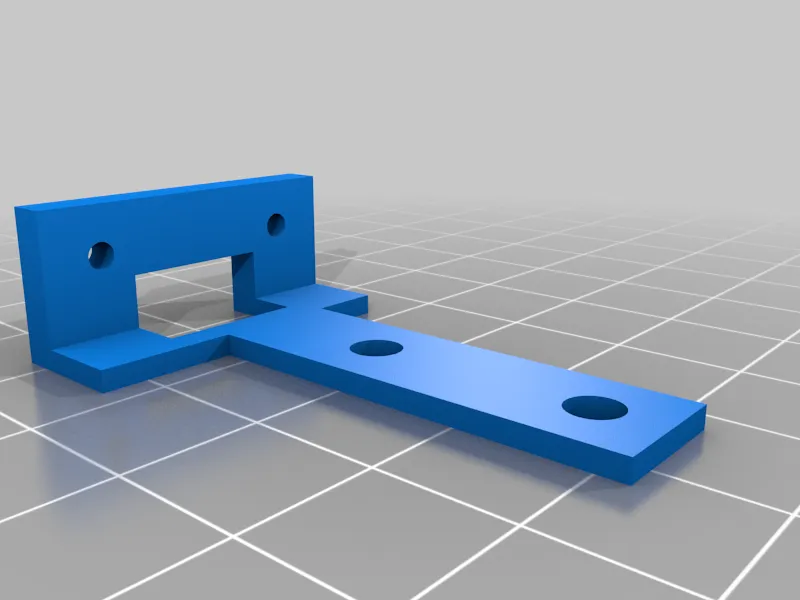

5mm shorter should account for normal height heat blocks which I needed to make 2mm longer should account for volcano nozzles/heat blocks

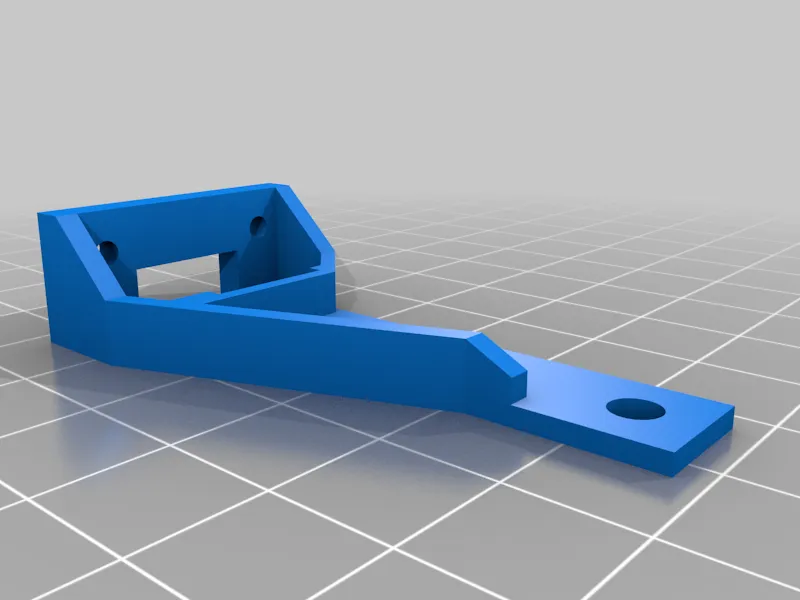

For volcano use the skeletonized version it's so long that it can bend without the extra support. This is especially notable with softer plastic like Nylon or PETG.

If you use a non-sprite standard height heat block the 5mm shorter option will work I'm used it with a short height CHC Pro Ceramic kit.

Category: 3D Printer Parts
