Tiêu đề Khối chặn hàng rào cưa cắt cho máy ép đùn dòng EX 10

This miter saw flip-over fence stop block and knob can be used with EX 10 Series aluminum extrusion. I used the EX-1030 extrusion profile for my miter saw fence, which is 1" wide x 3" high. The EX-1030 product is an exact match for the product offer by 80/20 #1030, T-SLOTS #650001 & McMaster #47065T511.

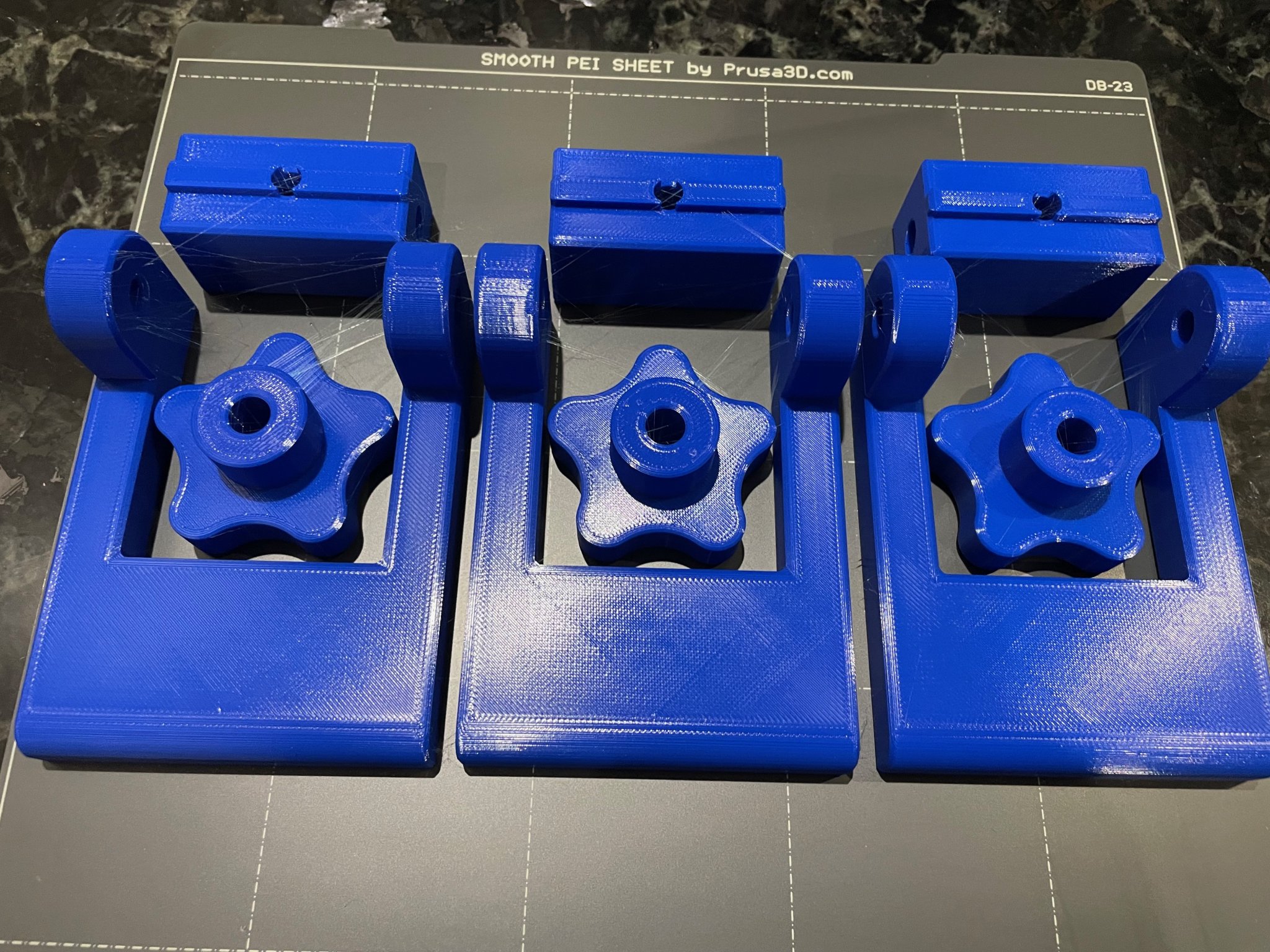

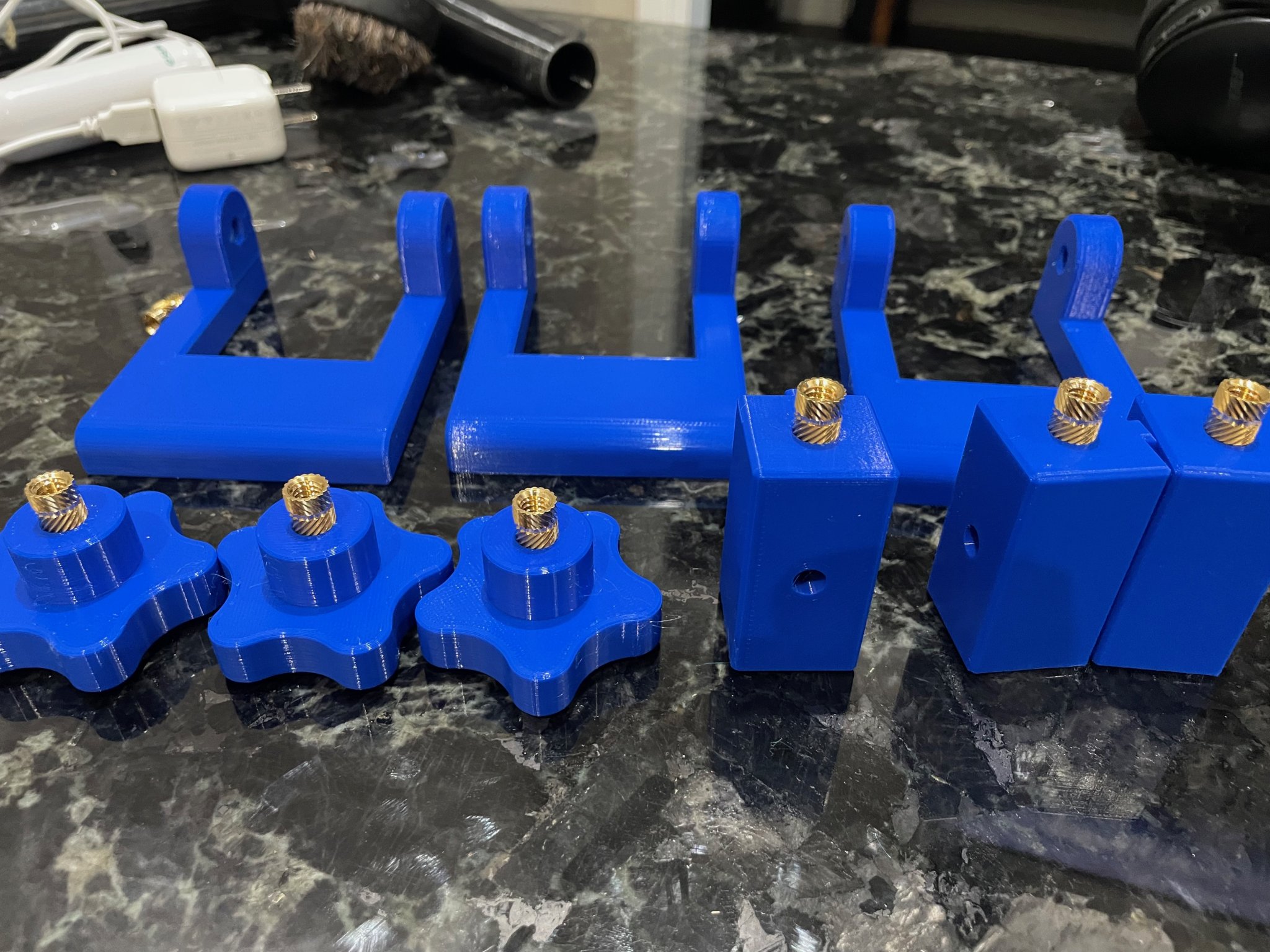

These parts were design to accept threaded inserts that have ¼"-20 threads which works well with the T-Slot bolts you can buy online.

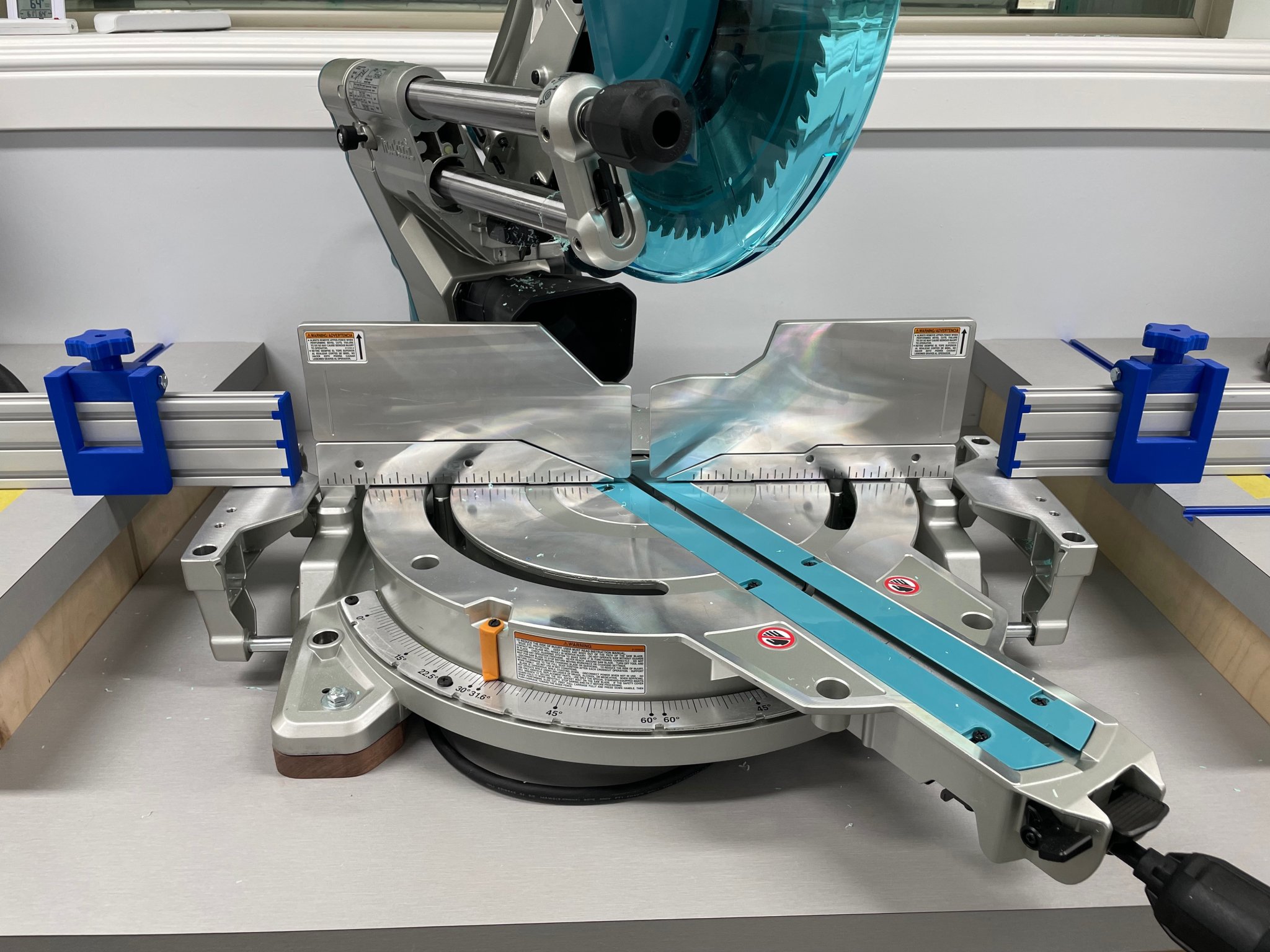

The EX-1030 extrusion I used for my miter saw fence can be purchased from TNUTZ

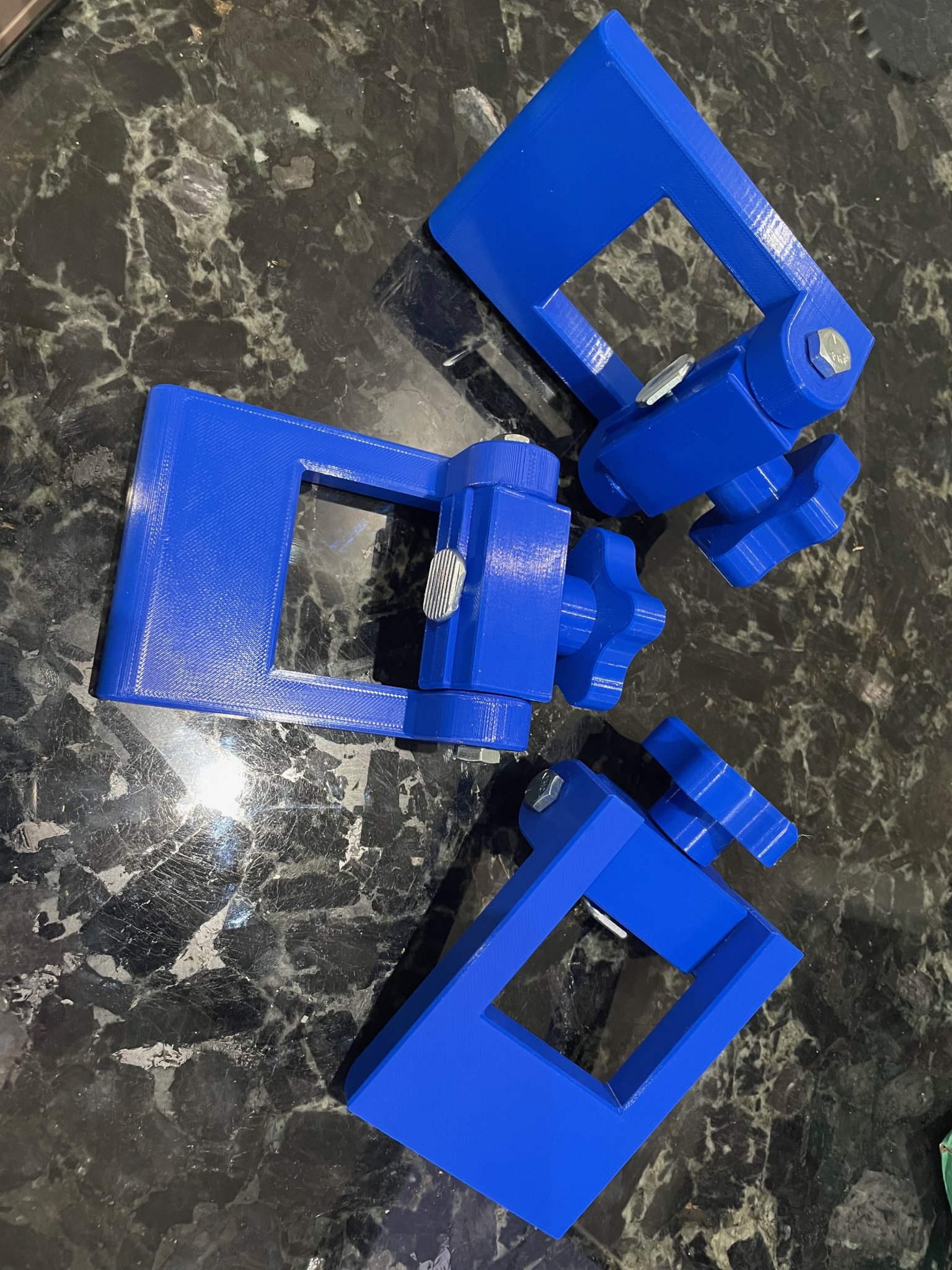

From the assembled picture of the fence-stop you can see there are 2 - ¼"-20 hardware bolts that go through the stop and into the thread inserts in the ends of the block, 1" bolts would be long enough to go through the fence-stop and into the threaded insert in the block, but then the bolts come loose as you move the fence-stop up and down, so by using ¼"-20 x 1-¼" bolts they go through the thread insert in the block and continue into plastic which act like a nylon stop nut . This stops the bolts from coming loose but yet loose enough so you can move it freely. Note: Don't use a 1-½" bolts or they will hit the T-Bolt that goes through block and into the bottom of the knob.

Other Parts:

¼"-20 x 1-½" T-Bolts (1 required), available from amazon.com, these fit the ¼" slots on the fence extrusion

¼"-20 x 1-¼" hardware bolt (2 required), source from local hardware store

1/4"-10 threaded inserts, available from amazon.com

Heat-Set Insert Tips, available from amazon.com, they work with the soldering iron below

Soldering Iron, available from amazon.com, cheap but effective soldering iron to use with the tips above

Print Settings:

Layer Height: 0.2mm, Structural Profile

Filament: eSUN PLA PRO (PLA+), Inland brand from Micro Center

Printer: Prusa MK4 with Input Shaper, .4mm nozzle

Perimeters: 3

Layers: top 5, bottom 5

Infill: 15%, Grid

Seam: rear

Supports: None

Brim: None
