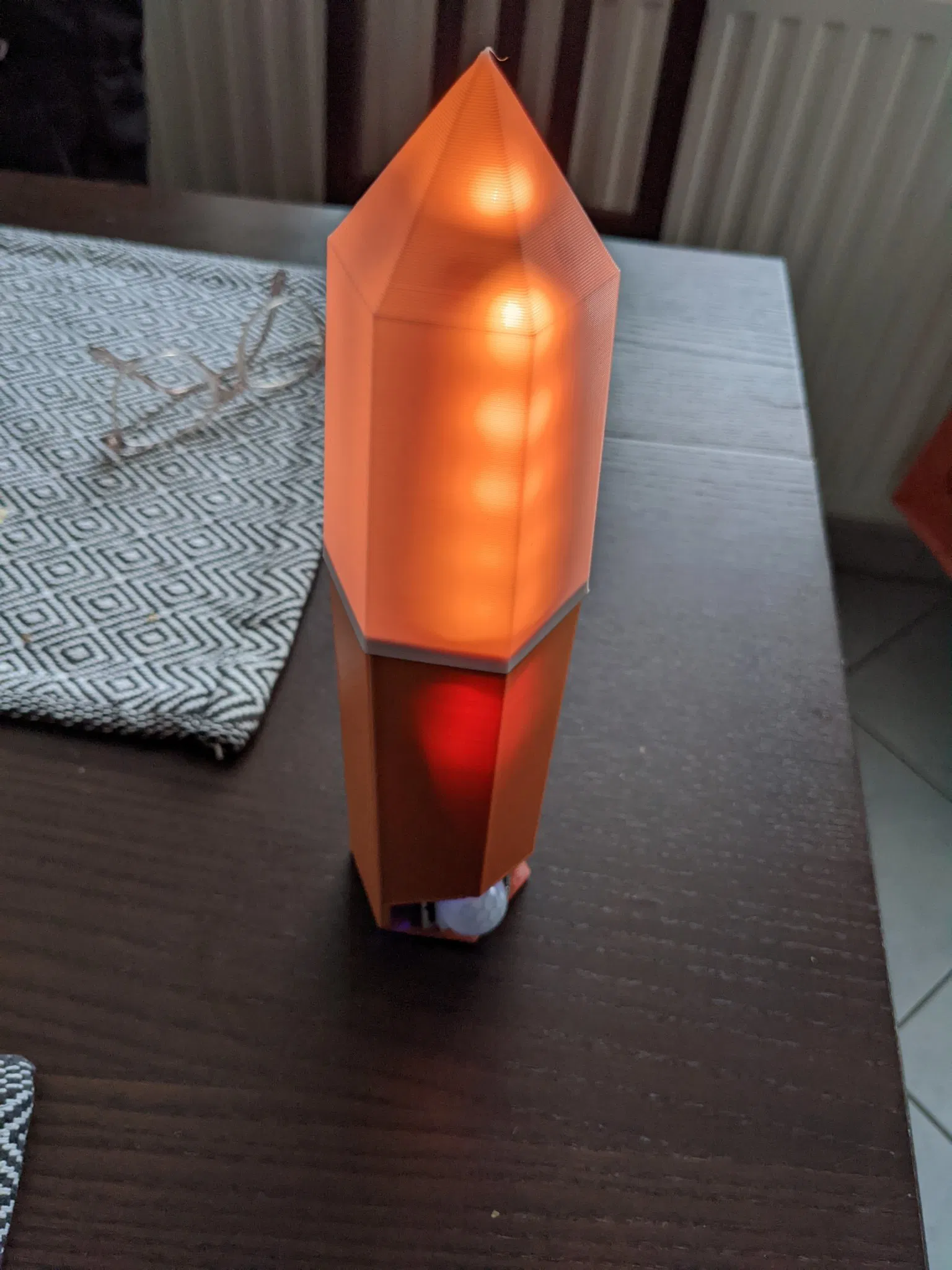

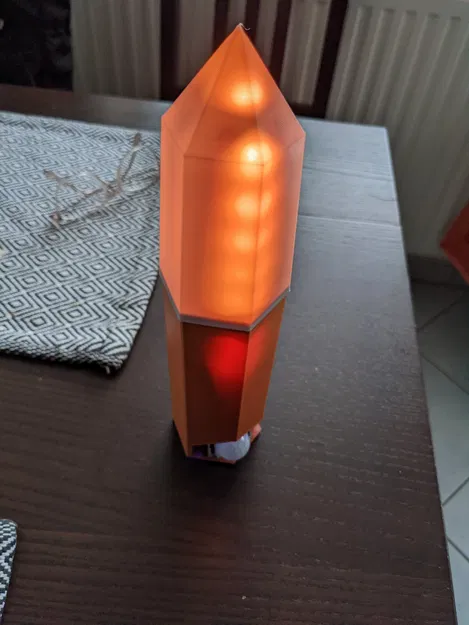

Motion detector LED lamp

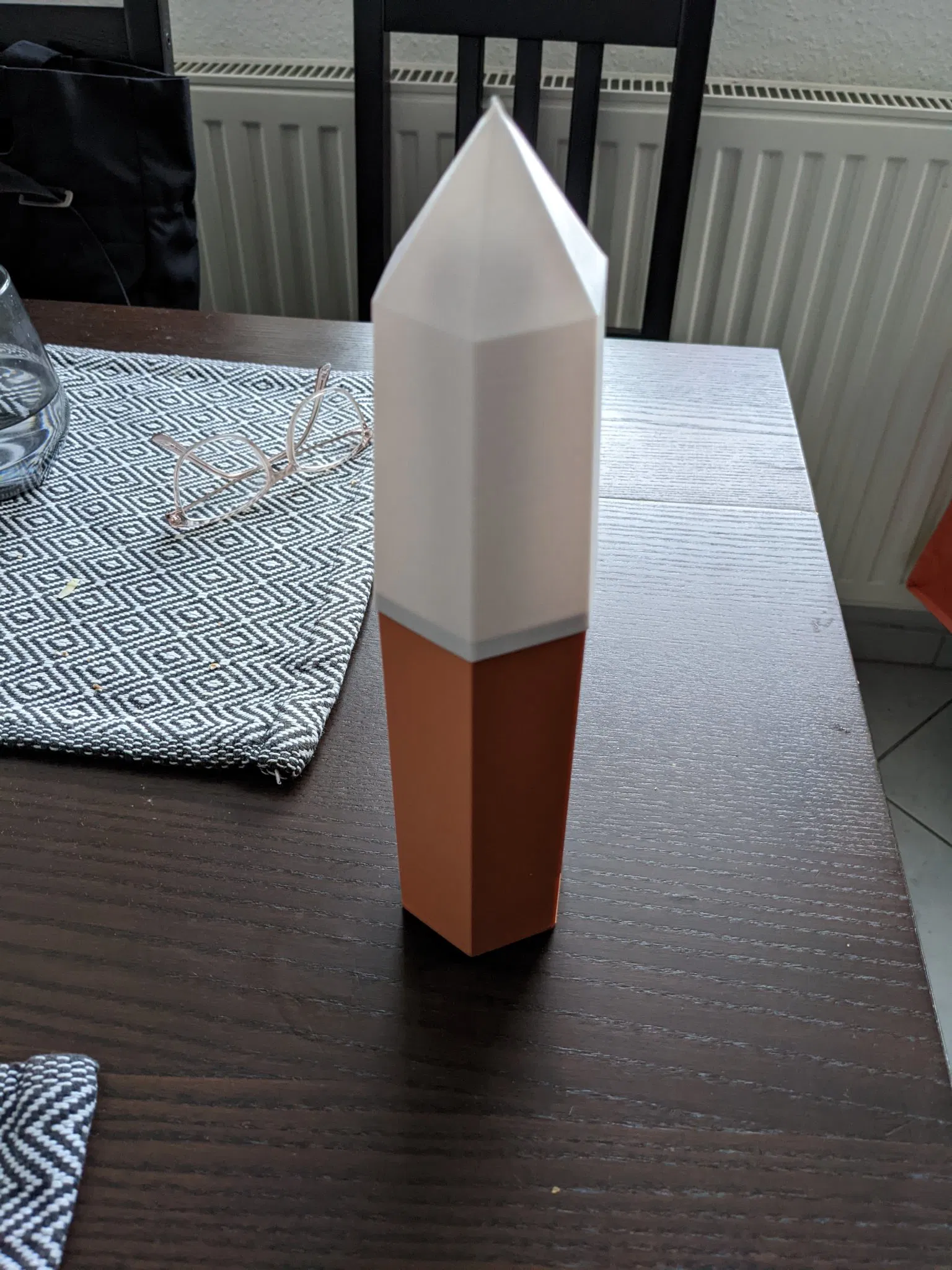

The cap is printed in white PETG (ATTENTION: use VASEMODE!)

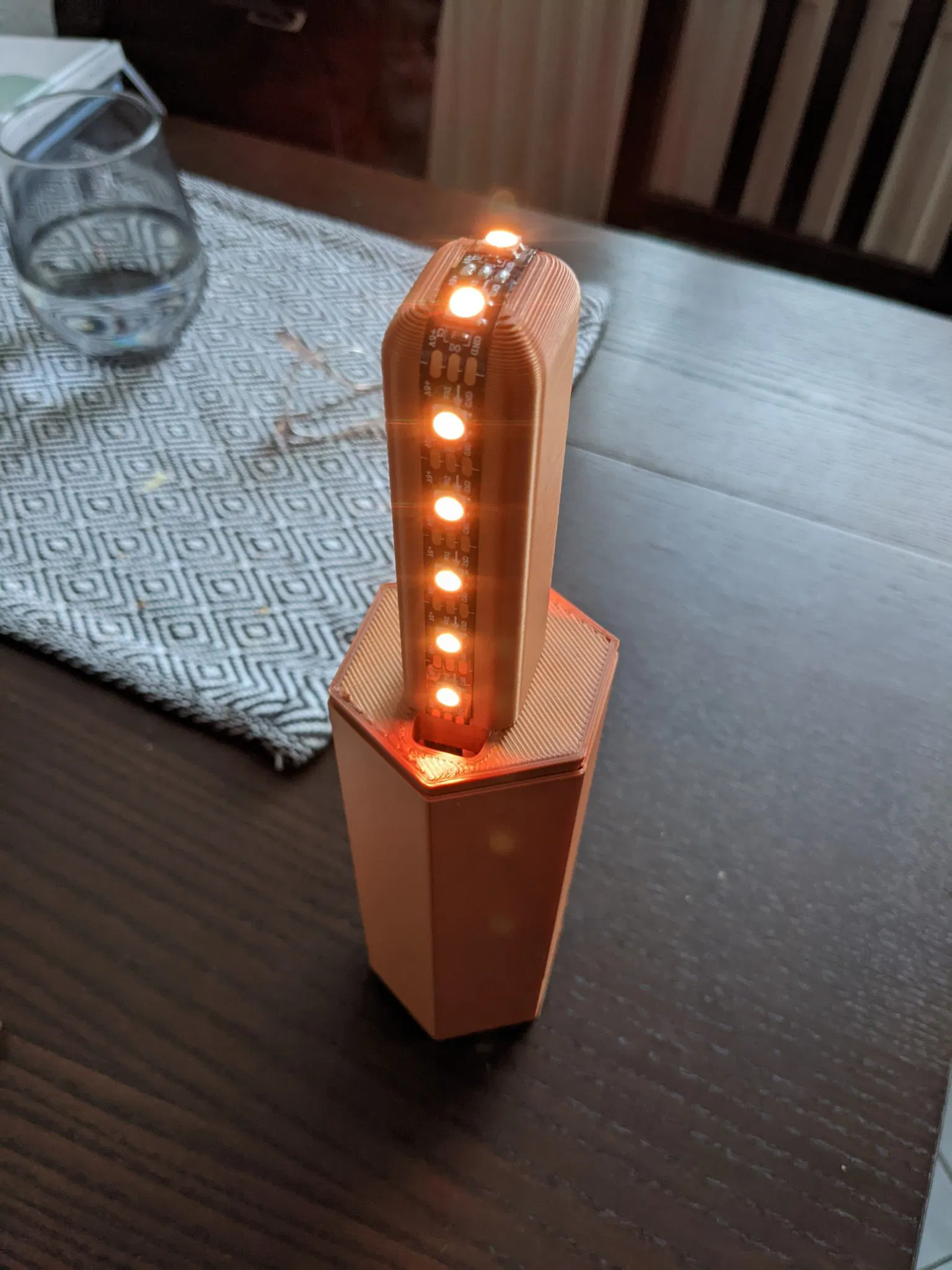

LED-holder and bottom part in Copper-Silk-PLA

the spacers are printed in transparent TPU

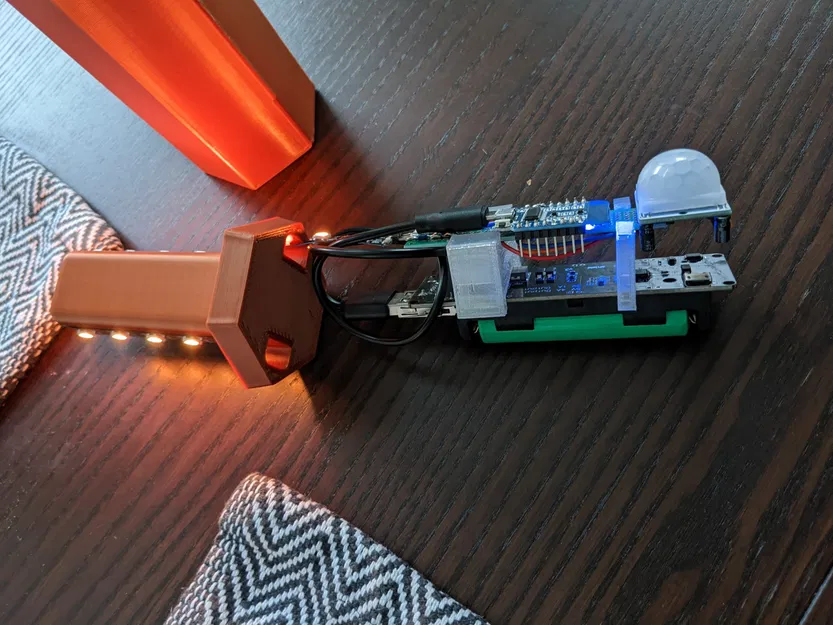

Electronics used:

HC-SR501 PIR motion sensor (configured as “switch” in WLED)

15 LED-long WS2812b-LED-strip (about 900mA in full brightness white light)

ESP8266 (flashed with WLED software)

18650 li-ion battery (about 2Ah I guess, it's quite old)

18650 batteryshield

My 18650 battery lasts for only 1 day, but you can use a standard USB-wall-plug instead.

All parts are designed to “press-fit”, no glueing needed (only the led-strip-glue that is on the strip itself).
