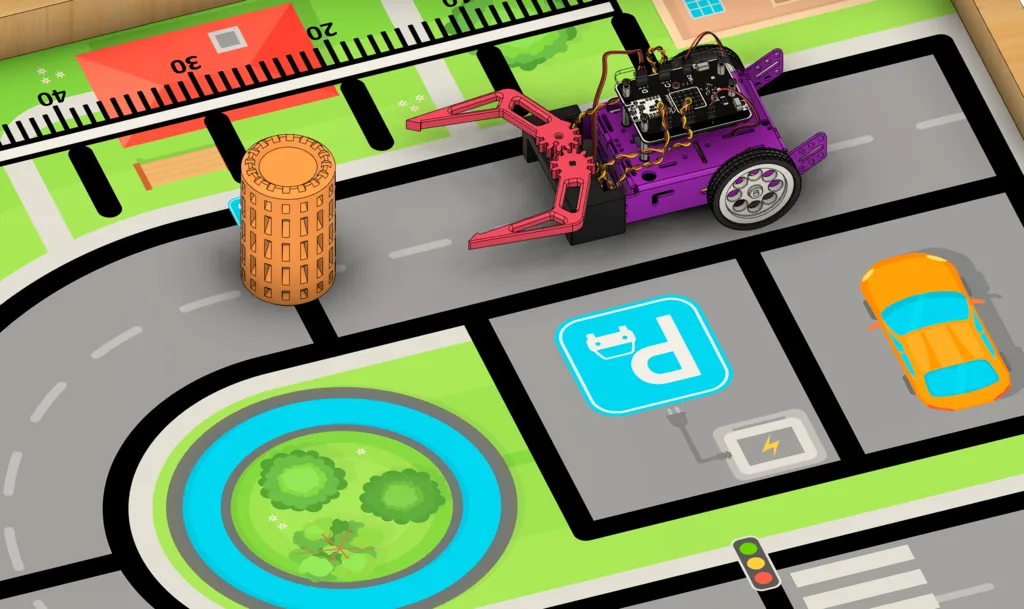

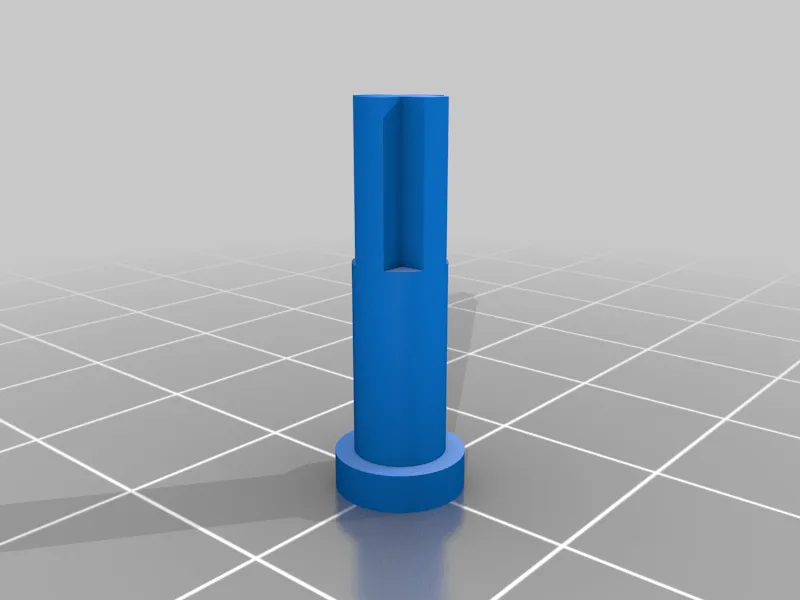

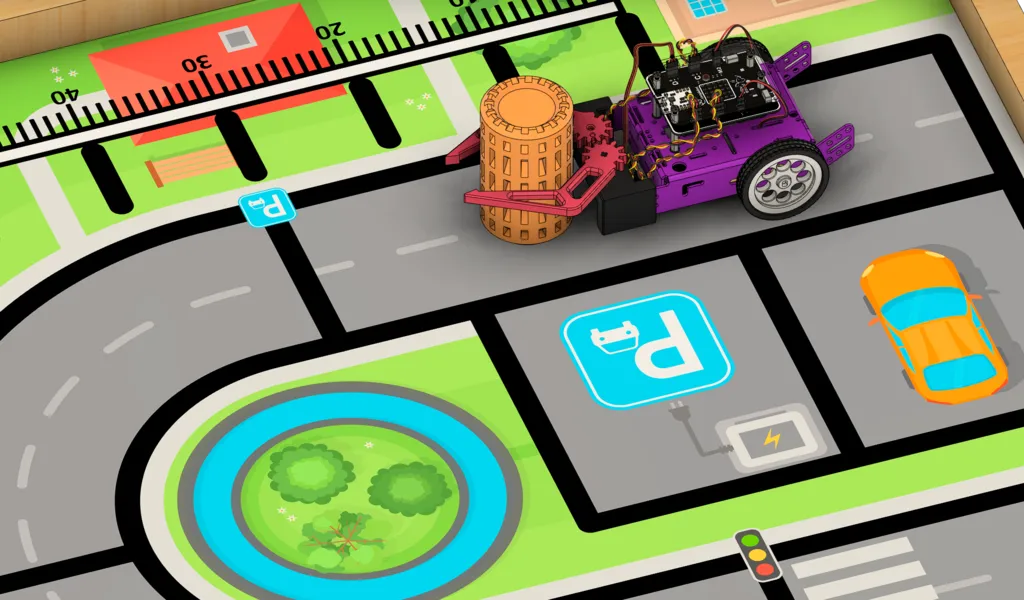

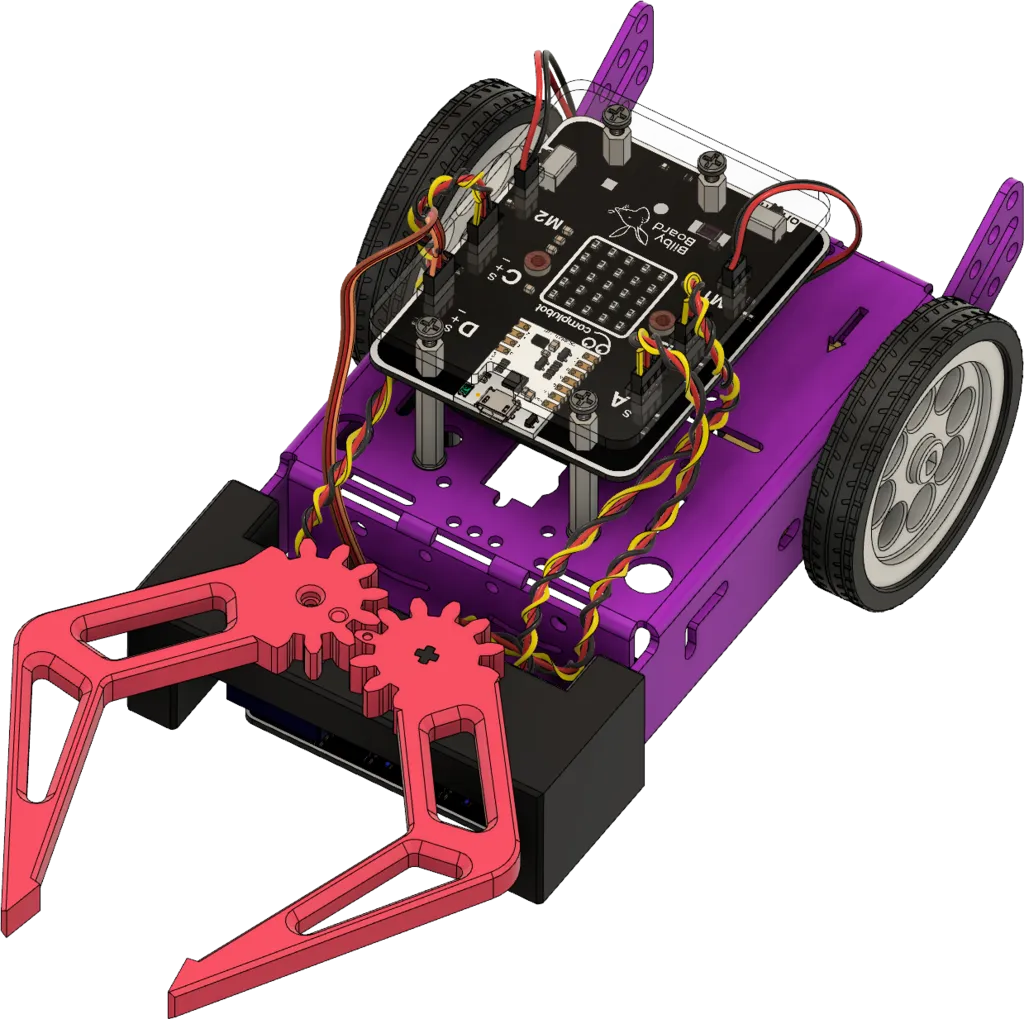

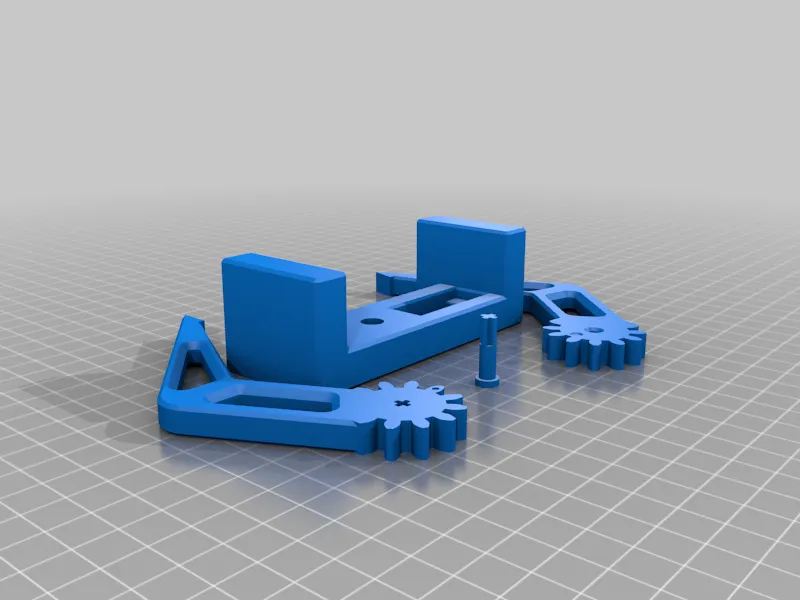

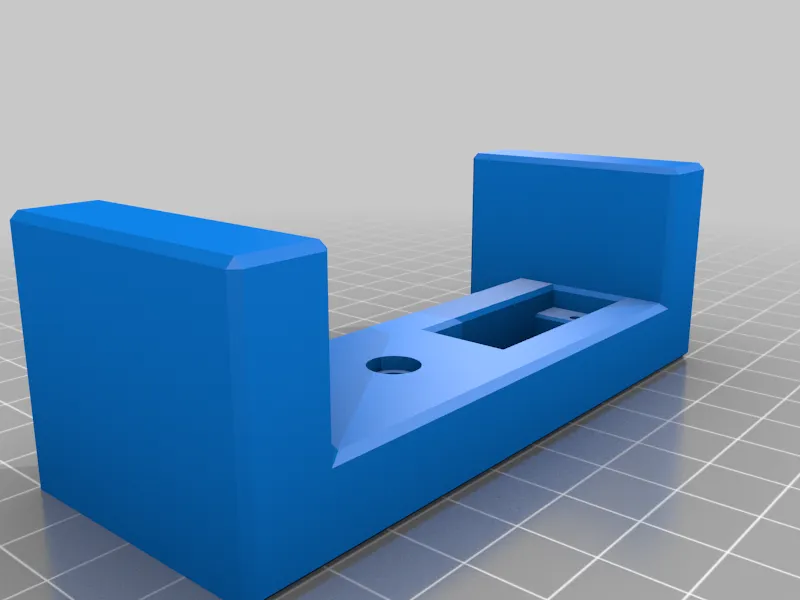

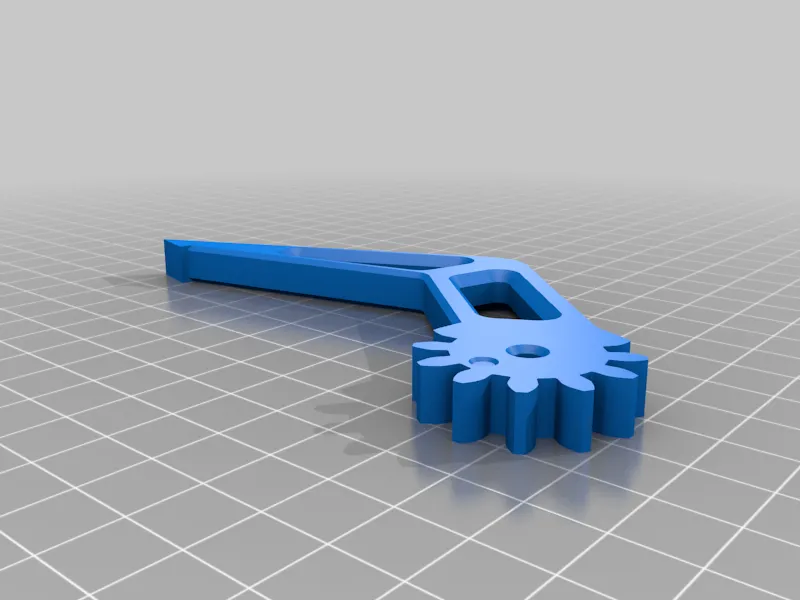

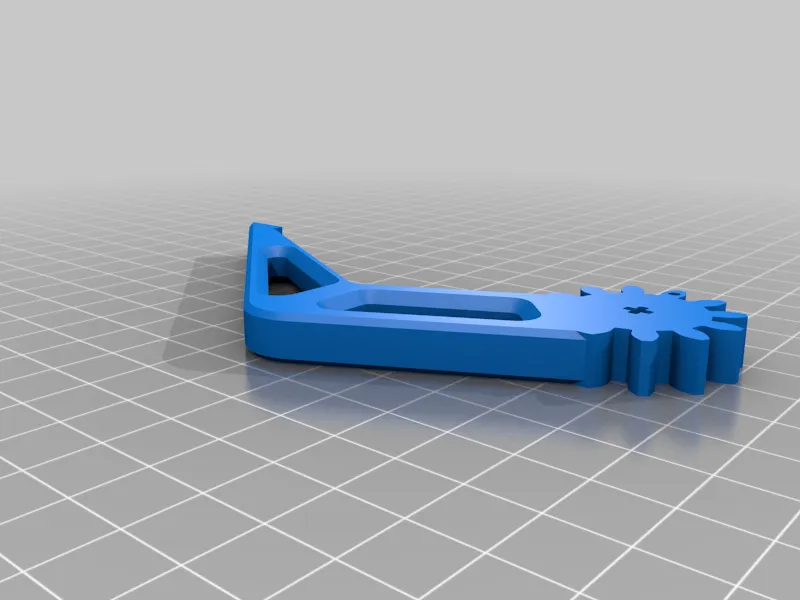

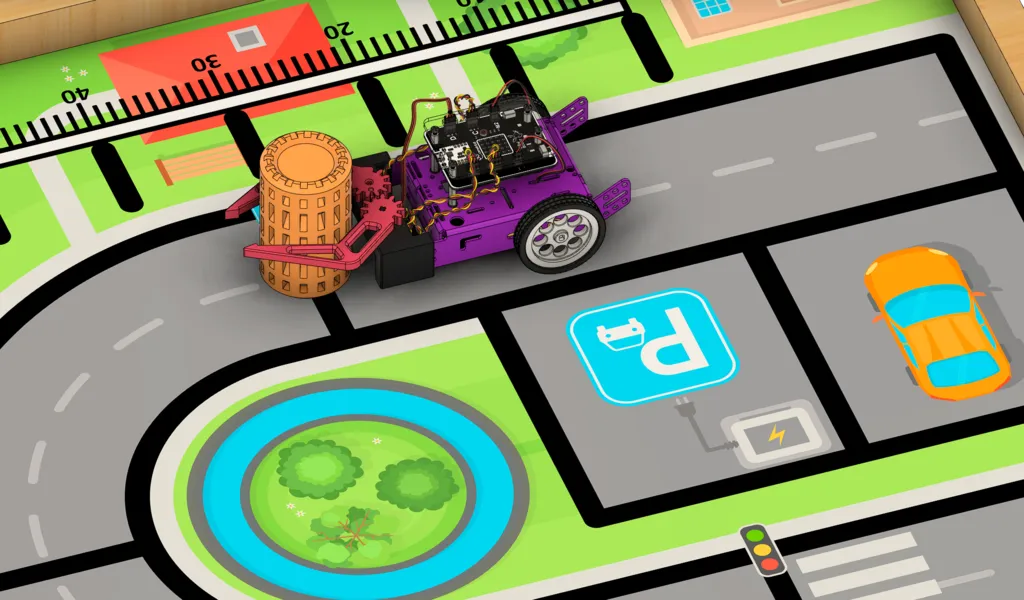

This gripper allows the Bilby robot to grab objects. The gripper is designed in 4 parts and works with an SG90 servo. To mount it, you only need the screws included with the servo.

If you want to take a look at the Bilby robot you can find it in our store. Bilby is a very complete and programmable robot with an unbeatable price. This is the link to our store: https://shop.complubot.com/kit-robot-bilby-v2-p-1-50-764/

Print Settings

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

No

Resolution:

0,2

Infill:

15%

Filament: Polymaker PLA

Notes:

We use the Ender 5 S1 printer with the Sonic Pad. The print can be done perfectly with layer heights ranging from 0.1 to 0.3 and with a minimum infill of 15%. It is very easy to print and doesn't require any supports. We have sliced it using eSlicer 2.6.0.

Assembly instructions =====================

To assemble the robot gripper we only need an SG90 servo and the screws that are included with it.

Bilby Robot Gripper Assembly
