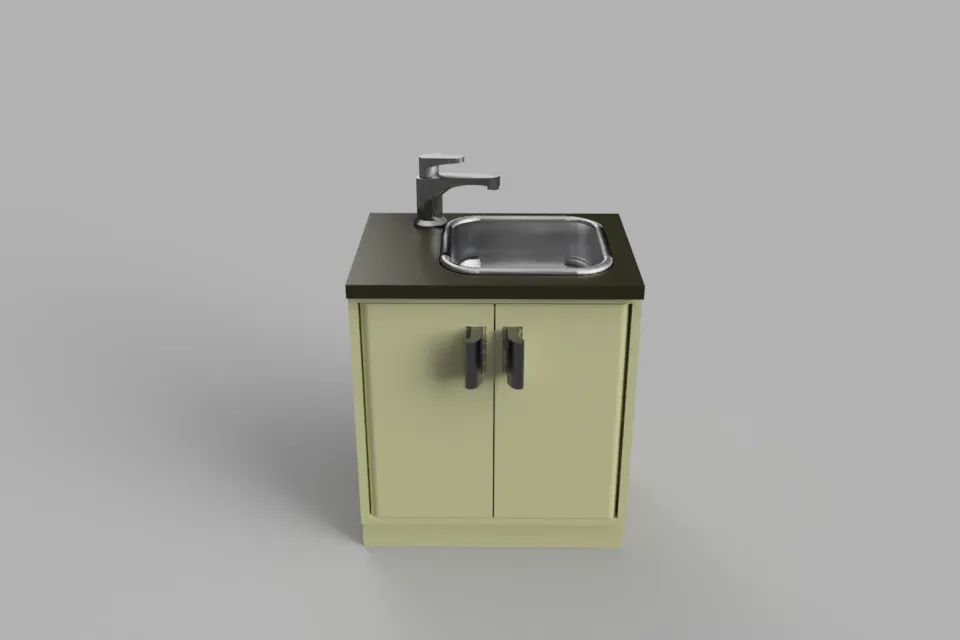

Doll House Kitchen Sink 1:12

Print recommendations:

body.stl - print on its back

pipe.stl - print white

siphon.stl - print white on its top

tap_nut.stl - print twice(!)

door_left.stl & door_right.stl - print same color as body.stl

tabletop.stl - print other color then body

tap_washer.stl - any color

handle.stl - print twice - different color then doors

sink.stl - printed on its bottom - no supports

tap.stl - printed on its top - no supports

tap_handle.stl - printed on its top - no supports - same colour as tap.stl

Assembly instructions:

Use super glue to assemble parts

Use filament to glue it into the tap handle.

After screwing both nuts, glue bottom washer.

This is provide rotation to both - tap and its handle.

Nuts allow to tighten this rotation. After nuts are aggusted, they can ne fixed with a tip of superglue (do not too liquid glue, as it will glue all of the tap togather)

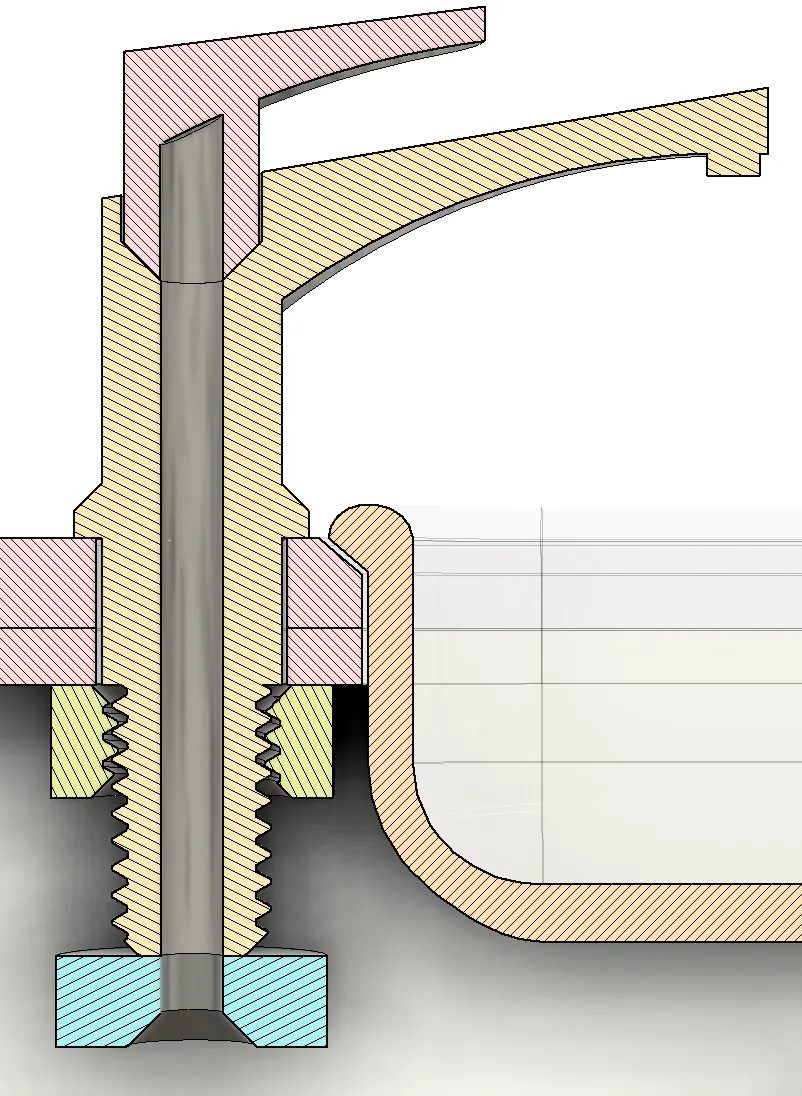

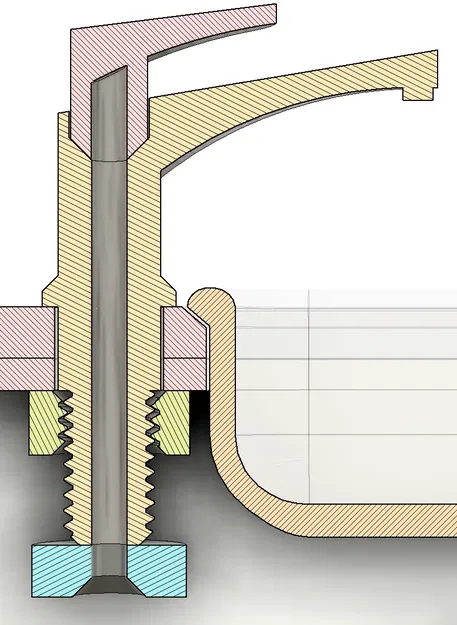

sink assembly.png - note that this picture does not show second nut that should be used to fix the upper nut, so tap would rotate

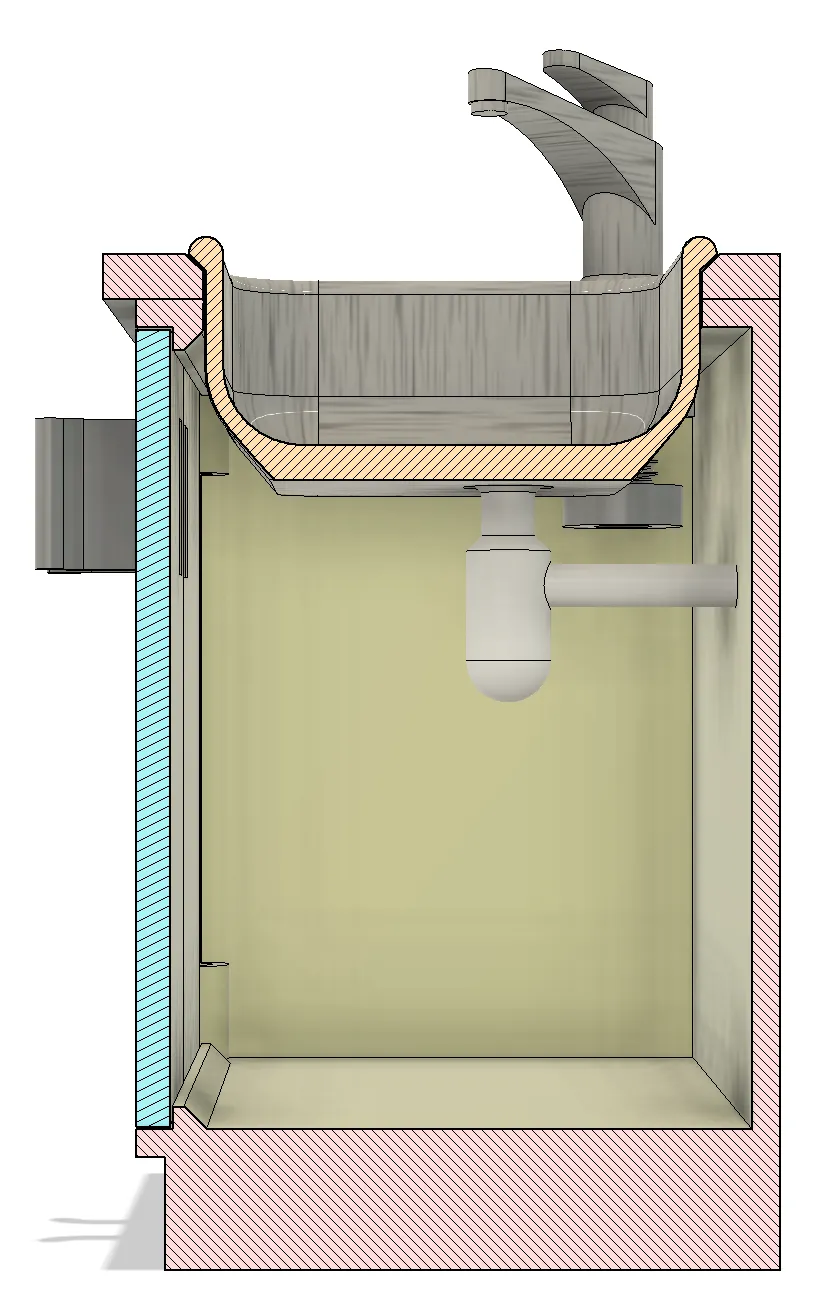

sink inner.png - siphon assembly

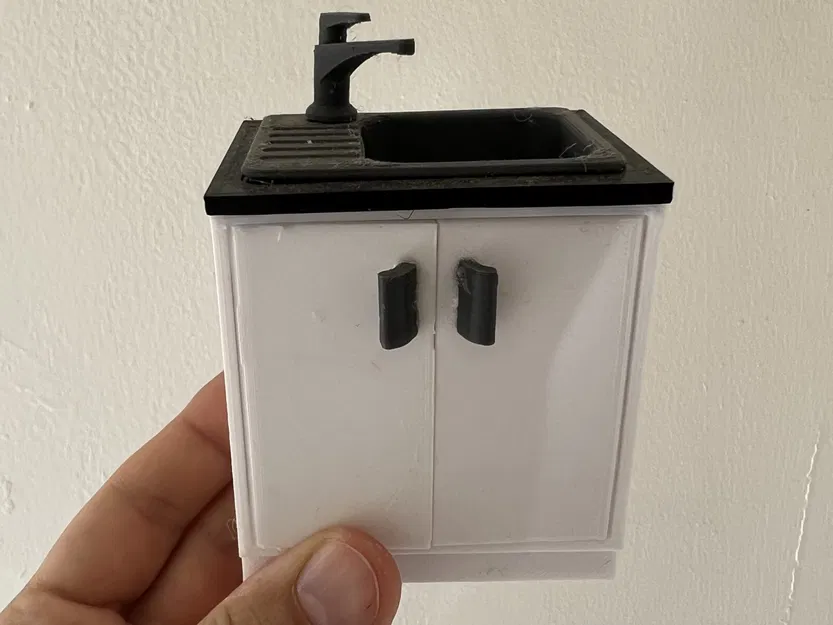

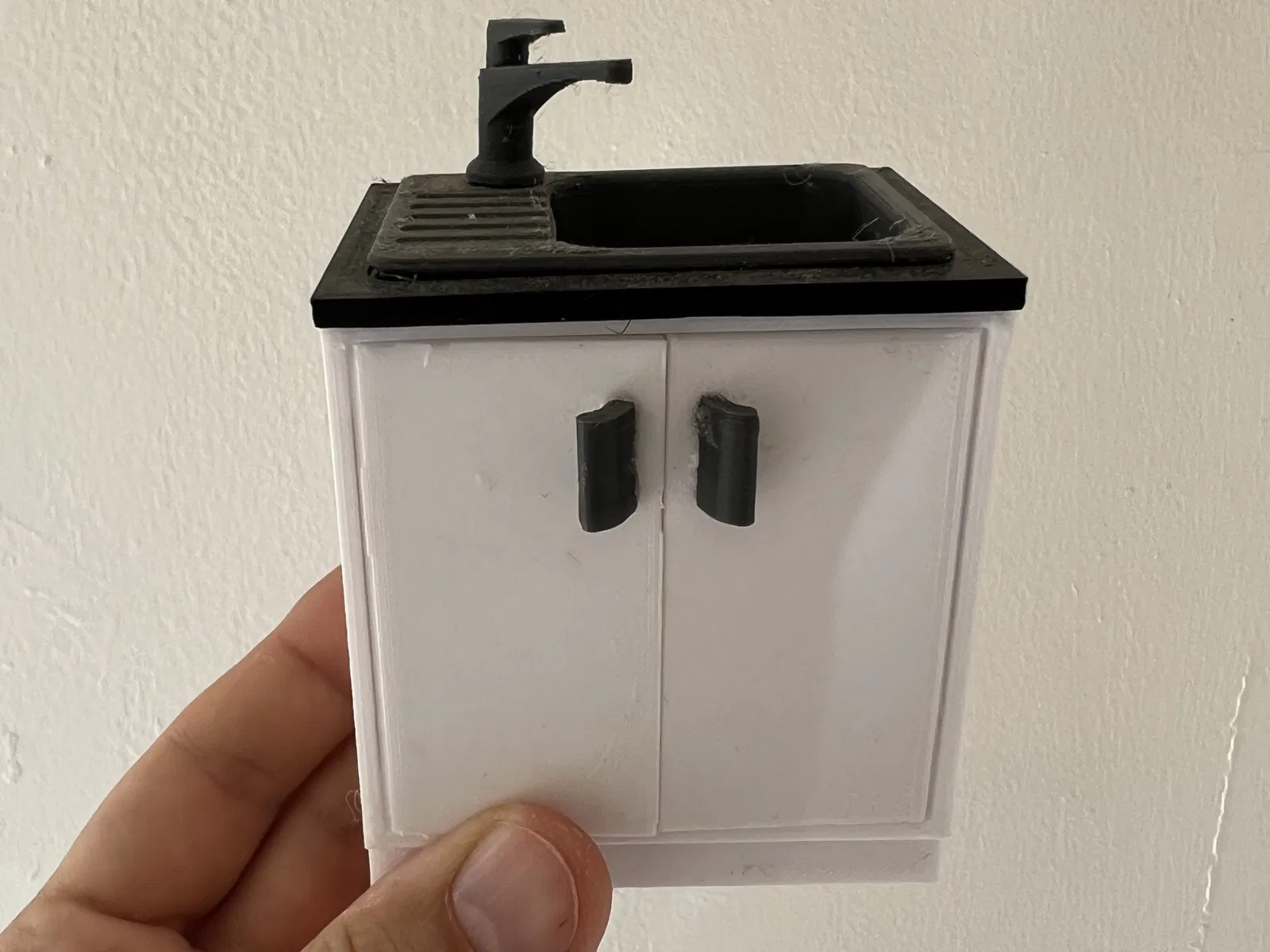

If you will print this model, please post a make. Thanks!
