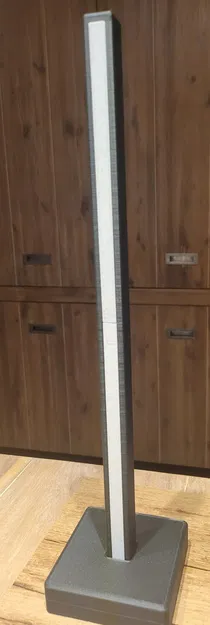

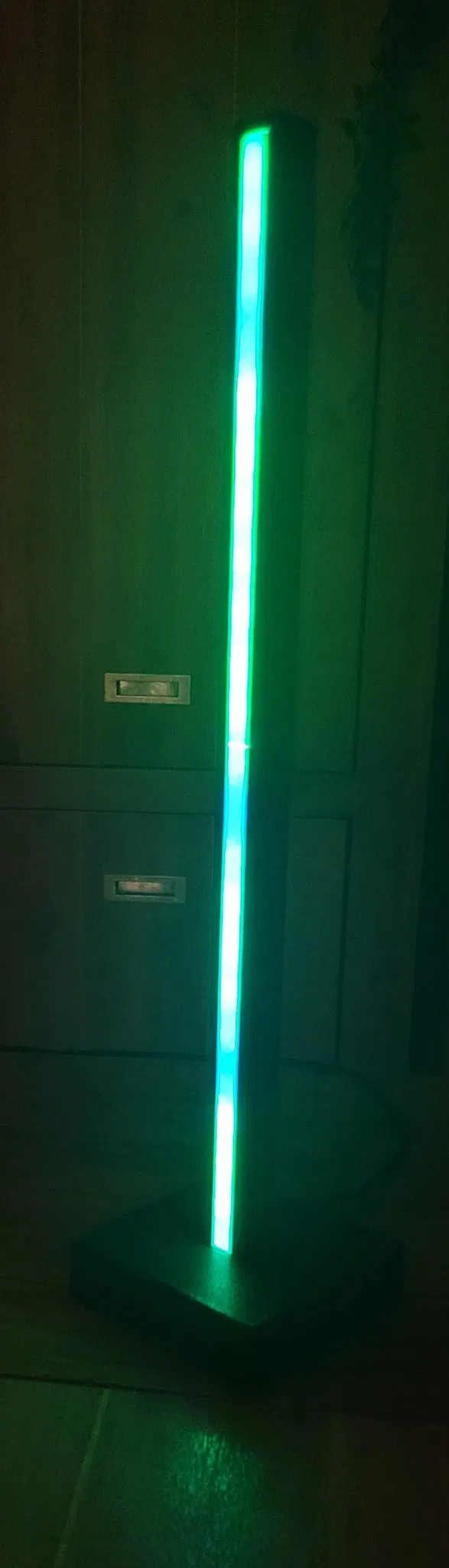

WLED Desk Tower Light

Inspired on multiple design arround, but designed from scratch.

Update:

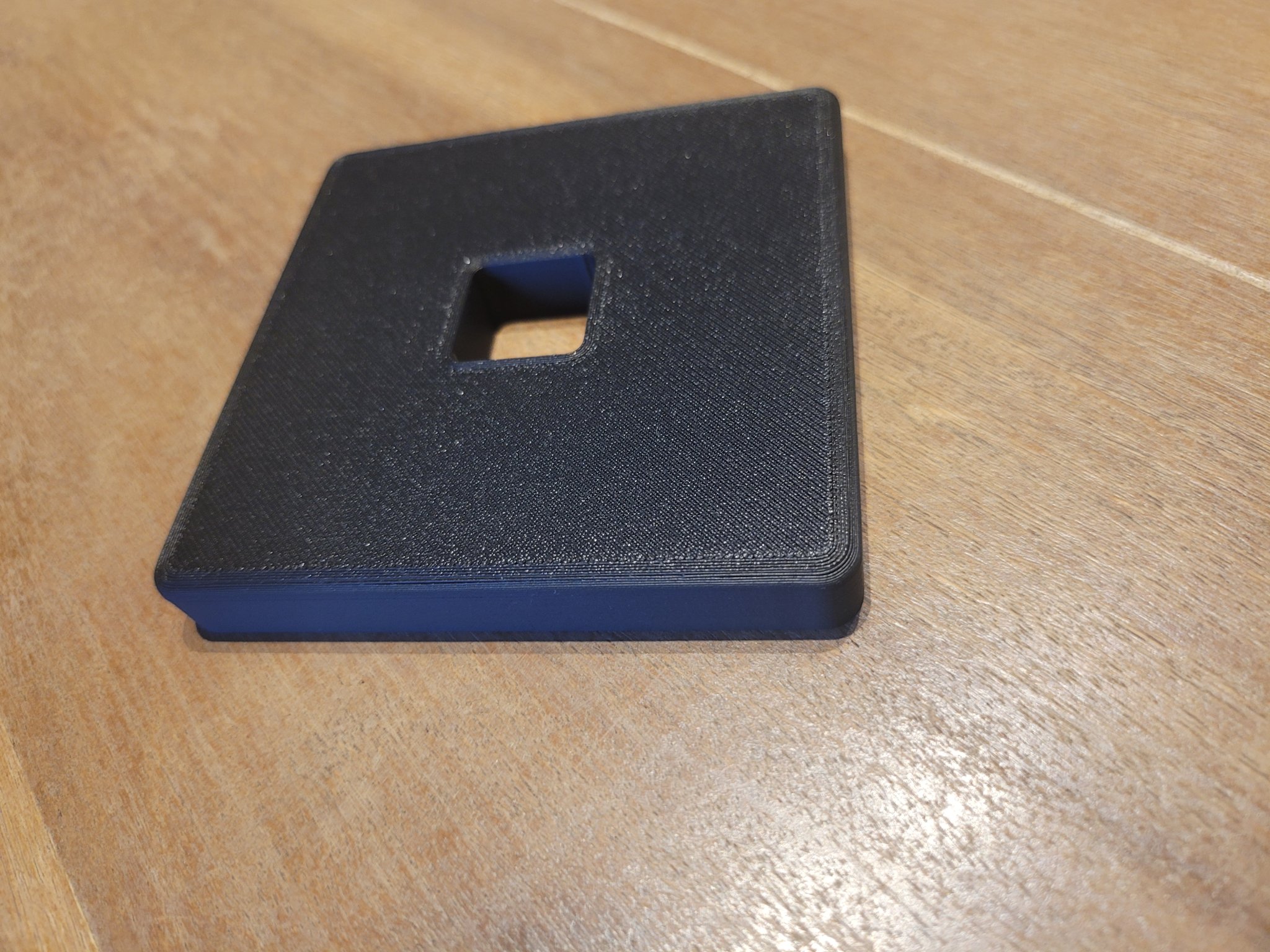

• Cover V2.stl has some more clearance around the tower

2 USB C connectors are used to daisy chain another light, .since it 1 light at max power only draws 1.5A a 3A power brick can be used to power 2 lights.

Electronic parts needed:

• Wemos d1 mini (or other wled compatible controller)
• USB C adapter boards (2x)

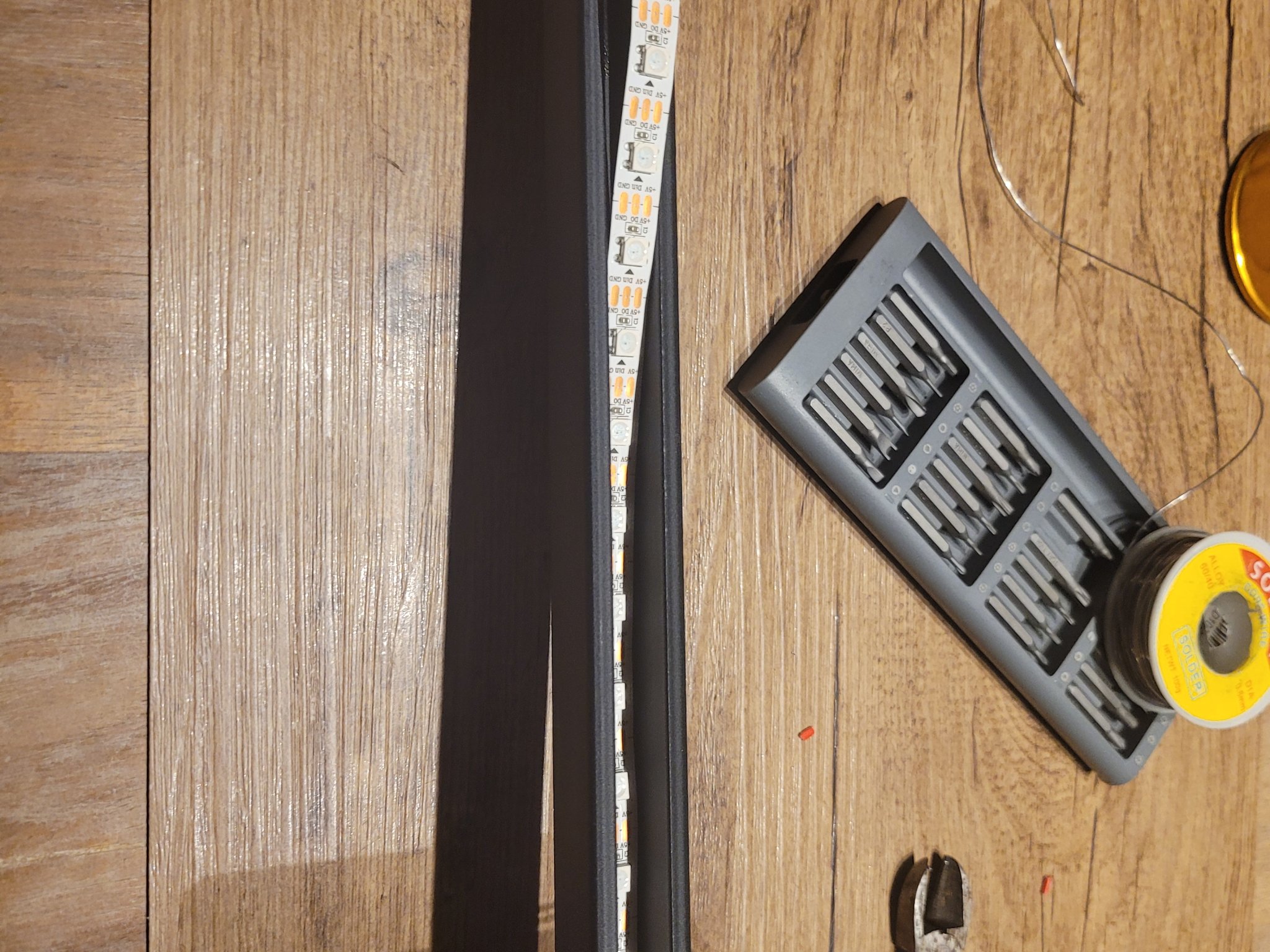

• WS2812B LED strip (24leds) (10mm wide)
• USB C Power brick

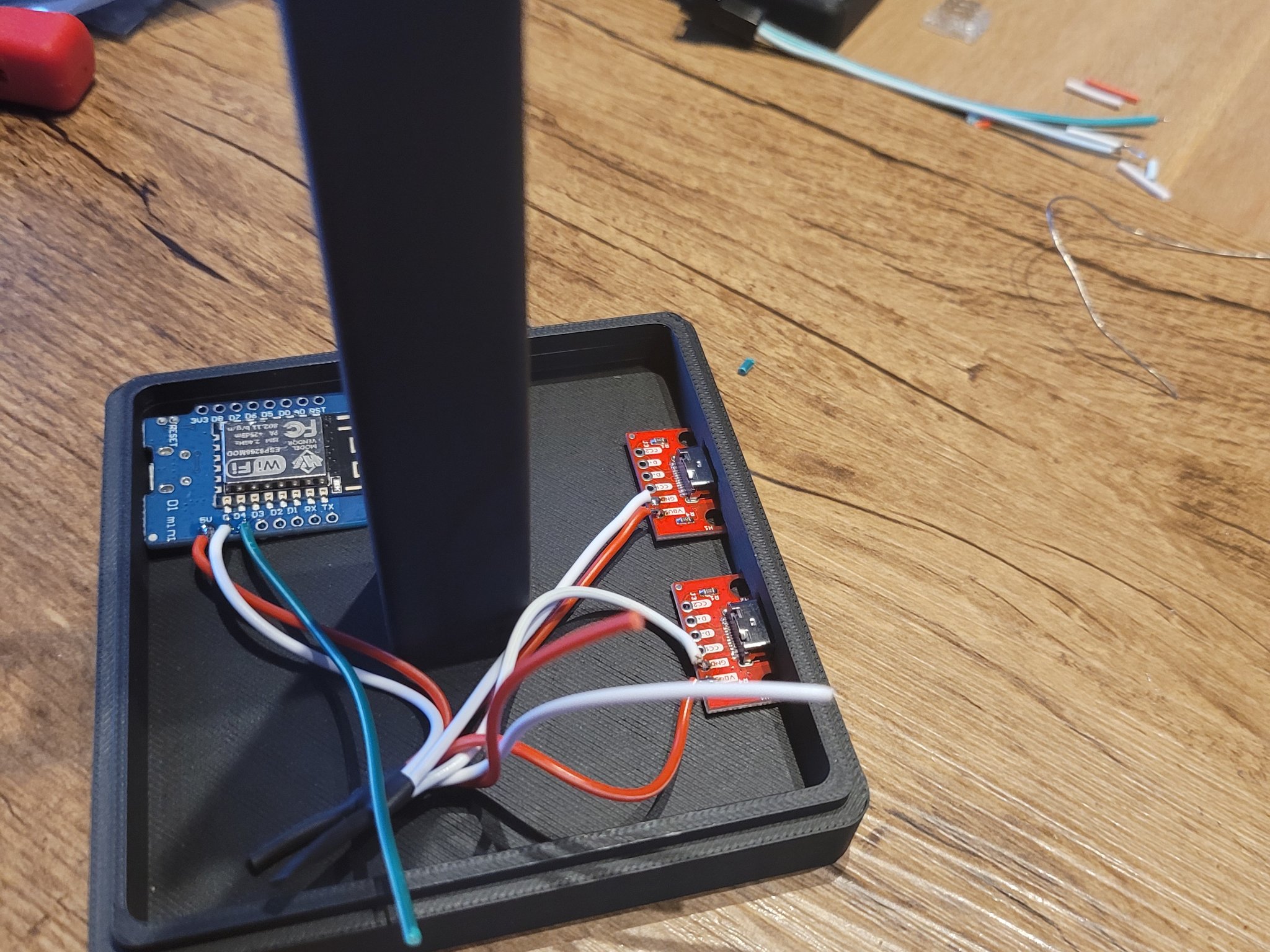

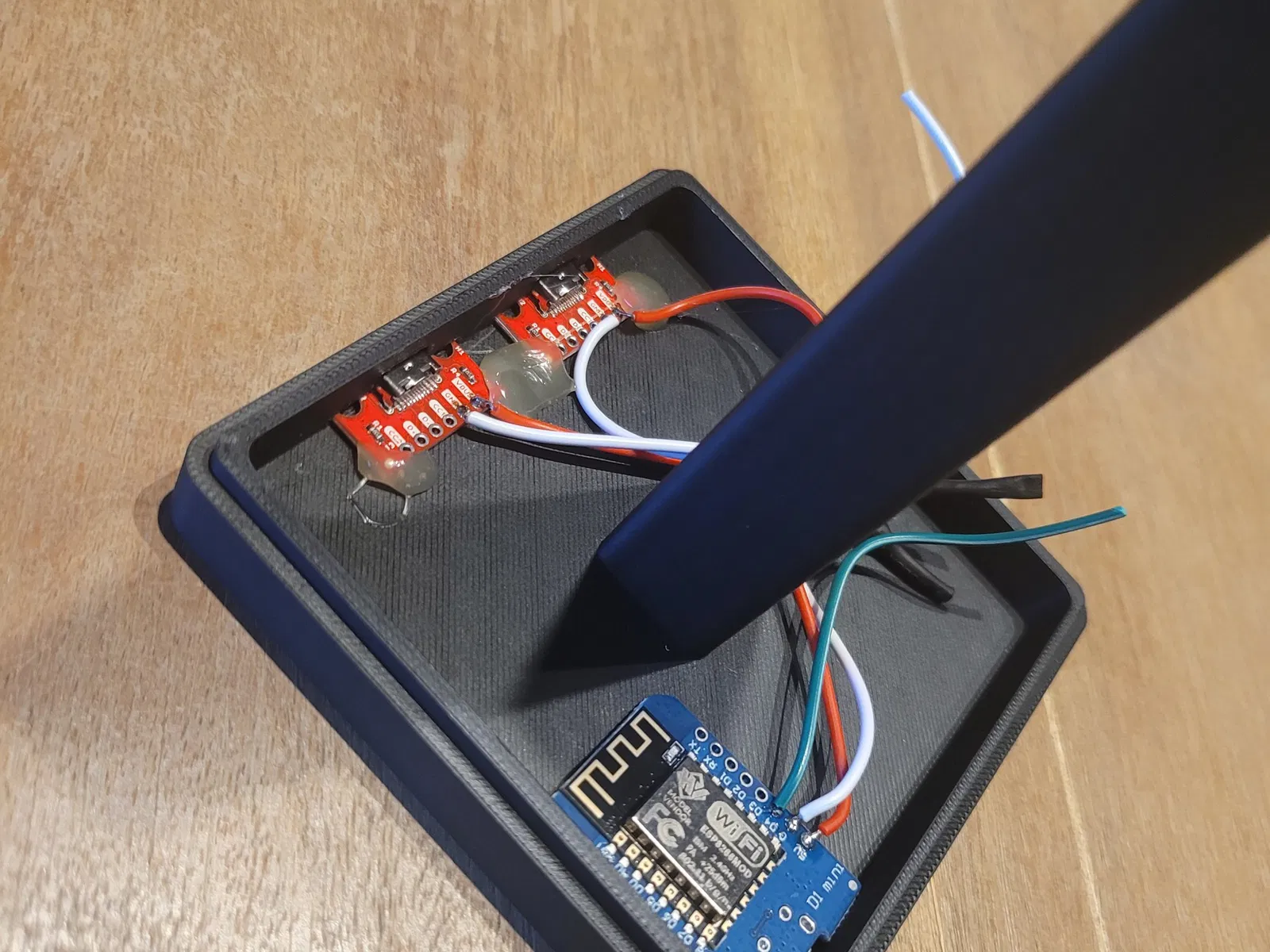

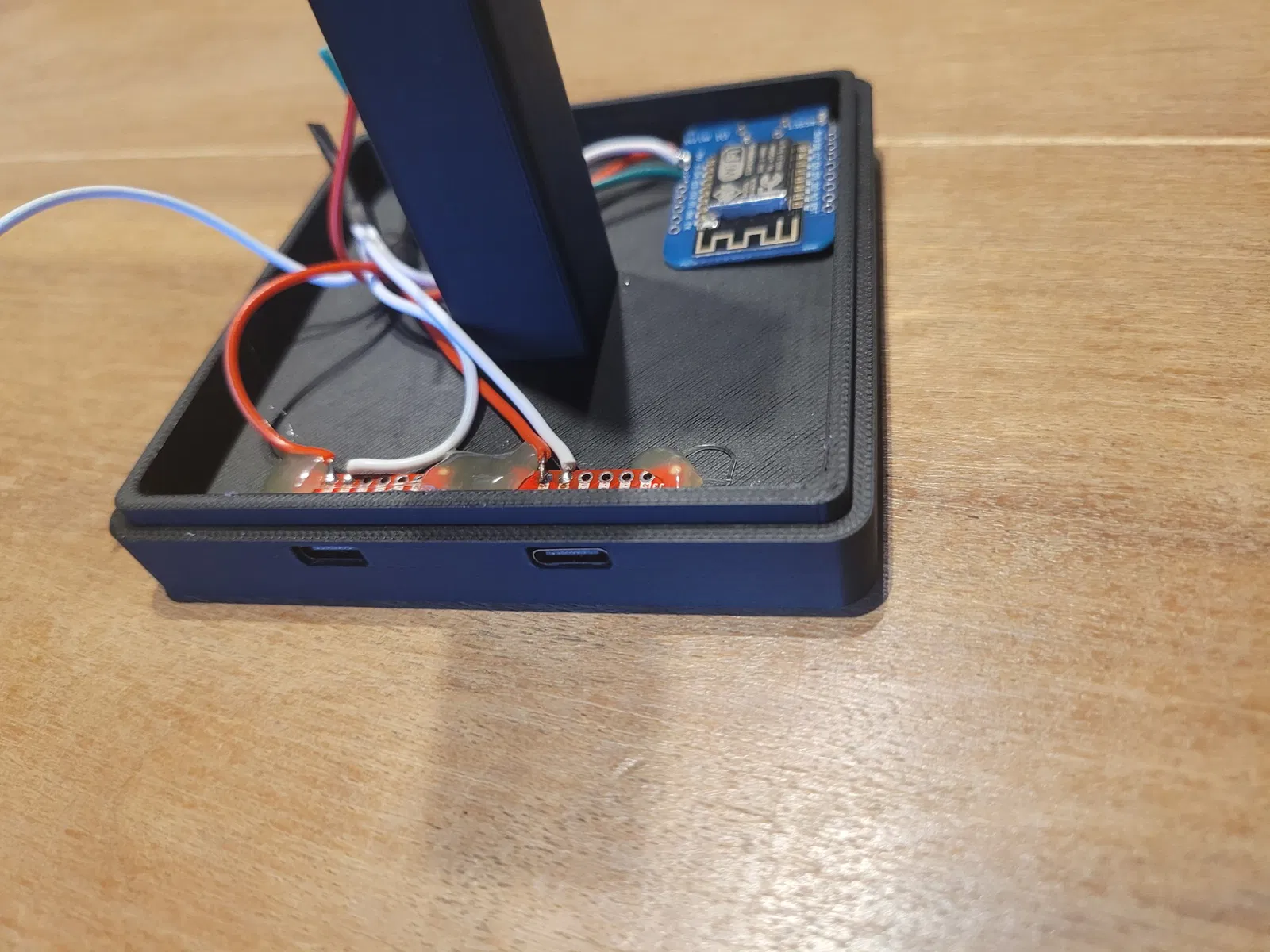

Connecting is fairly easy connect the 5V from USB C boards, Wemos and LED Strip and do the same for the GND.

Make sure the data wire from Wemos (defaults to D4) is as short as possible otherwise a level convertor will be needed.

Use some glue to connect the top tower to the base.

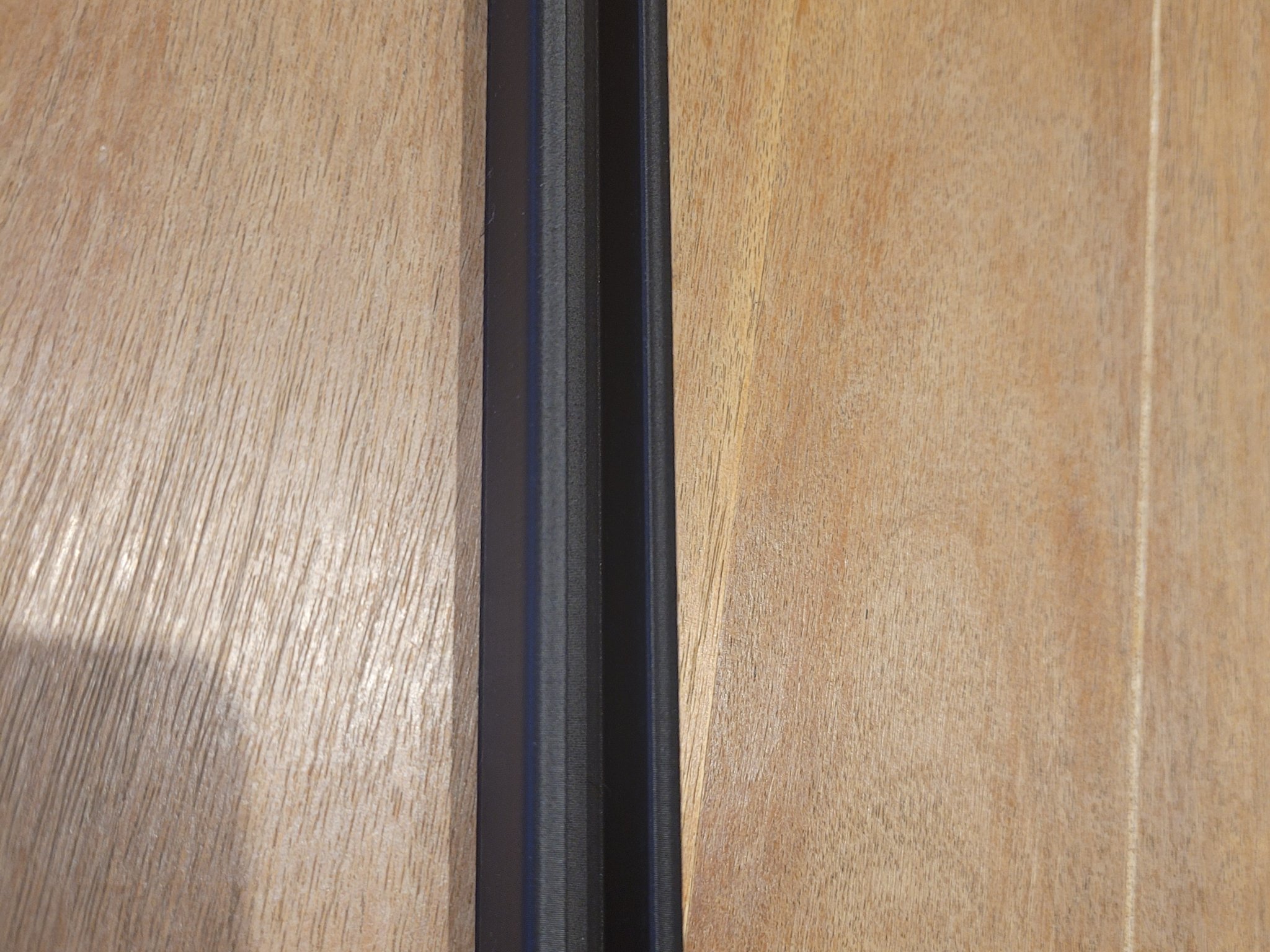

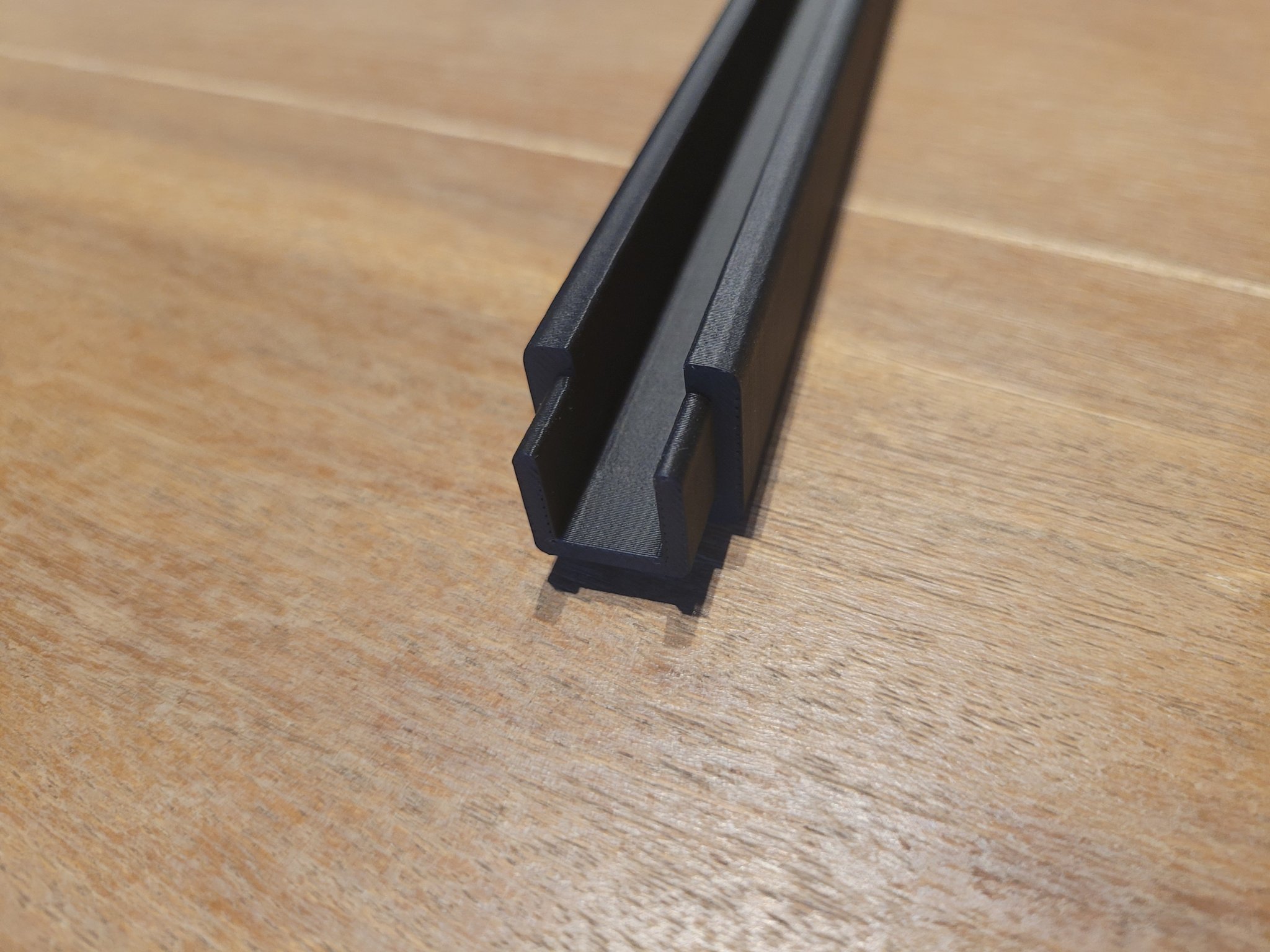

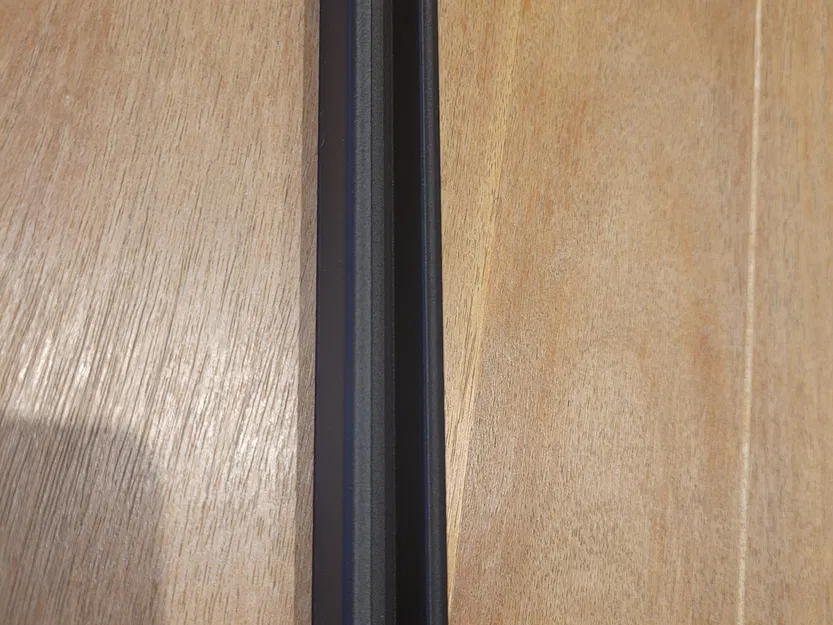

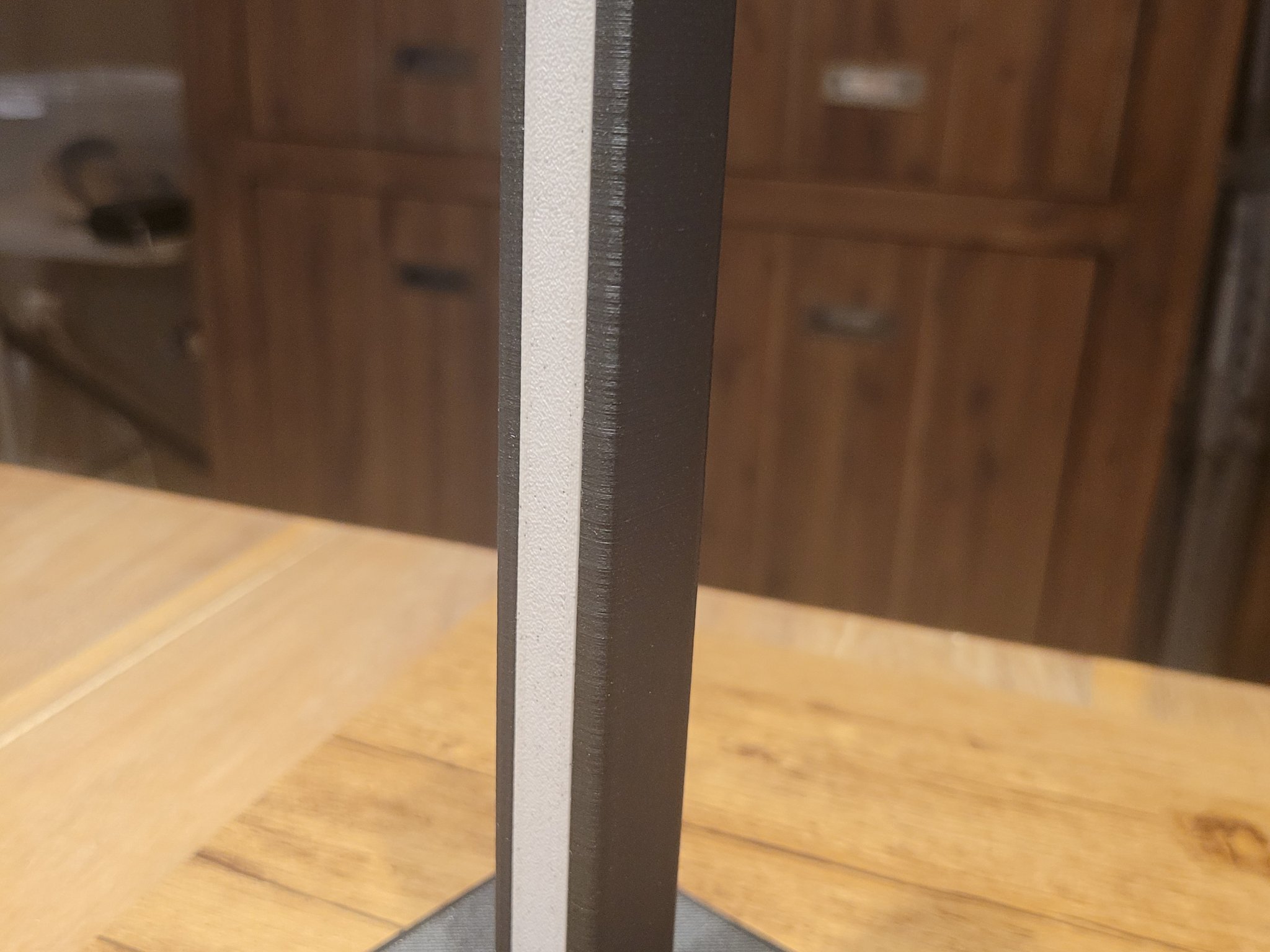

Be carefull mounting the diffusors since they are pretty thin, it is a little bit fragille, but making them thicker is going to block to much light.

I used PLA, no supports are needed.

Inspiration source:

WLED info:
