Mô tả
https://youtube.com/shorts/t3JPYdy6uyc?feature=share

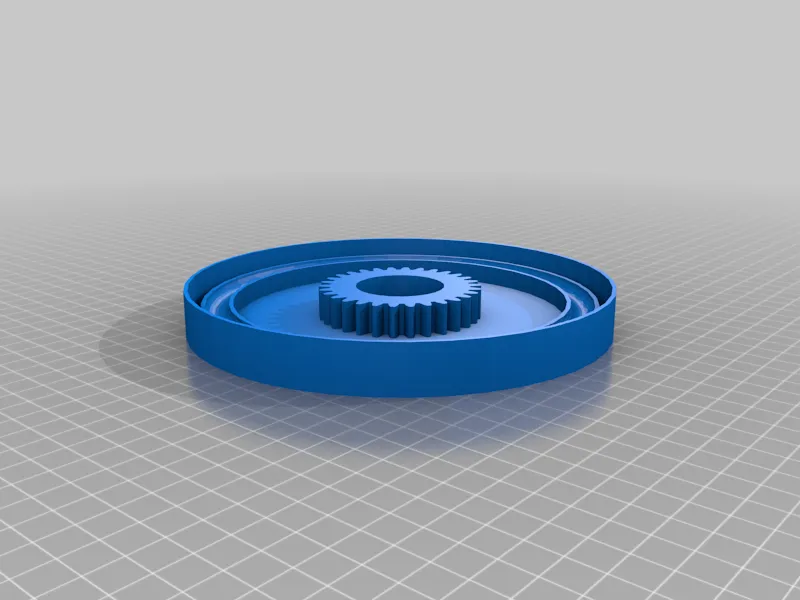

Medium size turntable I designed and built for 3D scanning objects, geared for 2 RPM. I tested it with a 20lb capacity and it was fine, could likely handle more. Used a AC gear motor that was taken from a scrap microwave, could also find on amazon for around 20$. I pressed the bearing into the bore in the top first and then lightly sanded the bearing fit in the base for a looser fit.
Parts Required
- AC gearmotor (2W, 6 RPM) taken from scrap microwave
-PGN 6003-2RS radial bearing (17x35x10mm deep)

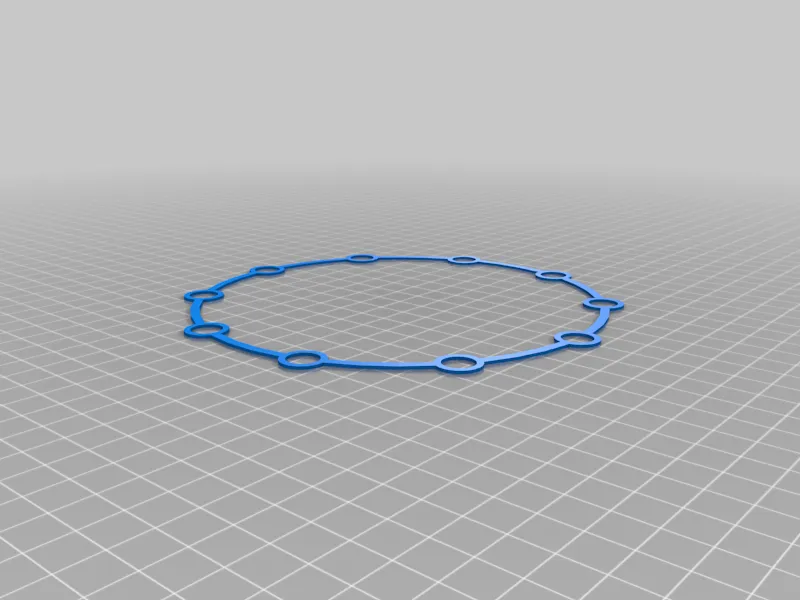

- Qt.10 8mm steel balls (removed from 6204-RS bearings)
Print Settings
Resolution:
0.2mm
Infill:
15%
