SHOEI SRL2 Device Mount

I own a SHOEI GT AIR II motorcycle helmet ( I love this helmet ), and was frustrated with not being able to easily mount other communication devices due to the SRL2 mounting points take up room on the helmet rim.

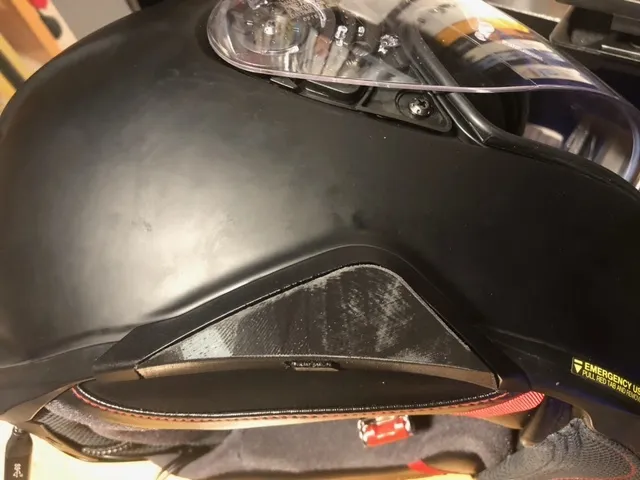

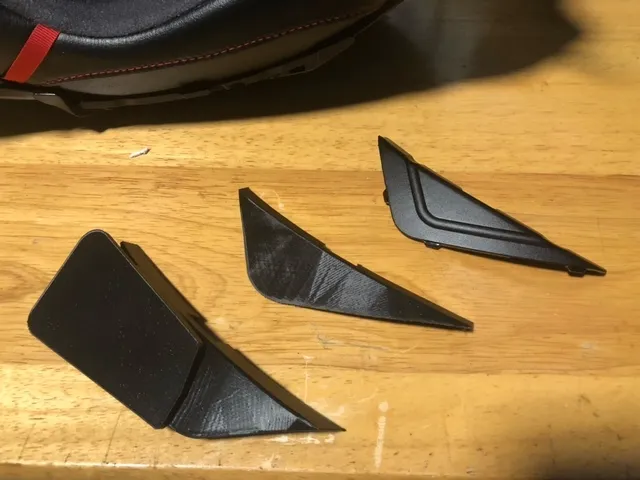

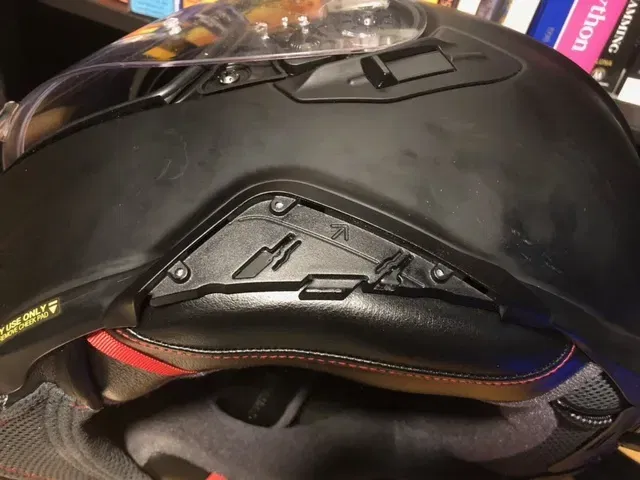

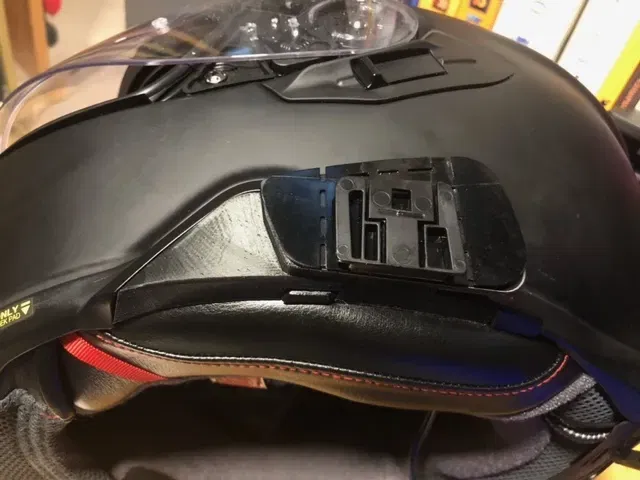

I decided to see if I could use the SRL2 mounting point to my advantage. I created essentially replacement covers for the SRL2 mounting points, then built a 'plate' that can be used for other devices to attach to.

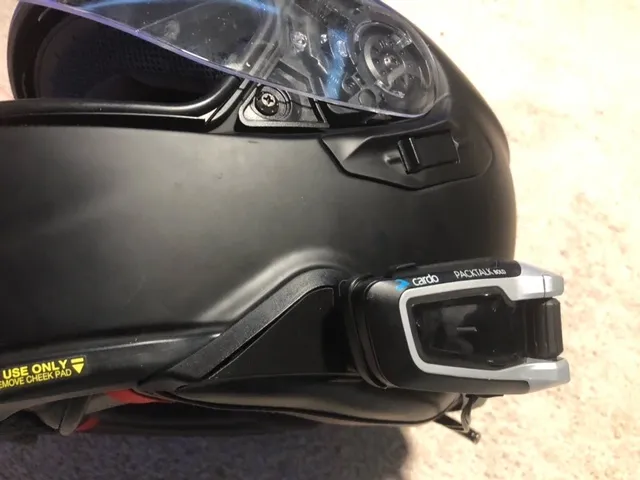

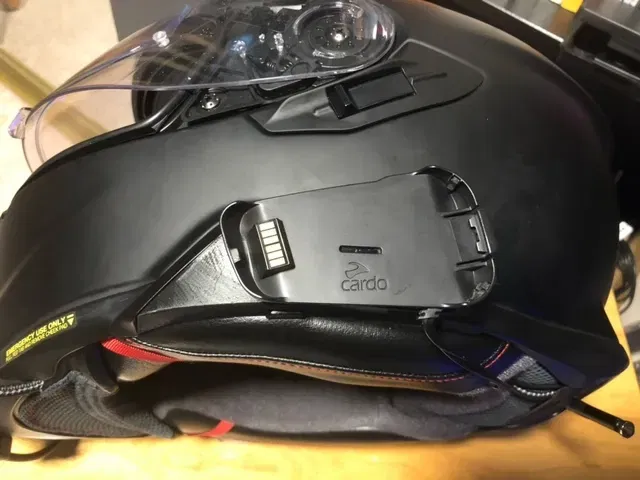

I have provided both the covers ( Can be used to generate your own mounting surface ), and the mounting plate version I'm currently using for my Cardo.

This also works with the NEOTEC II ( my riding partners helmet ).

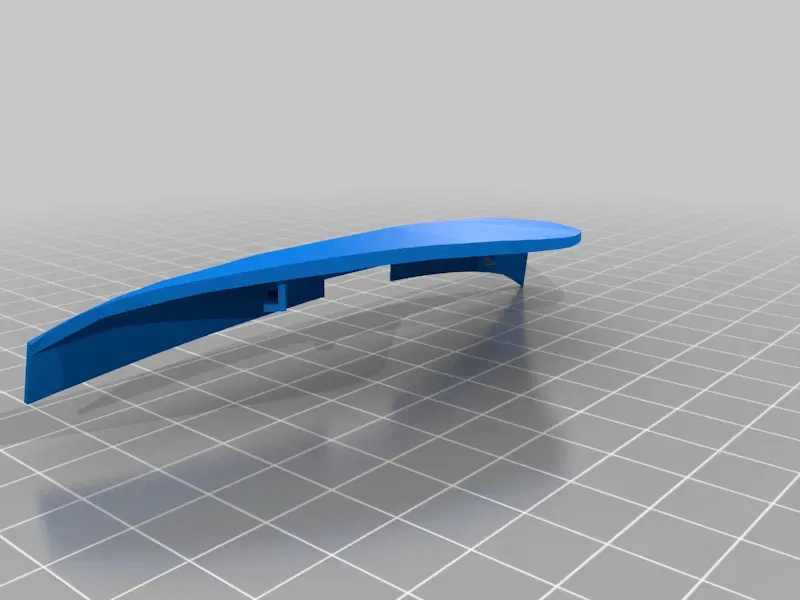

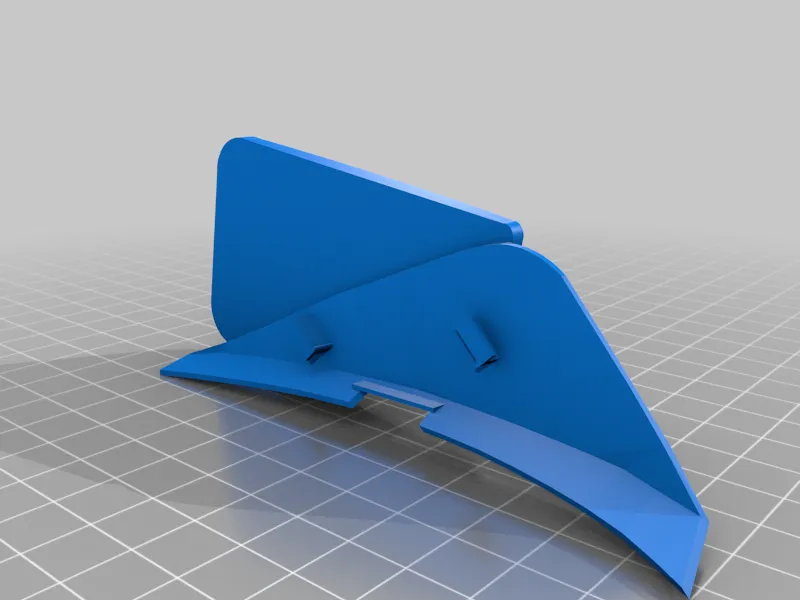

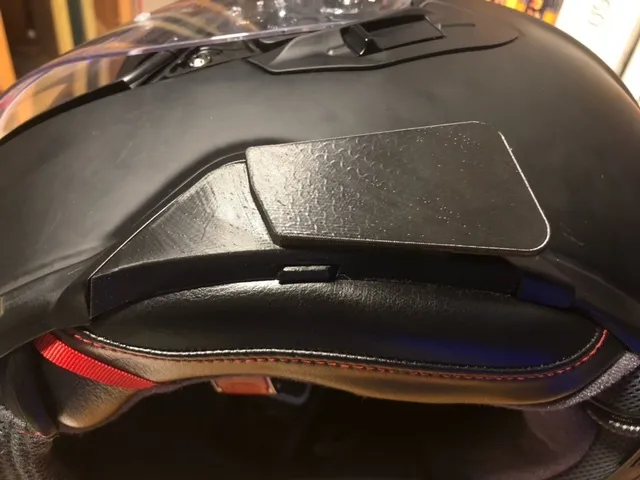

Update(s): SHOEI SRL2 Plate Left: updated part to have a curved plate. The Cardo helmet mount, and Cardo Base plate have a slight curve to the base. This change gives a better fit for the glued surface.

SHOIE SRL2 Plate Left V2: This has the plate slid forward to be more central providing more support. Reduces flex when pressing on any attached unit, to help from breaking locking tabs.

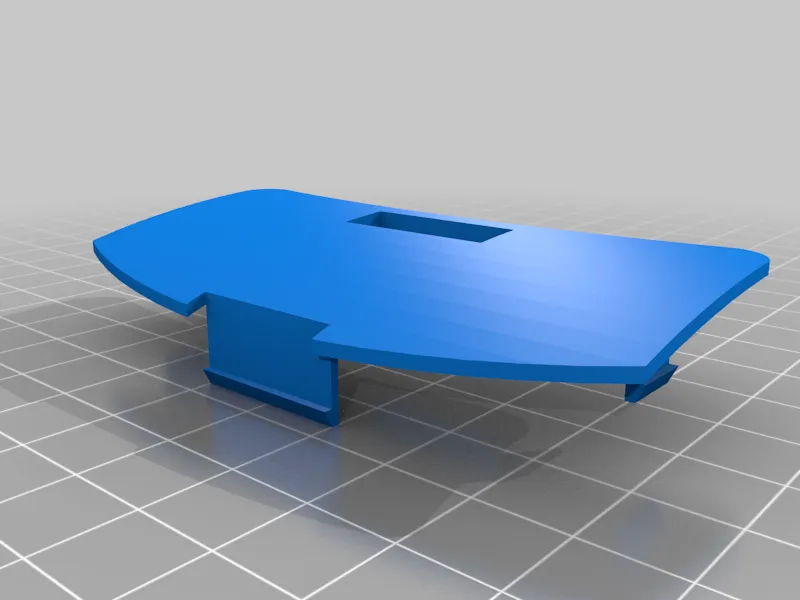

SHOEI SRL2 Rear Base Plate: This part is a replacement cover for the rear battery compartment.

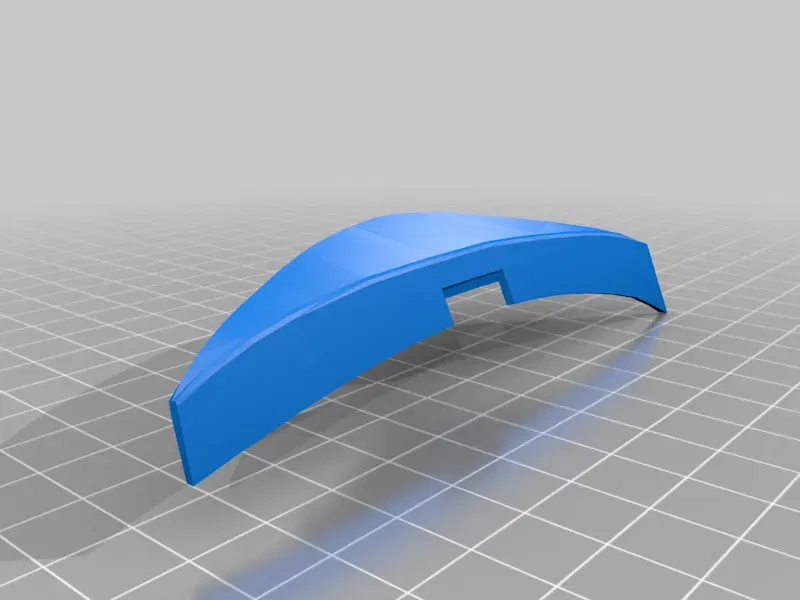

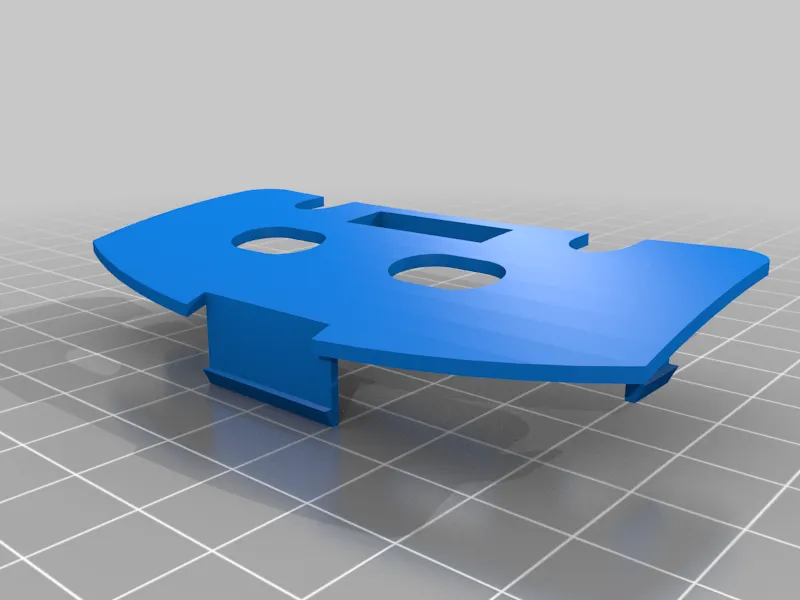

SHOEI SRL2 Rear Open Plate: This part is a replacement cover for the rear battery compartment, but with openings to allow for access for wire storage/connections.
