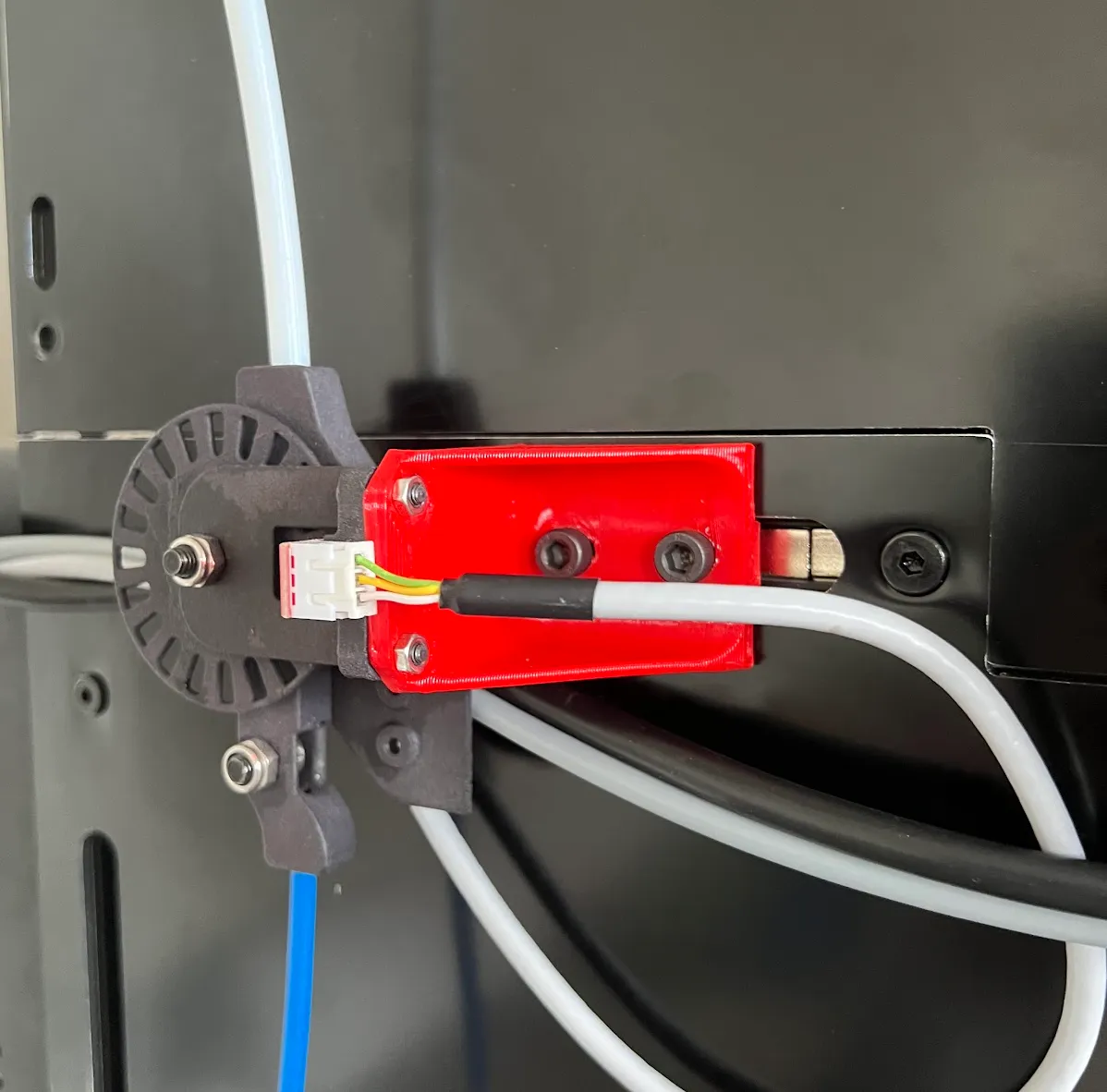

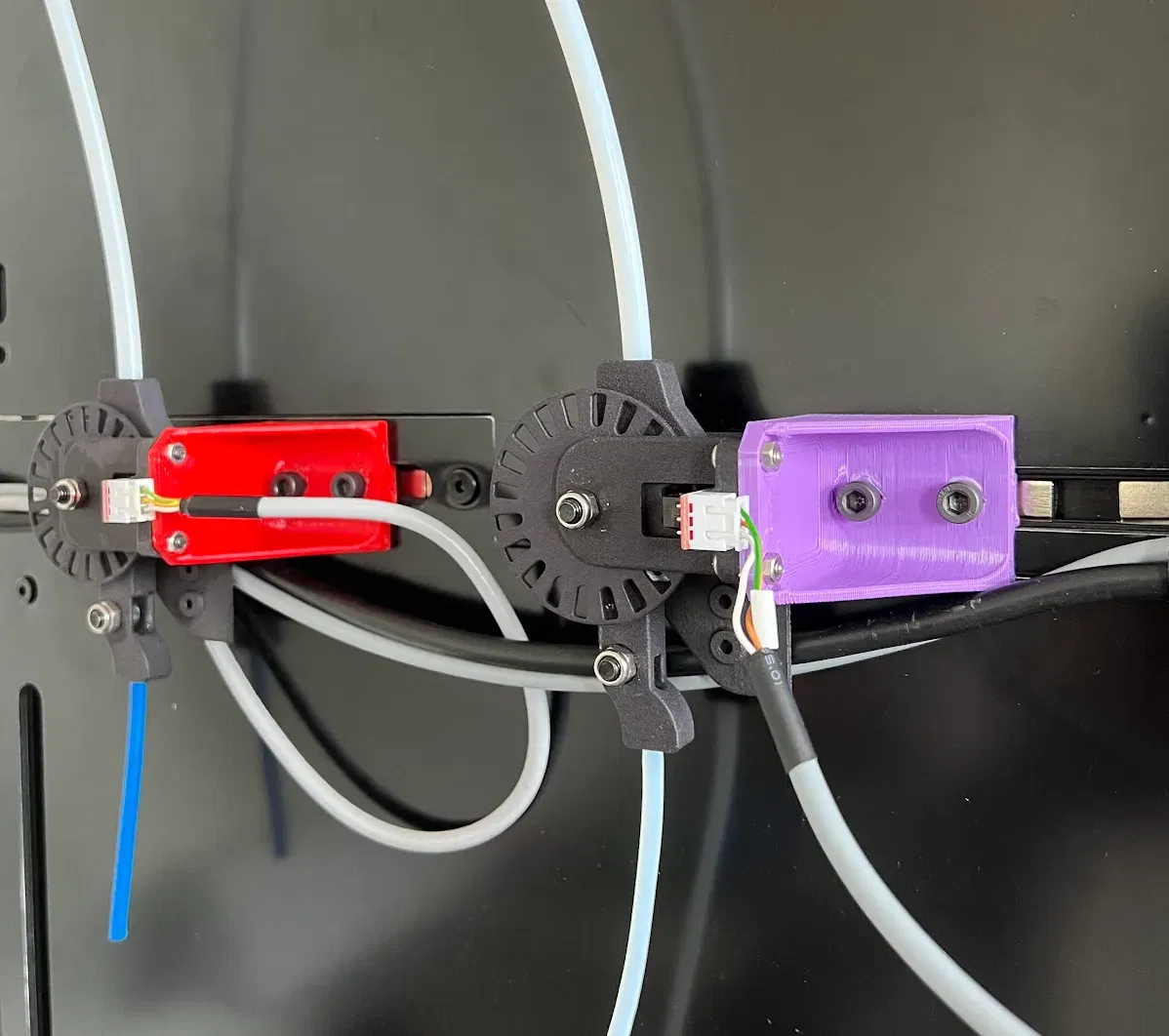

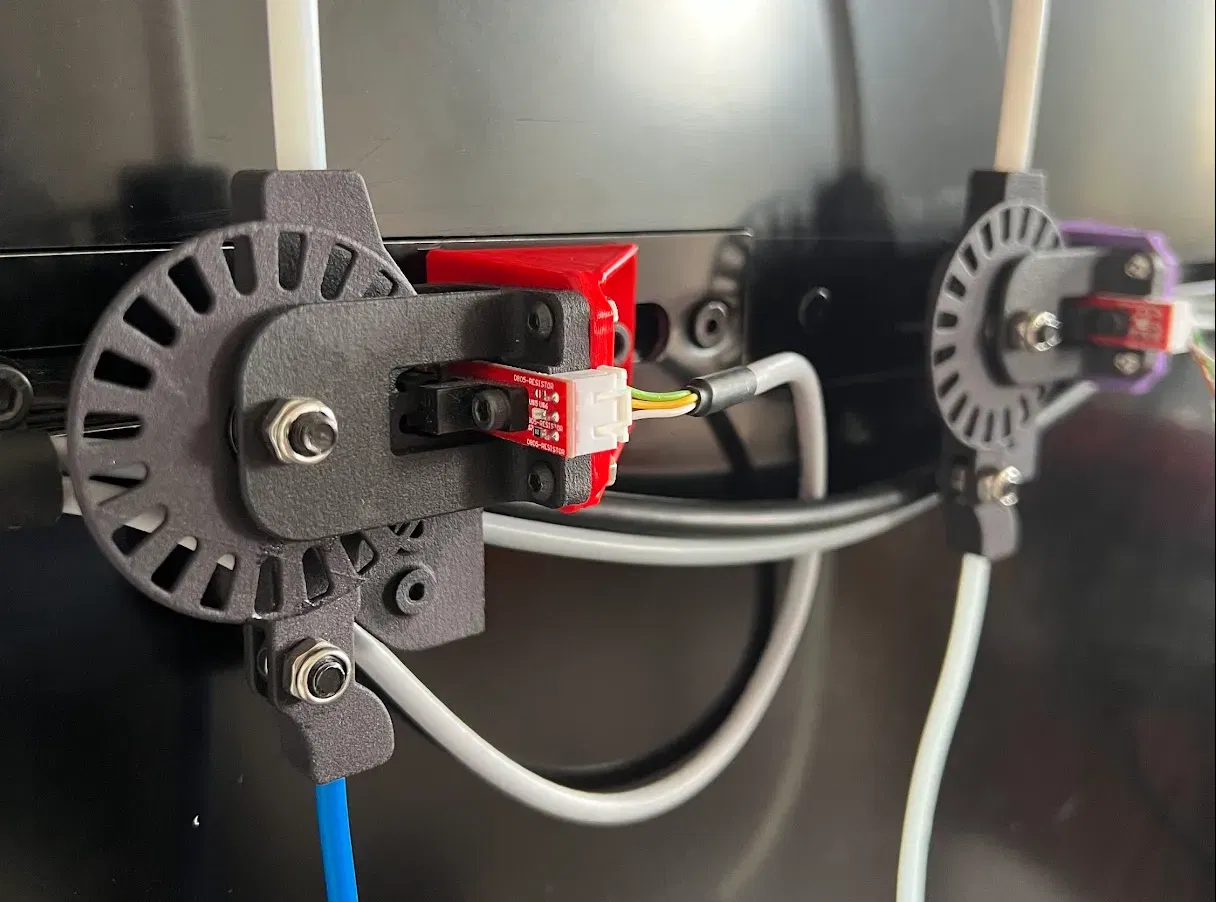

Modix Clog Detector 90 degree adapter

A simple to print 90 degree adapter for the Modix Clog Detector for use on a 4040 profile.

Designed to be printed without supports

Recommended to print this in PETG or ABS, with a 0.2mm layer height or more. More than 0.5mm layer height might be tricky through.

Advisable to print with a 0.6 or 0.8mm nozzle, 1mm nozzle or higher is tricky

Required hardware: 2x M5x16mm screws (can also be M5x15mm low profile screws or the like) 2x M5 4040 T-nuts 2x M3x10mm screws, you can re-use the M3x10mm screws from the assembly 2x M3 nuts (can also be M3 square nuts)

The design has been updated a bit to include a passthrough hole for the cable
