Tiêu đề Ender 3 Case SKR Mini E3 V3 plus LM2596 Buck Converter và Quạt 6

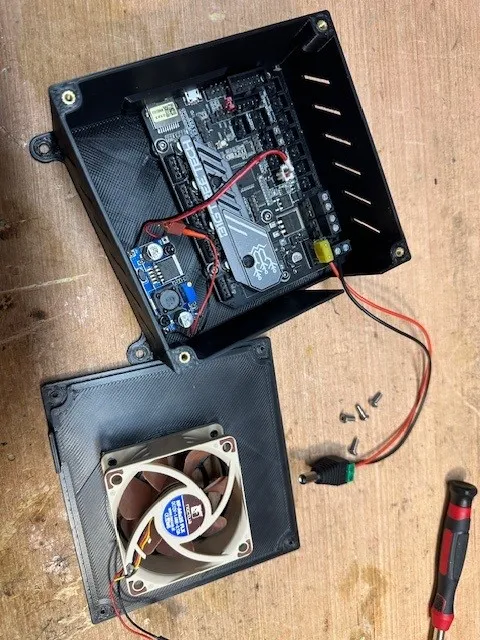

This case is designed around the SKR Mini E3 V3. I've previously moved my electronics off board in order to use an enclosure to print ABS. When my prior motherboard died (an older EZ Board lite from TH3D), I decided I wanted to install Klipper. Since there's ready made Klipper profiles for the SKR Mini e3 v3 and lots of users for support, I settled on the board.

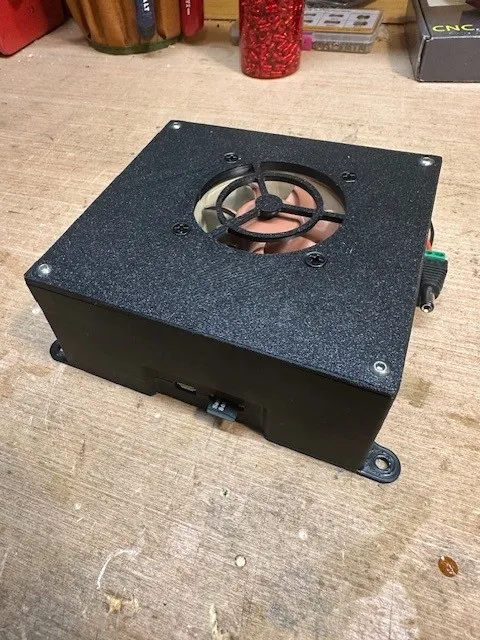

This case is primarily intended to be mounted offboard (outside of my enclosure in my case). Screw attachment points are located at the four corners of the box to attach the box to my cabinet that the printer sits on. Mounting points for the SKR and the LM2596 converter are sized for m3 heat set inserts (I'm using 4.5mm x 6 mm inserts in mine). The lid attachment points also use the same heat set inserts. I've incorporated a 60x25mm Noctua fan into my design, so the case is tall enough to provide clearance.

I printed in ABS with a 0.6mm nozzle at 0.2 layer height.

Warning: If you use this model, you're going to be dealing with electricity. You are responsible for your own safety. You must be knowledgeable about what you're doing. Sufficient knowledge will help you reduce your risk of bodily harm or death and damage to your property. Use of this model means that you have assumed all risk associated.
