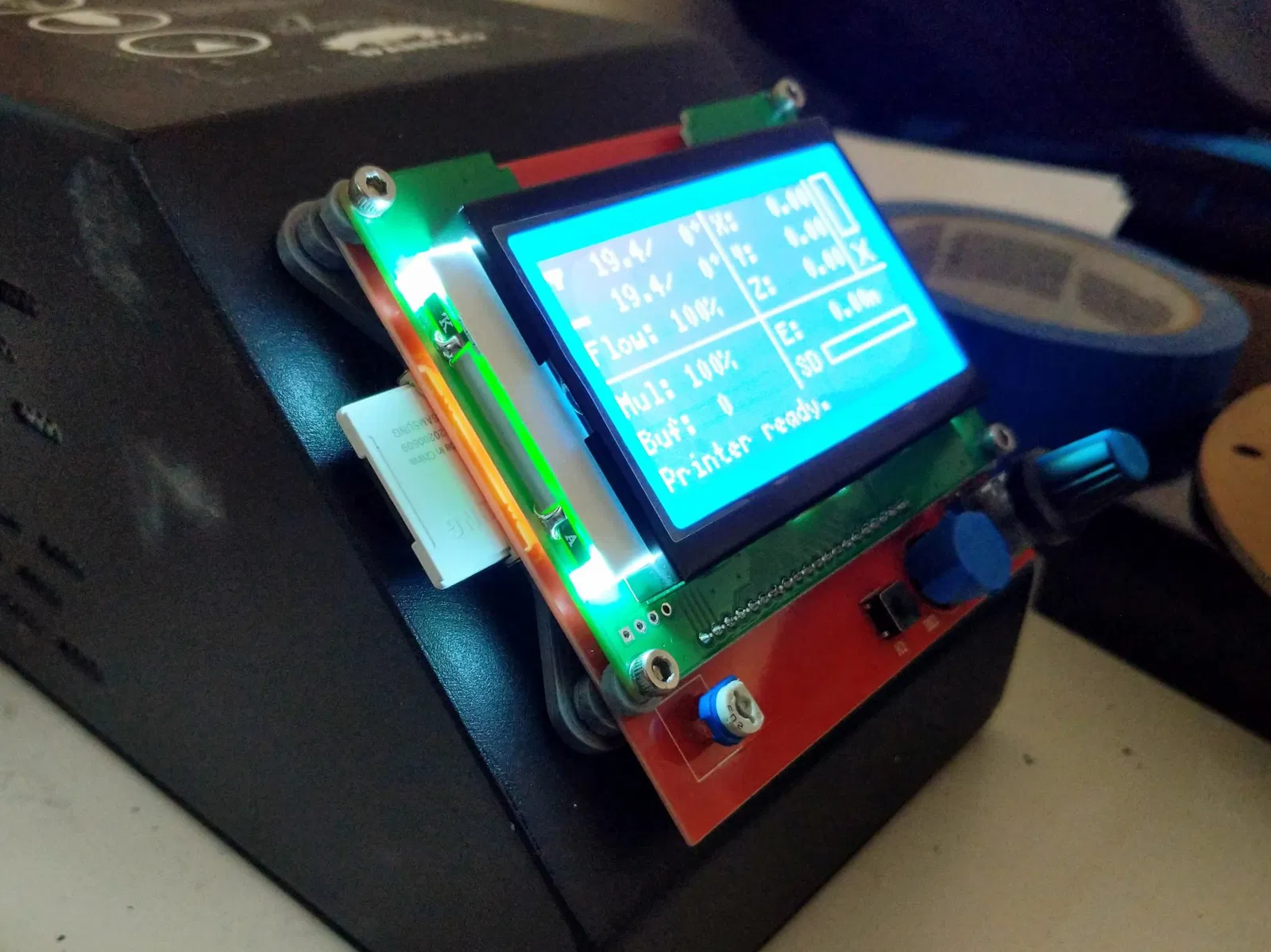

Adapter for RepRapDiscount Full Graphic Smart Controller to Wanhao Duplicator i3 Control Box

Other required parts:

• 4 x M3*3 mm heat set inserts. Feel free to modify for hex nuts - source file is included
• 4 x 12 mm M3 bolts
• 4 x 1.8 mm M3 spacers between the PCBs
• 4 x ≈2-3 mm M3 spacers between the adapter bracket and the PCB

Installation instructions:

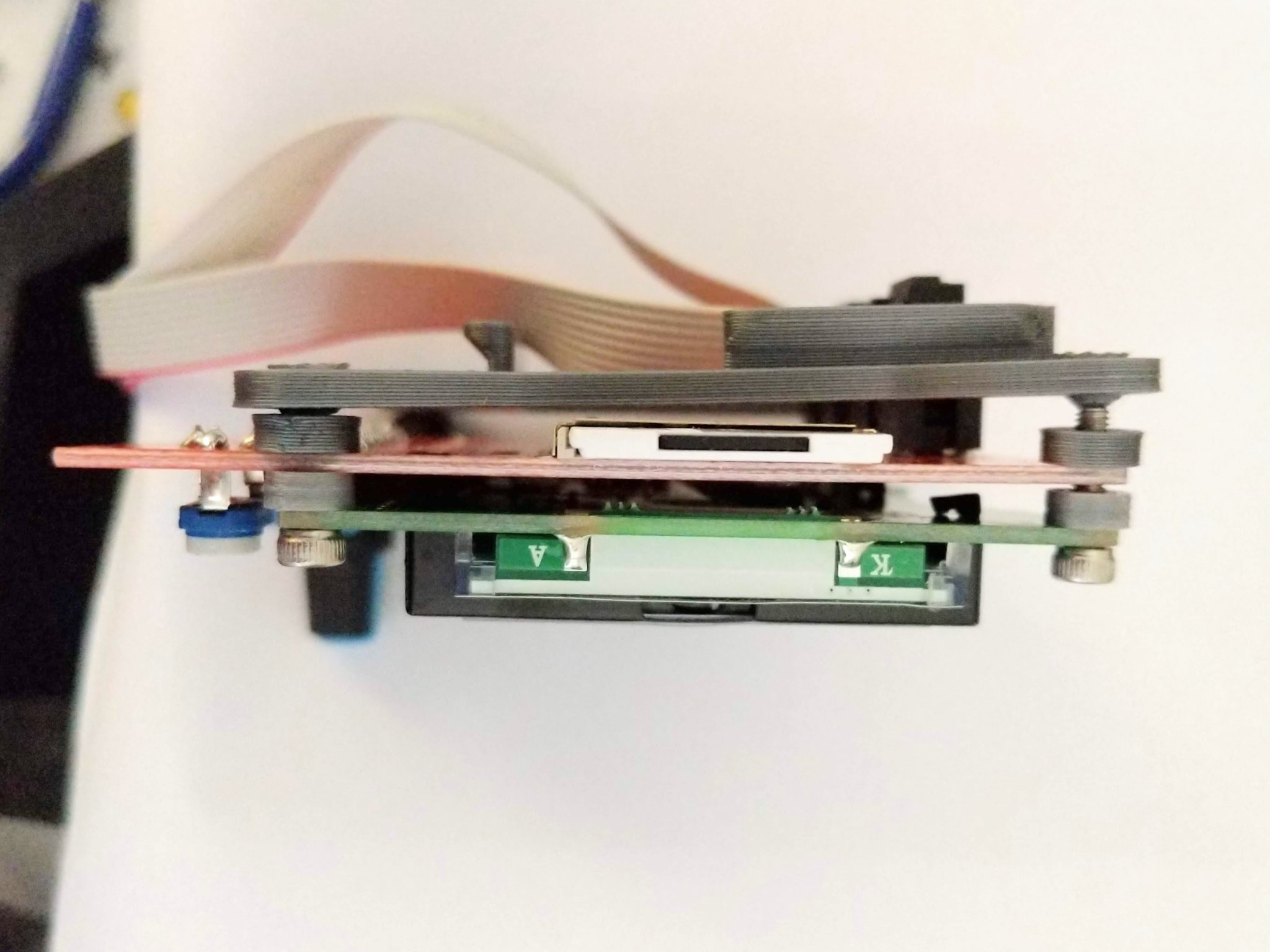

1. Fasten the PCB to the bracket with the bottom two holes only
2. Pinch the top arms of the bracket together as you insert it into the rectangular hole of the control box
3. Once the rectangular hole is engaged, fasten the remaining two bolts
