Fein Multi Master LBoxx Inlay

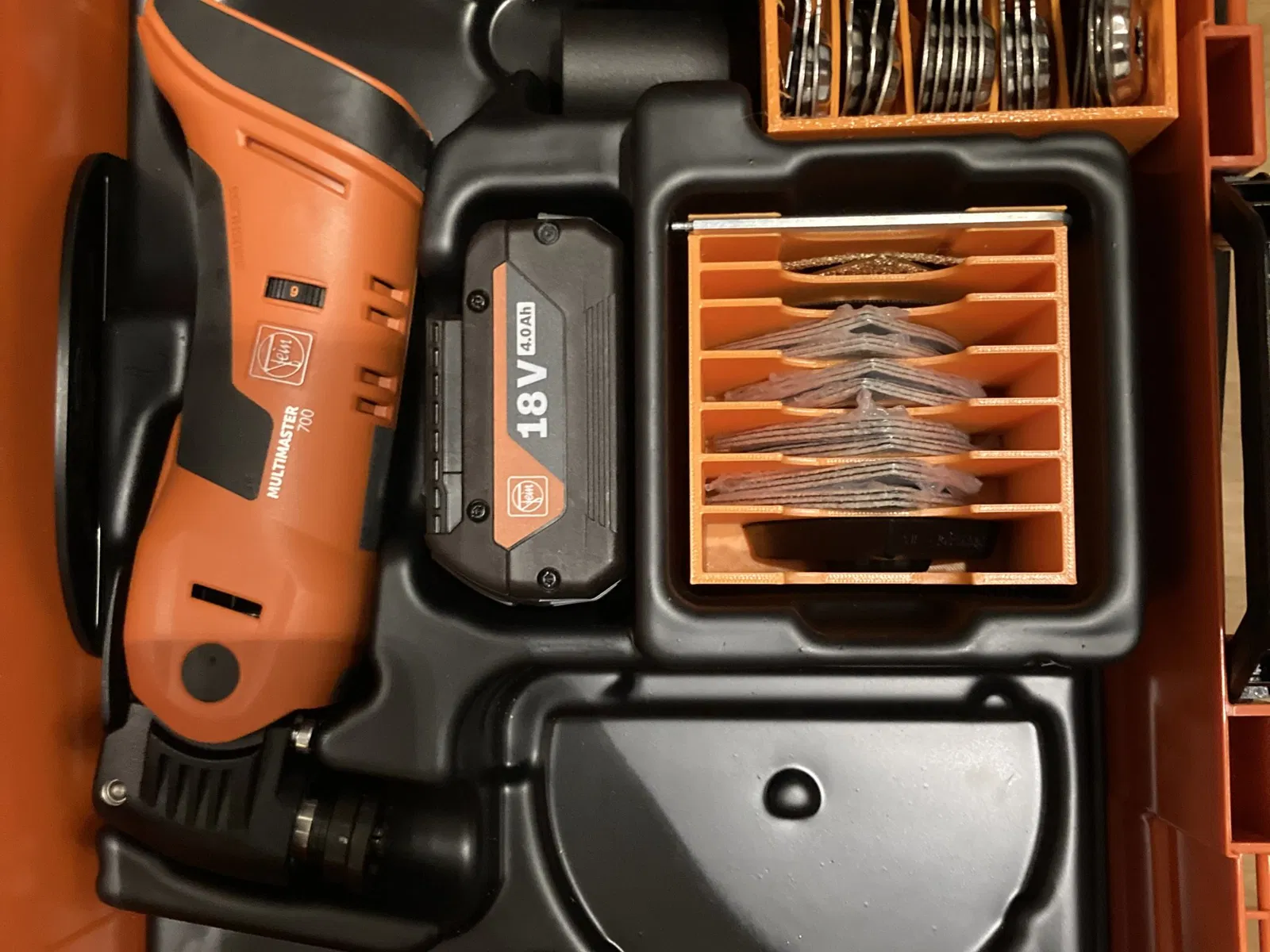

I made this box inlays for the two free slots in the new (2022+) Multimaster AMM700/500AS LBoxx to keep everything organized.

After I bought my Fein Multimaster last year I had to find out that all delivered accessories are just hold together by two cardbord boxes that get destroyed easiliy.

Additionally all the sharp knifes and saws are just flying around in these boxes and get dull pretty easy when just thrown in.

Therefore I designed two inlays that replaces the cardboard boxes and have some additional seperations for keeping everything organized.

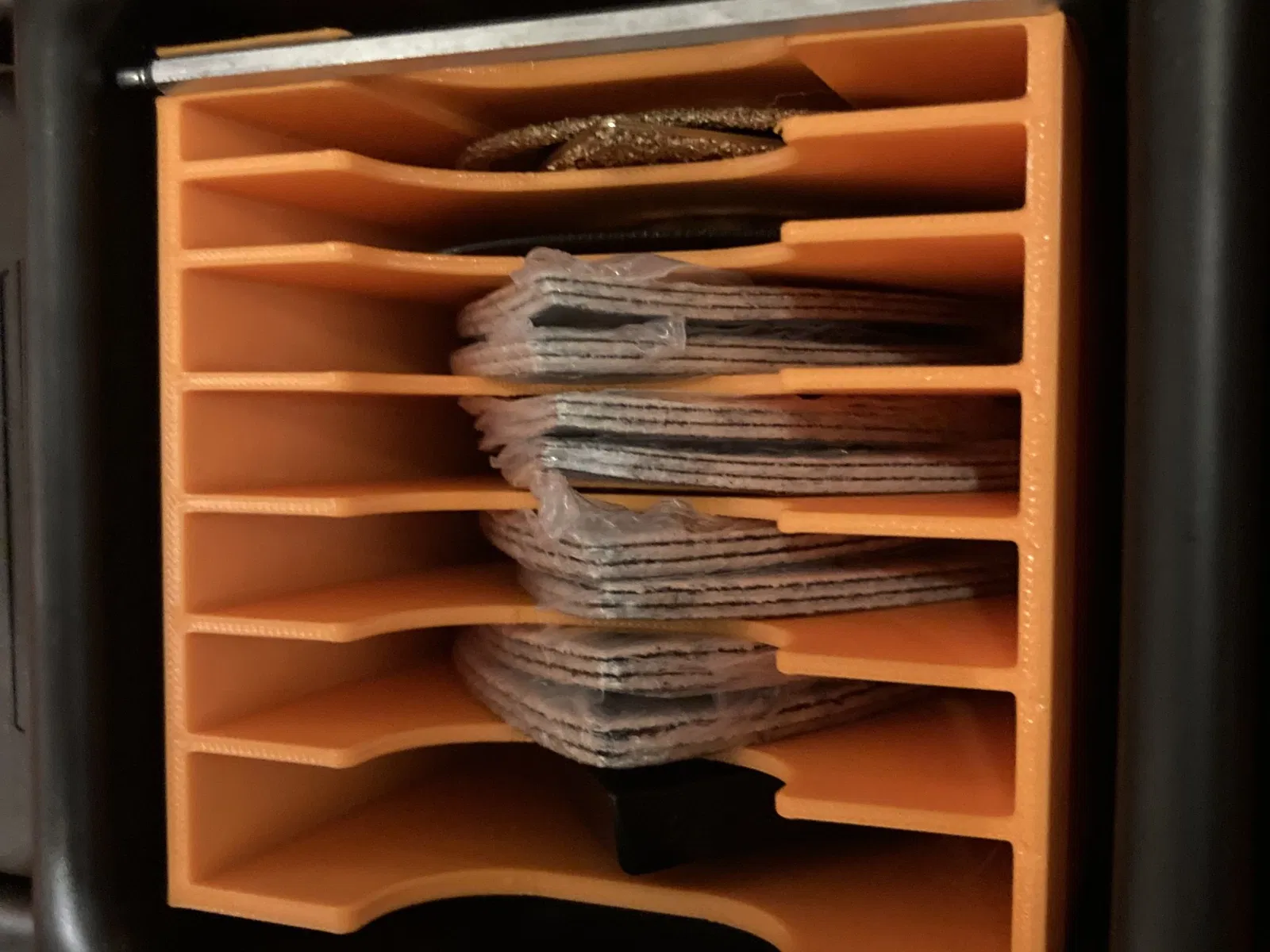

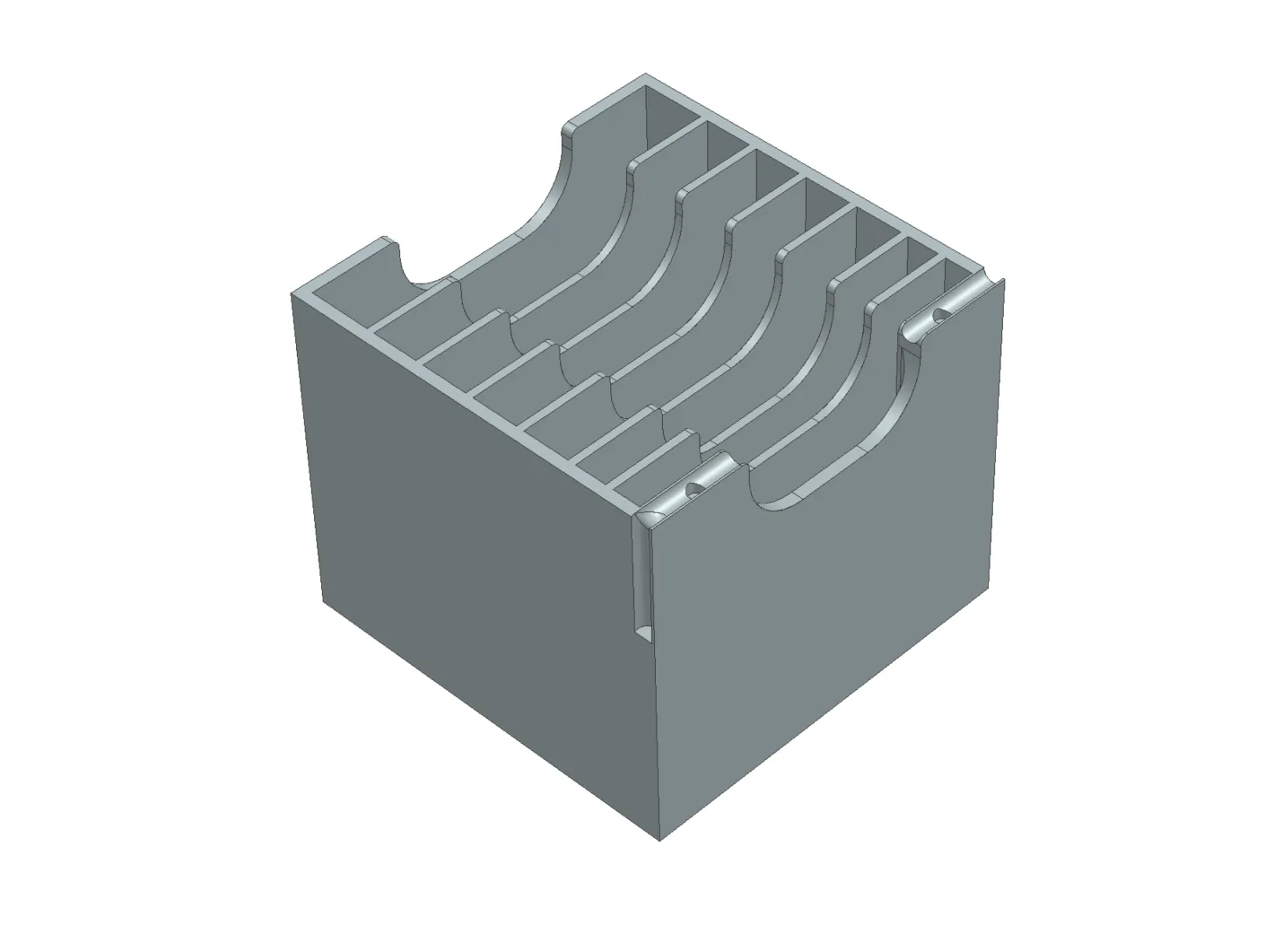

The fein_box_85 can be placed inside the central part of the inlay and holds different sandpapers and grining tools.

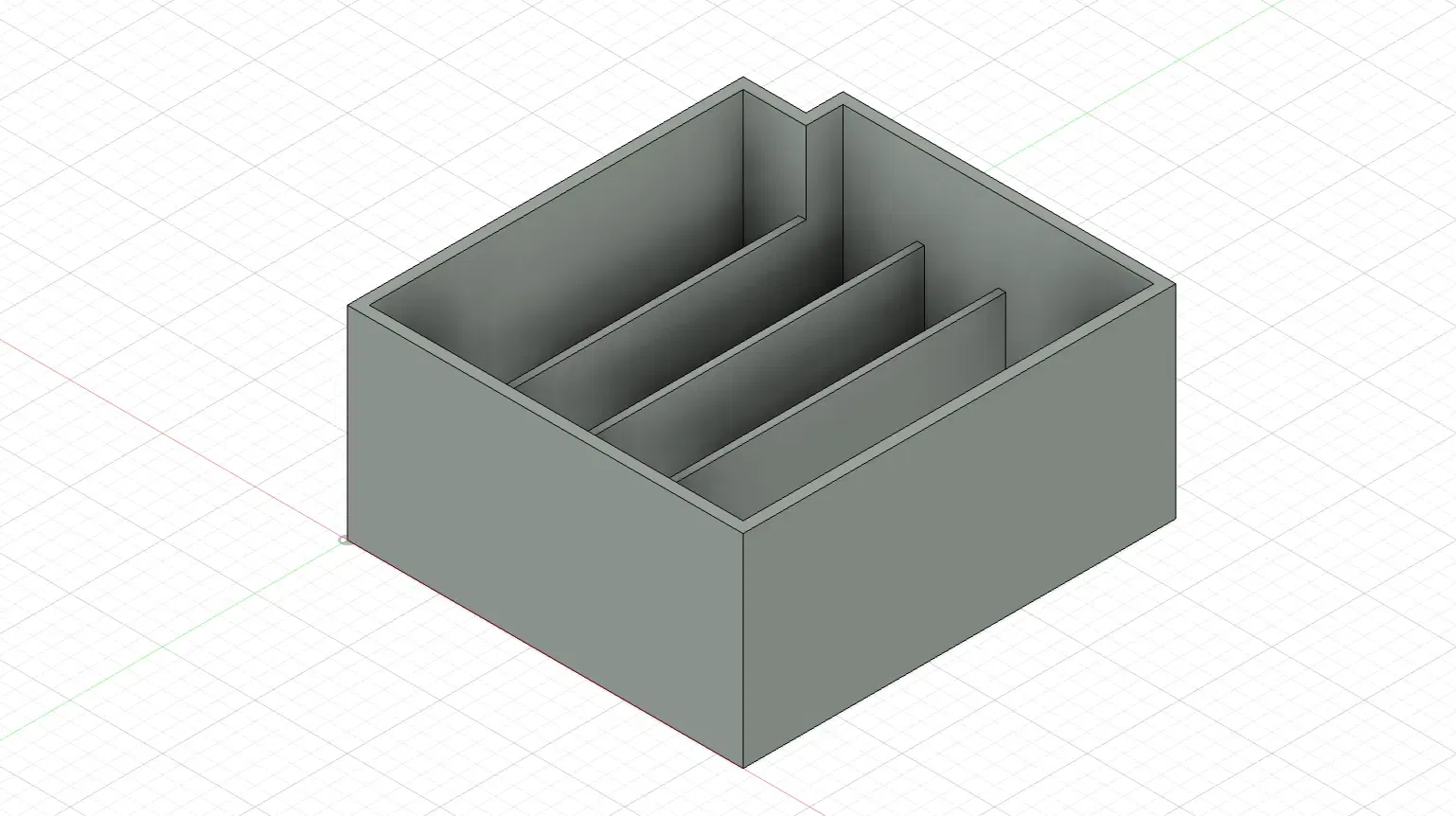

The fein_box_55 fits in the lower right part of the LBoxx inlay and has some space for different knifes, sawblades and similar parts.

Update of the 85mm box to V2:

The hole for the allen key was too small in V1 and even after increasing the diameter up to ~5mm the key would not fit inside the central box as the key is too long overall.

I therefore redesigned the allen key holder:

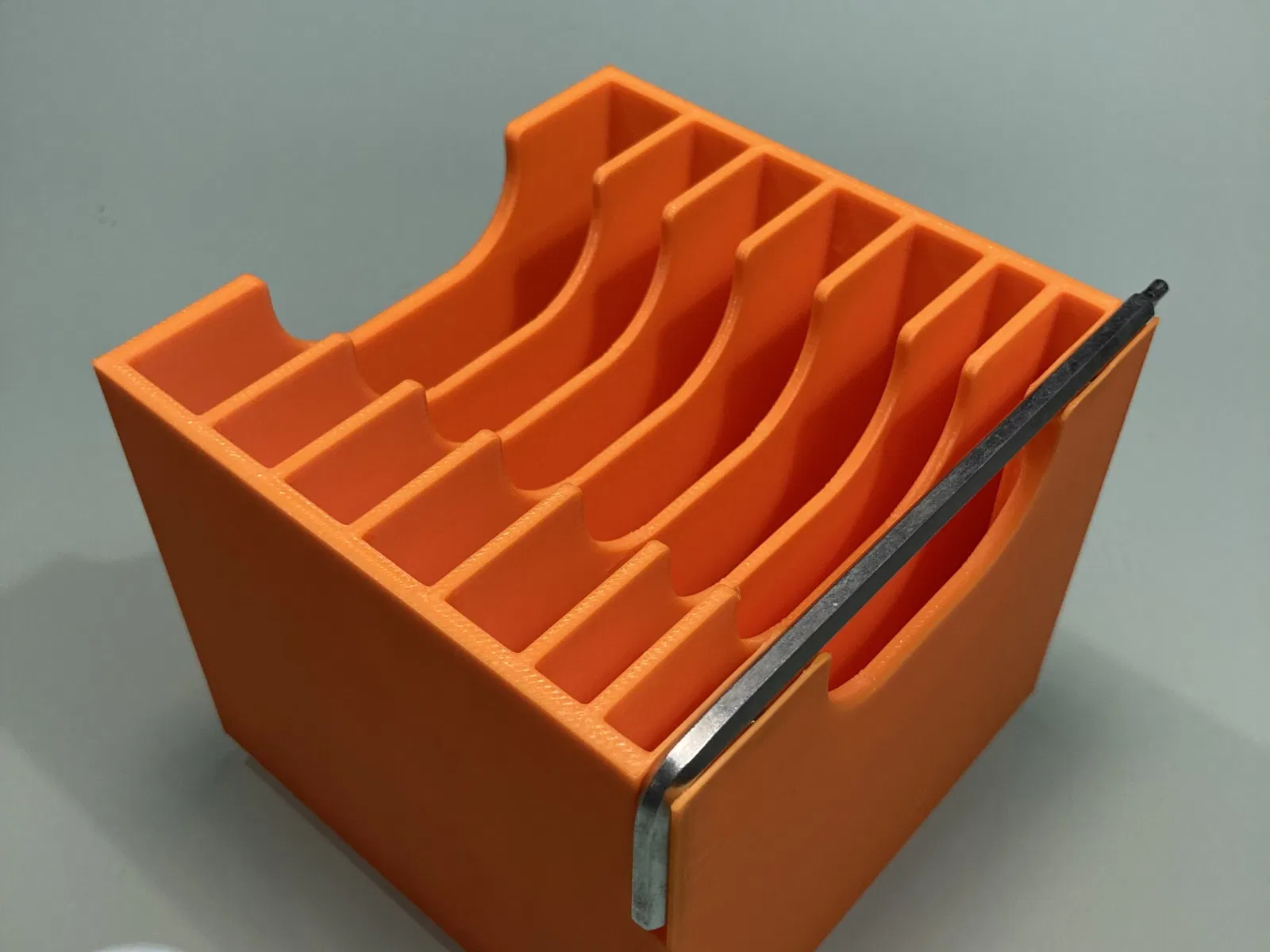

The allen key is now only put on top on the box and the angeled part slides slightly inside the outer wall. Normally the Lboxx inlay should already take care that the allen key is not flying around during trasportation.

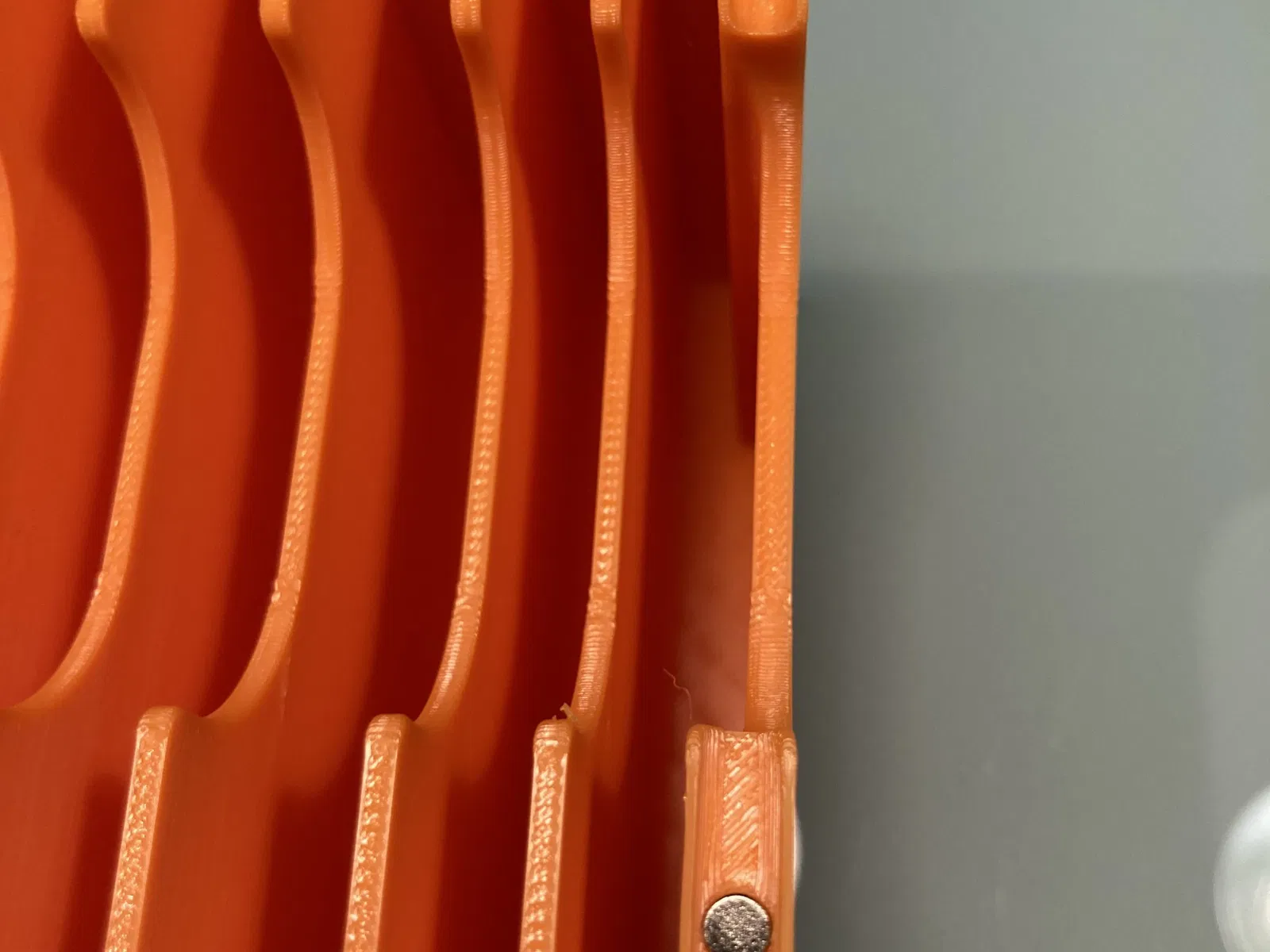

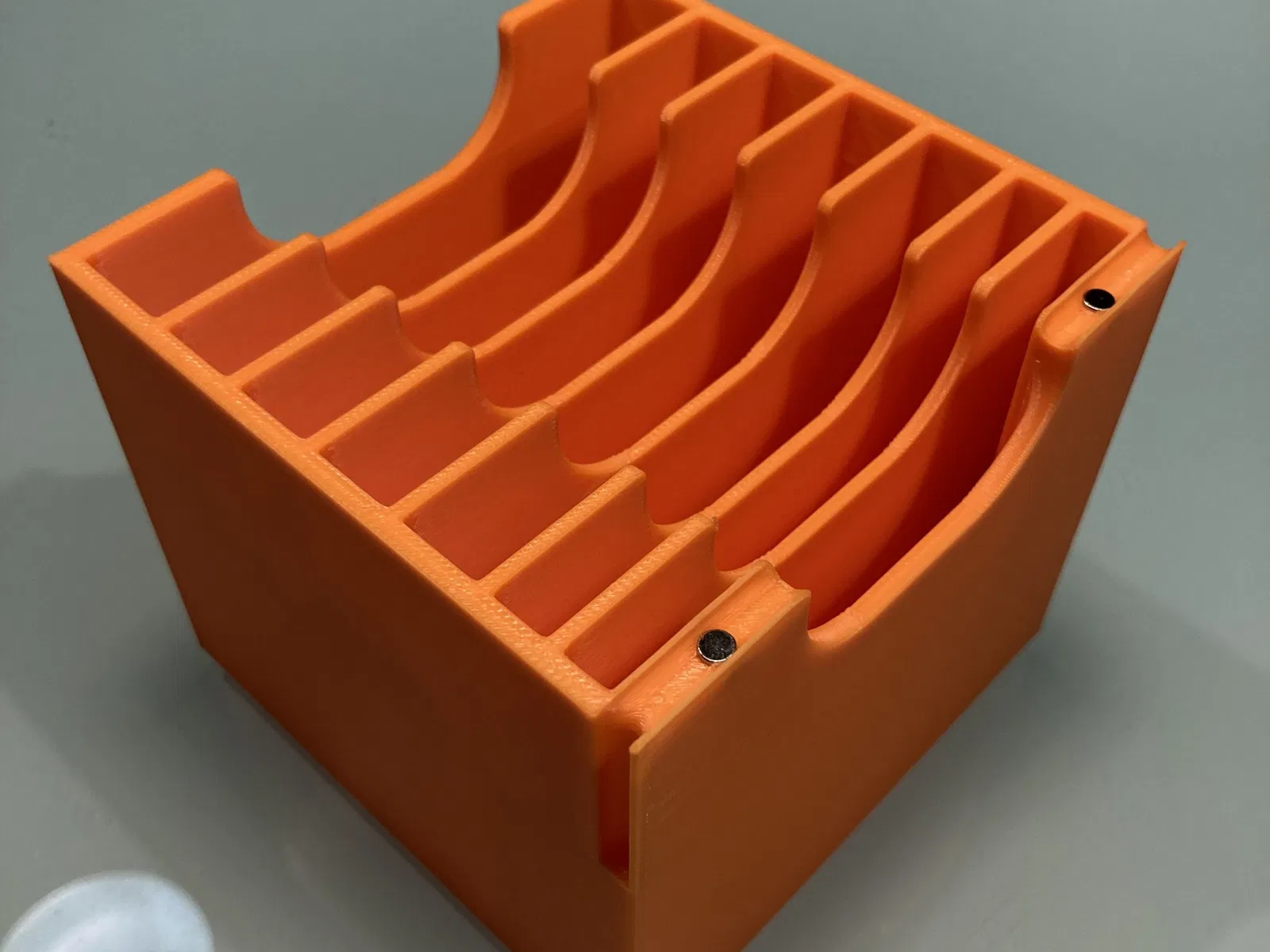

If you would like to hold it more secure, i designed two holes to fit magnets with 4mm diameter and 2mm height to hold the key really tide.

Thanks to @alexanderRect_285897 for pointing me to this issue.
