LifeCam Studio Bracket for IKEA BROR Shelf

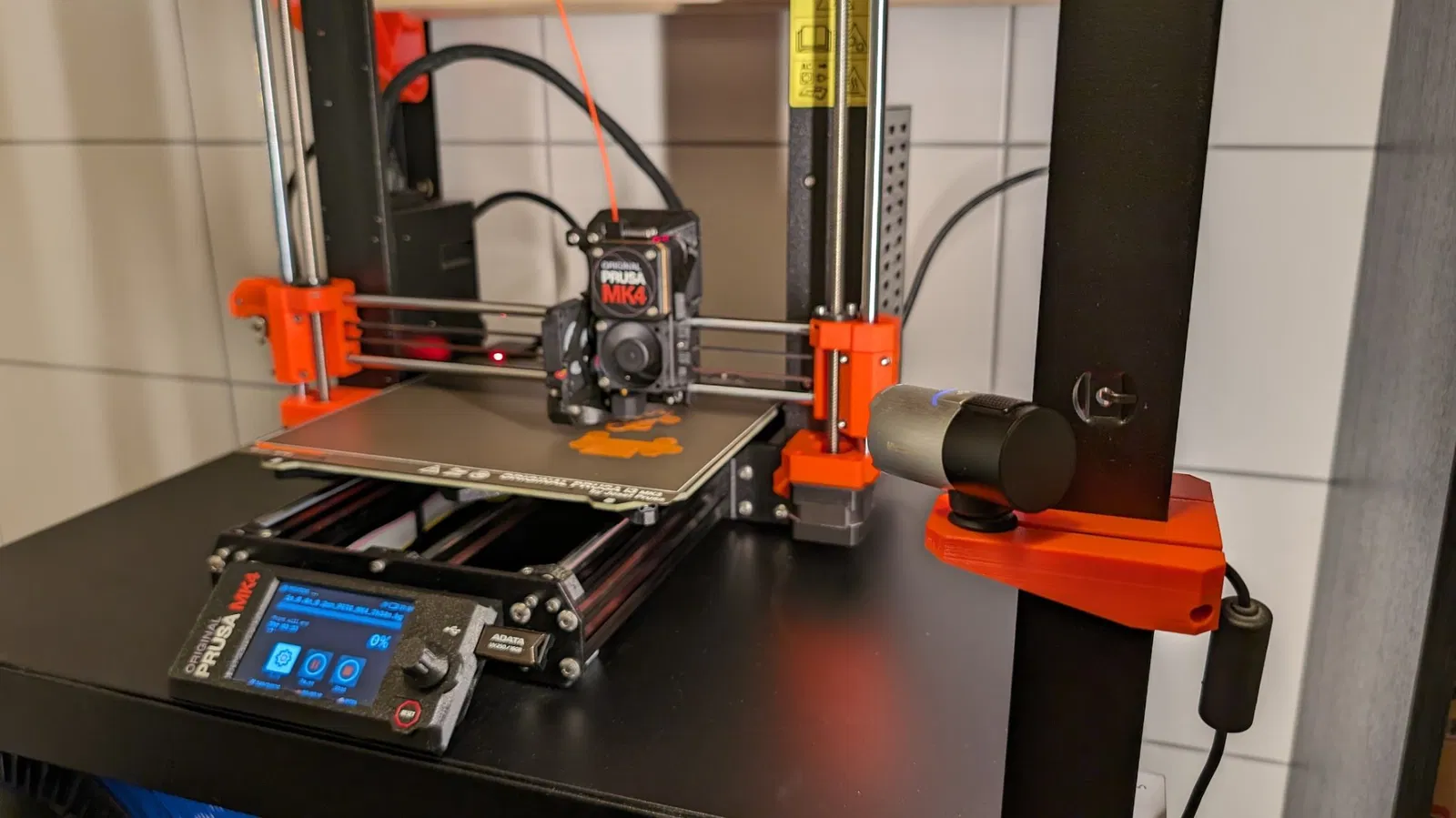

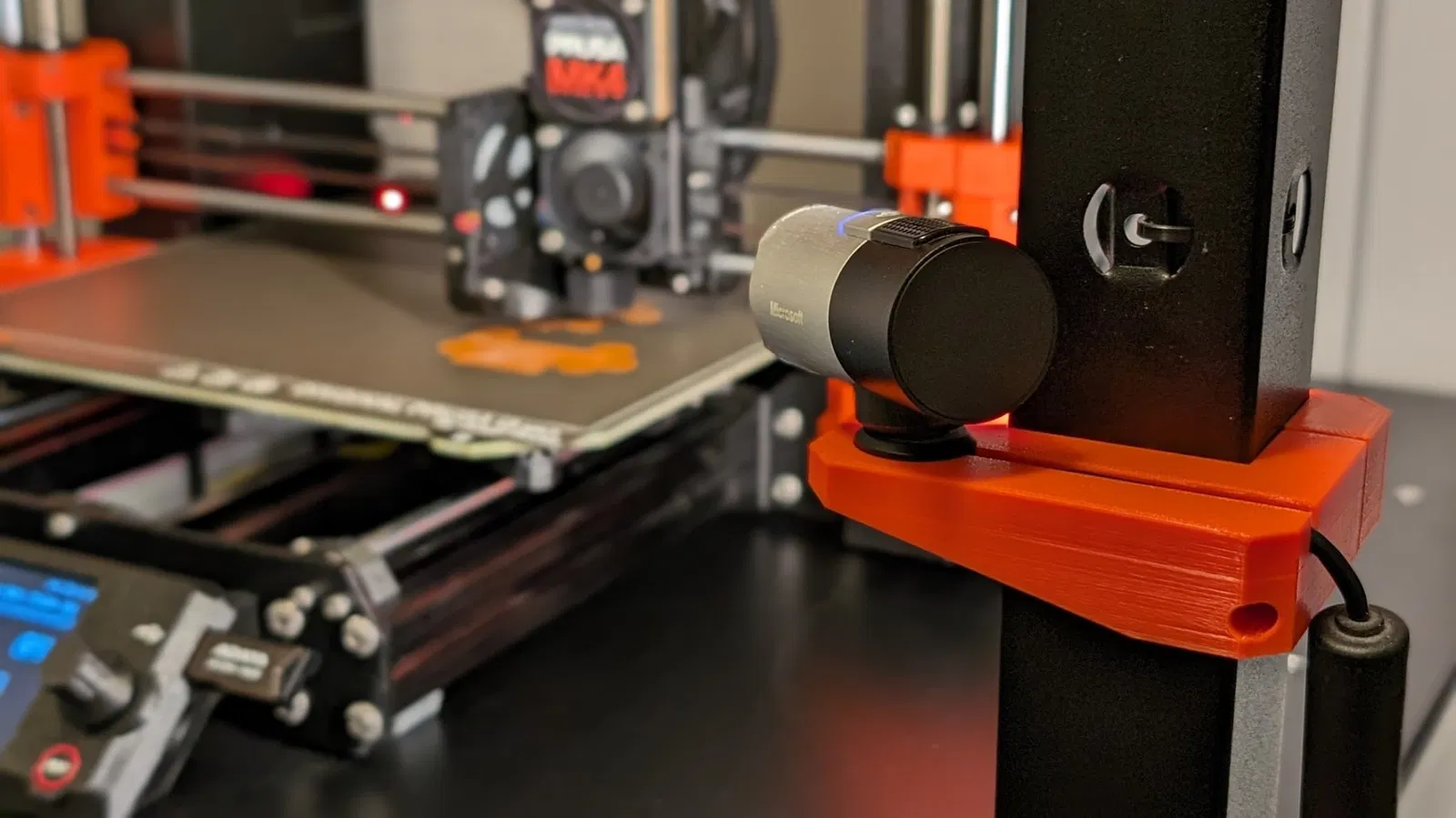

With this bracket you can mount your Microsoft LifeCam Studio to the stem of a IKEA BROR shelf. The height can be freely adjusted, the bracket does not rely on the mounting holes along the stem. You need an M3 bolt or screw at least 8mm long (I haven't tried shorter) to fasten the two parts together. The back brace has internal threads, no captive nut needed.

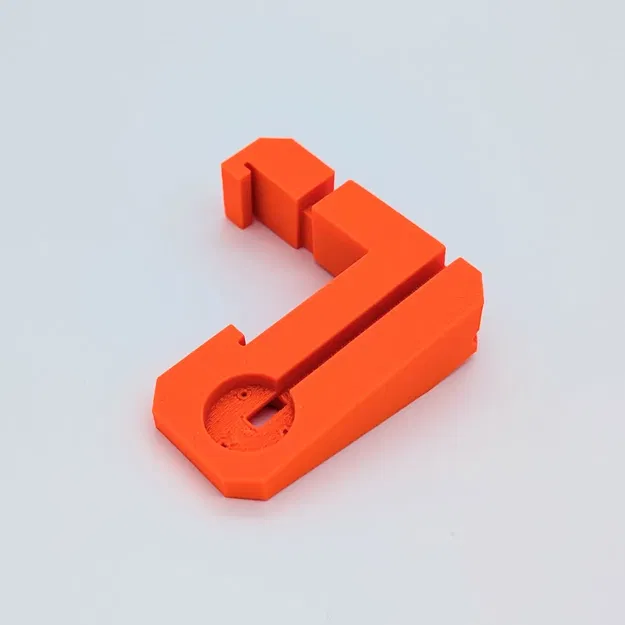

I printed it in Prusament PETG, but you can of course print it in any material you like. You probably want to enable supports at about 40° for the cable trench in the main part, I haven't tried without them. The vertical through-holes don't need supports.

If you want to adjust the OpenSCAD source file, you need to first install the excellent agentscad library to get the screw thread libraries:
