Rod building drum dryer hub

In hai hoặc nhiều trong số các trống này và đặt một miếng 3/4 "PVC và bảo vệ chúng bằng bu -lông 1/8".

👁️
569
Lượt Xem
❤️
6
Lượt Thích
📥
44
Lượt Tải
Cập Nhật Nov 22, 2025
Chi tiết
Tải xuống
Remixes

Mô tả

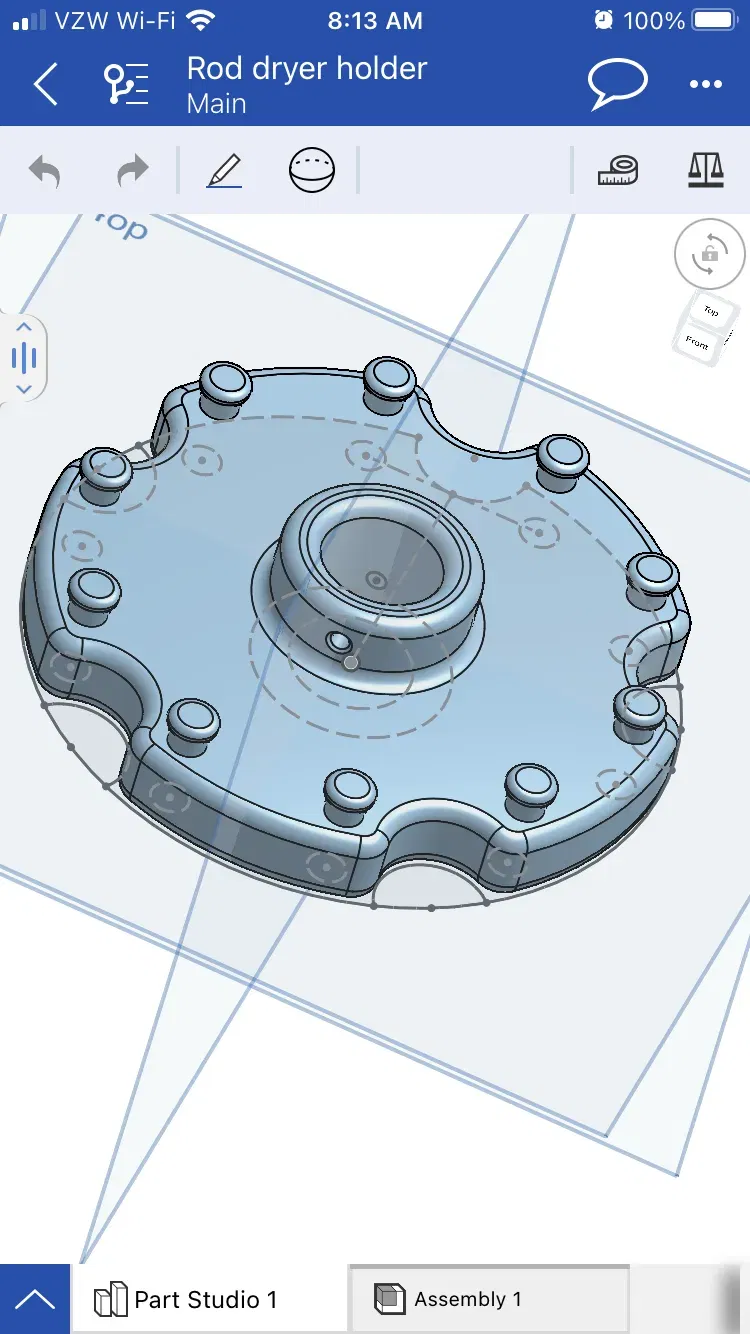

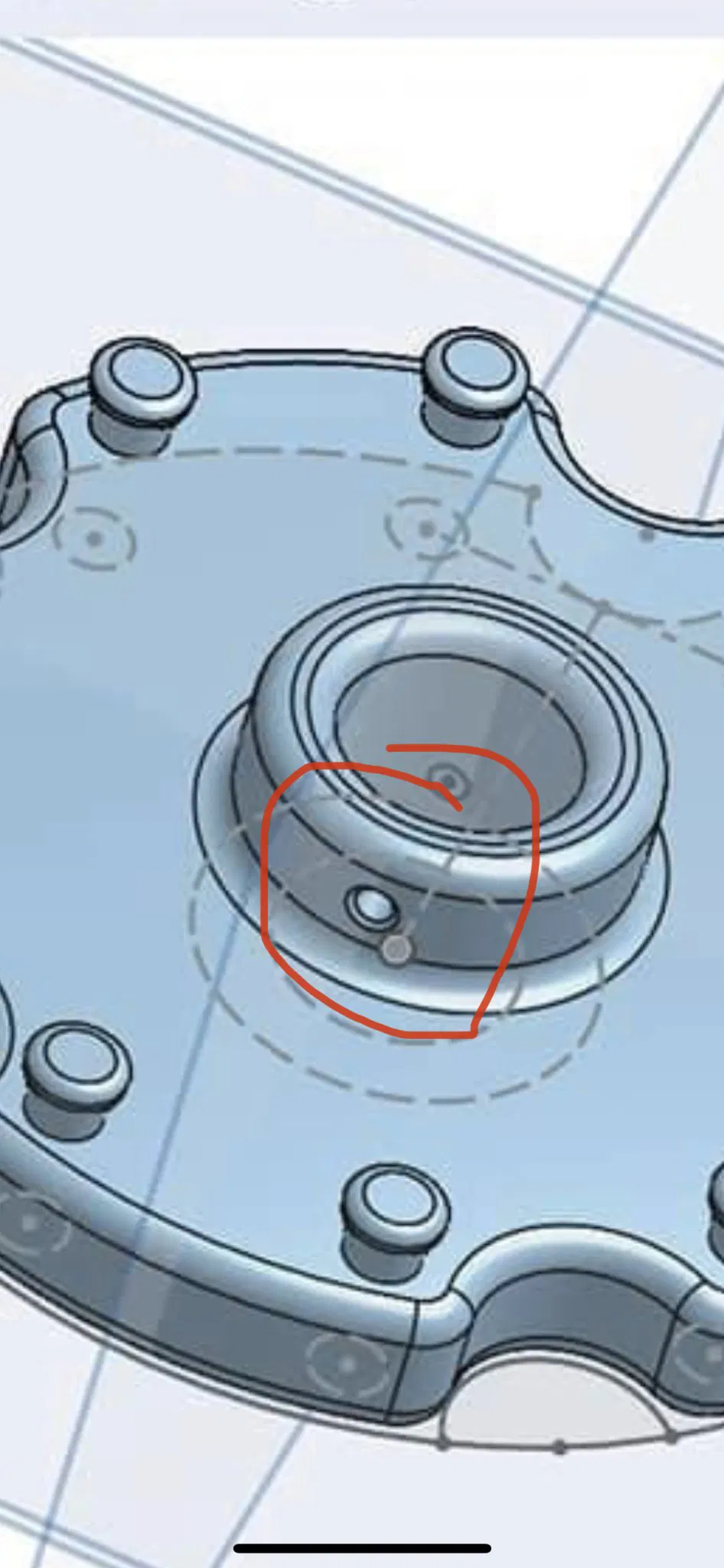

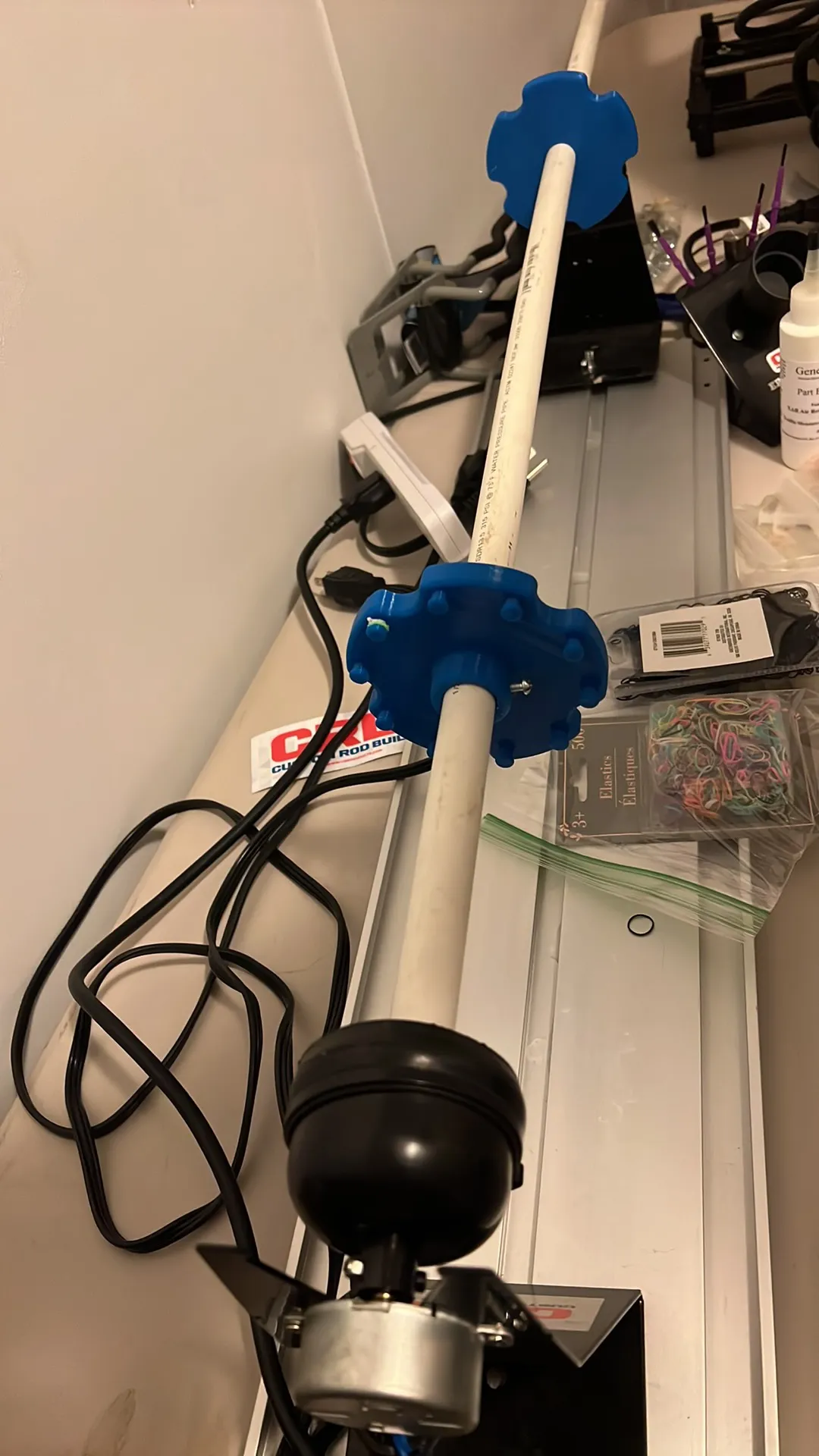

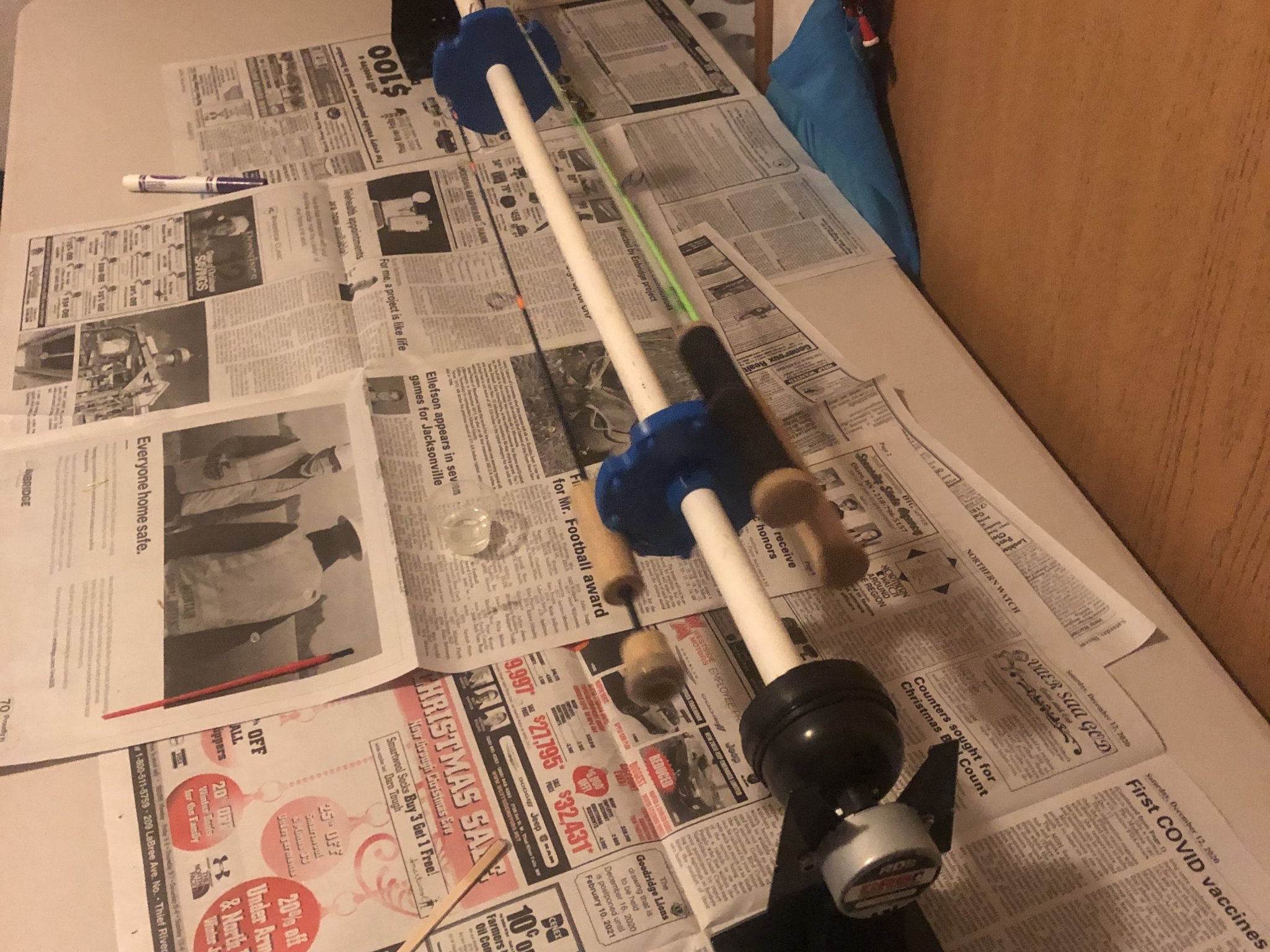

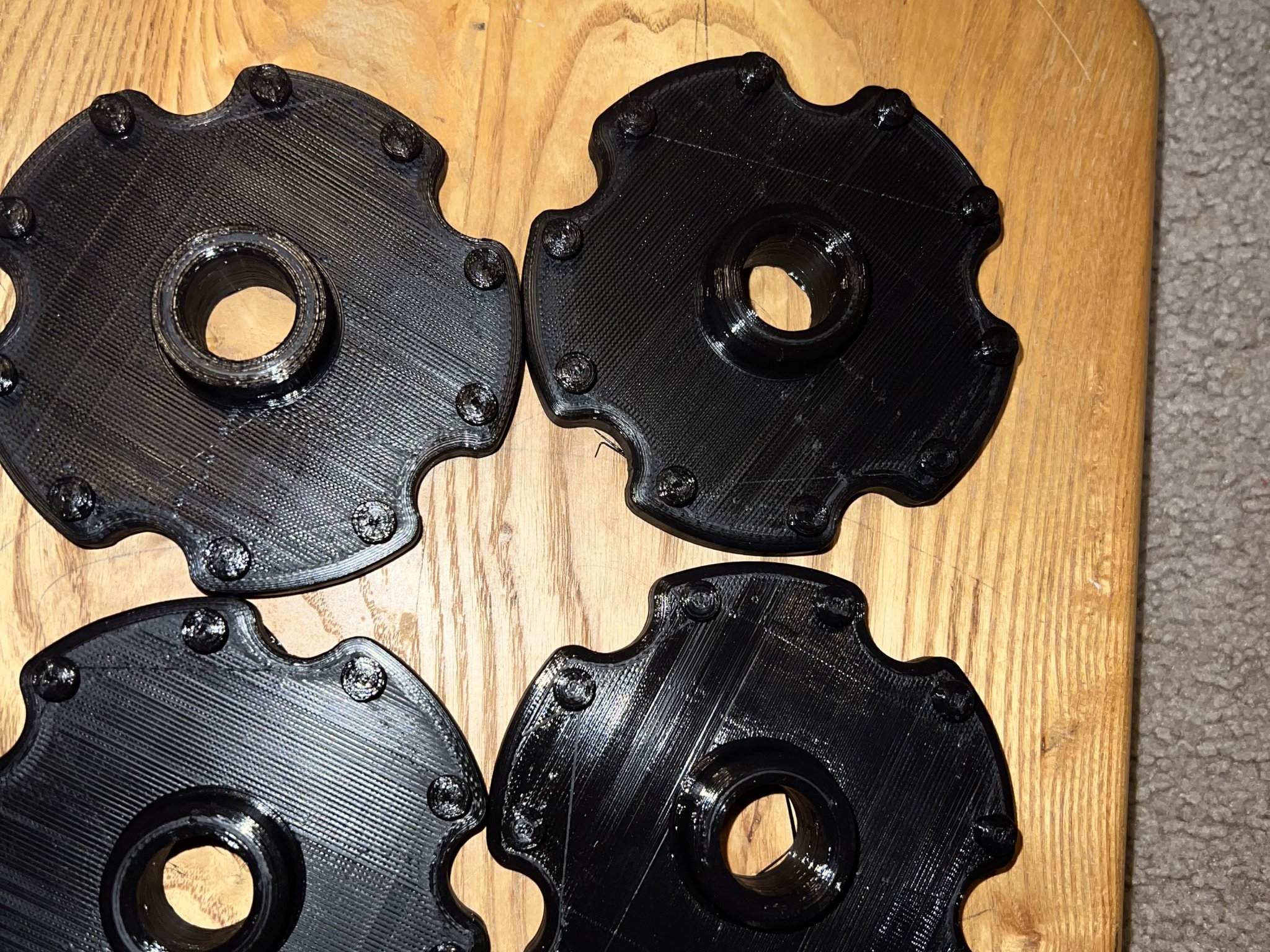

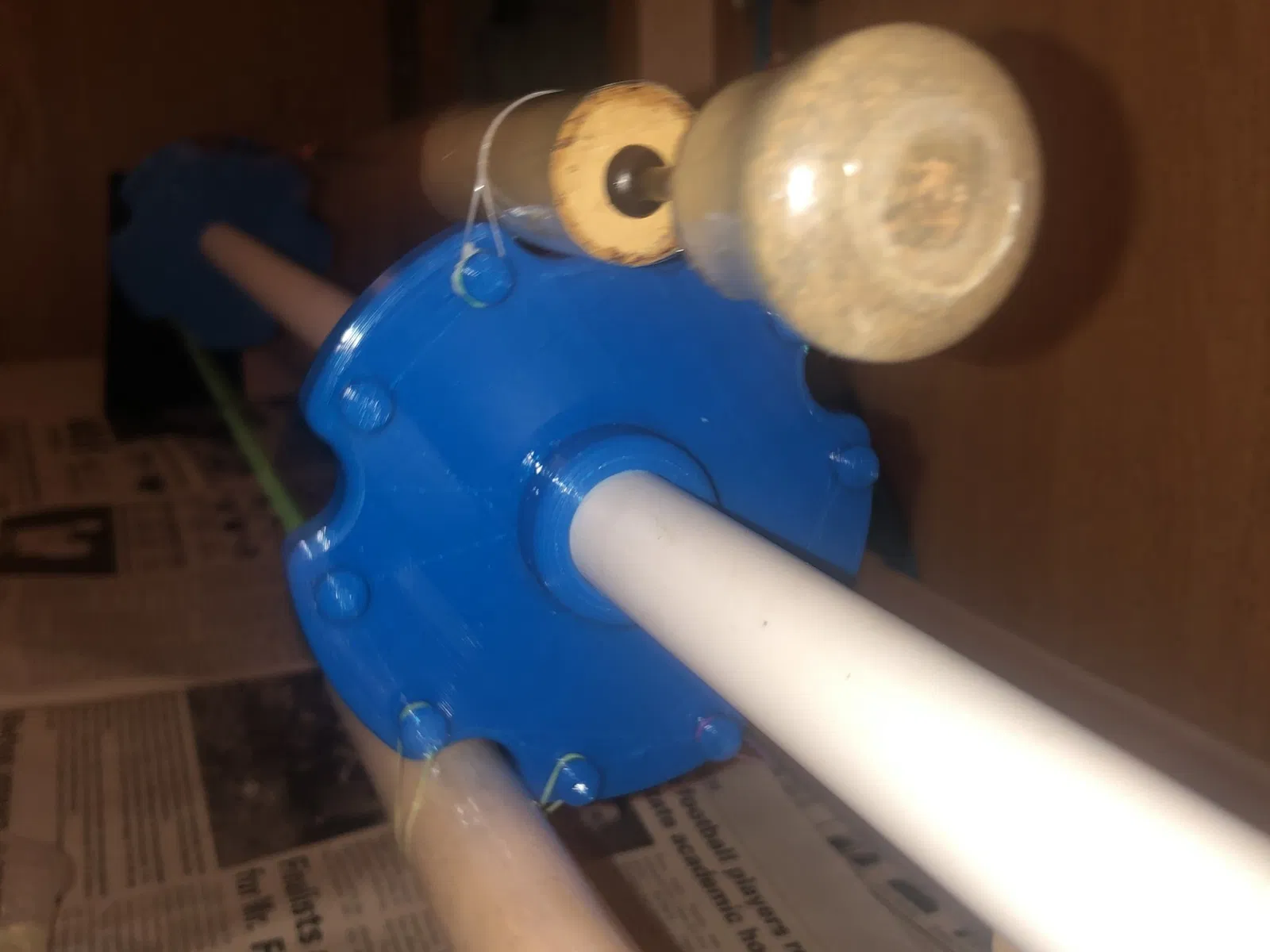

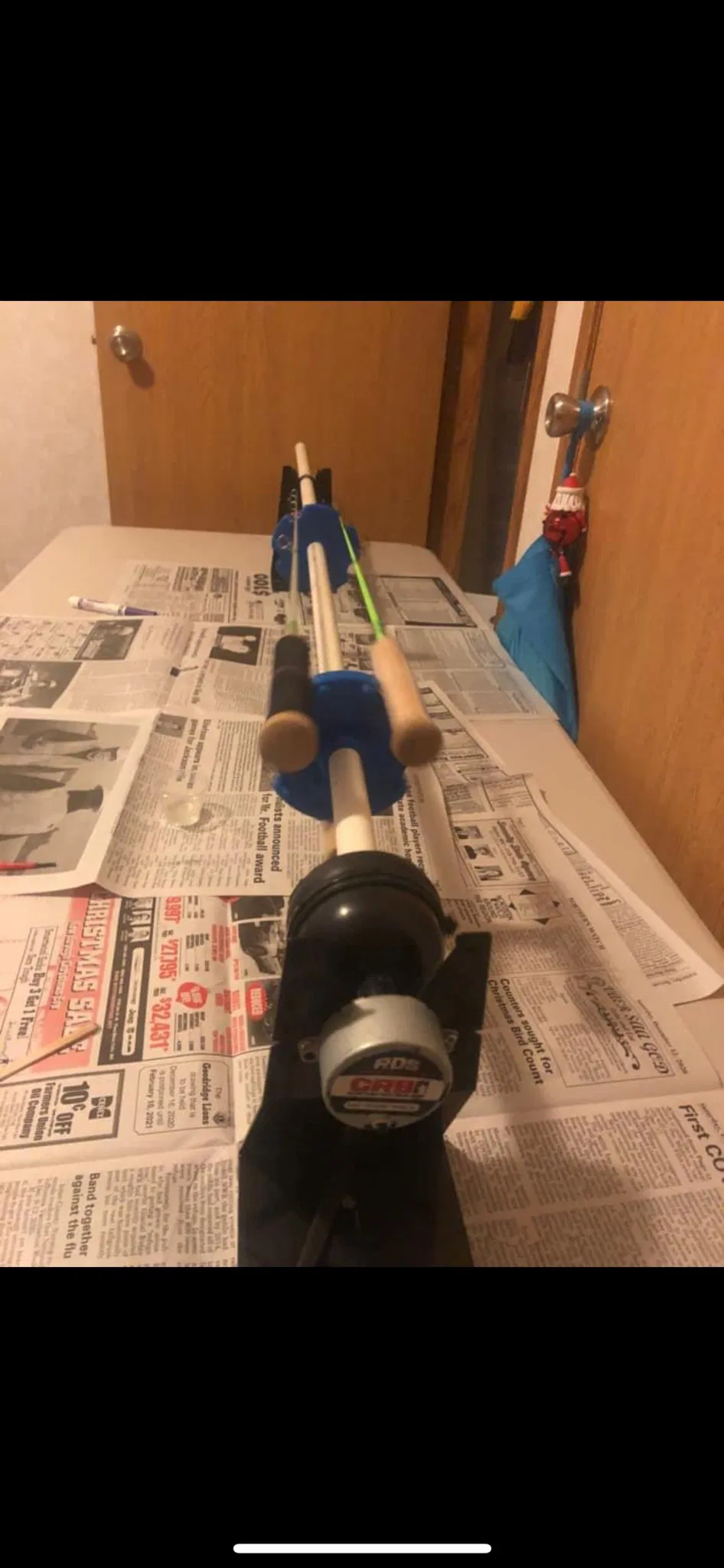

I was searching for a way to dry multiple Ice fishing rods that i was building on a single rod dryer. I decided to design one for 5 rods. These hubs are designed to fit onto a piece of ¾" PVC pipe and are secured to it by a single 1/8" bolt. I use hair tie rubber bands to secure the rods to the holder for drying. I'm thinking a person could also probably use ¾" conduit if they needed a longer length for the dryer and then just add multiple hubs.

Giấy phép

Tác phẩm này được cấp phép theo

Creative Commons Zero v1.0 Universal

Public Domain Dedication

Không yêu cầu ghi công
Văn hóa Remix Được phép
Sử dụng thương mại Được phép
Tác phẩm phái sinh Được phép
Được phép chia sẻ

Model files

ALL MODEL FILES (1 files)
Loading files, please wait...

Remixes (0)
