Y axis align tool for fixed gantry printers

Một công cụ để giúp căn chỉnh trục y

👁️
161
Lượt Xem
❤️
3
Lượt Thích
📥
17
Lượt Tải
Cập Nhật Nov 22, 2025
Chi tiết
Tải xuống
Bình Luận
Khoe bản in
Remix

Mô tả

Inspired by 2.4's flying gantry, making gantry partially flying, using bed mesh as indication, manually tune Y axis into one plane.

I use standard voron heatset, modify if needed.

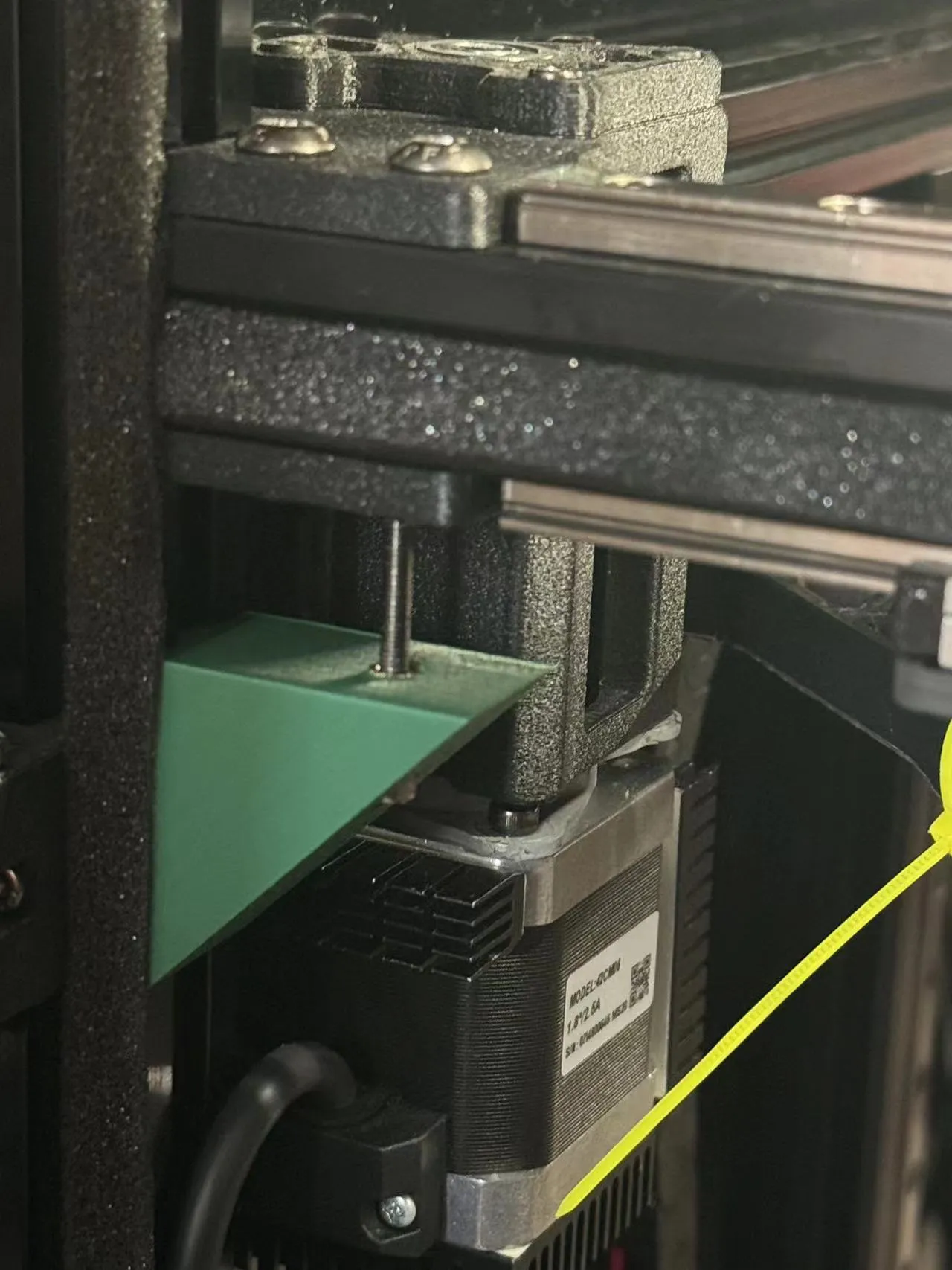

Loosen one rear end of Y axis, use a long M3 bolt to support and adjust the gantry.

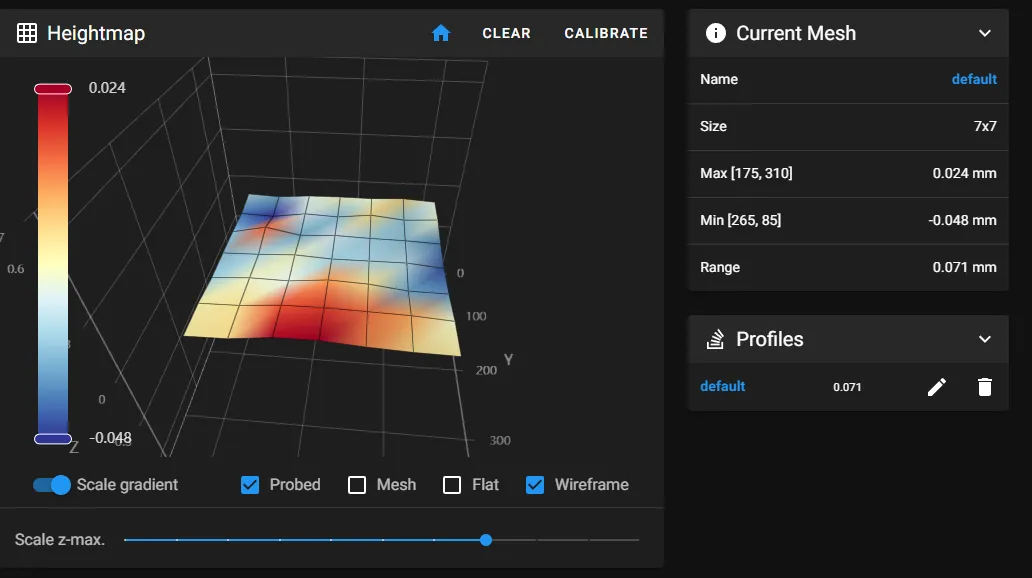

Calibrate sequence: z—tilt, then make one mesh, compare z_offset value of two rear corners, if the flying one is smaller, which means the distance between bed and rail is larger(for example,0.1mm), so unscrew the supporting M3 bolt 1/5 turn. After adjustment, z-tilt and bedmesh, check result, repeat if needed.
