Car Boot Umbrella Hook

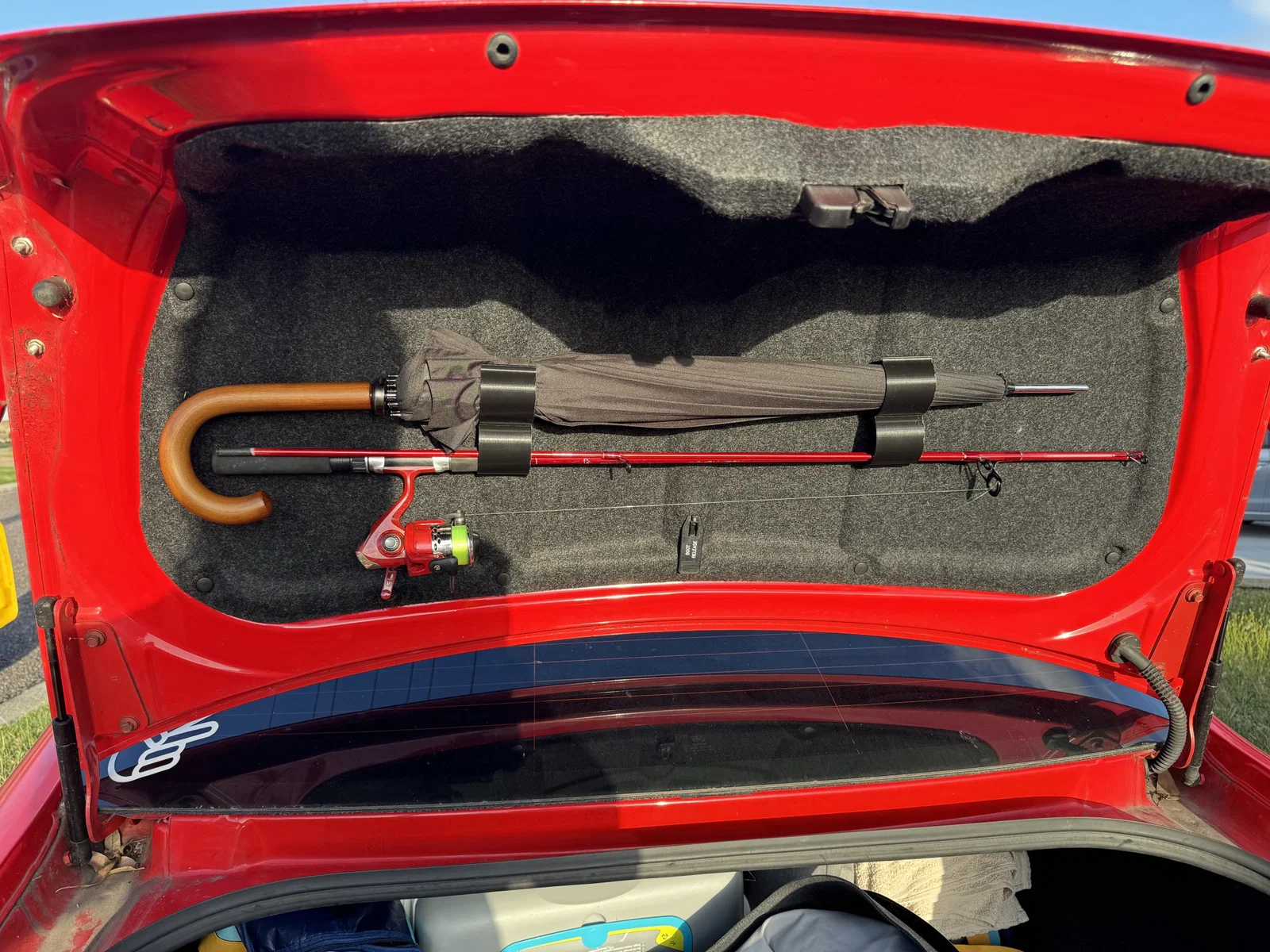

Saw hooks on Aliexpress that go on the carpet section of your boot lid to hold umbrellas, etc. Thought I'd make them in an afternoon instead.

Assembly

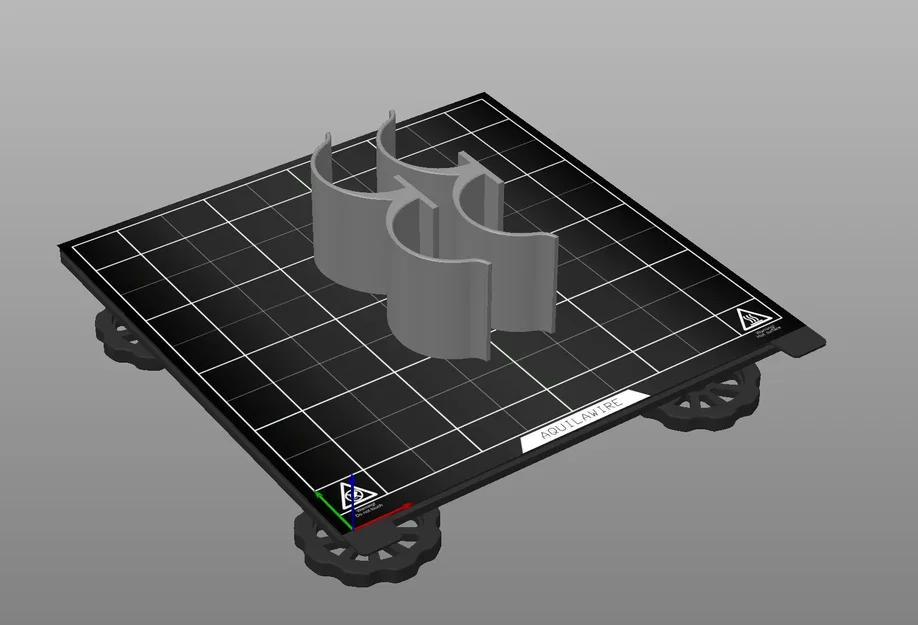

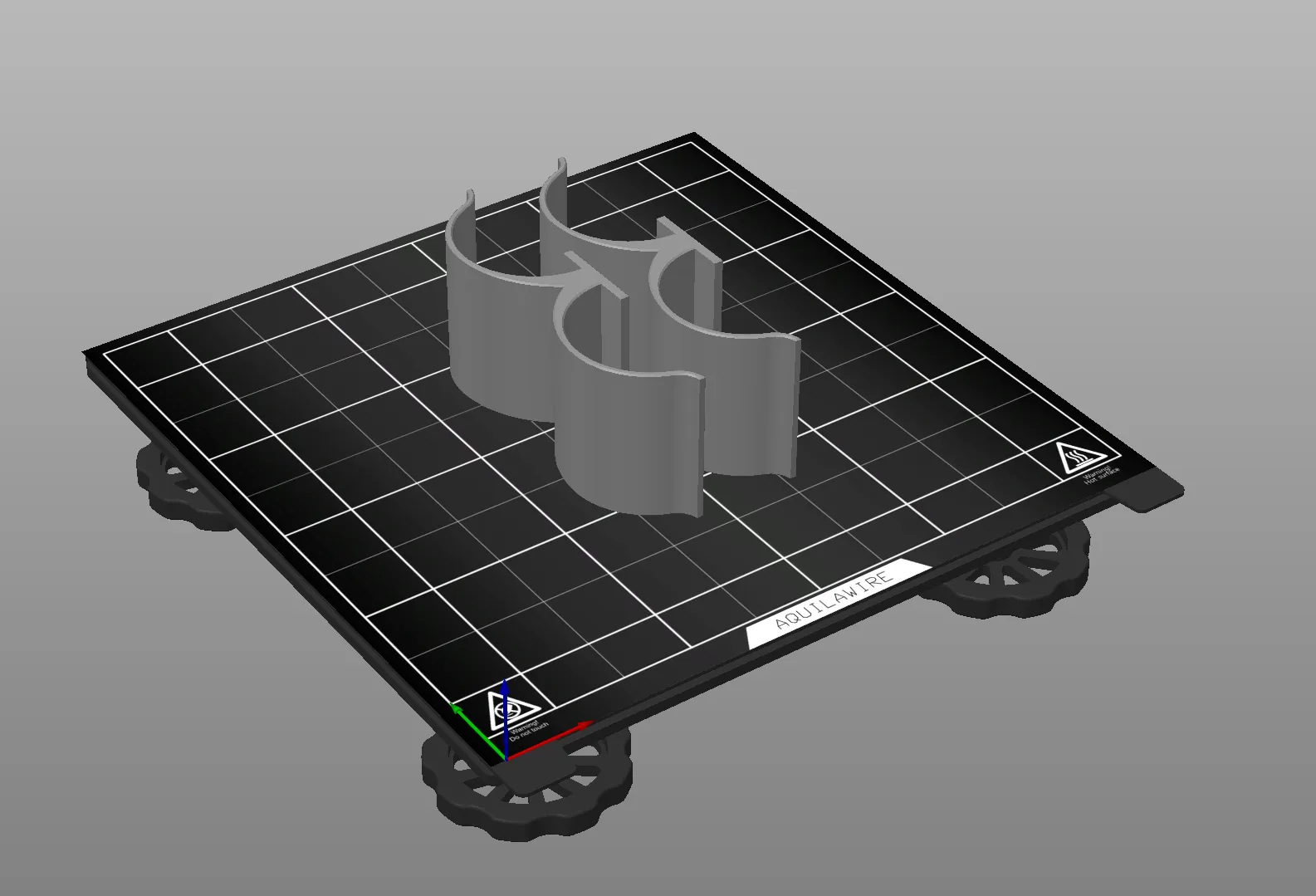

Materials Needed: 2x Umbrella_Holder (PETG/ABS/ASA) 2x M4 heat insert 2x M4x15 SHCS Printing Instructions: - Orient parts as shown in pictures. - Print all parts with 0.2mm layer height,>10% gyroid infill. Assembly Steps: 1. Take off the boot lid carpet and make two holes for the hooks. 2. Insert the heat inserts into the holes of each part. 3. Place the hook on the outside face of the carpet and use the M4x15 screw with a wide washer to fasten the hook.
