Mô tả

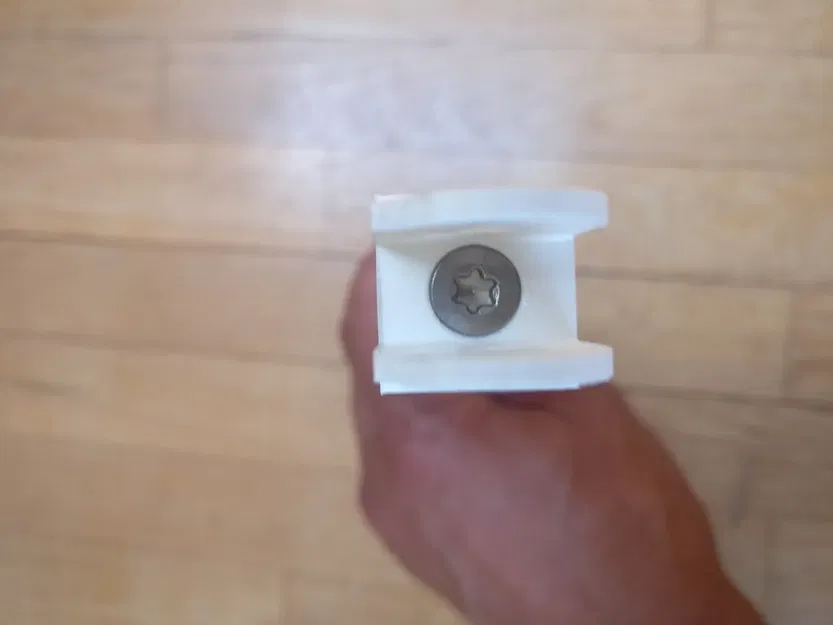

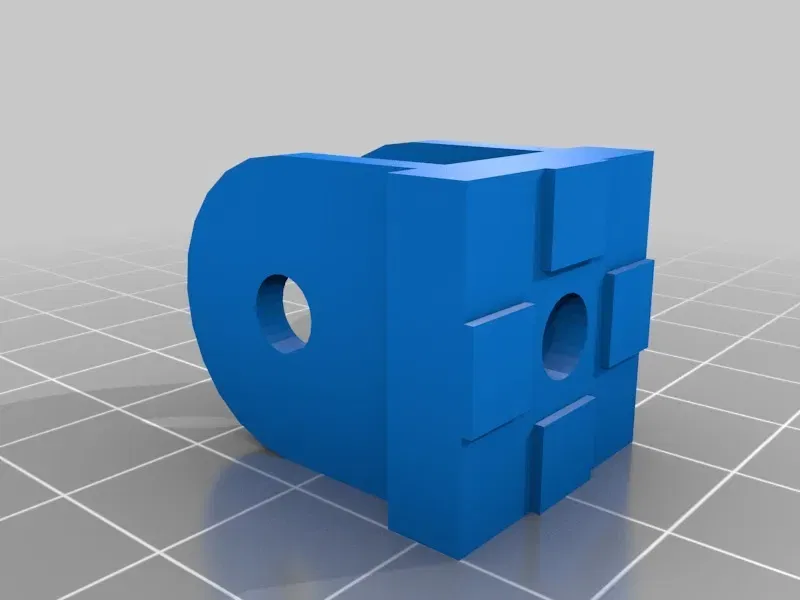

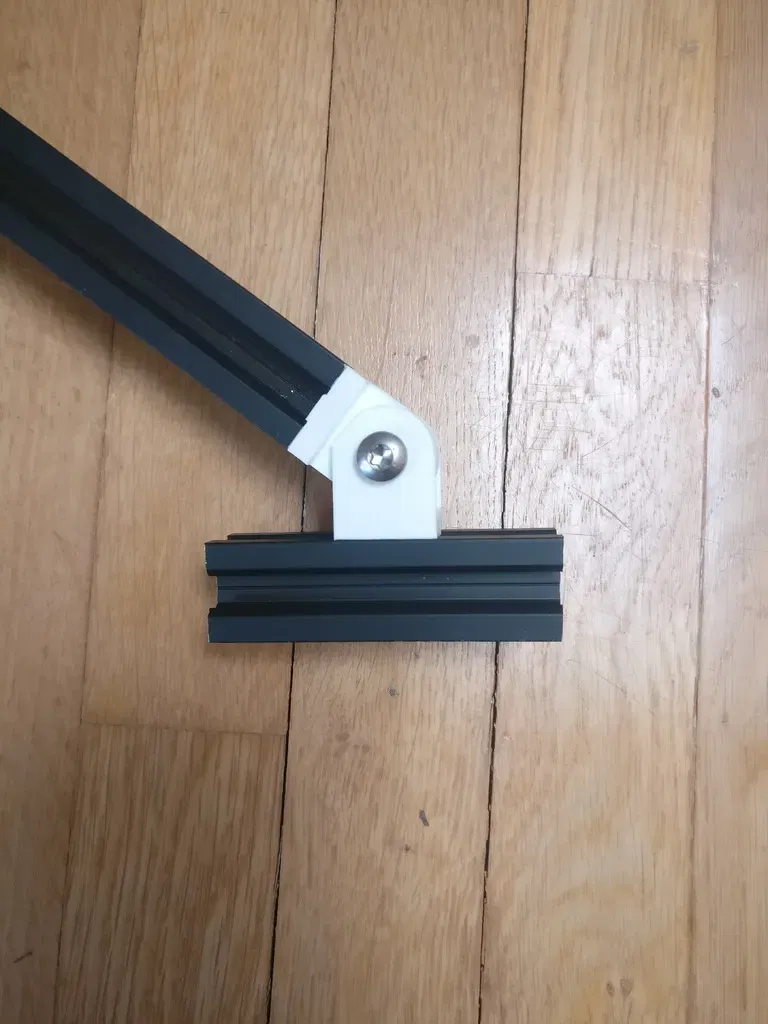

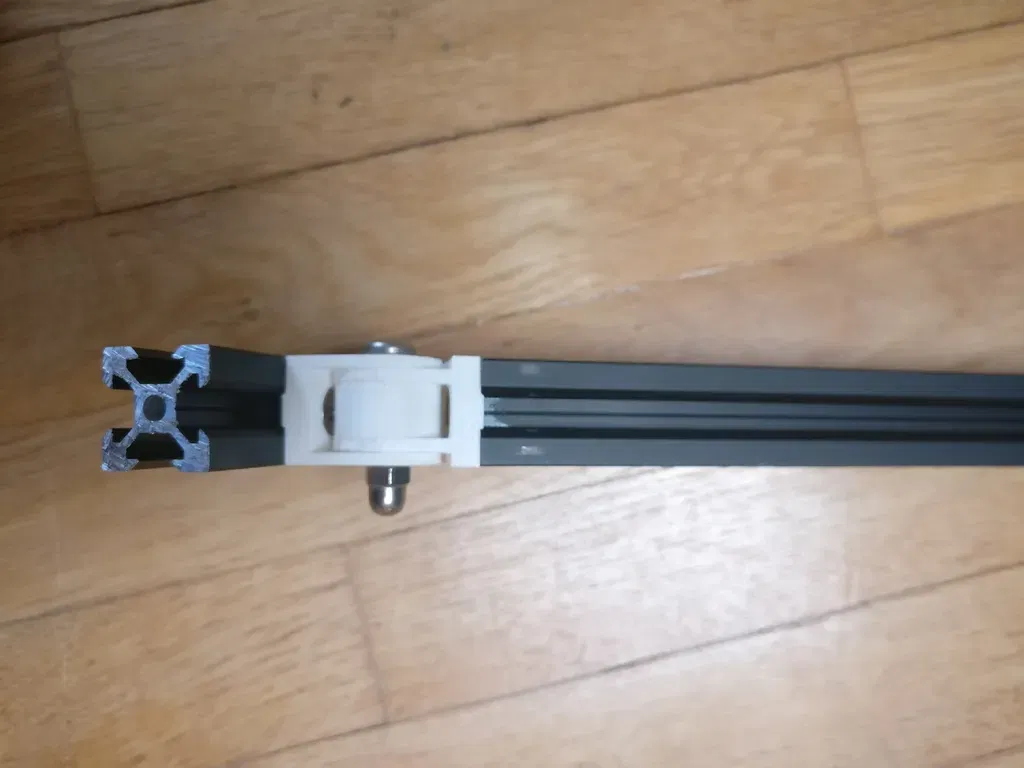

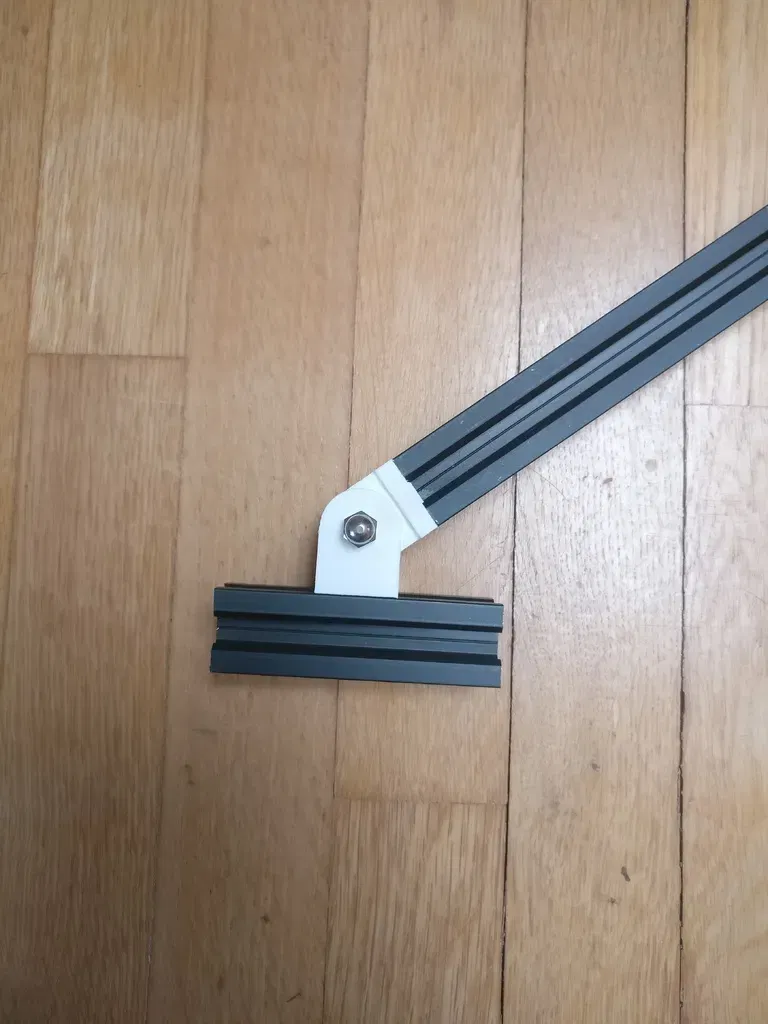

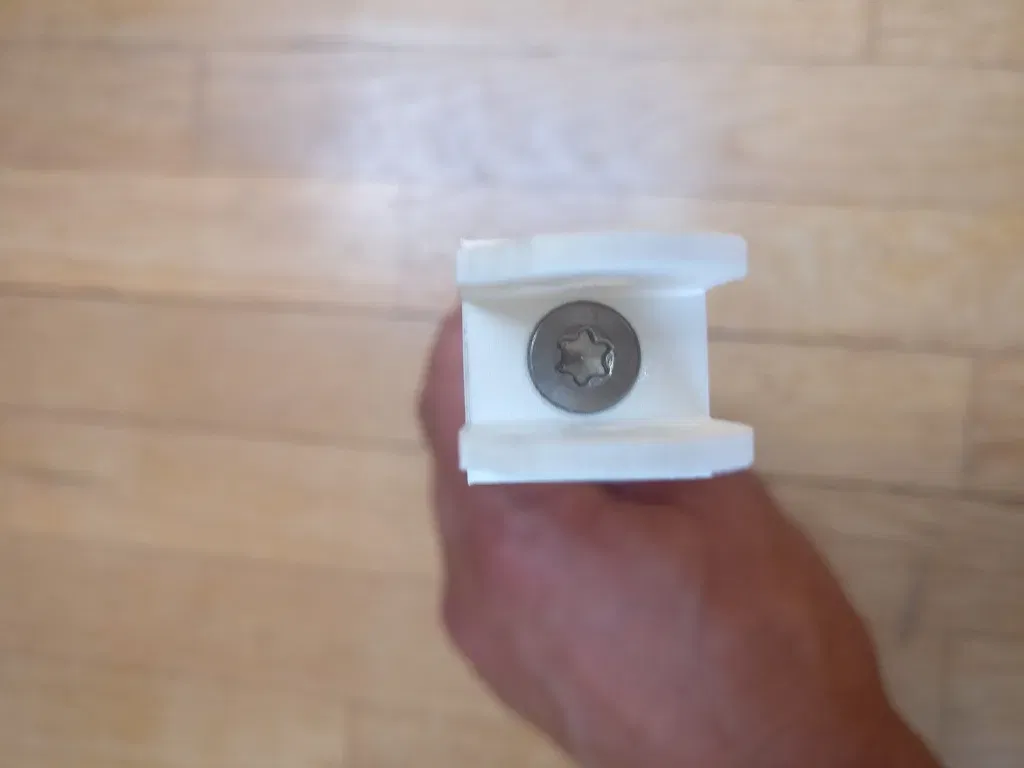

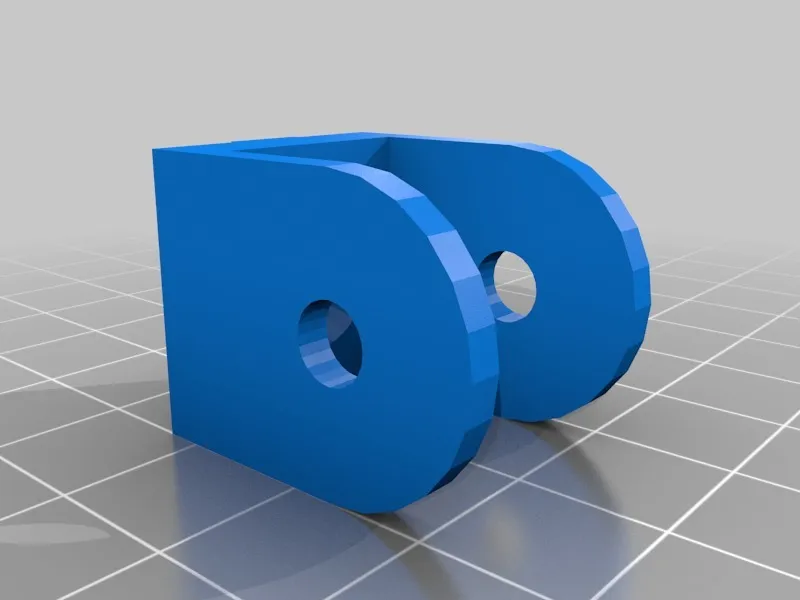

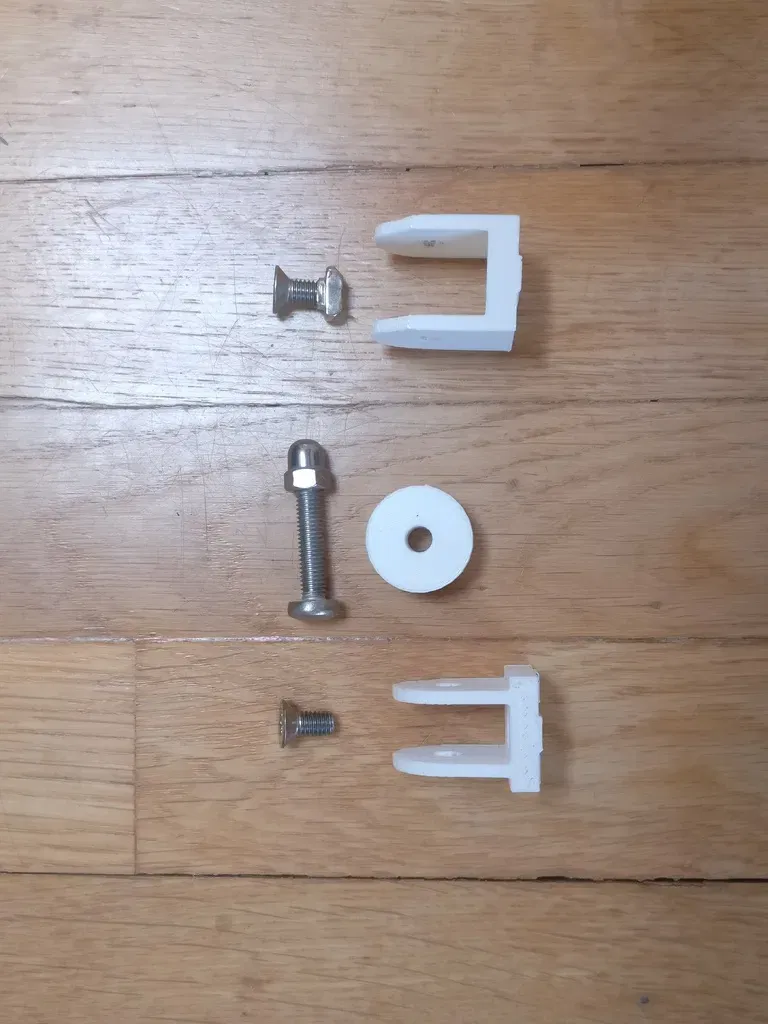

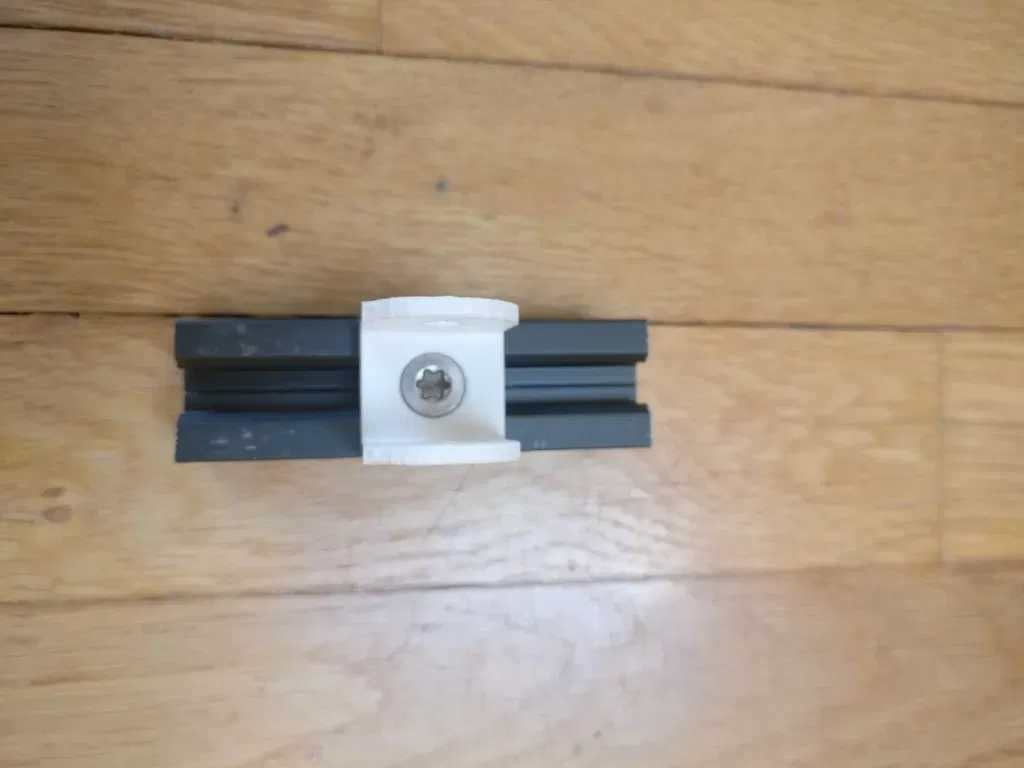

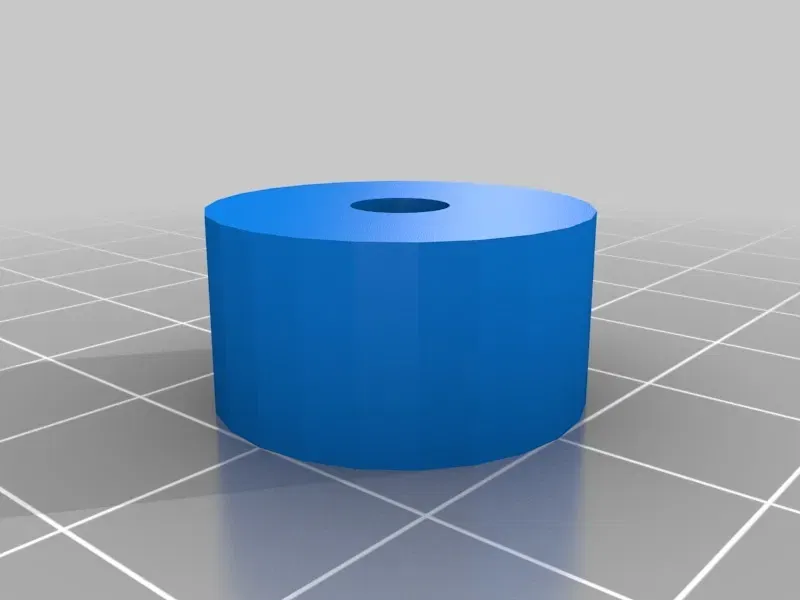

This variable angle bracket fits standard 2020 extrusion profiles. It requires the core of one extrusion to be threaded with M5 thread. One part is mounted with a M5x10 flat head screw at the cross cut side of the extrusion. The other part is mounted on the long side of the extrusion, using a M5x10 flat head screw with a T-Nut. Both parts are joined together with an M5x25 pan head screw and a cap nut. A spacer is used in order to prevent overtightening the pan head screw.
Print Settings
Printer Brand:
Ultimaker
Printer:
[Ultimaker 2](https://ultimaker.com/)
