Milwaukee M12 Charger SKADIS mount

This design is a remix of the original “Milwaukee M12 Charger 12V Wallmount Damage Free” by @CPS_Systems_639833 (original design: https://www.printables.com/model/468806-milwaukee-m12-charger-12v-wallmount-damage-free).

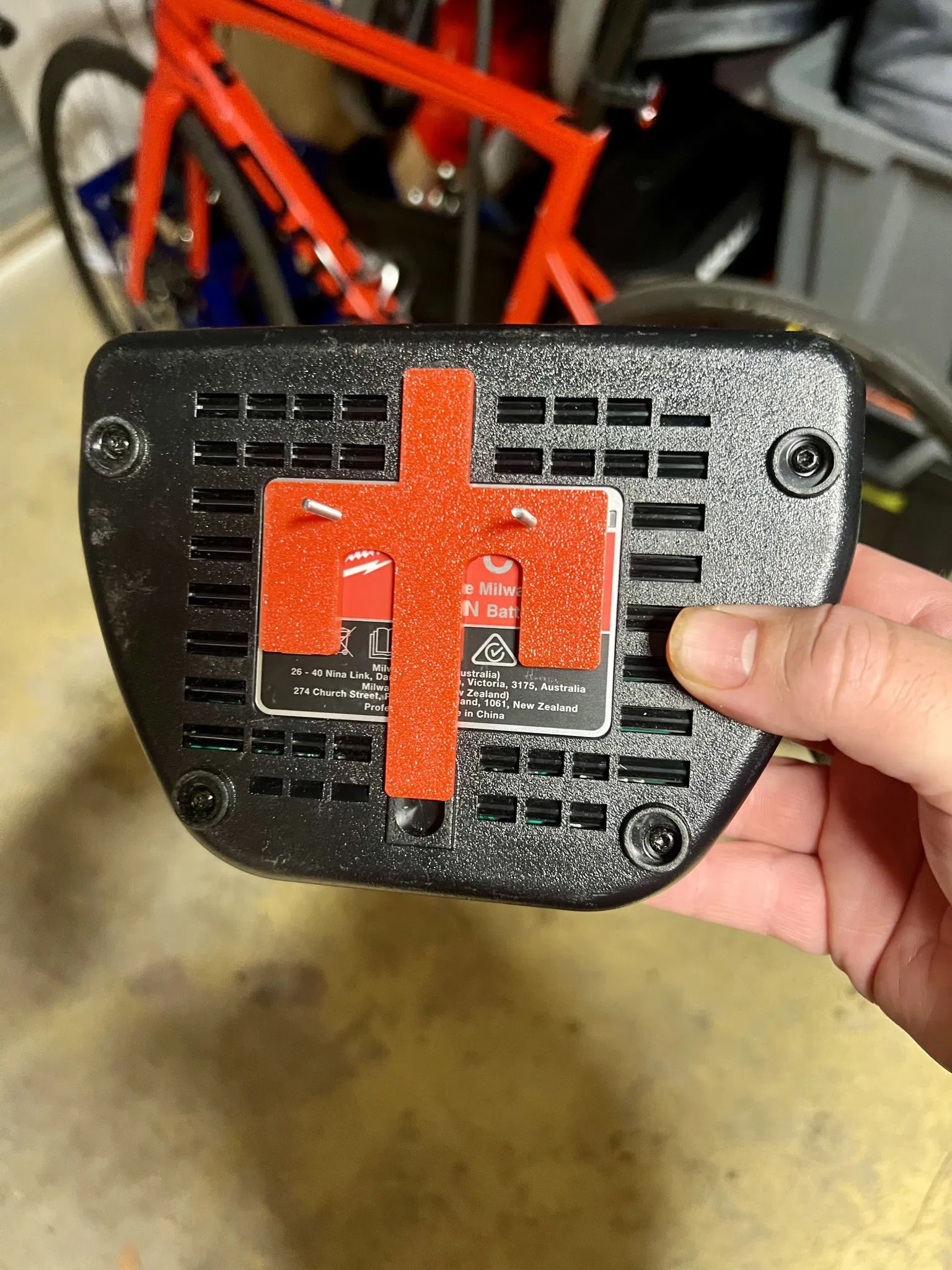

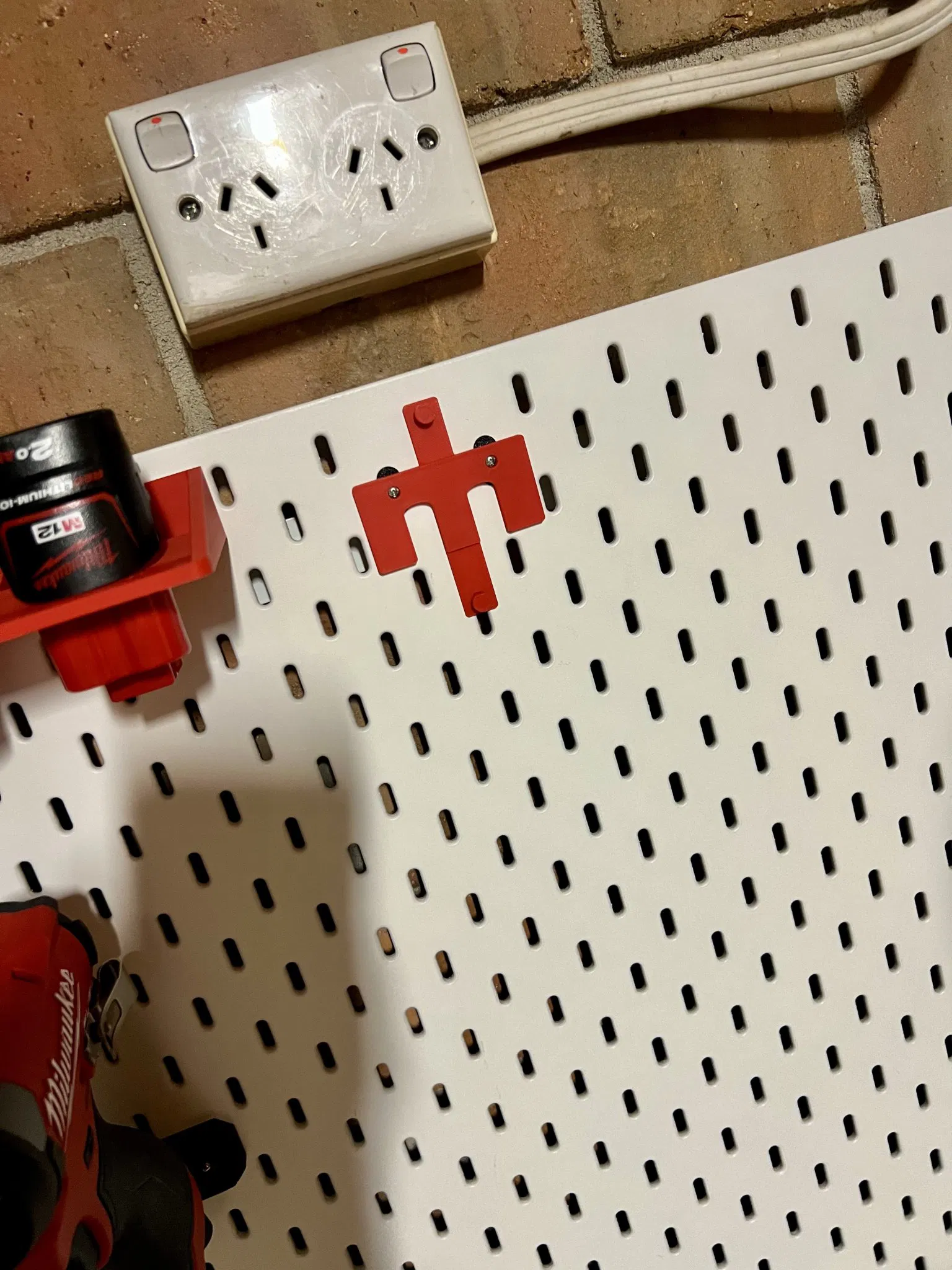

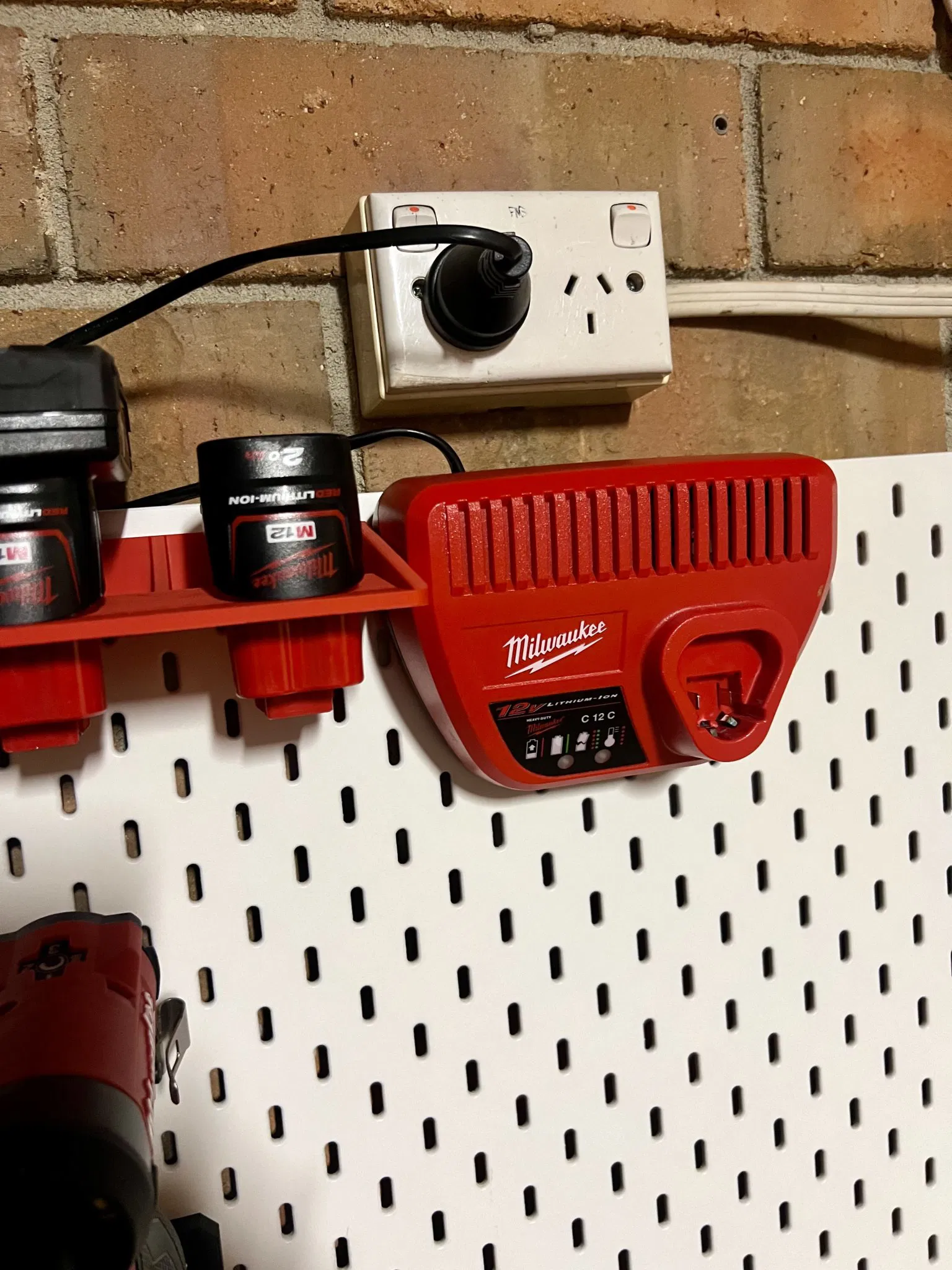

While the original was designed for mounting using adhesive strips, my version is intended to be mounted on an IKEA SKÅDIS board.

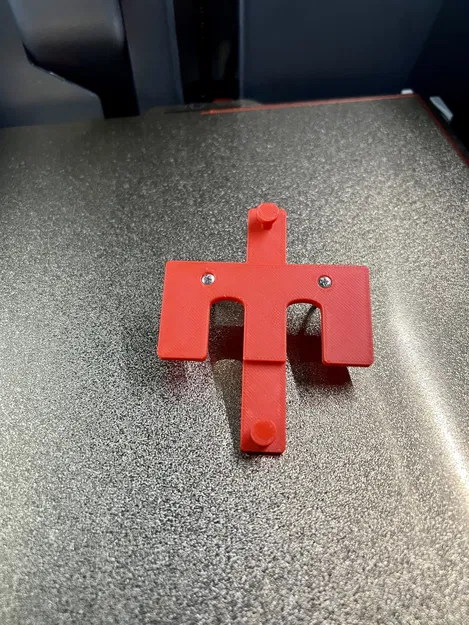

I’ve modified the design to include holes 40mm apart, sized for m2.5 button head screws, aligning with the requirements for the SKÅDIS T-Nuts and Guide system.

Using the T-Nuts ensures that the charger is securely held in place.

I chose not to integrate the guide into the print to avoid the need for supports during printing.

For installation, you will also want to print 2 x m2.5 T-Nuts and 2 x m2.5 guides (link: https://www.printables.com/model/228663-skadis-t-nuts-mounting-system-for-ikea-skadis-pegb).

2 x m2.5x20 button head screws (other lengths probably also work)

Thanks to both @CPS_Systems_639833 for the initial design and @6d6178 for the SKÅDIS T-Nuts system.
