Tiêu đề Đầu nối quạt Rackmount Odroid H2 Tóm tắt Đây là add-

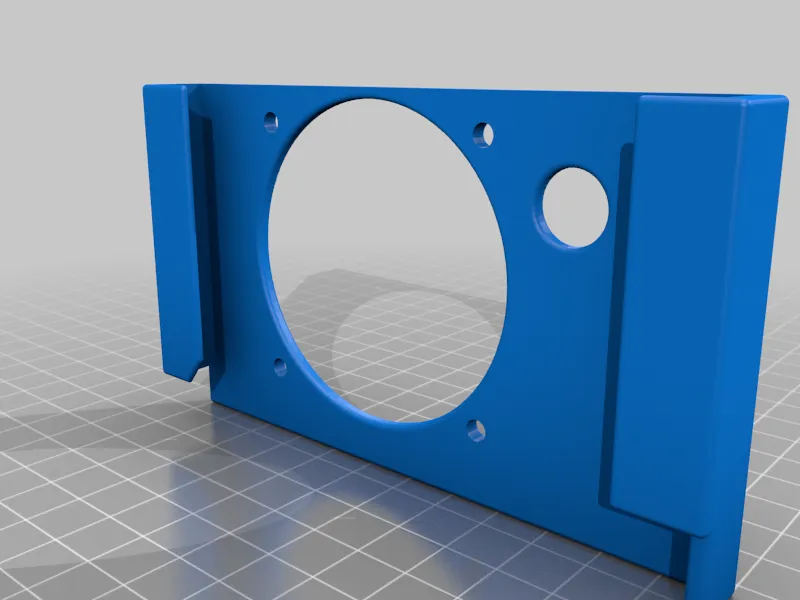

This is an add-on for the Odroid H2 Rackmount/Blade Center.

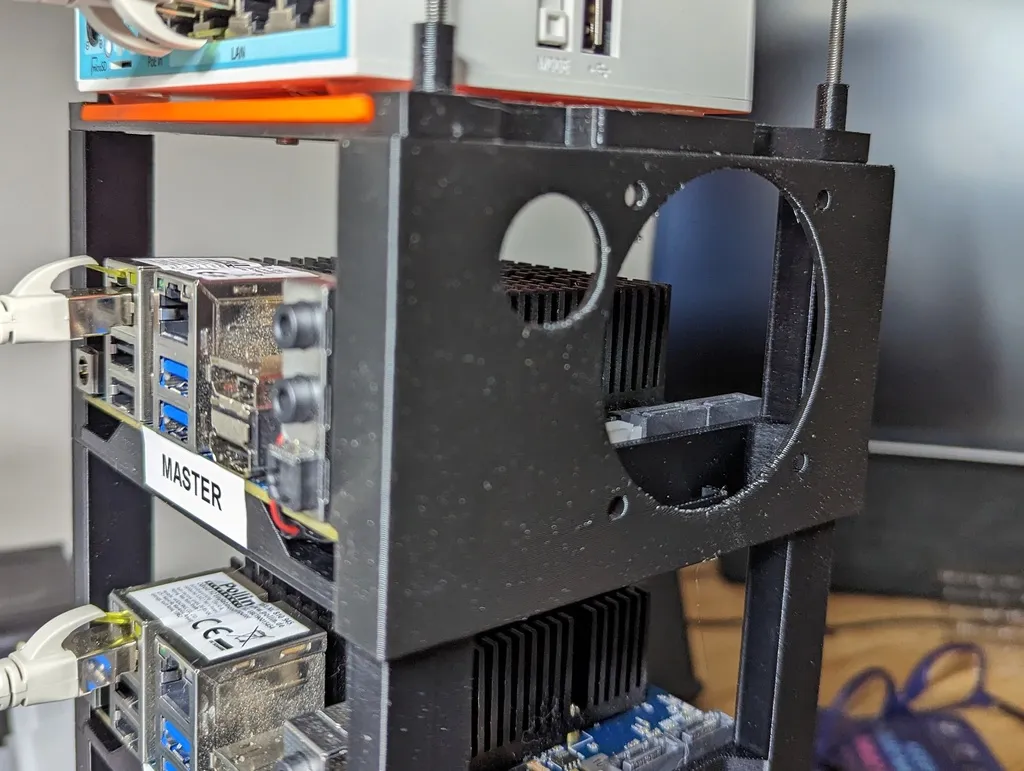

I use Odroid Rackmount upright and in the 2nd evolution step as baseplate to connect 60mm Noctua fans on each Odroid H2/H3.

(1st evolution step is viewable in the background of one picture with 80mm Noctua fans, but they outgrow the hight of one section of the Rackmount Project Bay and i wanted a 1:1 alignment (1 fan for one H2/H3).

If you mix H2 with H3: Keep in mind that H2 have a 5V 1.25mm pitch 4-pin connector but the H3 a 12V default fan connector.

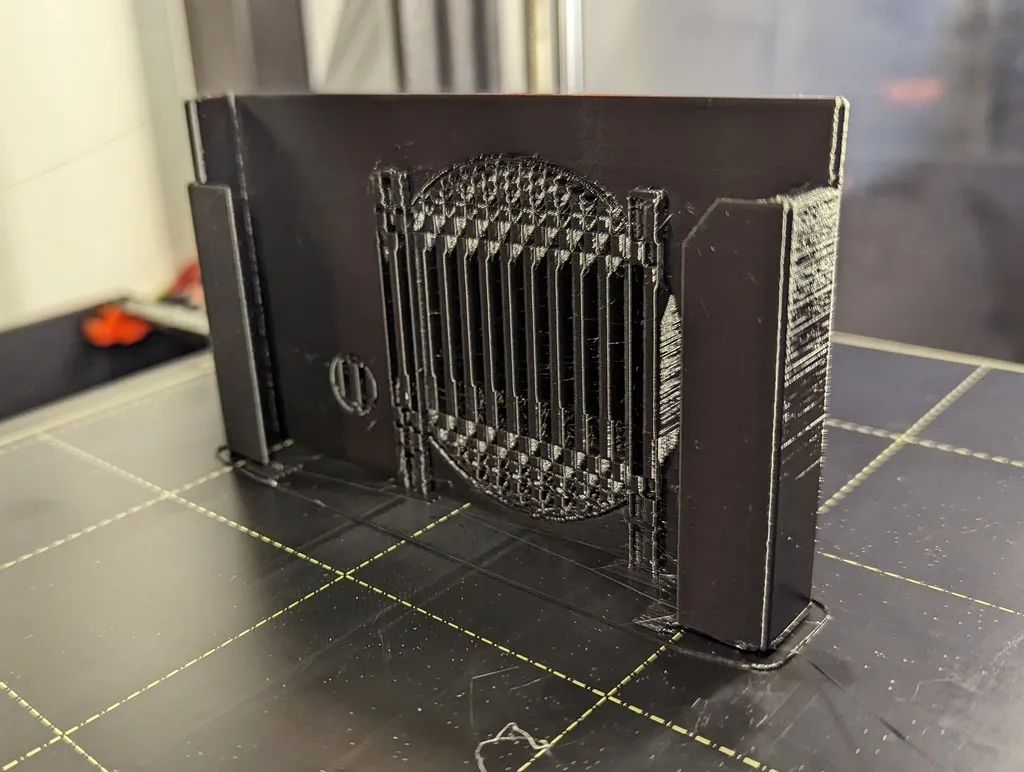

I printed them upside down with support for all holes with PETG.

• More pictures
• More information about the built and later usage

Print Settings

Printer Brand:

Prusa

Printer:
