Tiêu đề Bộ kết nối bộ điều khiển DJI RC với Klickfix Quad Mo

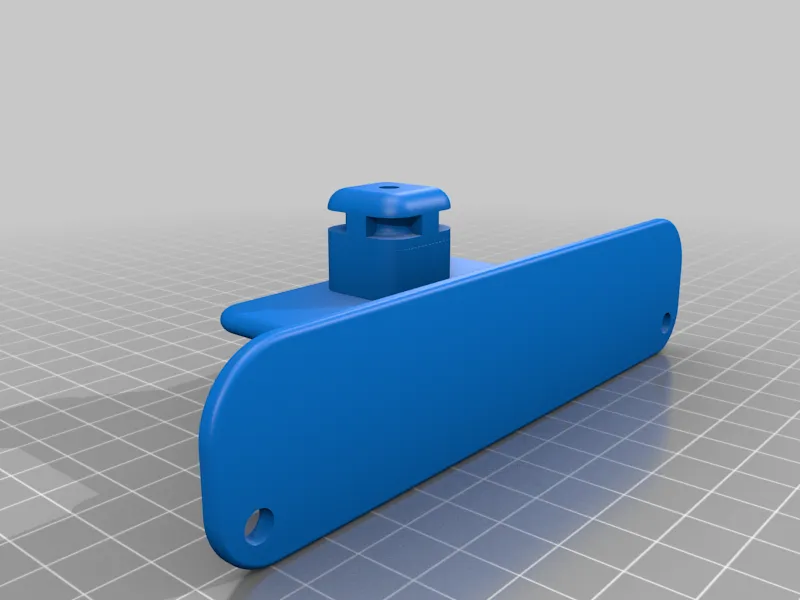

I created a connector to mount a DJI RC Controller on something else for handsfree usage - in this case on a Klickfix Quadmount.

The DJI RC Controller features four screw sockets (2x M4, 2x M2) which my thing is fitted to.

This controller type is namedDJI RC (without pro) and is currently shipped with the quadcopterDJI Mini 3 Pro. My thing will not fit to other, slightly different DJI controllers with integrated screens.

I use a lot of Klickfix stuff, so i added the Quad Adapter created by @simon_linder - the counterparts (pictured above) are easy to fit on any tube like a handlebar or another place.

You will need:

2x M4 screws with ~15mm length (and some washers)

2x M2 screws with ~8mm length (and some washers)

1x Klickfix Counterpart

Print Settings

Printer Brand:

Prusa

Printer:
